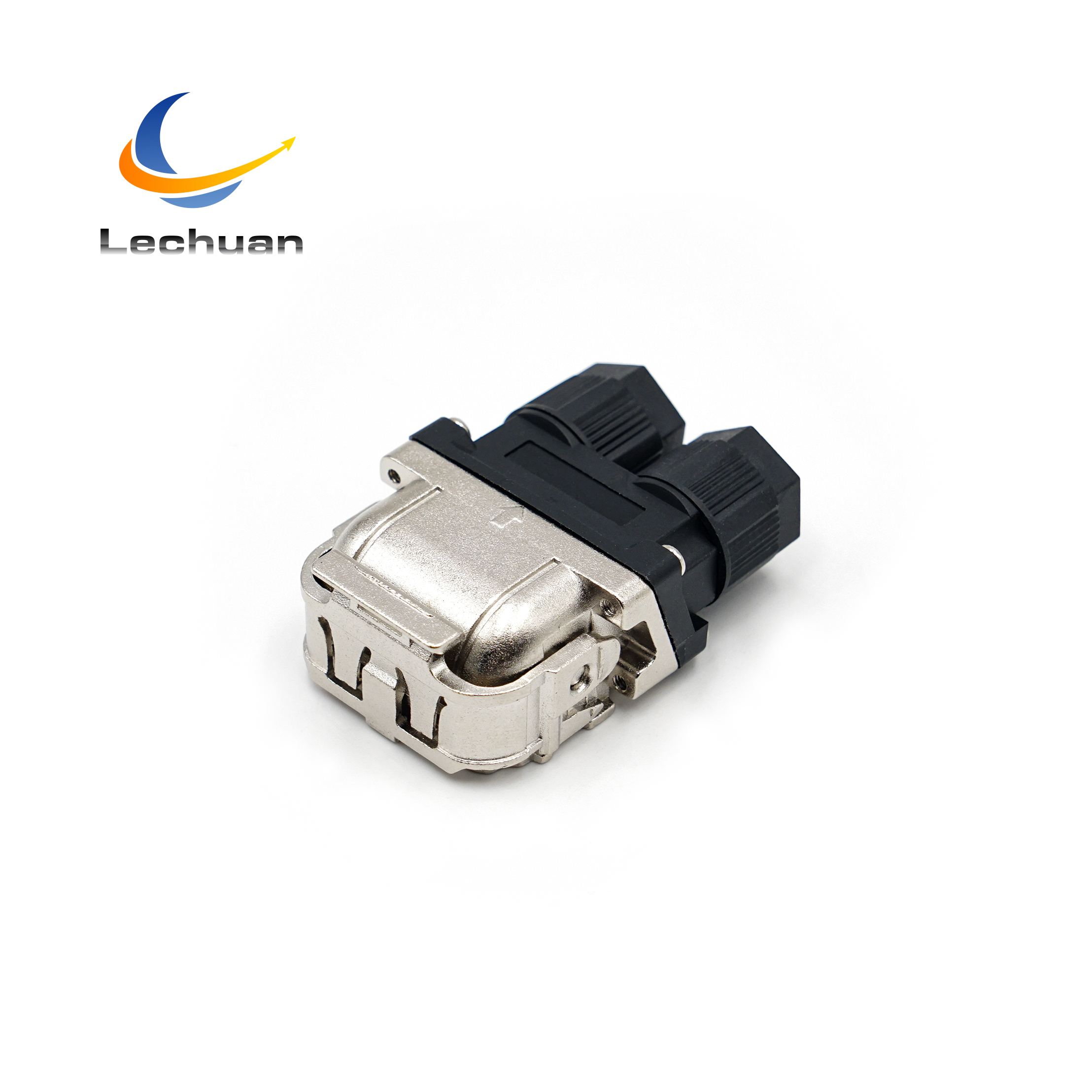

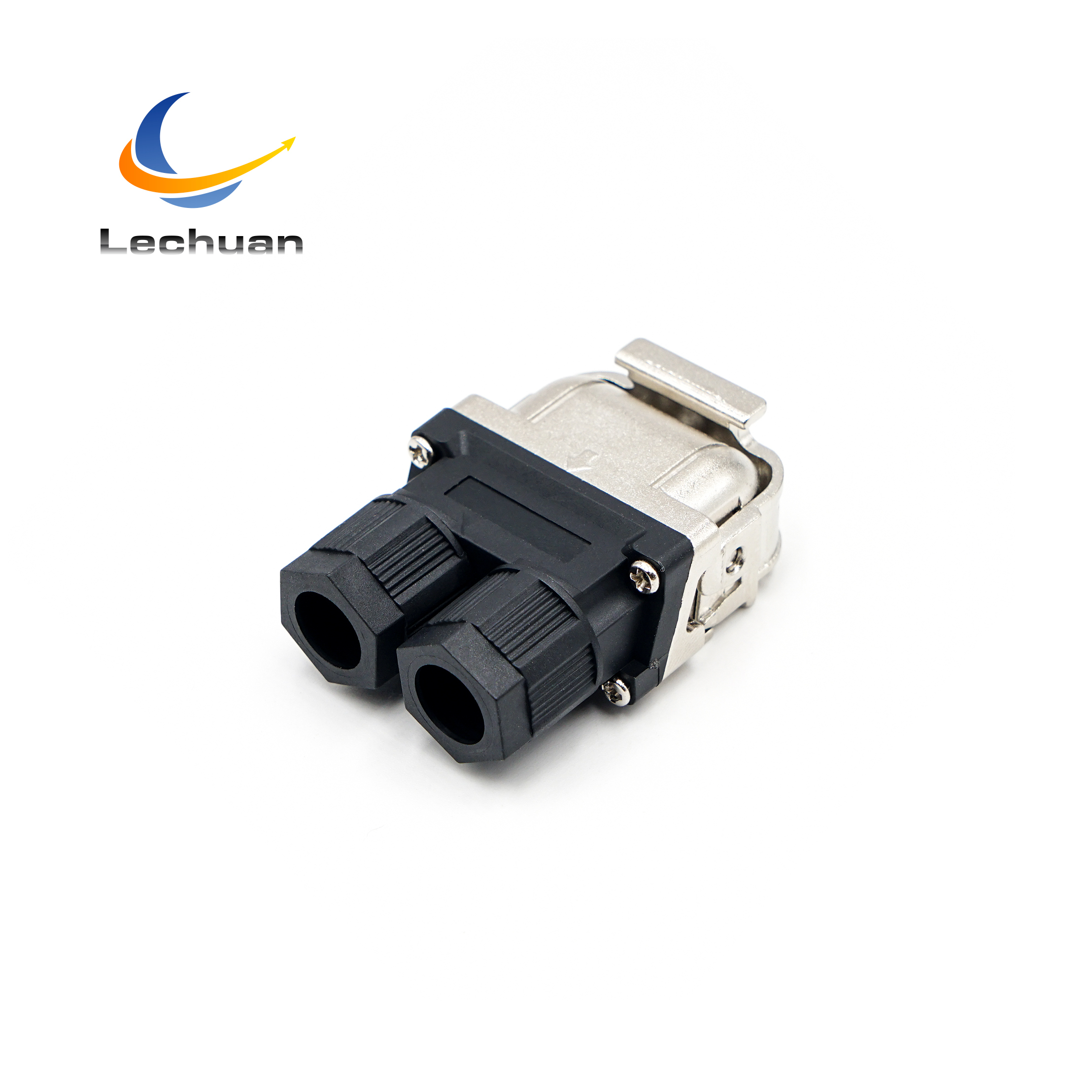

SIEMENS 6FX2003-3HD00 REPLACEMENT HYBRID SERVO MOTOR CONNECTOR
Direct replacement for the Siemens 6FX2003-3HD00 hybrid plug, the metal hybrid connector of the SINAMICS S200 servo system with the cable outlet in the drive end (DE) direction. Power and signal run through one connector, so a single plug carries the motor supply together with the encoder and brake cores.
WHAT YOU GET
Zinc alloy housing and locking cover, die cast ZA-3, nickel plated
Two inner contact bodies, PA66+25% GF, UL94V-0
4 power terminals and 8 encoder and brake terminals, phosphor bronze C5191, gold plated
Two grounding terminals and one shield shell, SUS 304
Plastic shell, two cable boots and two rear covers, PA66+25% GF, UL94V-0
Sealing ring and sealing tube,
TPPA rubber 4 screws PM2x8
WHY BUY IT

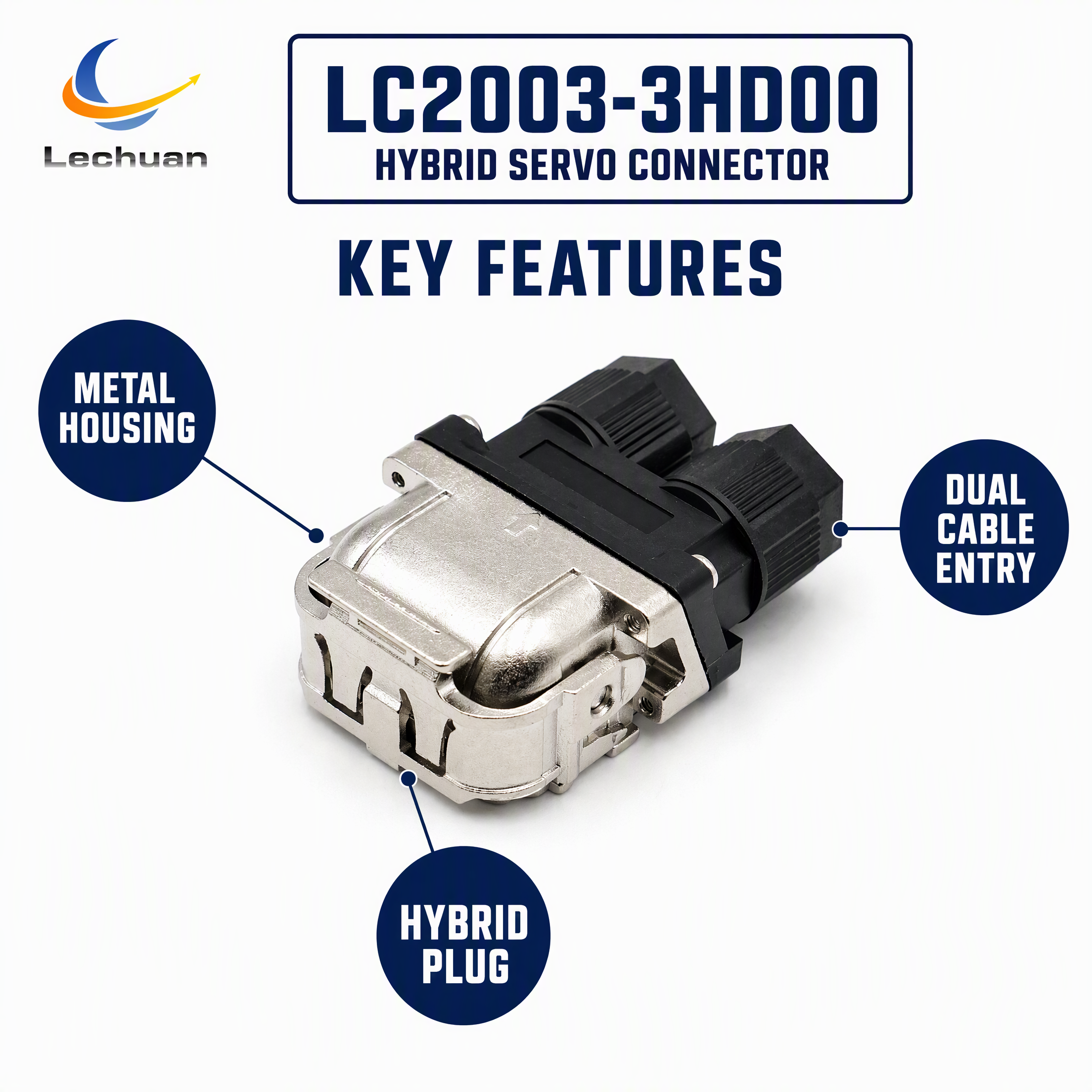

Hybrid design: power plus signal in one plug, fewer cable runs
Metal housing with a stainless shield shell

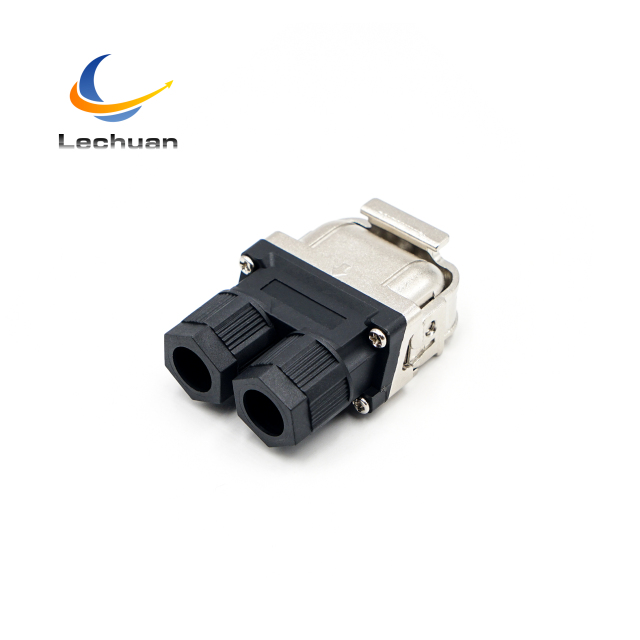

Dual cable entry for the power and the signal cable
Gold plated phosphor bronze contacts
Fits shaft heights 20, 30 and 40 of the S200 range
REPLACES / COMPATIBLE WITH
Siemens 6FX2003-3HD00 hybrid plug, DE direction (original packs of 5) SINAMICS S200 servo drives
APPLICATION Hybrid motor connection on SINAMICS S200 servo systems with SIMOTICS S-1FL2 motors. The S200 system is built for motion control in the standard servo motion market and is used in battery and electronics manufacturing as well as factory automation. Use this plug when you build or repair a motor cable, or when you need the drive end outlet direction.
SPECIFICATION
Contacts: 4 power plus 8 encoder and brake

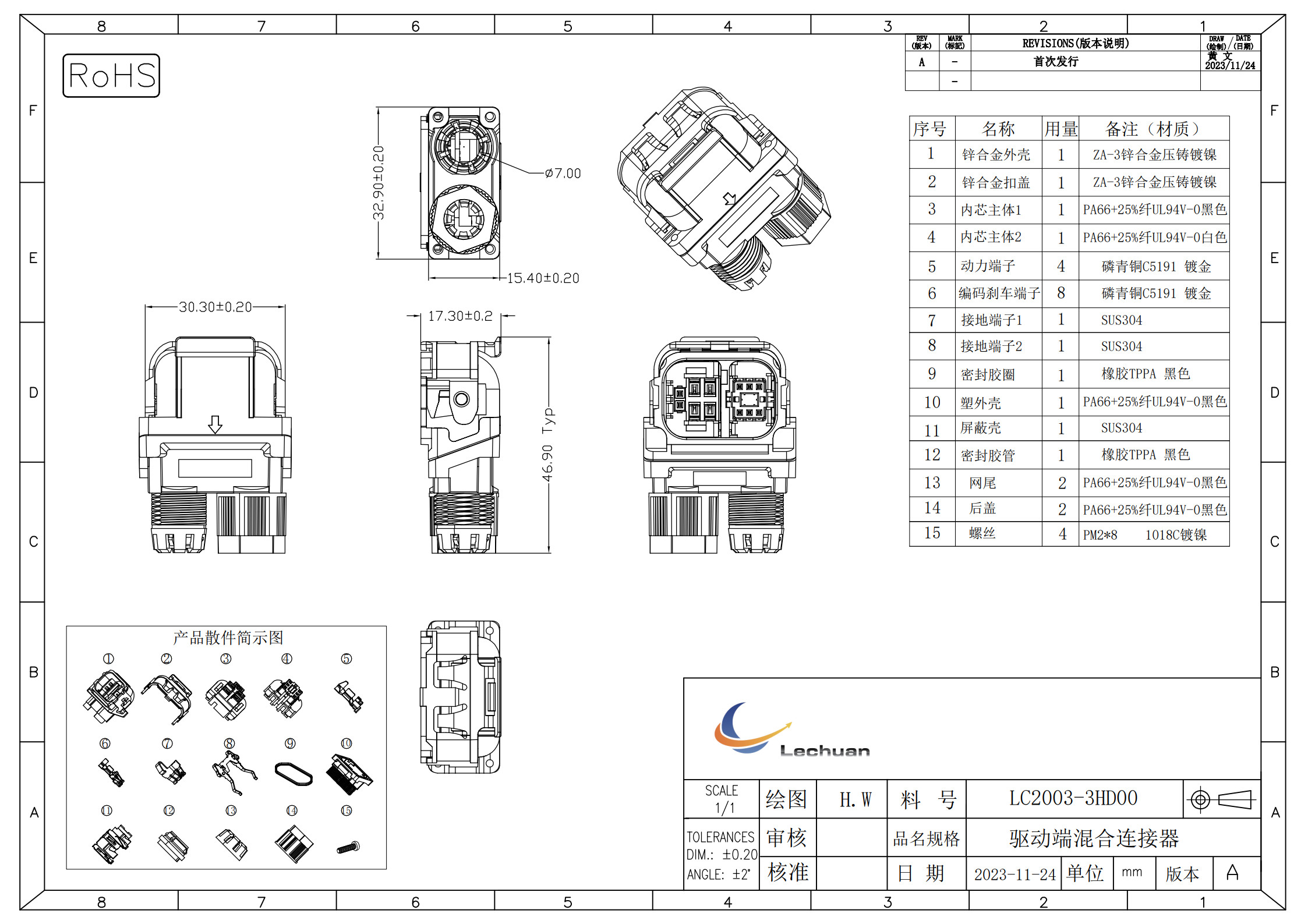

Size: 30.30 x 32.90 x 46.90 mm Connector face 17.30 mm; port pitch 15.40 mm; cable entry 7.00 mm dia Tolerance +/-0.20 mm
ROHS RoHS compliant.
