Name: MS3108A 24-11S MIL-DTL-5015 Series Circular Connector 9 Pin Female Right Angle Plug Cable Mount Test Measurement Automation
Brand: lechuantech
SKU: 1601917429193
Price: 4.50 USD
Availability: InStock

Description

Key attributes

Pins

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3108A 24-11S

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Straight

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

Female

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

24-11

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

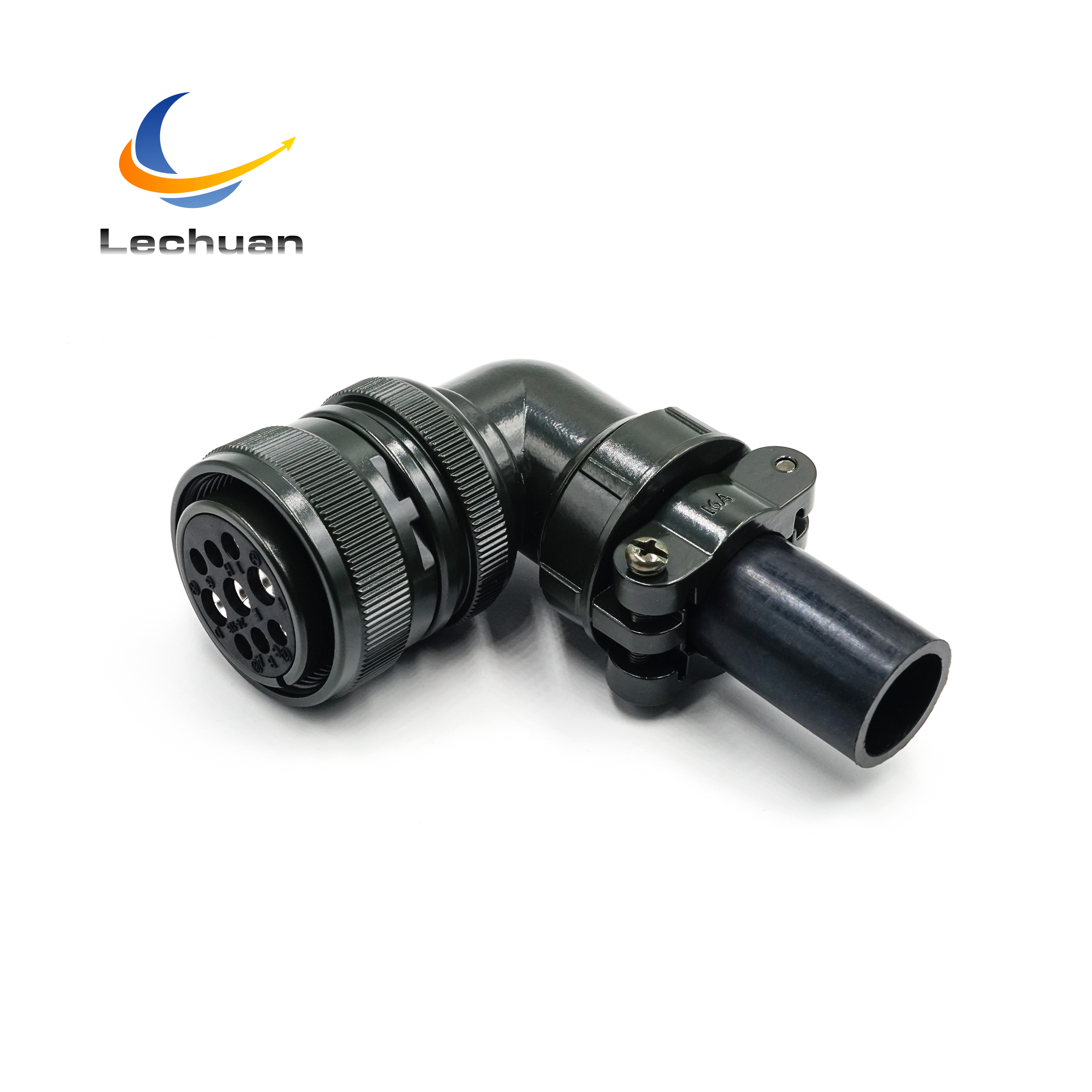

MS3108A 24-11S is a 5015 Series circular connector. Right angle plug with cable mount, shell size 24, 9 size-16 socket contacts (24-11 insert) for multi-signal circuits, aluminum alloy shell, threaded coupling with knurled ring, tail clamp with strain relief - the 90 degree cable exit for space-saving installations.

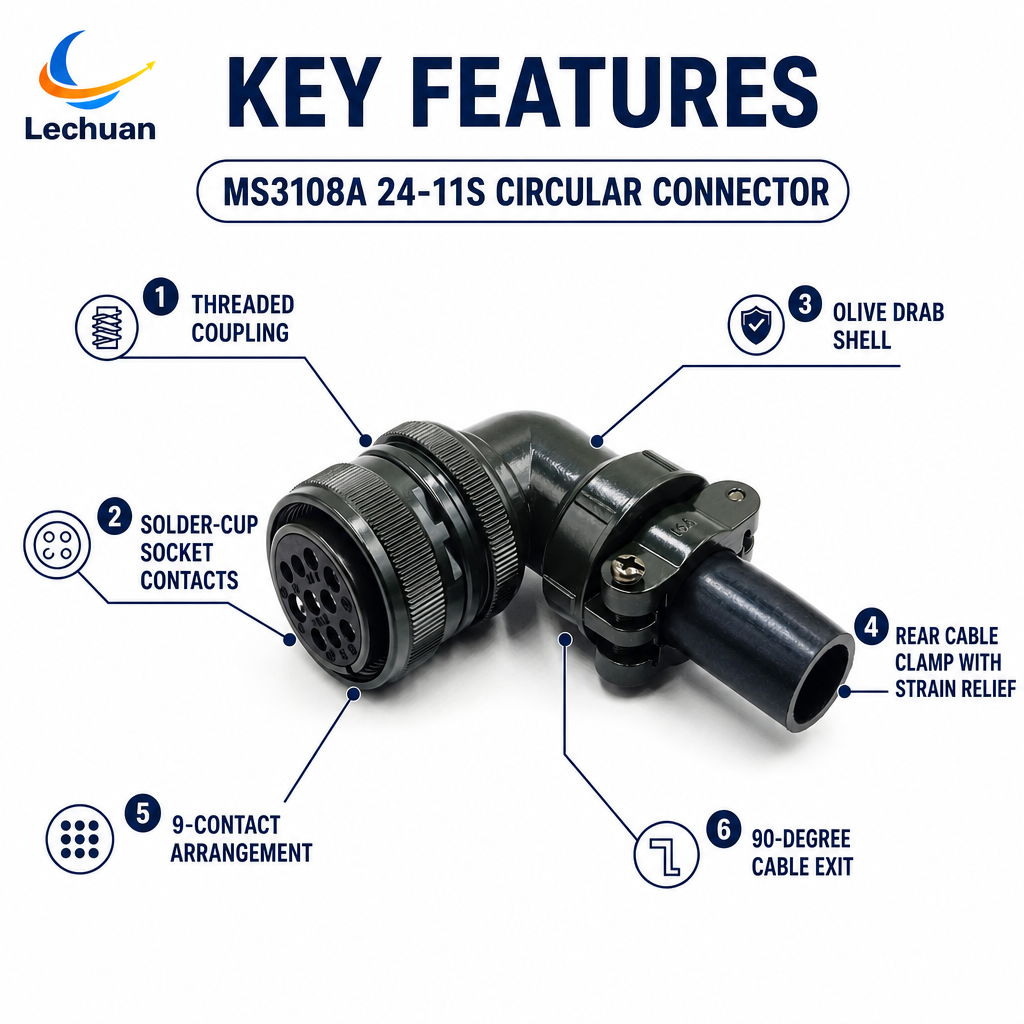

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series connectors for direct fit and replacement.

2. 90 Degree Right Angle Body - Cable exits at 90 degrees, saving space in tight cabinets and enclosures.

3. 9-Position Compact Layout - 24-11 insert arranges 9 size-16 socket contacts in a compact layout for multi-signal wiring.

4. Solder Cup Termination - Nine solder cup contacts accept wire ends for fast wiring.

5. Threaded Coupling - Knurled metal ring threads lock with the mating receptacle, resisting loosening under vibration and shock.

6. Cable Strain Relief - Tail cable clamp with pull-resistant sleeve protects the wire joint from bending and pulling.

7. Aluminum Alloy Shell - Aluminum housing provides light weight and durable protection.

8. B2B Customization - OEM/ODM: cable assembly, private labeling, bulk packaging; samples welcome.

Application Scenarios

Test and Measurement Instruments - Test benches, oscilloscopes and instrumentation racks where clean signal routing matters.

Medical and Laboratory Equipment - Medical devices, analyzers and lab instruments needing reliable signal connections.

Elevator and Building Controls - Elevator control cabinets, access systems and automation panels.

HVAC and Refrigeration Systems - HVAC controllers, chillers and refrigeration units in commercial buildings.

Packaging and Filling Machinery - Packaging lines and filling machines with confined wiring spaces.

Audio and Broadcasting Equipment - Broadcast consoles, studio gear and audio systems needing tidy cable management.
