Name: MS3108A 22-22S 5015 Series Circular Connector 4 Pin Female Right Angle Plug Cable Mount EV Charging Energy Storage
Brand: lechuantech
SKU: 1601917616345
Price: 4.00 USD
Availability: InStock

Description

Key attributes

Pins

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3108A 22-22S

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Right Angle

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

Female

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

22-22

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

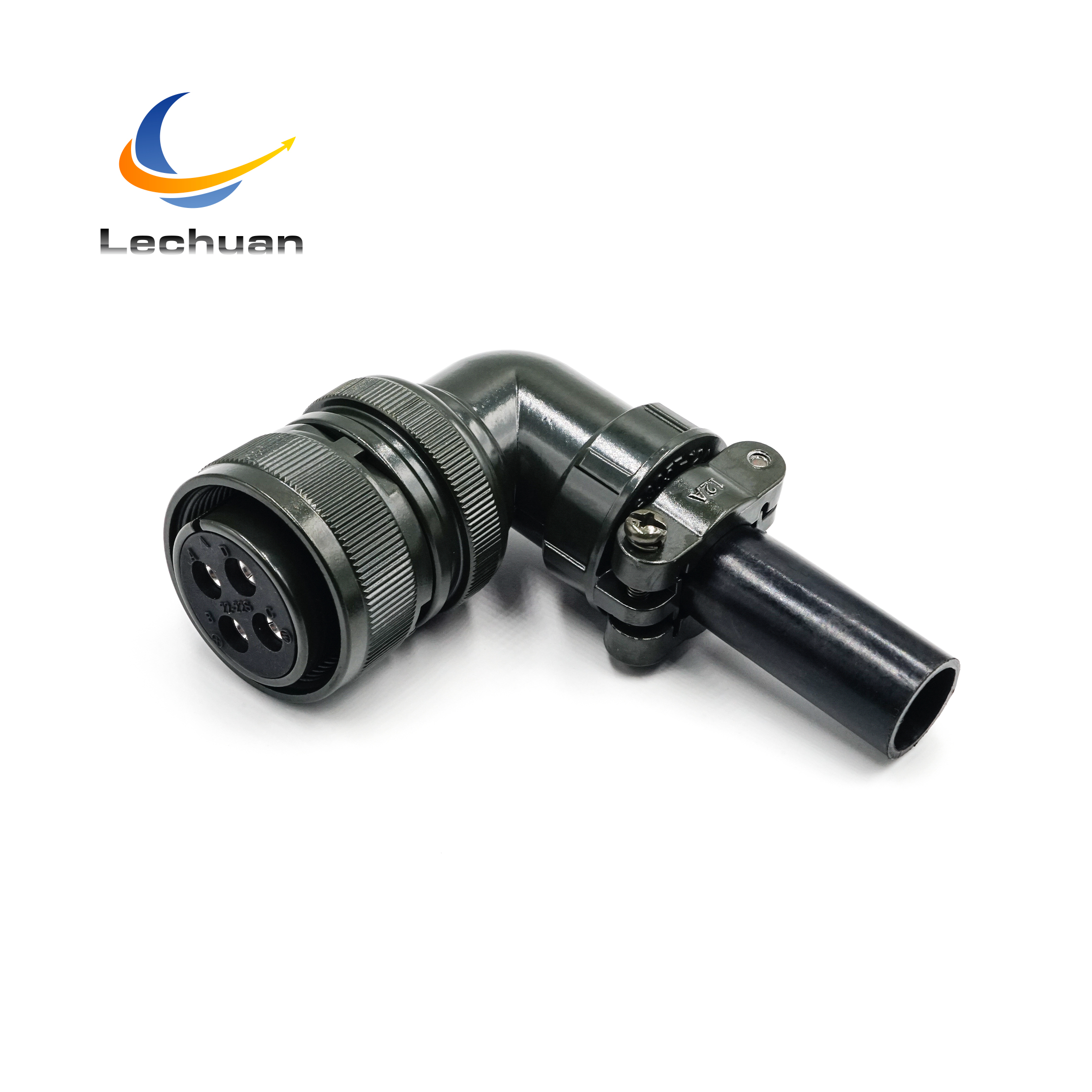

MS3108A 22-22S is a 5015 Series circular connector. Right angle plug with cable mount, shell size 22, 4 size-8 socket contacts (22-22 insert) for high-current power circuits, aluminum alloy shell, threaded coupling with knurled ring, tail clamp with strain relief - the 90 degree cable exit for space-saving installations.

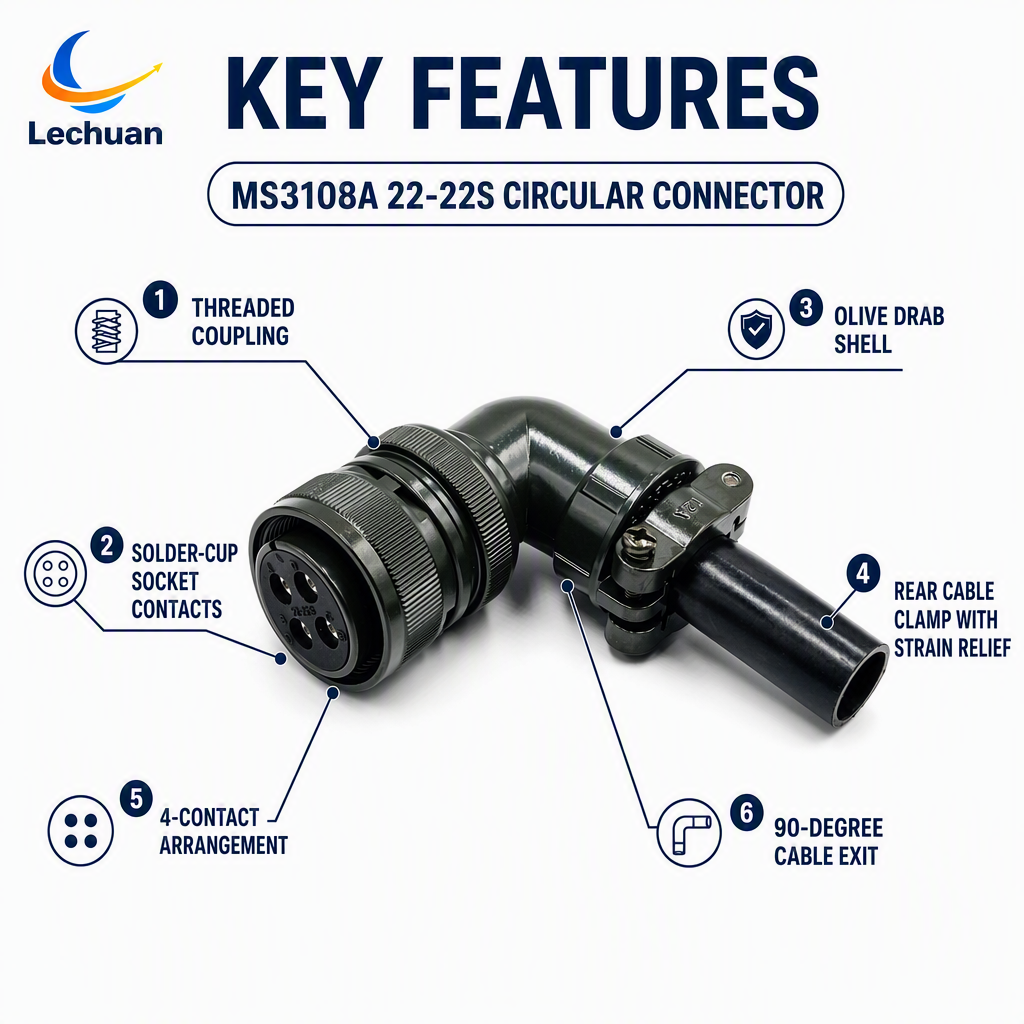

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series connectors for direct fit and replacement.

2. 90 Degree Right Angle Body - Cable exits at 90 degrees, saving space in tight cabinets and enclosures.

3. 4-Position High-Current Layout - 22-22 insert arranges 4 size-8 socket contacts for high-current power circuits.

4. Solder Cup Termination - Four solder cup contacts accept heavy-gauge wire ends for fast wiring.

5. Threaded Coupling - Knurled metal ring threads lock with the mating receptacle, resisting loosening under vibration and shock.

6. Cable Strain Relief - Tail cable clamp with pull-resistant sleeve protects the wire joint from bending and pulling.

7. Aluminum Alloy Shell - Aluminum housing provides light weight and durable protection.

8. Direct Replacement - Compatible with Amphenol MS3108A22-22S and ITT Cannon CA3108A22-22S for direct replacement.

Application Scenarios

EV Charging Infrastructure - Charging piles and power cabinets for electric vehicle charging stations.

Battery Energy Storage - Battery packs and energy storage systems requiring high-current interconnect.

Renewable Energy Inverters - Inverter cabinets and power units in solar and wind installations.

Generator and Standby Power - Generator sets and standby power units where high-current connections stay reliable.

Marine and Shipboard Power - Shipboard power circuits and marine electronics exposed to salt air and humidity.

Railway and Transit Power - Traction power and transit systems requiring heavy-duty contacts.
