Name: MS3108A 20-4S 5015 Series Circular Connector 4 Pin Female Right Angle Plug Cable Mount Medical Laboratory HVAC
Brand: lechuantech
SKU: 1601917362650
Price: 4.00 USD
Availability: InStock

Description

Key attributes

Pins

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3108A 20-4S

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Right Angle

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

Female

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

20-4

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

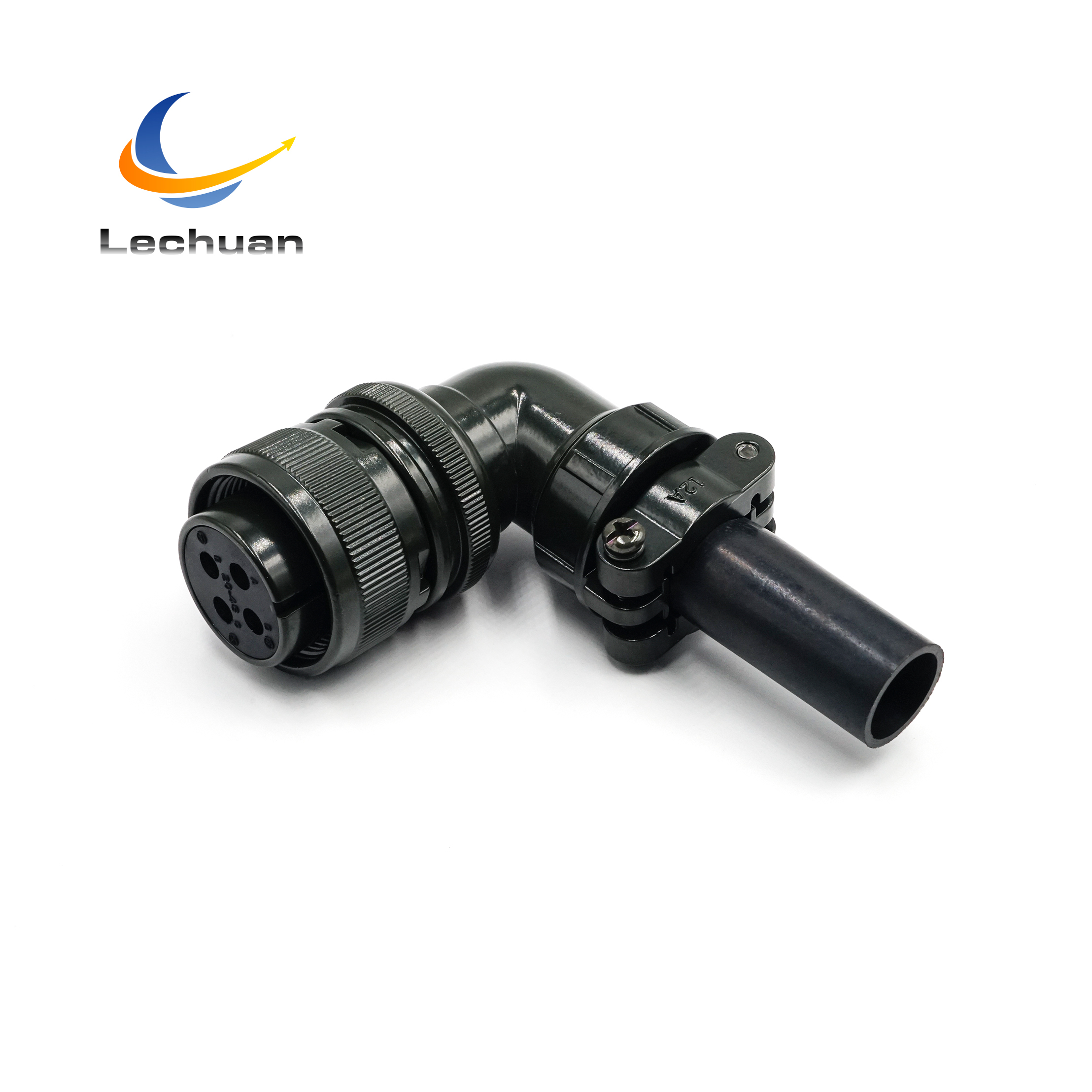

MS3108A 20-4S is a 5015 Series circular connector. Right angle plug with cable mount, shell size 20, 4 size-16 socket contacts (20-4 insert) for signal circuits, aluminum alloy shell, threaded coupling with knurled ring, tail clamp with strain relief - the 90 degree cable exit for space-saving installations.

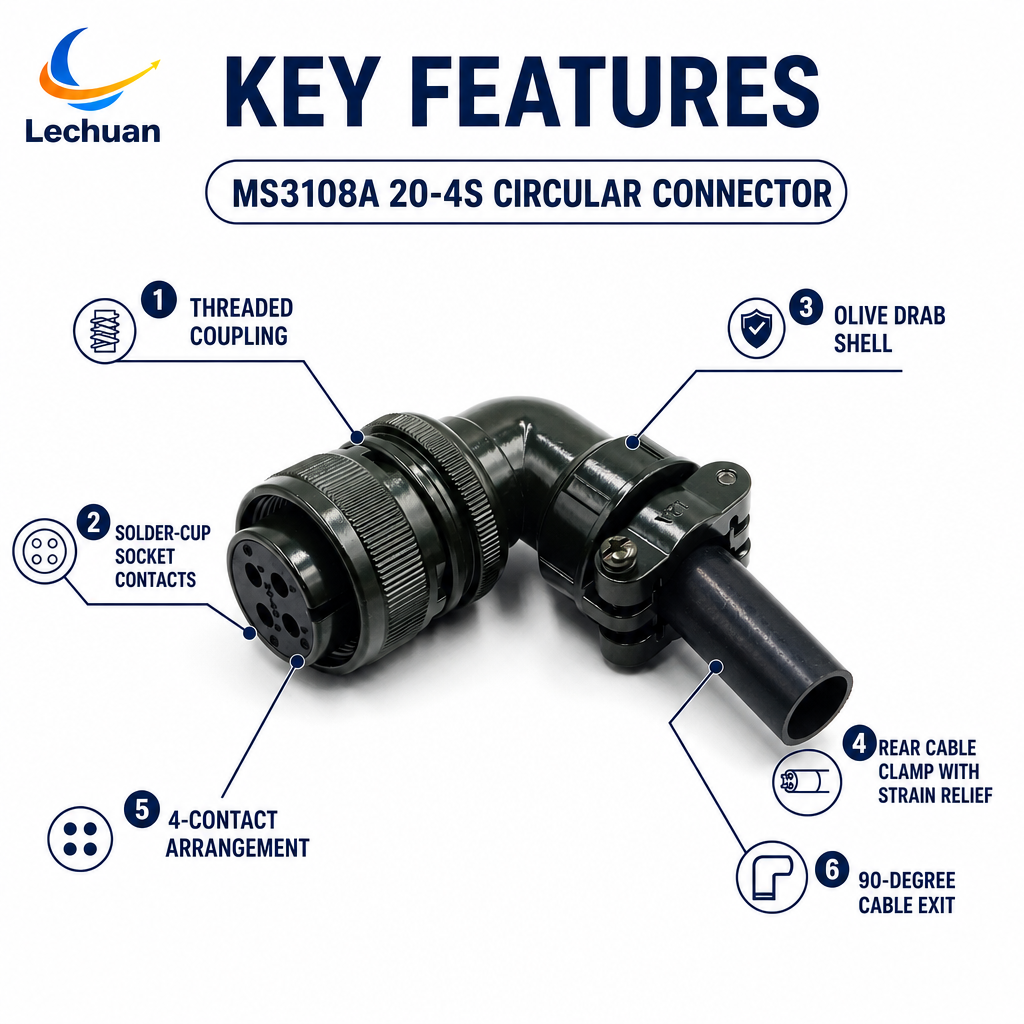

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series connectors for direct fit and replacement.

2. 90 Degree Right Angle Body - Cable exits at 90 degrees, saving space in tight cabinets and enclosures.

3. 4-Position Compact Layout - 20-4 insert arranges 4 size-16 socket contacts in a compact layout for signal wiring.

4. Solder Cup Termination - Four solder cup contacts accept wire ends for fast wiring.

5. Threaded Coupling - Knurled metal ring threads lock with the mating receptacle, resisting loosening under vibration and shock.

6. Cable Strain Relief - Tail cable clamp with pull-resistant sleeve protects the wire joint from bending and pulling.

7. Aluminum Alloy Shell - Aluminum housing provides light weight and durable protection.

8. B2B Customization - OEM/ODM: cable assembly, private labeling, bulk packaging; samples welcome.

Application Scenarios

Medical Devices and Diagnostics - Patient monitors, imaging systems and diagnostic equipment requiring reliable signal wiring.

Laboratory and Research Instruments - Lab analyzers, test instruments and research equipment on the bench.

HVAC and Climate Control - HVAC controllers, thermostats and climate control panels in commercial buildings.

Elevator and Access Control - Elevator panels, access control and intercom systems in buildings.

Cleanroom and Pharmaceutical - Cleanroom tools and pharmaceutical equipment with tidy cable management.

Building and Facility Automation - Building automation panels, lighting control and facility management systems
