Name: MS3108A 20-29S 5015 Series Circular Connector 17 Pin Female Right Angle Plug Cable Mount Mining Petrochemical Marine
Brand: lechuantech
SKU: 1601917415558
Price: 4.00 USD
Availability: InStock

Description

Key attributes

Pins

17P

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3108A 20-15S

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Right Angle

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

Female

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

20-15

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

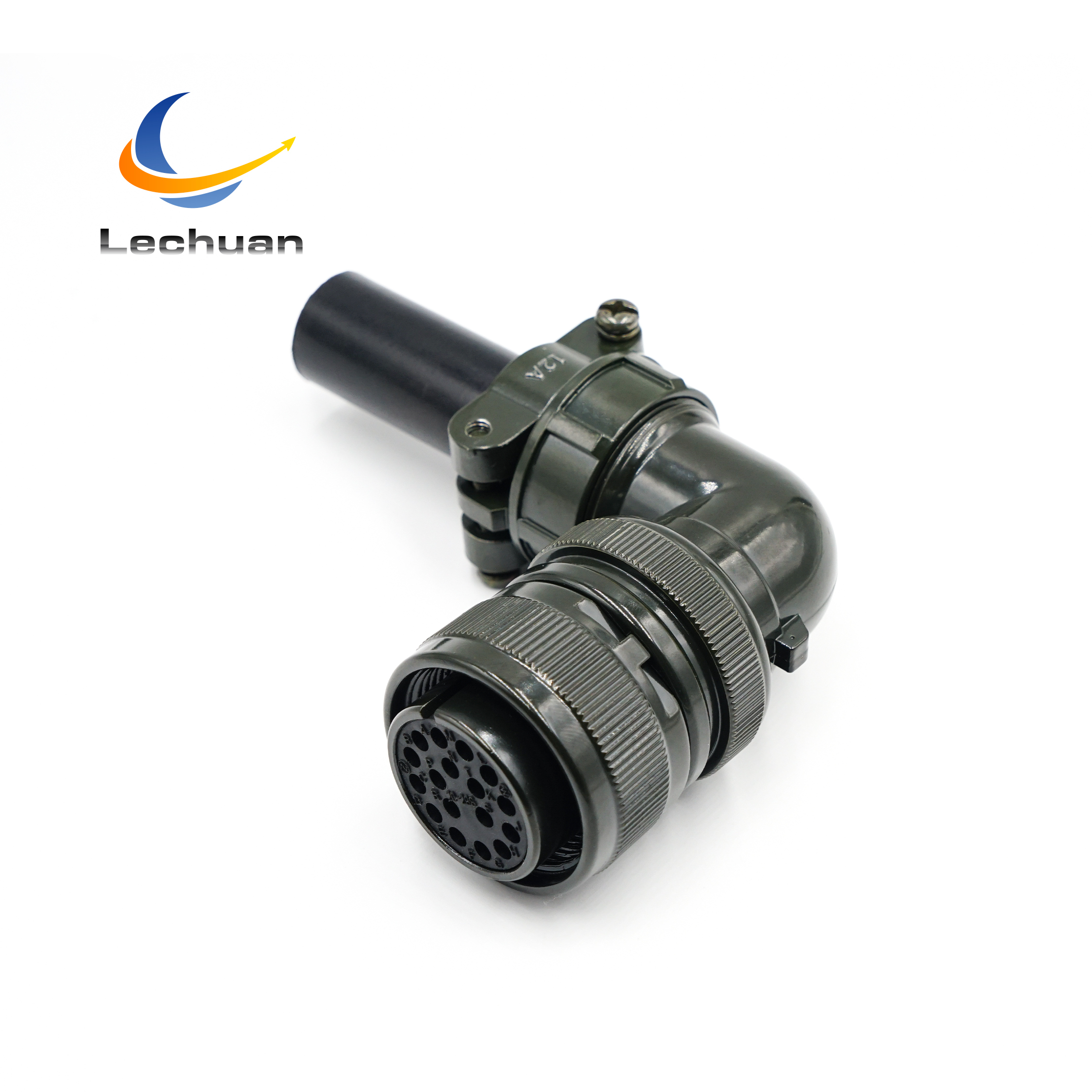

MS3108A 20-29S is a 5015 Series circular connector. Right angle plug with cable mount, shell size 20, 17 size-16 socket contacts (20-29 insert) for high-density signal circuits, aluminum alloy shell, threaded coupling with knurled ring, tail clamp with strain relief - the 90 degree cable exit for space-saving installations.

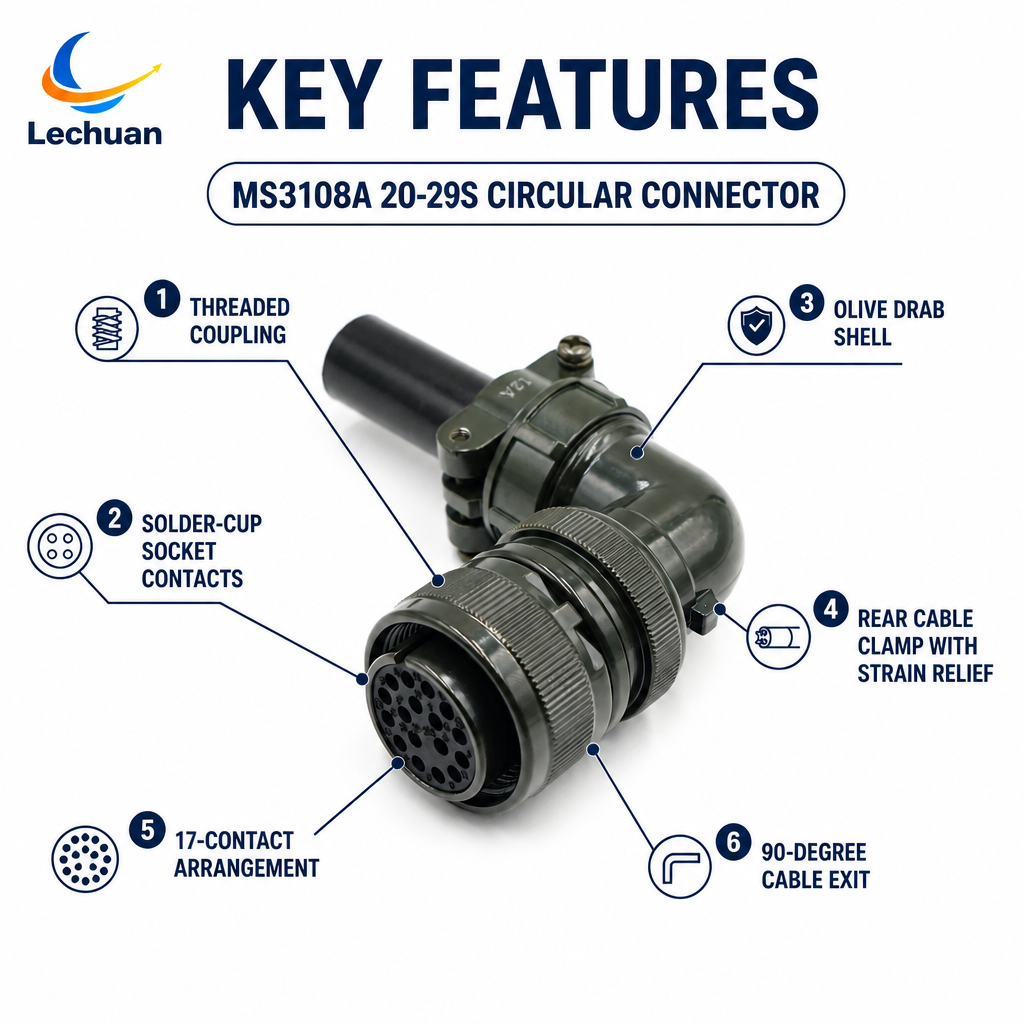

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series connectors for direct fit and replacement.

2. 90 Degree Right Angle Body - Cable exits at 90 degrees, saving space in tight cabinets and enclosures.

3. 17-Position Compact Layout - 20-29 insert arranges 17 size-16 socket contacts in a compact layout for high-density signal wiring.

4. Solder Cup Termination - Seventeen solder cup contacts accept wire ends for fast wiring.

5. Threaded Coupling - Knurled metal ring threads lock with the mating receptacle, resisting loosening under vibration and shock.

6. Cable Strain Relief - Tail cable clamp with pull-resistant sleeve protects the wire joint from bending and pulling.

7. Aluminum Alloy Shell - Aluminum housing provides light weight and durable protection.

8. Direct Replacement - Compatible with Amphenol MS3108A20-29S and ITT Cannon CA3108A20-29S for direct replacement.

Application Scenarios

Mining and Quarrying Equipment - Mine machinery, crushers and conveyor systems exposed to dust, vibration and shock.

Petrochemical and Chemical Plants - Process instrumentation and control loops in petrochemical facilities.

Marine and Shipboard Systems - Shipboard instrumentation and marine electronics exposed to salt air and humidity.

Earthmoving and Heavy Machinery - Excavators, dozers and heavy equipment in field operations.

Offshore and Energy Platforms - Offshore platforms and energy installations in harsh environments.

Outdoor Field Communication - Field communication systems needing rugged signal connections.

About this supplier

With over 20 years of deep industry experience, Cixi Lechuan is a diversified enterprise of industrial connectivity and electronic component solutions. Integrating manufacturing, sales, and comprehensive technical support. Our core expertise lies in the design, development, and production of high-performance industrial electrical connectors and electronic components.We serve Industries like, Industrial Automation Robotics,Energy Power Systems, Telecommunications ,Military and Security Surveillance Systems ect.At Lechuan, we are more than a manufacturer; we are a strategic partner dedicated to powering progress through superior connectivity.

Company overview

FAQs

Manufacturer or trading company? Where is the company located?

We have own factory in Ningbo Cixi which specializing in domestic supply, starting from, we set up the exporting department.

What parts can the company supply?

Our main products are: Industrial control connectors, military Circular connector, PCB board connectors and other electric components.

How long have you been involved in this market?

We have been in this market more then 20 years.

Does the product itself support OEM customization?

We support OEM

Mass production time and delivery time.

7-15 days
