Name: MS3106A 22-22S MIL-DTL-5015 Series Circular Connector 4 Pin Female Straight Plug Cable Mount Power Generation Mining Welding
Brand: lechuantech
SKU: 1601917405228
Price: 4.00 USD
Availability: InStock

Description

Key attributes

Pins

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3106A 22-22S

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Straight

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

Female

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

22-22

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

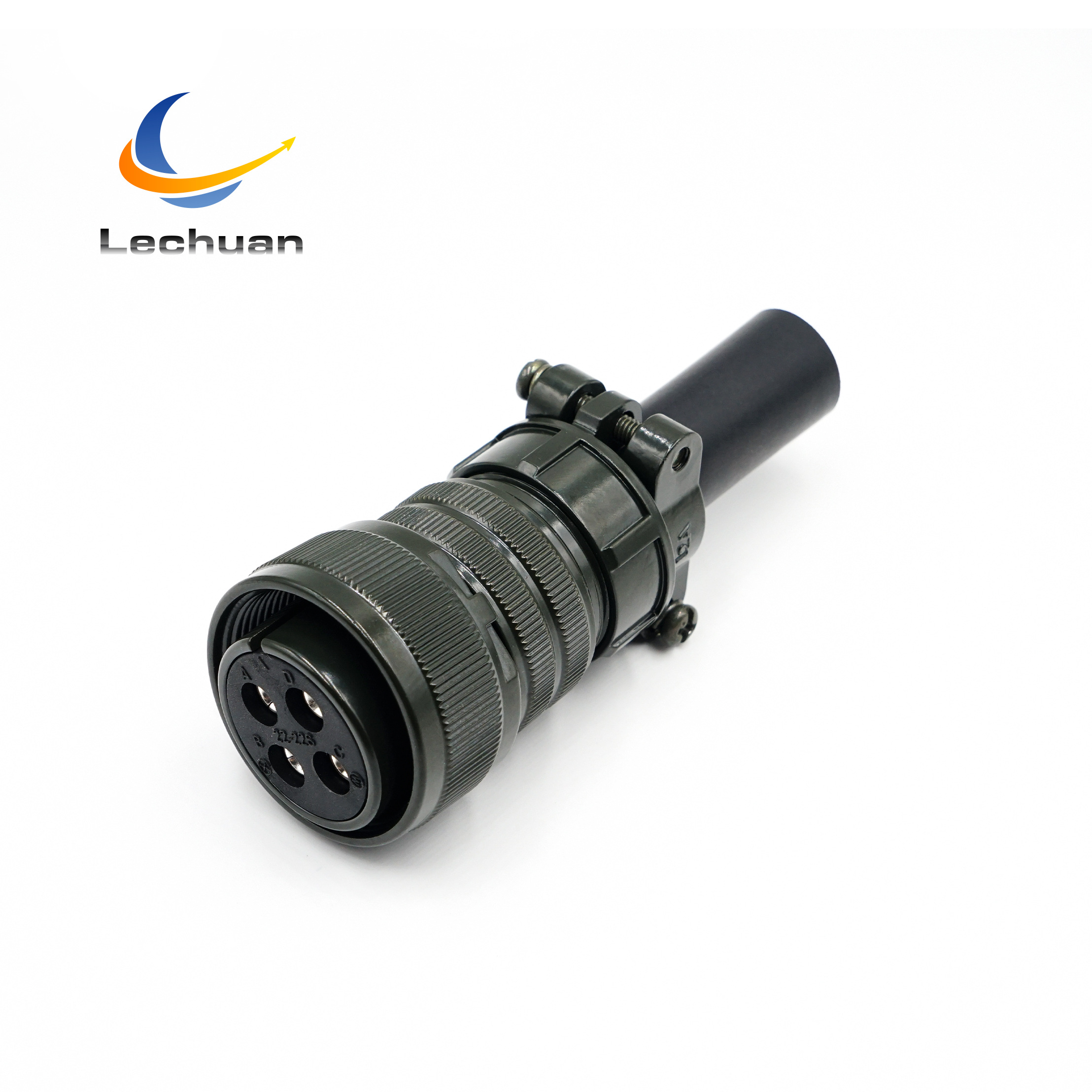

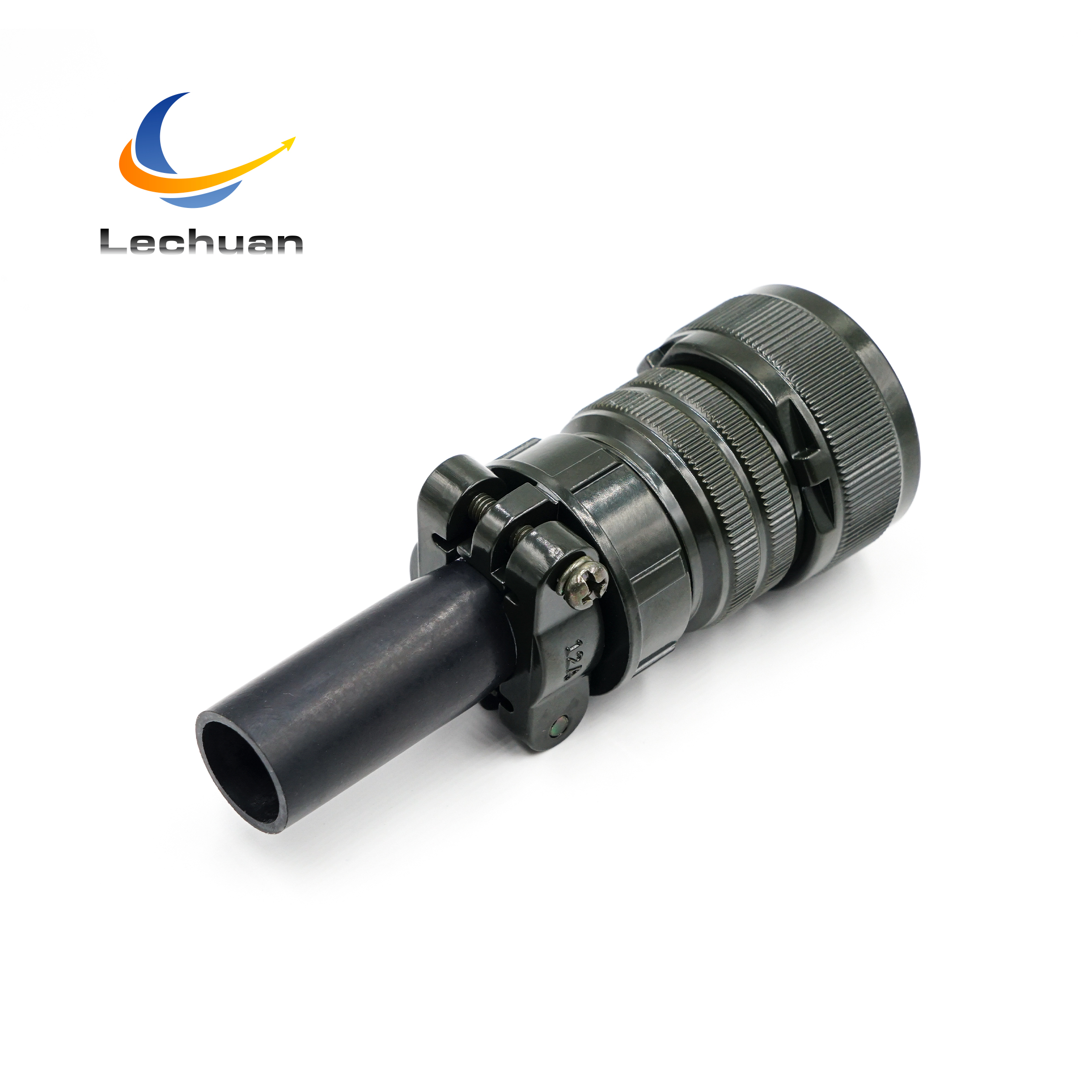

MS3106A 22-22S is a 5015 Series circular connector. Straight plug with cable mount, shell size 22, 4 size-8 socket contacts (22-22 insert) for high-current power circuits, aluminum alloy shell, threaded coupling with knurled ring, tail clamp with strain relief - the cable end for power equipment.

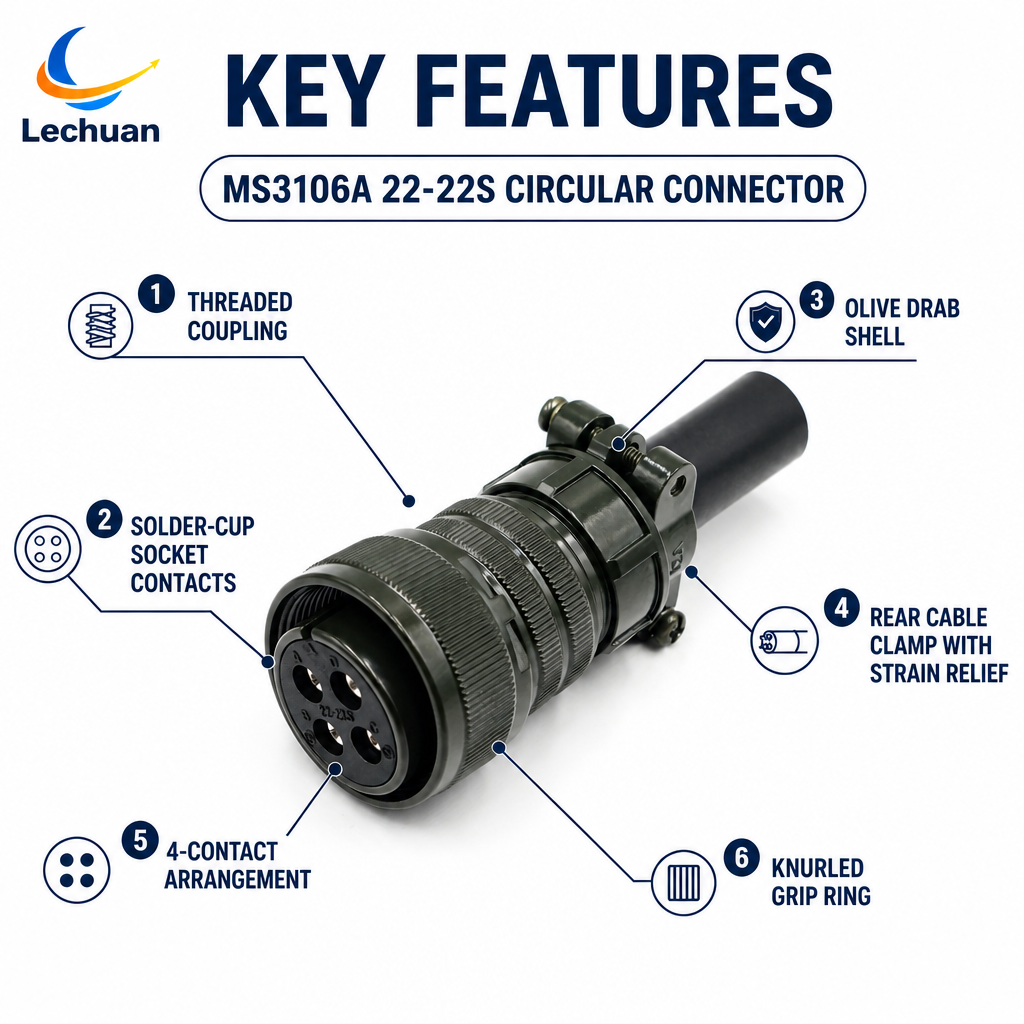

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series straight plugs for direct fit and replacement.

2. 4-Position High-Current Layout - 22-22 insert arranges 4 size-8 socket contacts for high-current multi-circuit wiring.

3. Solder Cup Termination - Four solder cup contacts accept heavy-gauge wire ends for fast wiring.

4. Threaded Coupling - Knurled metal ring threads lock with the mating receptacle, resisting loosening under vibration and shock.

5. Cable Strain Relief - Tail cable clamp with pull-resistant sleeve protects the wire joint from bending and pulling.

6. Aluminum Alloy Shell - Aluminum housing provides light weight and durable protection.

7. Cable Mount Straight Plug - Straight body with cable mount design suits harness assembly and field connections.

8. B2B Customization - OEM/ODM: cable assembly, private labeling, bulk packaging; samples welcome.

Application Scenarios

Power Generation and Distribution - Generator sets, switchgear and panels where high-current connections must stay secure.

Welding and Cutting Equipment - Welding machines and plasma cutters; heavy-gauge contacts carry welding current.

Mining and Heavy Machinery - Mine equipment and excavators exposed to dust, vibration and shock in the field.

EV Charging Infrastructure - Charging piles and power cabinets for electric vehicle charging stations.

Renewable Energy Systems - Inverter cabinets and power units in solar and wind installations.

Industrial Battery and Energy Storage - Battery packs and storage systems requiring high-current interconnect.
