Name: MS3106A 20-4S 5015 Series Circular Connector 4 Pin Female Straight Plug Cable Mount Railway Transit Wind Energy
Brand: lechuantech
SKU: 1601917350133
Price: 5.00 USD
Availability: InStock

Description

Key attributes

Pins

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3106A 20-4S

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Straight

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

female

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

20-4

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

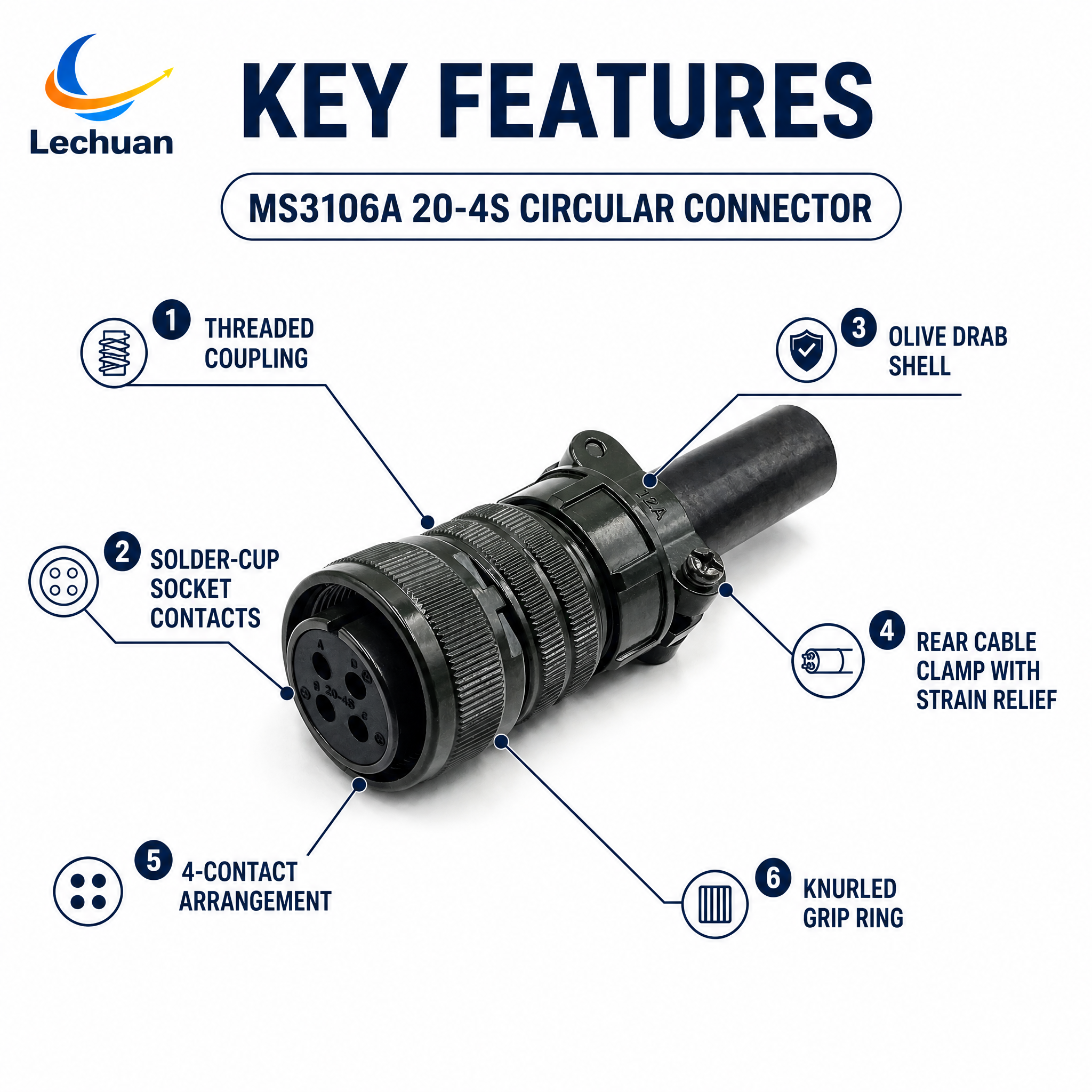

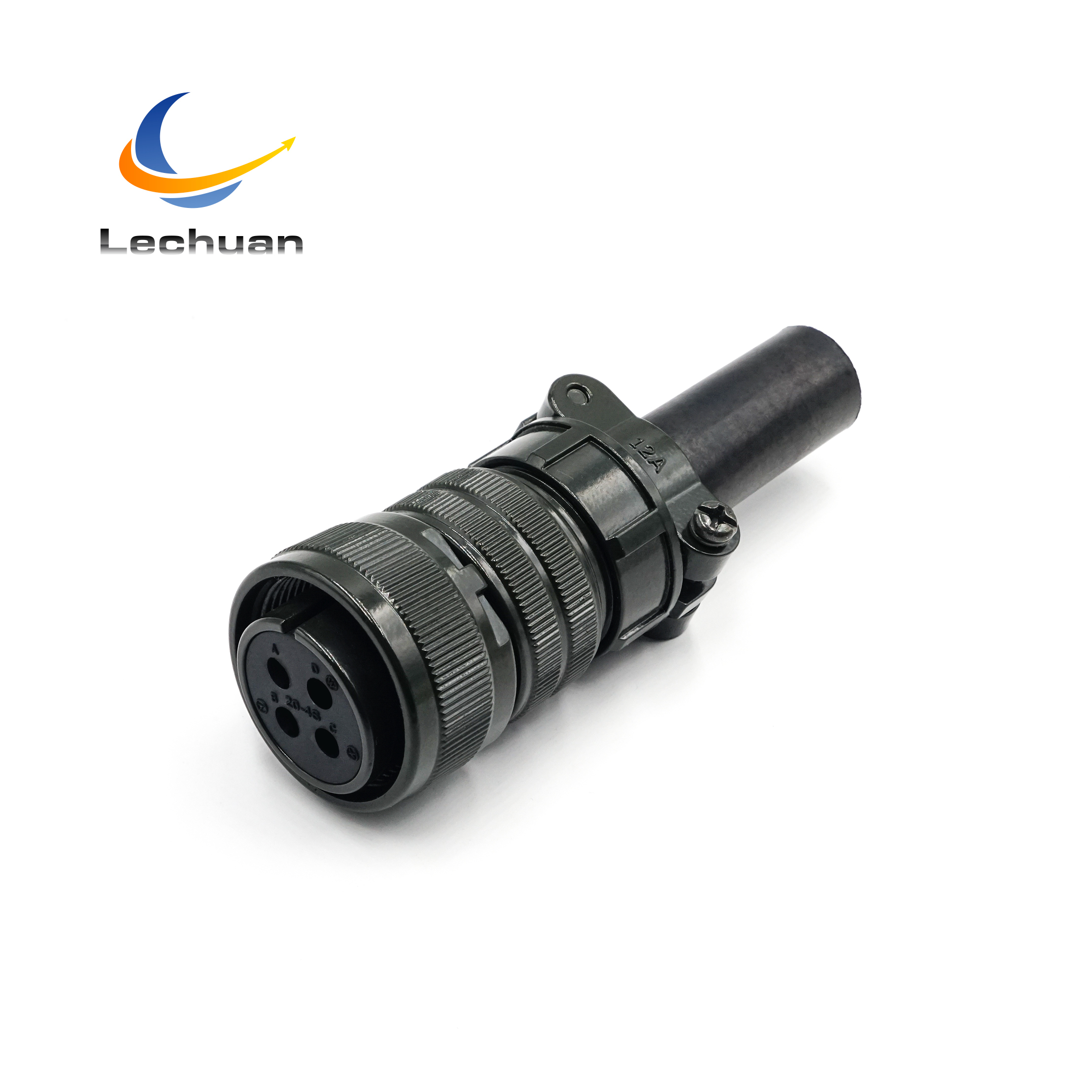

MS3106A 20-4S is a 5015 Series circular connector. Straight plug with cable mount, shell size 20, 4 socket contacts (20-4 insert), #12 size, olive drab shell, threaded coupling with knurled nut, tail clamp with strain relief - the cable end for industrial and outdoor equipment.

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series straight plugs for direct fit and replacement.

2. 4-Position Compact Layout - 20-4 insert arranges 4 socket contacts in a compact shell size 20 body for multi-circuit wiring.

3. 23A Rated Contacts - #12 socket contacts rated 23A per contact for power and signal circuits.

4. Solder Cup Termination - Four solder cup contacts accept wire ends for fast wiring.

5. Threaded Coupling - Knurled coupling nut locks with the mating receptacle, resisting loosening under vibration and shock.

6. Cable Strain Relief - Tail cable clamp with pull-resistant sleeve protects the wire joint from bending and pulling.

7. Olive Drab Shell - Olive drab surface finish resists corrosion in harsh environments.

8. Direct Replacement - Compatible with Amphenol MS3106A 20-4S and ITT Cannon CA3106A 20-4S for direct replacement.

Application Scenarios

Railway and Rail Transit - Rail signaling, train control and station equipment under continuous vibration.

Wind and Solar Energy - Inverter cabinets, junction boxes and control units for renewable power plants.

Petrochemical and Mining - Field instruments and control panels in dusty or corrosive plant environments.

Construction and Heavy Machinery - Excavators, cranes and concrete equipment where rugged connections are required.

Elevator and Building Automation - Elevator controllers, HVAC panels and access control systems.

Medical and Laboratory - Medical devices, lab instruments and monitoring equipment.
