Name: MS3106A 20-29S 5015 Series Circular Connector 17 Pin Female Straight Plug Cable Mount Plastics Foundry Airport
Brand: lechuantech
SKU: 1601917288749
Price: 3.80 USD
Availability: InStock

Description

Key attributes

Pins

17P

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3106A 20-29S

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Straight

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

Female

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

20-29

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

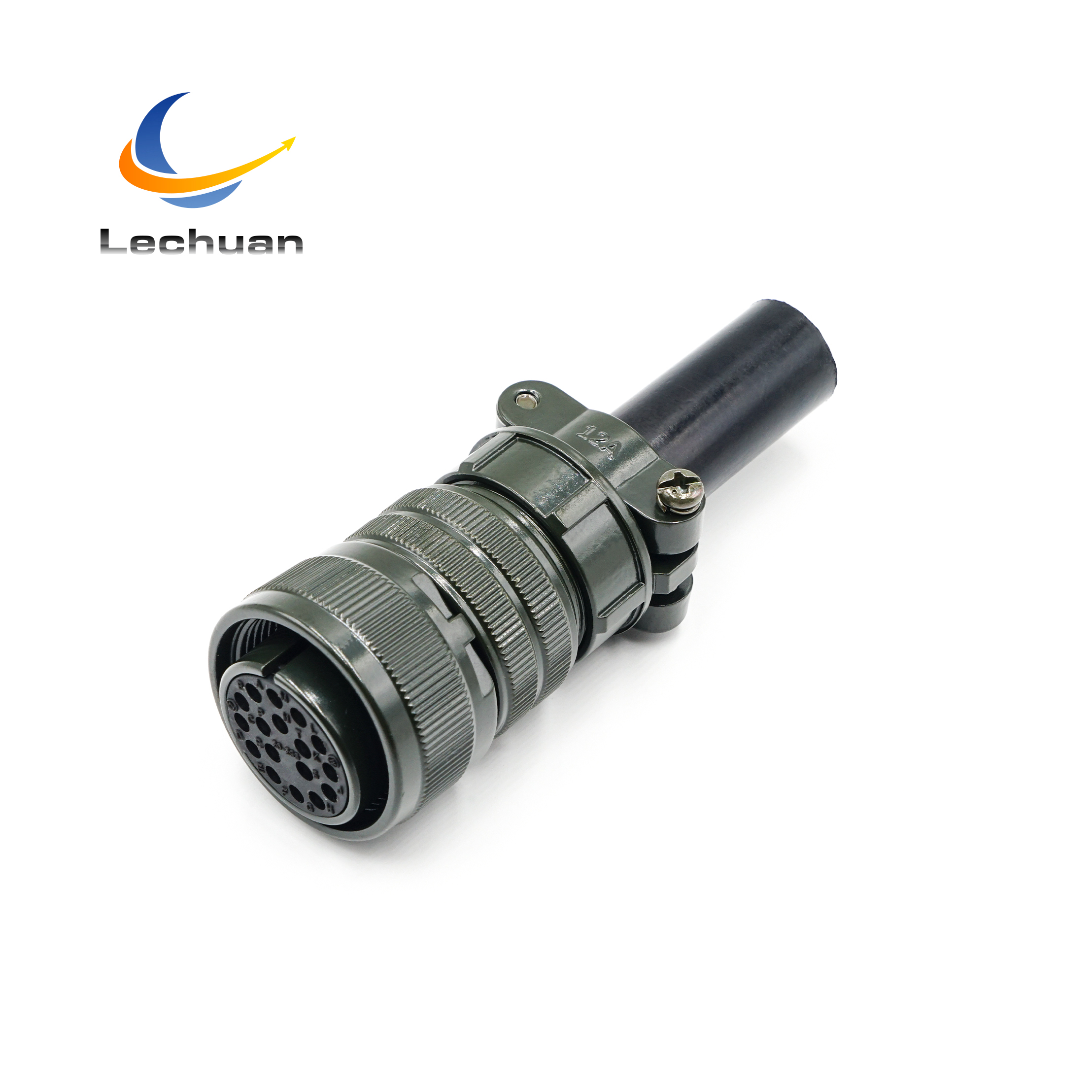

MS3106A 20-29S is a 5015 Series circular connector. Straight plug with cable mount, shell size 20, 17 socket contacts (20-29 insert), #16 solder cups, olive drab shell, threaded coupling with knurled nut, solid backshell with two-piece clamp and strain relief - the cable end for industrial and outdoor equipment.

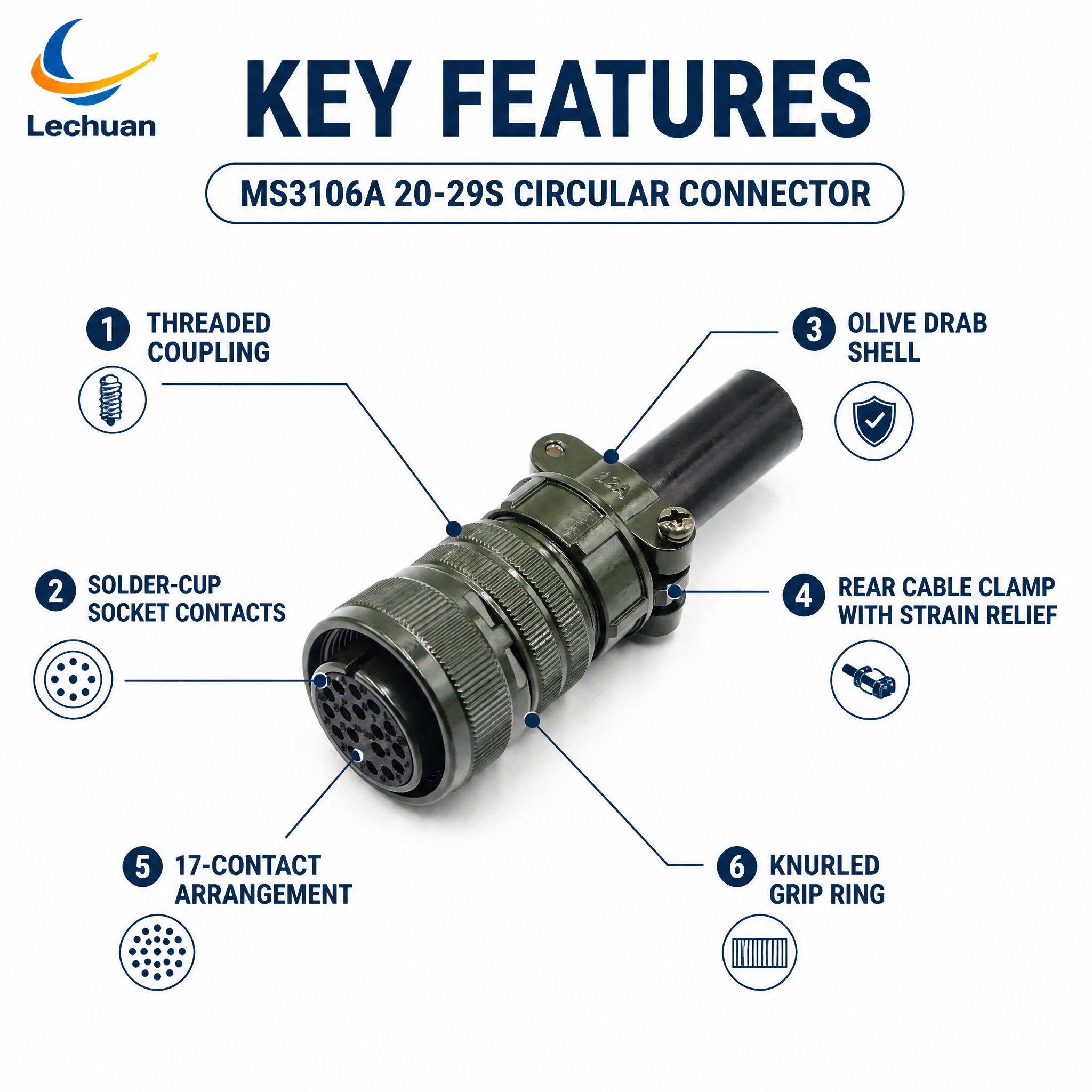

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series straight plugs for direct fit and replacement.

2. 17-Position Compact Layout - 20-29 insert arranges 17 socket contacts in a compact shell size 20 body for multi-circuit wiring.

3. 13A / 500VAC Rating - #16 socket contacts rated 13A per contact at 500VAC for power and signal circuits.

4. Solder Cup Termination - Seventeen #16 solder cup contacts accept wire ends for fast wiring.

5. Threaded Coupling - Front internal threads with knurled coupling nut lock with the mating plug against loosening under vibration.

6. Solid Backshell and Strain Relief - Two-piece screw clamp with pull-resistant sleeve protects the wire joint from bending and pulling.

7. Olive Drab Shell - Olive drab surface finish resists corrosion in harsh environments.

8. B2B Customization - OEM/ODM: cable assembly, private labeling, bulk packaging; samples welcome.

Application Scenarios

Lithography and Semiconductor Fab - Scanning stages, mask alignment units and fab process tools in chip fabrication lines.

Rubber and Plastics Processing - Injection molding machines, extruders and rubber curing lines in processing plants.

Paper and Pulp Mill Systems - Paper machines, pulp refiners and dryer sections in mill plants.

Foundry and Metal Casting - Furnace controls, mold lines and shakeout stations in foundry plants.

Broadcasting and Studio Equipment - Studio cameras, audio consoles and broadcast racks.

Airport Ground Support - Baggage handling, boarding bridges and ground power units at airports.
