Name: MS3106A 20-29P MIL-DTL-5015 Series Circular Connector 17 Pin Male Straight Plug Cable Mount Semiconductor Battery Optics
Brand: lechuantech
SKU: 1601917237938
Price: 3.80 USD
Availability: InStock

Description

Key attributes

Pins

17P

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3106A 20-29P

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Straight

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

male

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

20-29

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

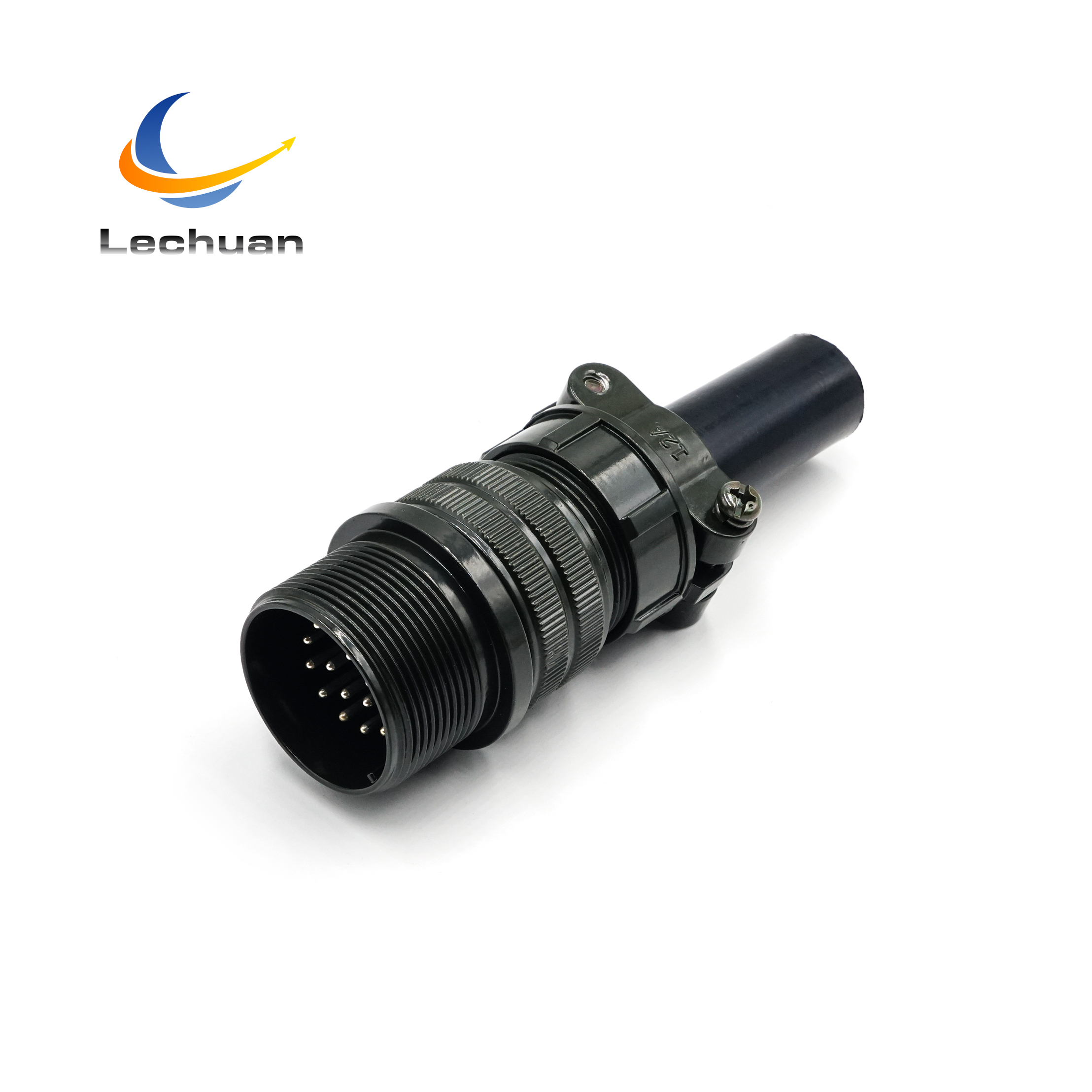

MS3106A 20-29P is a 5015 Series circular connector. Straight plug with cable mount, shell size 20, 17 male pin contacts (20-29 insert), #16 solder pins, olive drab shell, threaded coupling with knurled nut, two-piece cable clamp with strain relief - the cable end for industrial and outdoor equipment.

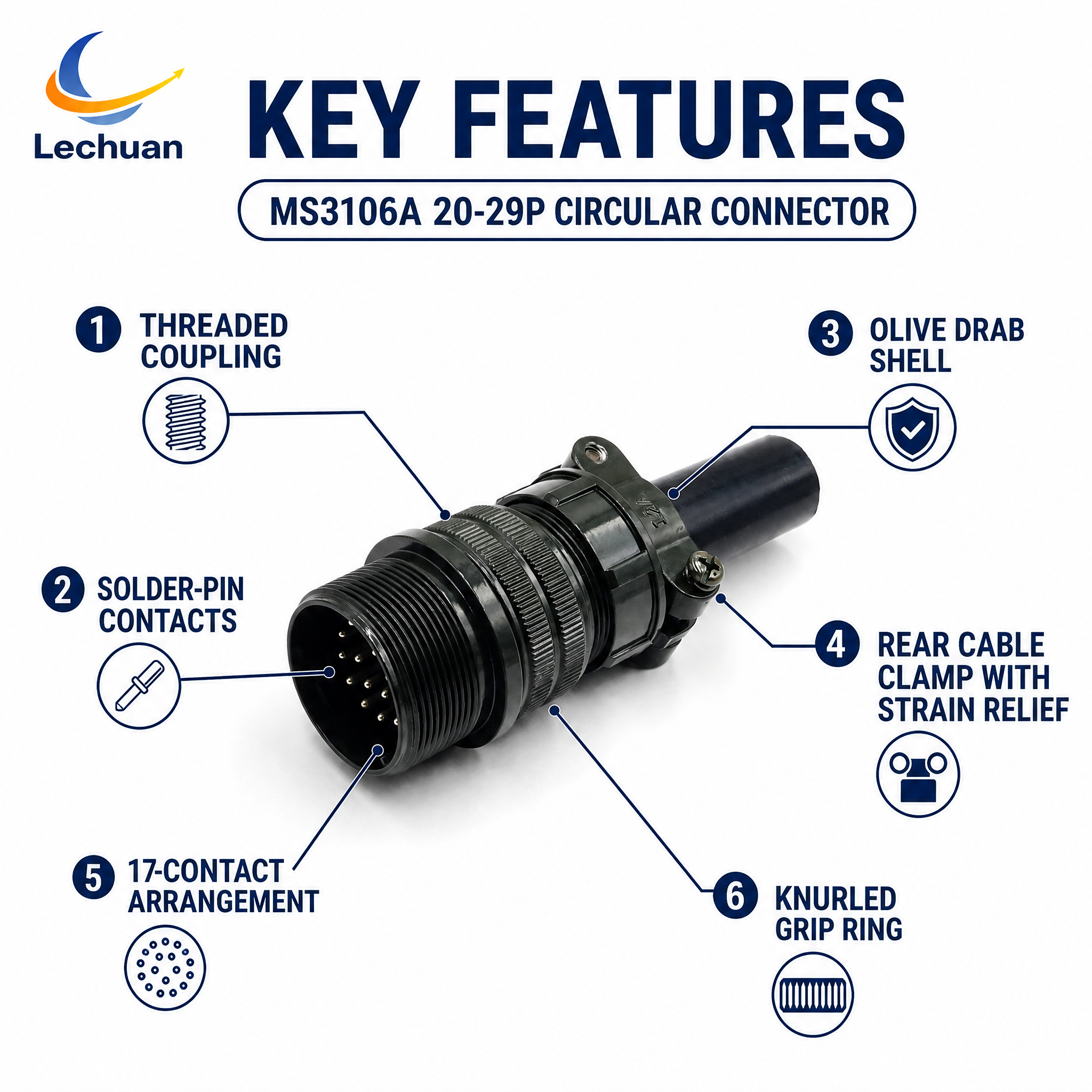

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series straight plugs for direct fit and replacement.

2. 17-Position Compact Layout - 20-29 insert arranges 17 male pins in a compact shell size 20 body for multi-circuit wiring.

3. 13A Rated Contacts - #16 solder pin contacts rated 13A per contact for signal and control circuits.

4. Solder Pin Termination - Seventeen #16 solder pin contacts accept wire ends for fast wiring.

5. Threaded Coupling - Front external threads with knurled coupling nut lock with the mating receptacle against loosening under vibration.

6. Cable Strain Relief - Two-piece cable clamp with screws and pull-resistant sleeve protects the wire joint from bending and pulling.

7. Olive Drab Shell - Olive drab surface finish resists corrosion in harsh environments.

8.Direct Replacement - Compatible with Amphenol MS3106A 20-29P and ITT Cannon CA3106A 20-29P for direct replacement.

Application Scenarios

Semiconductor and Lithography Equipment - Wafer steppers, lithography tools and process control units in chip fabs.

Battery Manufacturing and Energy Storage - Cell formation lines, pack assembly stations and energy storage cabinets.

Precision Optics and Wafer Handling - Optical instruments, inspection stages and wafer transport robots.

Ceramics and Glass Manufacturing - Kiln control, annealing lines and glass processing equipment.

Automotive Assembly Lines - Final assembly lines, battery pack stations and vehicle electronics benches.

Cleanroom and Contamination Control - Cleanroom monitoring, particle counters and air handling systems.
