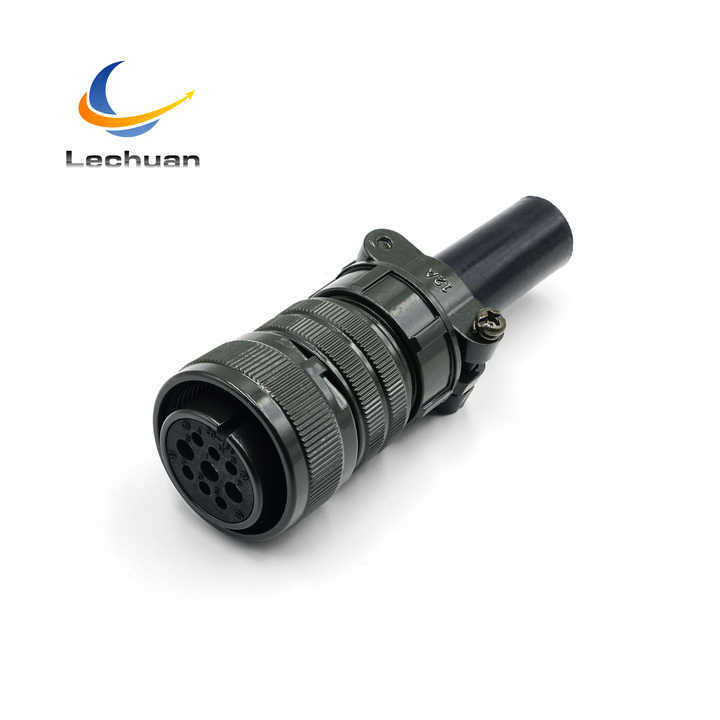

Name: MS3106A 20-18S MIL-DTL-5015 Series Circular Connector 9 Pin Female Straight Plug Cable Mount Packaging Textile Lighting
Brand: lechuantech
SKU: 1601917381088
Price: 3.50 USD
Availability: InStock

Description

Key attributes

Pins

Type

PLUG

Number of Cores

Packaging

Bulk Packing

Model Number

MS3106A 20-18S

Brand

LECHUAN

Place of Origin

Zhejiang, China

Description

CIRCULAR CONNECCTOR

Date Code

850V

Type

Circular Connectors

Body Orientation

Straight

Contact Plating

Silver

Contact Material

Copper Alloy

Termination Method

Solder Cup

Contact Gender

female

Shell Material

Aluminum Alloy

Shell Plating

Olive Drab Chromate

Mating Style

Threaded

Insert Arrange

20-18

Packaging and delivery

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

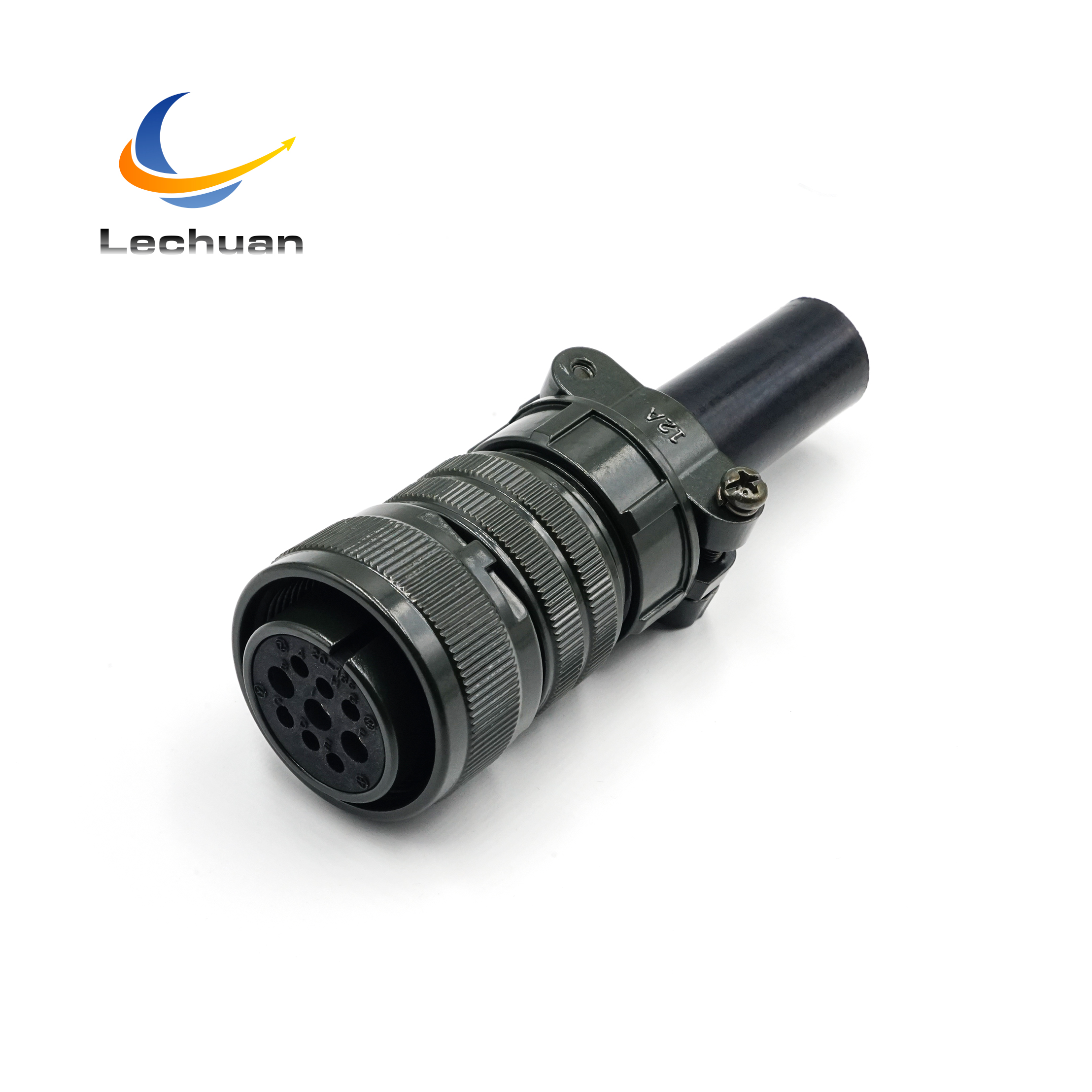

MS3106A 20-18S is a 5015 Series circular connector. Straight plug with cable mount, shell size 20, 9 socket contacts (20-18 insert), mixed #16 and #12 contacts, olive drab shell, threaded coupling with knurled nut, tail clamp with strain relief - the cable end for industrial and outdoor equipment.

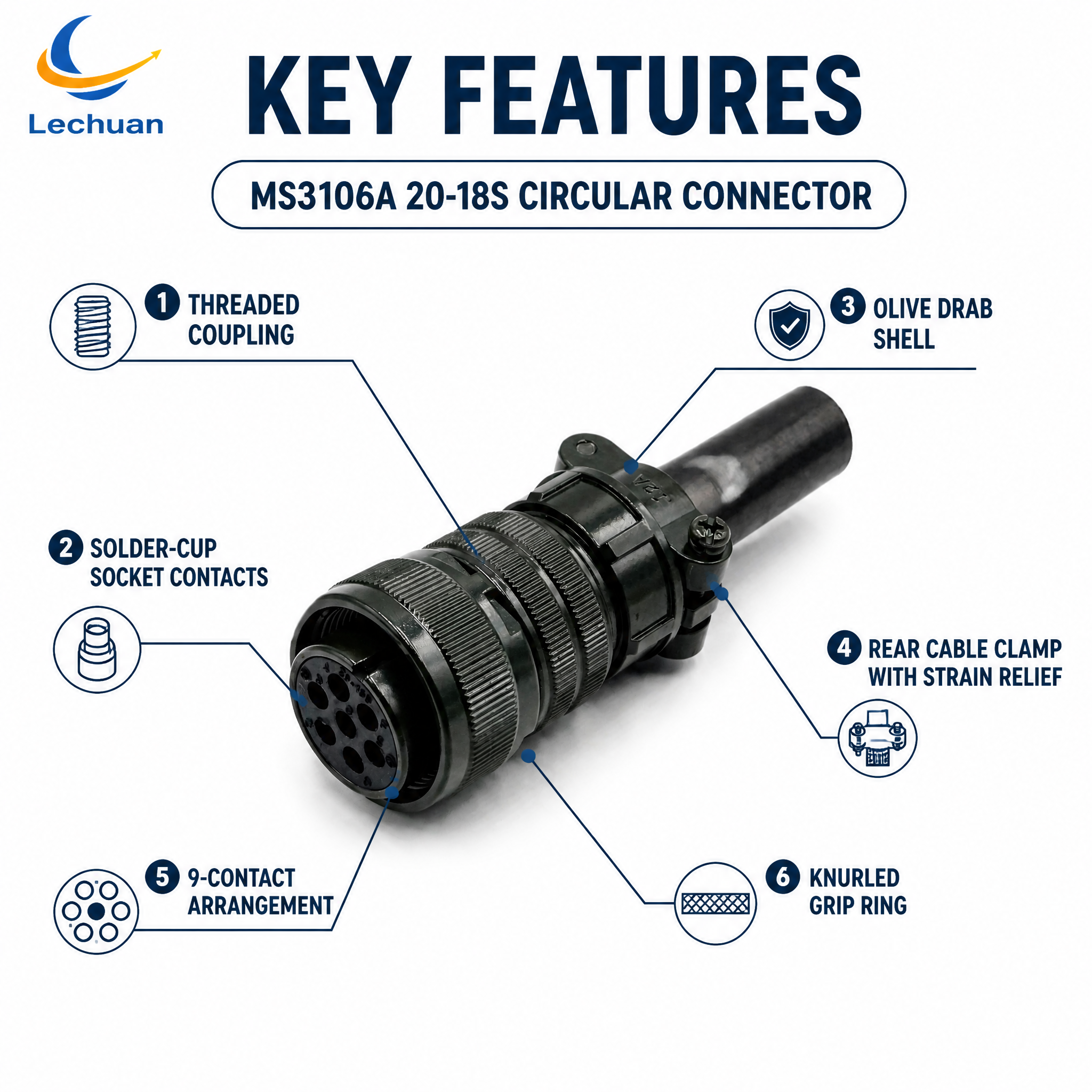

Key Selling Points

1. 5015 Series Standard - Contact layout matches standard 5015 Series straight plugs for direct fit and replacement.

2. 9-Position Compact Layout - 20-18 insert arranges 9 socket contacts in a compact shell size 20 body for multi-circuit wiring.

3. Mixed Contact Sizes - Mixed #16 and #12 socket contacts for signal and power wiring in one connector.

4. Solder Cup Termination - Nine solder cup contacts accept wire ends for fast wiring.

5. Threaded Coupling - Knurled coupling nut locks with the mating receptacle, resisting loosening under vibration and shock.

6. Cable Strain Relief - Tail cable clamp with pull-resistant sleeve protects the wire joint from bending and pulling.

7. Olive Drab Shell - Olive drab surface finish resists corrosion in harsh environments.

8. Direct Replacement - Compatible with Amphenol MS3106A 20-18S and ITT Cannon CA3106A 20-18S for direct replacement.

Application Scenarios

Packaging Machinery and Production Lines - Wrapping machines, cartoning units and sealing lines in production plants.

Textile and Weaving Machinery - Looms, spinning frames and knitting machines in textile mills.

Printing and Labeling Equipment - Printers, labelers and inkjet systems in print shops.

HVAC and Refrigeration Systems - Compressor units, chillers and climate control panels.

Electric Vehicles and Charging - Charging stations, battery management units and onboard wiring harnesses.

Lighting and Display Systems - LED drivers, sign boards and stage lighting controllers.

00:00/00:38

About this supplier

With over 20 years of deep industry experience, Cixi Lechuan is a diversified enterprise of industrial connectivity and electronic component solutions. Integrating manufacturing, sales, and comprehensive technical support. Our core expertise lies in the design, development, and production of high-performance industrial electrical connectors and electronic components.We serve Industries like, Industrial Automation Robotics,Energy Power Systems, Telecommunications ,Military and Security Surveillance Systems ect.At Lechuan, we are more than a manufacturer; we are a strategic partner dedicated to powering progress through superior connectivity.

Company overview

FAQs

Manufacturer or trading company? Where is the company located?

We have own factory in Ningbo Cixi which specializing in domestic supply, starting from, we set up the exporting department.

What parts can the company supply?

Our main products are: Industrial control connectors, military Circular connector, PCB board connectors and other electric components.

How long have you been involved in this market?

We have been in this market more then 20 years.

Does the product itself support OEM customization?

We support OEM

Mass production time and delivery time.

7-15 days
