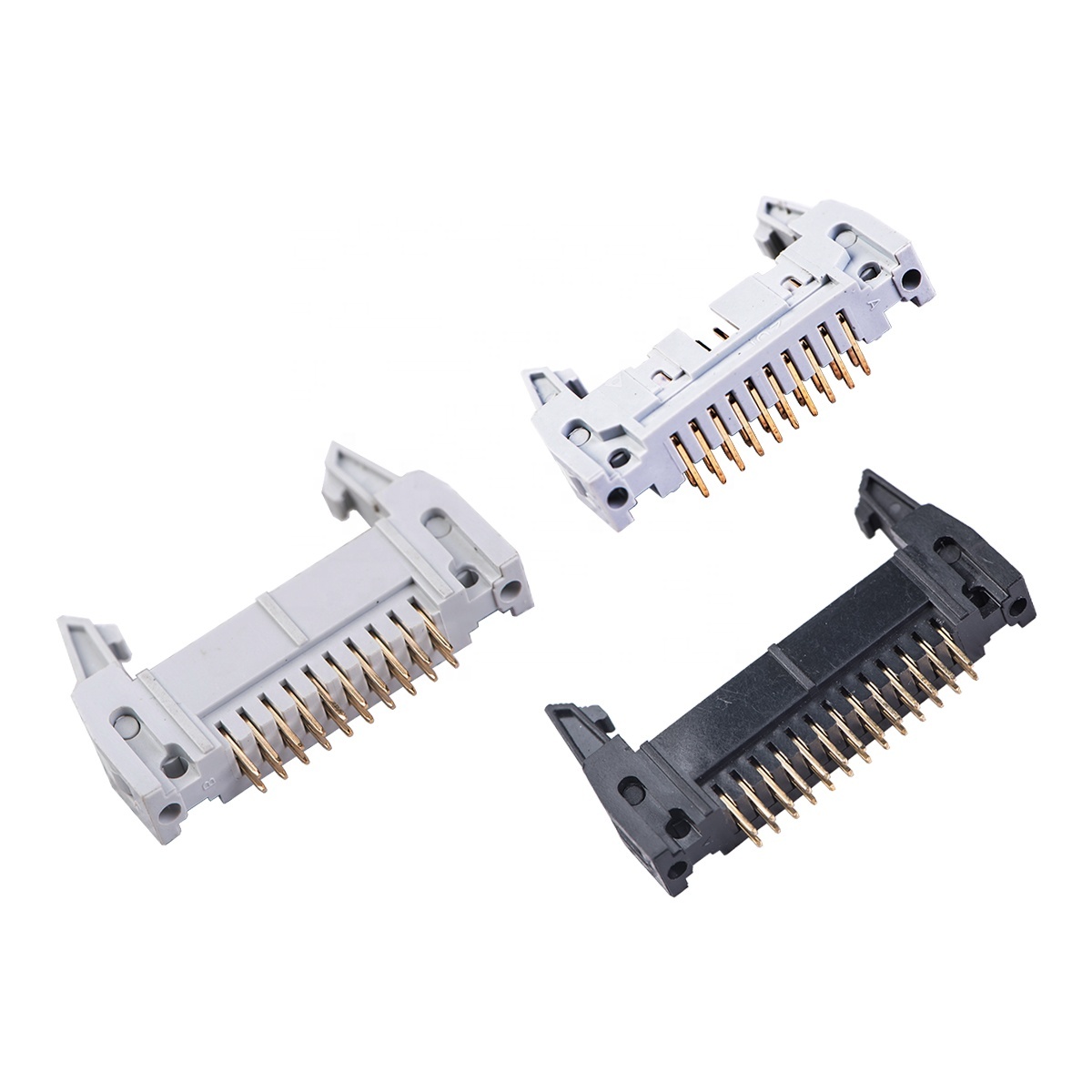

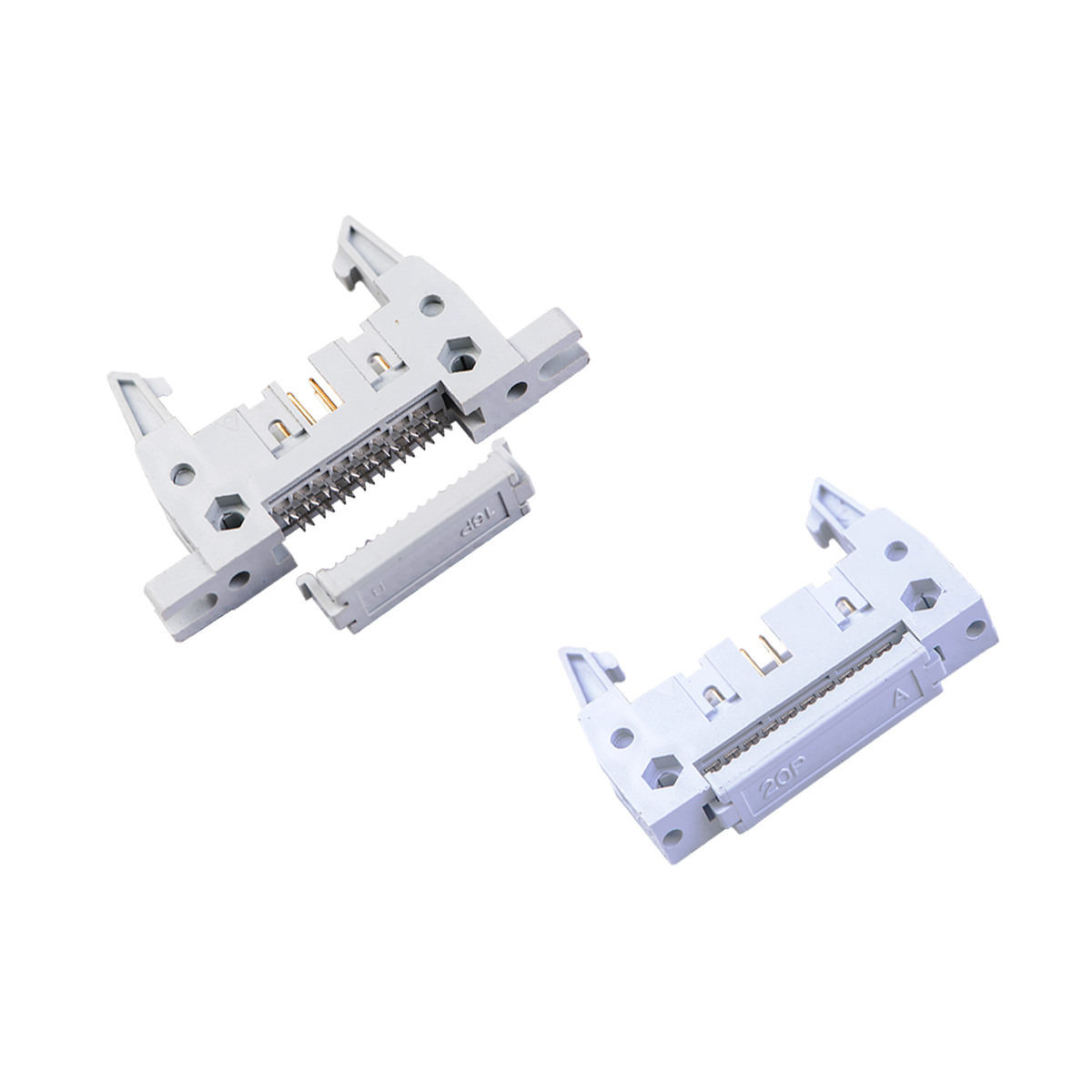

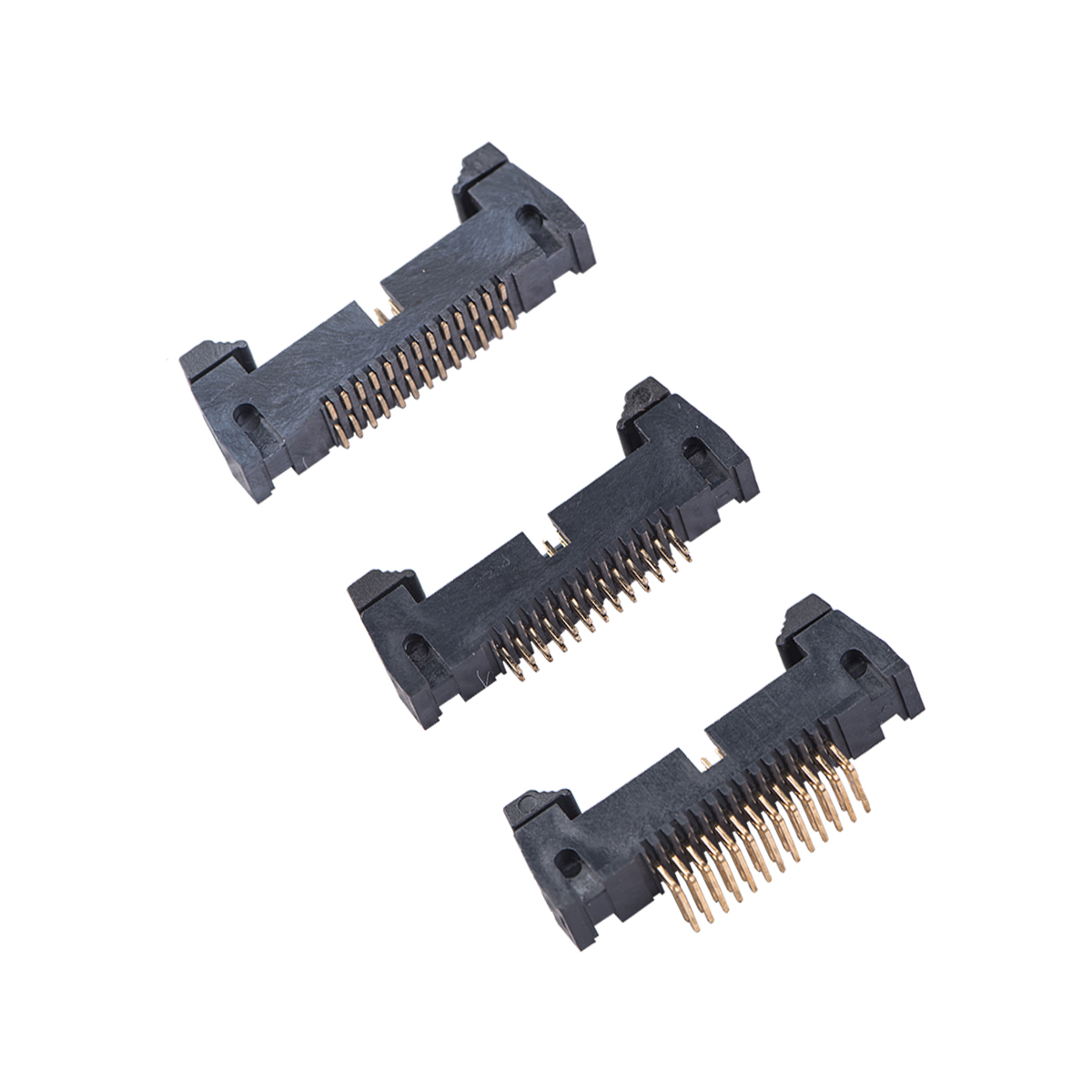

The LECHUAN SMT Shrouded IDC Male Ejector Header Connector offers reliable wire-to-board connections with a 2.54mm pitch. Ideal for engineers requiring compact, tool-free mating in board to board and cable connector applications.
Functional Integration for Wire-to-Board Connectivity
This LECHUAN SMT Shrouded IDC Male Ejector Header Connector is engineered primarily for electrical design professionals and system integrators seeking efficient, secure wire harness connections. Its 2.54mm pitch and ejector mechanism enable quick and tool-free mating and disconnection, facilitating maintenance and prototyping cycles. The shrouded housing protects contacts from damage and contamination, making it suitable for complex wiring harnesses and compact PCB layouts. Designed by leading electrical connectors manufacturers, this component supports streamlined assembly workflows in environments where reliable wire harness connector manufacturers’ quality is essential.
Precision Engineering and Material Specifications
Constructed with a nylon housing reinforced by a glass-filled PBT insulator and brass contacts with gold and weld tin plating over nickel, this connector balances durability with performance. It supports a current rating of up to 2A, suitable for moderate power applications, and operates reliably within a temperature range of -40°C to +105°C. Available in straight, right-angle, and SMT mount configurations, the product meets international standards including RoHS, CE, and REACH compliance. The compact 2.54mm pitch ensures compatibility with various cable connectors and standard IDC assemblies, enhancing integration into existing electronic systems designed by electronic connector manufacturers.
Industry Applications and Operational Advantages
This connector is widely applicable across industrial automation, consumer electronics, automotive-adjacent control modules, and prototyping environments. It provides robust connectivity for board to board and cable harness systems while maintaining compact form factors critical to modern electronics design. Its IP67-rated variants extend usage to harsher industrial or outdoor environments requiring ingress protection. Developed by a reputable enterprise among electrical connectors manufacturers, it supports reliable connectivity in complex electronic assemblies, facilitating faster troubleshooting, replacement, and system scalability that are critical for engineering project success.
Structural and Design Innovations Enabling System Integration
The LECHUAN SMT Shrouded IDC Male Ejector Header Connector features a shrouded design that provides enhanced contact protection, reducing the risk of short circuits or damage during insertion. The ejector header mechanism facilitates tool-free disengagement, optimizing assembly line efficiency and maintenance workflows. Its modular construction offers multiple mounting orientations at a 2.54mm pitch, enabling flexibility in PCB layout design. This adaptability meets the diverse demands of both wire harness connector manufacturers and electronic connector manufacturers who prioritize reliability and precise mating in dense electronic assemblies.
Enhanced Performance and Usability for Professional Applications
Designed to endure rigorous environmental conditions, the connector supports a 2A current rating and operates across a wide temperature range, ensuring consistent electrical performance. The gold and weld tin plating on brass contacts delivers enhanced conductivity and corrosion resistance, essential for high-reliability applications. Easy to mate with standard IDC cables, it reduces installation time and minimizes wiring errors. Compliance with RoHS, CE, and REACH regulations confirms its suitability for global manufacturing standards, making this connector a valuable component in the portfolios of electrical connectors manufacturers focused on efficiency and system robustness.
Use Scenarios
Rapid Prototyping and Design Validation in Electronics Development
In product development labs, the need for fast, reliable wire-to-board connector solutions is critical. LECHUAN’s ejector header with a 2.54mm pitch serves as an ideal interface for IDC cable assemblies, allowing engineers to instantiate quick-connect and disconnect operations without tools. This reduces downtime during iterative testing and debugging cycles. Its compact design and compliance with industry standards fit well within electronic connector manufacturers’ advanced prototype systems and evaluation boards, offering precise, low-resistance contacts essential for signal integrity and functional validation.
Application in Industrial Automation Wiring Systems
Industrial control panels and automation equipment frequently require durable, compact connectors that facilitate secure and rapid cable integrations. The LECHUAN SMT Shrouded IDC Male Ejector Header Connector ensures consistent connection quality within constrained enclosures by combining a dependable 2.54mm pitch system with IP67-rated housing options. This component’s compatibility with standard cable connectors and easy disengagement maximizes uptime during maintenance and system upgrades. Wire harness connector manufacturers benefit from its adaptability to complex wiring schemas, enabling streamlined panel assembly and wire harness testing in factory environments demanding robust performance and regulatory compliance.
|

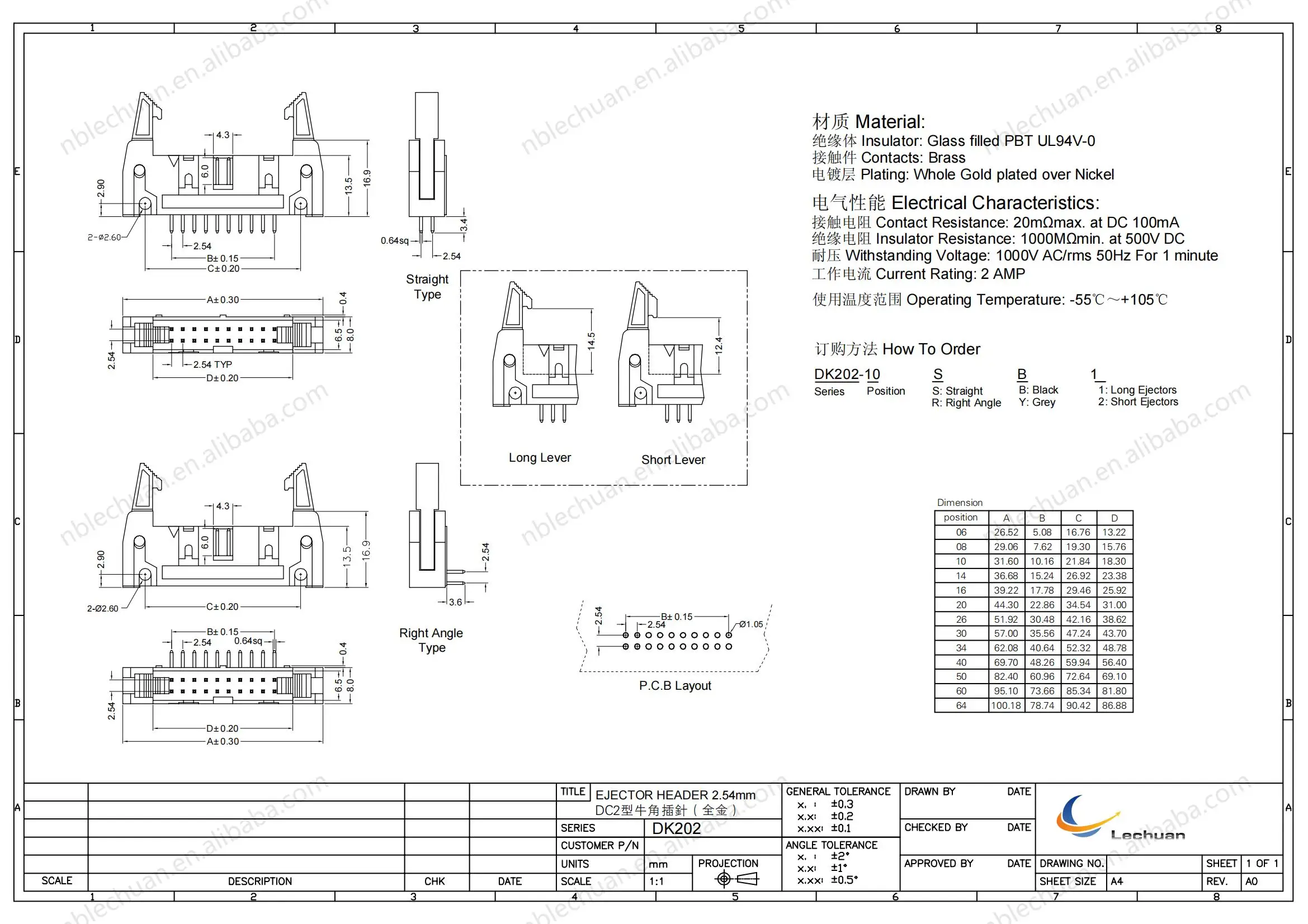

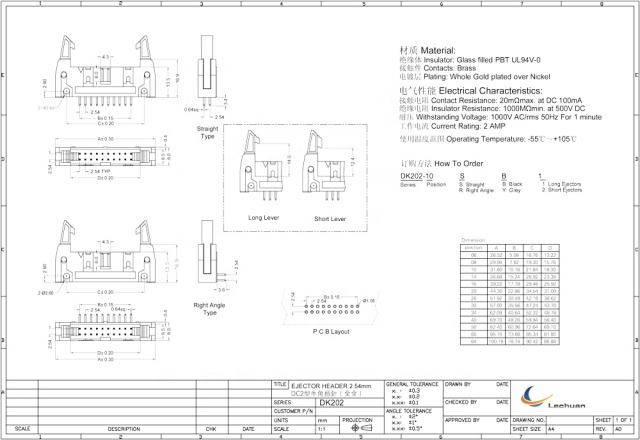

Product Name
|
EJECTOR HEADER 2.54MM
|
|
Material
|
Insulator:Glass filled PBT UL94V-0
|
|
|
Contacts: Brass
|
|
|
Plating:Contact Gold and Weld Tin over Nickel
|
|
Electrical Characteristic
|
Contact Resistance: 30mΩmax. at DC 100mA
|
|
|
Insulator Resistance: 1000MΩmin. at 500V DC
|
|
|
Withstanding Voltage: 1000V AC/rms 50Hz For 1 minute
|
|
|
Current Rating: 2AMP
|
|
Environment
|
Operating Temperature: -40℃～+105℃
|
What materials are used in the LECHUAN SMT Shrouded IDC Male Ejector Header?
Our headers feature a nylon housing with a glass-filled PBT insulator for enhanced durability. The contacts are made of brass, plated with gold and weld tin over nickel, ensuring reliable conductivity and resistance to corrosion, suitable for your demanding electronic applications requiring robust electronic connector manufacturers solutions.
Can you customize connector configurations for different mounting orientations?
Yes, we offer the LECHUAN SMT Shrouded IDC Male Ejector Header in Straight, Right Angle, and SMT mounting types. This flexibility allows integration into various PCB layouts, facilitating your specific board-to-board or wire harness requirements from a trusted wire harness connector manufacturer.
How does your product support rapid maintenance and prototyping needs?
Our ejector header design includes a male ejector mechanism allowing tool-free quick release and reassembly, ideal for debugging and system integration. This feature assists engineers in rapid prototyping and efficient replacement during device maintenance, ensuring minimal downtime.
Are your connectors suitable for harsh environmental conditions?
Certain LECHUAN header variants provide IP67 protection, supporting operation from -40°C to +105°C. This rugged design meets the needs of consumer, industrial, and automotive-adjacent applications, delivering reliable performance in challenging environments.
