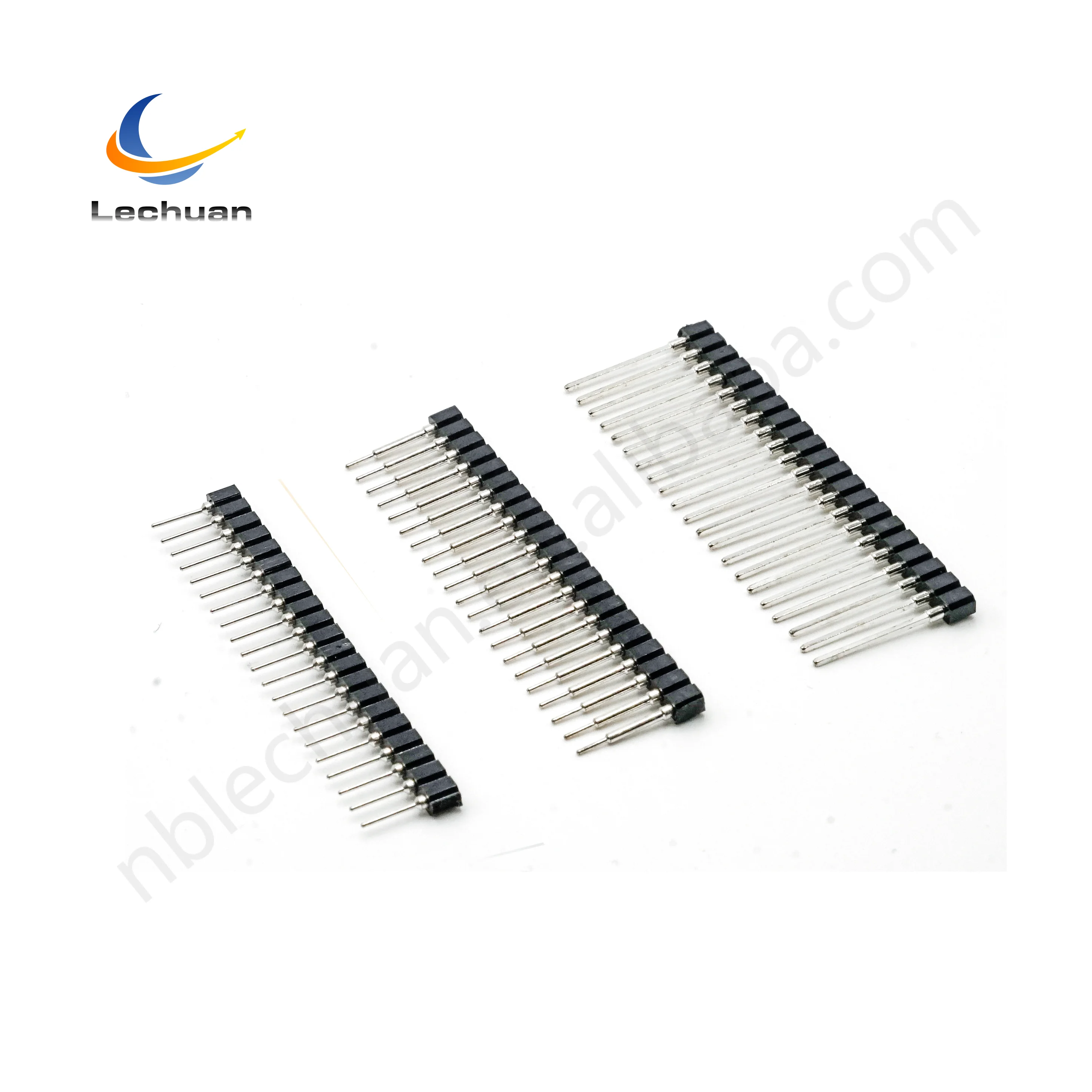

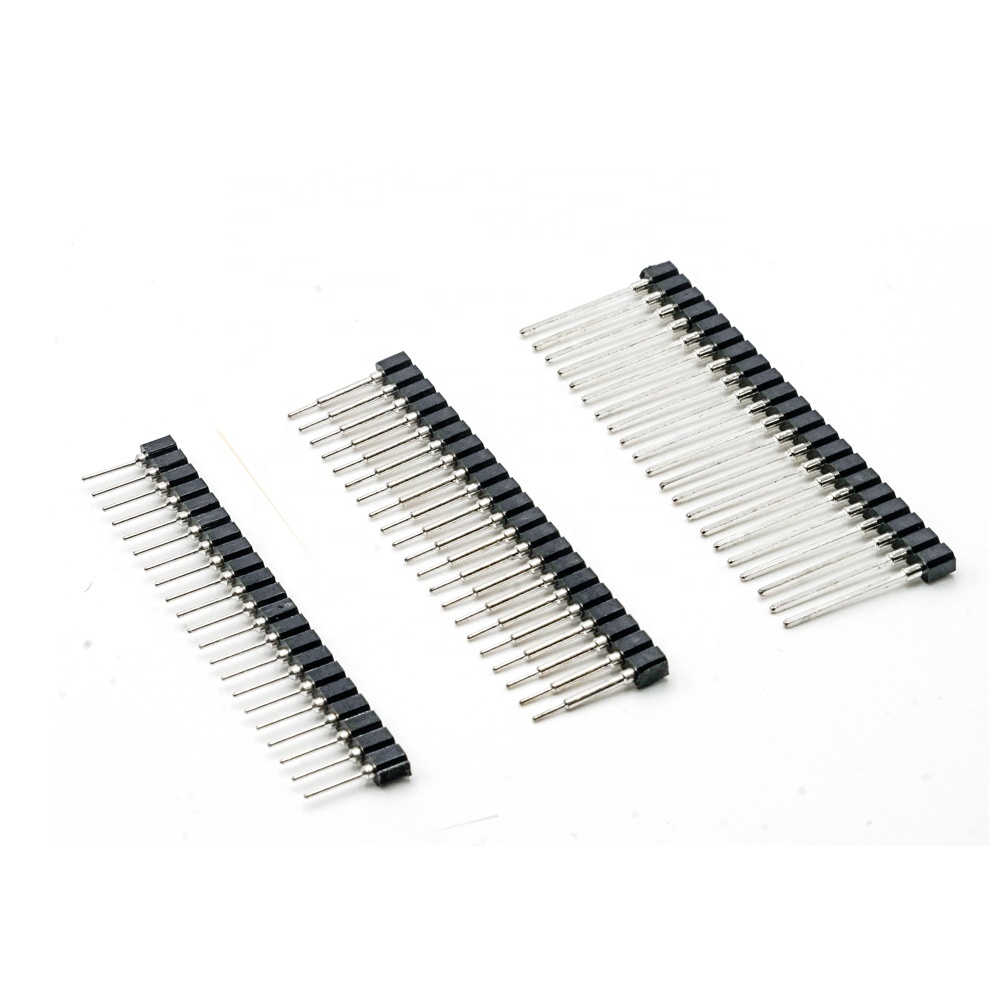

The LECHUAN SMT Female Header offers versatile connectivity with multi-pitch options (2.54/1.27/2.0/2.54 mm) and flexible configurations for PCB interfaces. Designed by leading electrical connectors manufacturers, it ensures reliable board to board connector performance for industrial applications.
Adaptable Interface Solutions for Diverse PCB Configurations
The LECHUAN SMT Female Header targets engineers and system integrators requiring configurable and high-density connections on printed circuit boards. Its multi-pitch compatibility and a wide position range from 2 to 40 enable tailored solutions across complex PCB layouts. Designed with precision, it suits compact electronics designs and demanding industrial environments where dependable modularity and flexibility in electrical connectors manufacturers’ offerings are critical to supporting advanced system architectures and enhancing product lifecycle management.
Precision Engineering with Robust Materials and Configurations
Constructed with a brass outer sleeve machined from CuZn38Pb2 and heat-treated Beryllium copper contacts, this female header meets stringent technical demands including a 3 Amp current rating and operating temperatures from -40°C to +105°C. The PPS UL94V-0 insulator provides flame retardance while pin lengths at 9.20 mm and plating options like tin or gold assure corrosion resistance and optimal conductivity. Variants include straight, right angle, and SMT mounting, enabling compatibility with board to board connectors and facilitating seamless integration within electronic connector manufacturers’ product ranges.
Integration Across Multiple Industrial and Prototype Applications
Ideal for applications ranging from robotics controllers to telecommunications hardware, the LECHUAN SMT Female Header supports prototyping and production deployment in industrial automation and modular electronic systems. It enables secure and maintainable connections between daughterboards or modular components, complying with complex wiring harnesses and system topologies established by wire harness connector manufacturers. Its reliability and configurability translate into reduced downtime and enhanced operational efficiency across sectors demanding rigorous connectivity solutions.
Product Advantages
Modular Design Supporting Diverse Connector Systems
The LECHUAN SMT Female Header’s design integrates multiple pitch sizes and mounting orientations, accommodating a broad spectrum of PCB layouts favored by wire harness connector manufacturers. With up to 40 positions available, it allows dense board to board connector arrangements or flexible cable connector interfaces. The machined brass and precision BeCu contacts ensure dimensional stability and consistent mating quality, facilitating streamlined assembly processes within electronic connector manufacturers’ production lines and ensuring interoperability with other terminal block connectors deployed in complex electronic assemblies.
Enhanced Durability and Electrical Performance for Industrial Use
Offering plated tin or gold finishes and robust mechanical construction, this female header sustains consistent electrical conductance and mechanical resilience. It optimizes ease of SMT assembly and maintains performance across high-temperature soldering cycles. For electrical connectors manufacturers seeking high-reliability components, it ensures minimal contact resistance and resistance to environmental stresses, thus contributing to operational robustness. The product’s adaptability across various pin counts and configurations improves usability for engineers focusing on efficient cable connector and ethernet connector integrations.
Use Scenarios
Prototyping and Modular Electronics Development
In development laboratories and prototyping environments, this SMT female header enables flexible and secure connections between daughterboards and core PCB assemblies. Its configurable pin counts and multiple pitch options support varied design iterations required in research and development within electronic connector manufacturers’ workflows. The header’s adherence to standardized dimensions and quality materials facilitates repeated mating cycles and reliable signal integrity, accelerating testing phases and enabling scalable transition to industrial automation or telecommunications products where ethernet cable connector interfaces and terminal block connector integrations are frequent.
Robotics and Automation Controller Boards Integration
In factory automation and robotics system architectures, the LECHUAN SMT Female Header plays a critical role in modular controller boards requiring dependable board to board connectors for sensor and actuator interfaces. Its multi-angle mounting types and robust contact design enable compliance with dynamic operational factors such as vibration and temperature fluctuations. By ensuring secure electrical continuity and ease of maintenance, it supports seamless workflow integration demanded by wire harness connector manufacturers and electrical connectors manufacturers, enhancing system uptime and simplifying replacement cycles in demanding industrial environments.
|

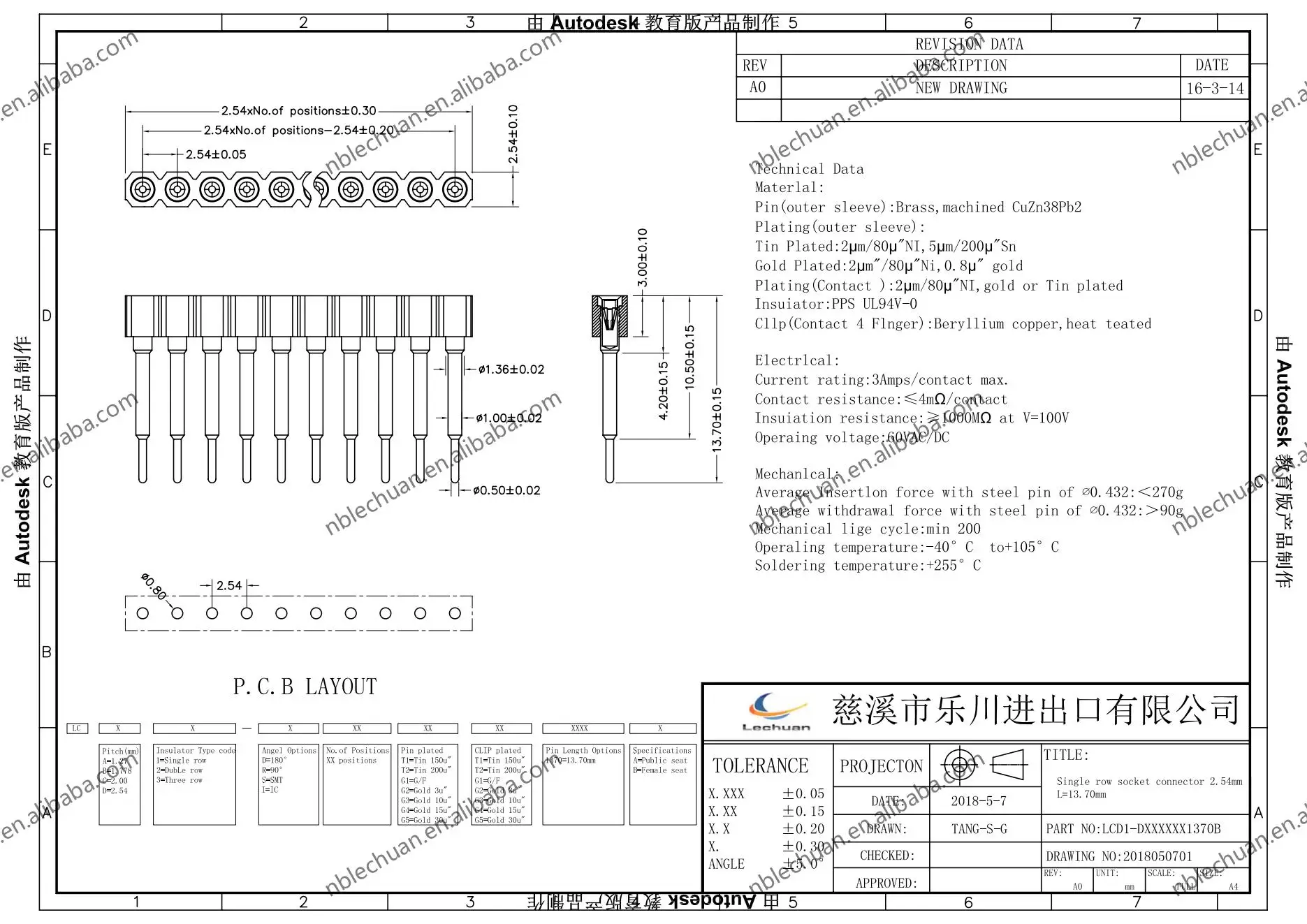

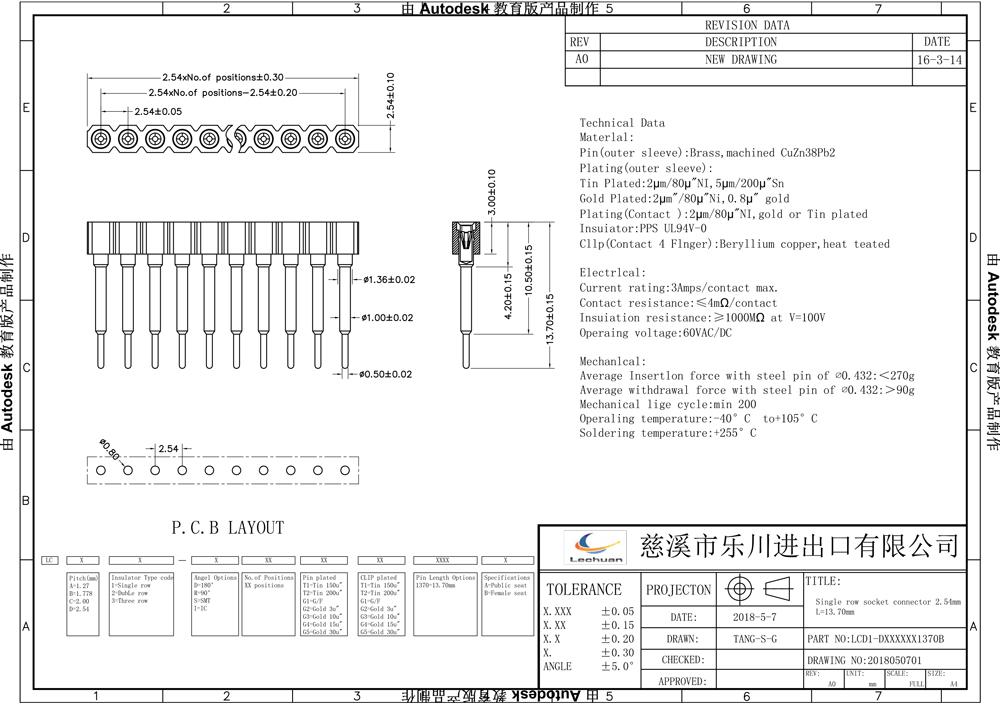

Material
|
Pin(outer sleeve):Brass,machined CuZn38Pb2
|
|
|
Cllp(Contact 4 Flnger):Beryllium copper,heat teated
|
|
Insulator:PPS UL94V-0 colour:black
|
|
|
Electrical Characteristics
|
Current rating:3Amps
|
|
Mating pin φ:0.38/0.56mm
|
|
|
Forces:(polished steel gaugeφ0.43mm)
|
|
|
-Insertion:2N typ
|
|
|
-Withdrawal:1N typ
|
|
|
Mechanical life:min 500cycles
|
|
|
Contact resistance:max 10m
|
|
|
Dielectric strength:min 1000V RMS
|
|
|
Environment
|
Operaling temperature:-40°C to+105°C
|
|
Soldering temperature:+255°C
|
What materials are used in the LECHUAN SMT Female Header?
Our SMT female header uses a brass outer sleeve machined from CuZn38Pb2, heat-treated beryllium copper contact assemblies, and a PPS UL94V-0 insulator. These materials ensure mechanical strength, high conductivity, and durability in industrial applications requiring robust electronic connector manufacturers solutions.
Can you customize the pitch and pin length of the SMT female header?
Yes, we offer multiple pitch configurations including 2.54 mm, 1.27 mm, and 2.0 mm, plus pin lengths such as 9.20 mm. These options accommodate a range of PCB designs. Our flexible configurations support various board to board connector needs for your specific project requirements.
Which mounting styles do you provide for this female header?
We supply the LECHUAN SMT Female Header in straight, right-angle, and surface-mount technology (SMT) versions. This variety allows you to optimize layout and space on your PCB assemblies while maintaining reliable performance and connectivity.
What are the recommended operating conditions for the SMT female header?
Our headers operate reliably within a temperature range of -40°C to +105°C and withstand soldering temperatures up to +255°C. With current ratings up to 3 Amps, these connectors meet industrial standards for electrical performance in various sectors, including wire harness connector manufacturers.
