The LECHUAN Power 172159-1H Mini Universal Mate-N-Lok connectors offer compact wire-to-wire solutions with durable nylon housing and copper contacts, ideal for precise assembly from leading wire harness connector manufacturers and electronic connector manufacturers.
Optimized Wire-to-Wire Connectivity for Compact Applications

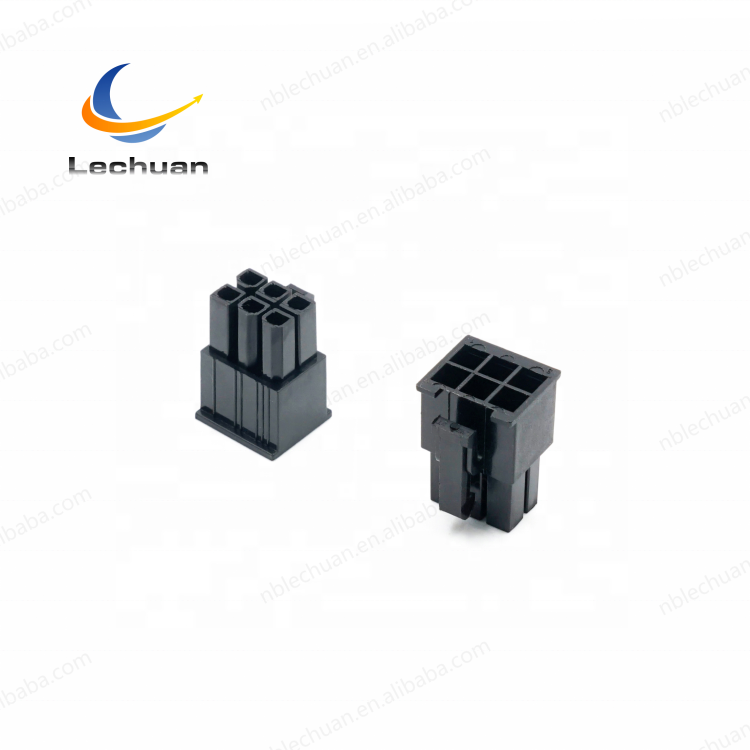

The LECHUAN Power 172159-1H Mini Universal Mate-N-Lok connector is engineered as a 6-position, 2-row receptacle housing with a centerline design, addressing the needs of system integrators requiring reliable and space-saving power distribution solutions. Designed primarily for use by electrical connectors manufacturers and wire harness connector manufacturers, this connector enables streamlined assembly in power harnesses where compactness and consistent mating are critical. Its plug-style housing and female socket contacts ensure secure electrical interfaces in wire-to-wire configurations, facilitating seamless integration into existing designs without compromising system integrity.
Robust Technical Specifications Ensuring Reliable Performance
Constructed with a high-grade nylon housing and copper contacts, the LC-172159-1 model is rated up to 600 V and 1.5 A, making it suitable for low- to mid-power applications. The 4.14 mm pitch and 6-position arrangement provide precise alignment and stable connection under standard crimp mounting procedures. These technical attributes, endorsed by certifications such as ROHS and REACH, position the product favorably among cable connector and terminal block connector solutions for engineers focused on consistent performance and compliance. The bulk packaging supports efficient large-volume assembly processes common within electronic connector manufacturers’ workflows.
Application Versatility in Industrial and Commercial Electronics
This Mini Universal Mate-N-Lok connector is widely adopted in industries requiring compact power interfacing such as industrial automation, telecommunications, and instrumentation. It supports wire harness manufacturing workflows, enabling efficient prototyping and legacy equipment replacement. The connector’s durability and standardized design reduce downtime and facilitate maintenance, serving as a reliable component within cable connector or board to board connector applications. Its compatibility with crimp-style contacts ensures seamless use in lab testing setups and field servicing, maximizing system uptime and return on investment for professional electronics integrators.
Product Advantages
Design Flexibility and Modular Integration
The connector’s architecture features a compact, two-row 6-position layout molded in durable nylon, supporting robust plug-and-socket connections compatible with a broad range of Mate-N-Lok accessories. The wire-to-wire configuration simplifies harness routing, reducing clutter and assembly complexity for wire harness connector manufacturers. The design facilitates modular scalability, allowing engineers to standardize around a compact power interface adaptable to various industrial control and electronic connector manufacturers’ applications. Bulk packaging further supports efficient automated assembly processes and inventory management.
Reliable Performance and User-Focused Engineering
Rated for 600 V and 1.5 A, the connector sustains operational stability under low- to medium-current demands, aligning with industry-standard power distribution requirements. Its copper contacts ensure optimal conductivity and corrosion resistance, enhancing long-term reliability. The plug-and-socket configuration guarantees secure mating cycles, reducing contact failure risks during installation or maintenance. Ease of crimp termination and compatibility with standardized tooling improves production efficiency for electrical connectors manufacturers, while its compliance with ROHS and CE standards ensures adherence to safety and environmental directives, delivering consistent value across its lifecycle.
Use Scenarios
Integration in Industrial Automation Systems
Within industrial automation environments, the LECHUAN Power 172159-1H connector functions as a critical component in compact power harness assemblies, connecting sensors, actuators, and control modules. Its wire-to-wire design allows for simplified routing within constrained panel spaces common in automation cabinets. The connector’s 600 V rating and reliable crimp contacts ensure stable power delivery, aligning with the rigorous reliability demands of manufacturing floors. Integration with wire harness connector manufacturers’ processes supports scalable deployment across automation system installations while maintaining compliance with international safety standards.
Deployment in Telecommunications Equipment Assembly
In telecommunications hardware production, this connector serves as a compact and durable solution for low- to mid-power connections between wiring harnesses and modular equipment. The plug-style, female contact design facilitates fast mating and unmating cycles required during equipment servicing and upgrades. Its nylon housing withstands environmental and mechanical stress typical in telecom infrastructure. The connector supports systematic integration workflows of electronic connector manufacturers who require consistent, high-quality cable connector interfaces, contributing to network uptime and efficient product lifecycle management.
|
Material
|
Housing Material:Nylon
|
|
|
Mounting Style:Crimp
|
|
Voltage Rating:600 V
|
|
|
Electrical Characteristic
|
Packaging:Bulk
|
|
|
Housing Color:Natural
|
|
|
Housing Gender:Plug
|
|
|
Product Type:Pin & Socket Connectors
|
What materials are used in the LECHUAN Power 172159-1H connector?

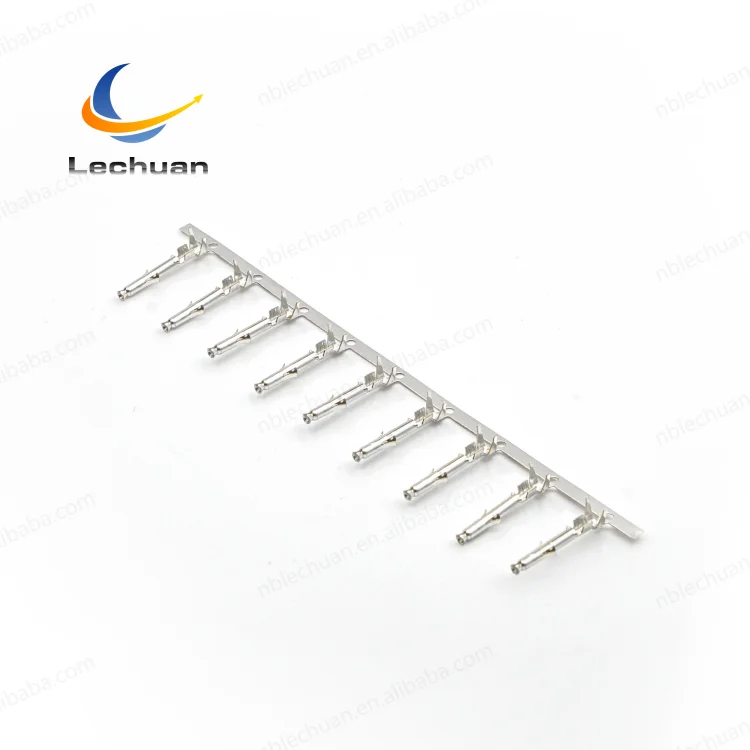

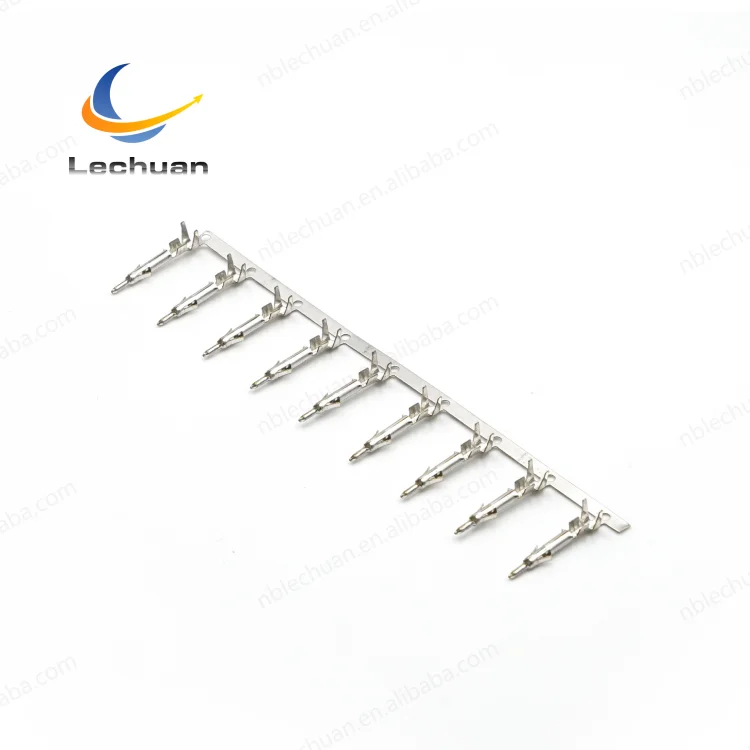

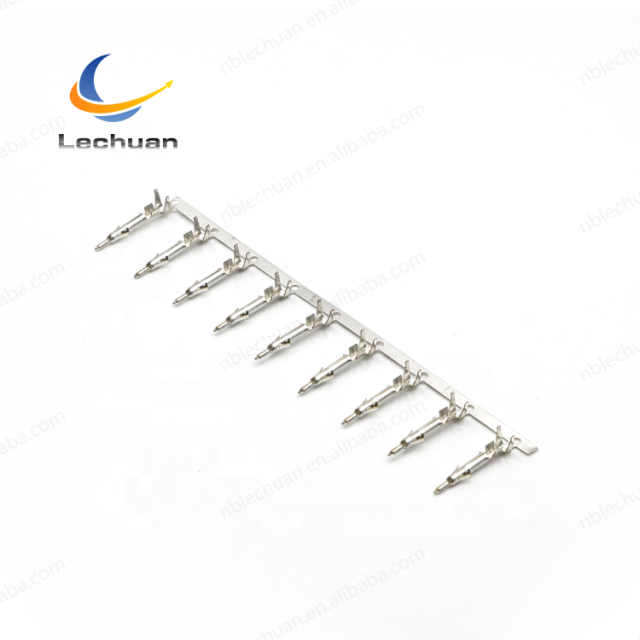

Our LECHUAN Power 172159-1H connectors feature a nylon housing for durability and copper contacts that ensure reliable conductivity. These materials meet industry standards expected from professional electronic connector manufacturers, making them ideal for robust wire harness assemblies.
Can you customize wire harness connectors to fit specific project needs?
Yes, we work closely with clients who require tailored solutions in wire harness connector design. Our manufacturing experience enables us to adapt connector configurations, ensuring compatibility and reliable performance in diverse industrial power and signal applications.
What is the typical lead time for ordering the LECHUAN Power 172159-1H Mate-N-Lok connectors?
We strive to maintain efficient production schedules to meet customer requirements. Exact lead times depend on order quantity and customization but generally align with our bulk packaging and assembly workflows, ensuring timely delivery for your production planning.
Are your connectors, including the LECHUAN Power series, compliant with international standards?
All our connectors fully comply with major certifications such as ROHS, CE, and REACH. We uphold rigorous quality control backed by ISO9000 standards, providing peace of mind when sourcing components from a trusted electrical connectors manufacturer.
