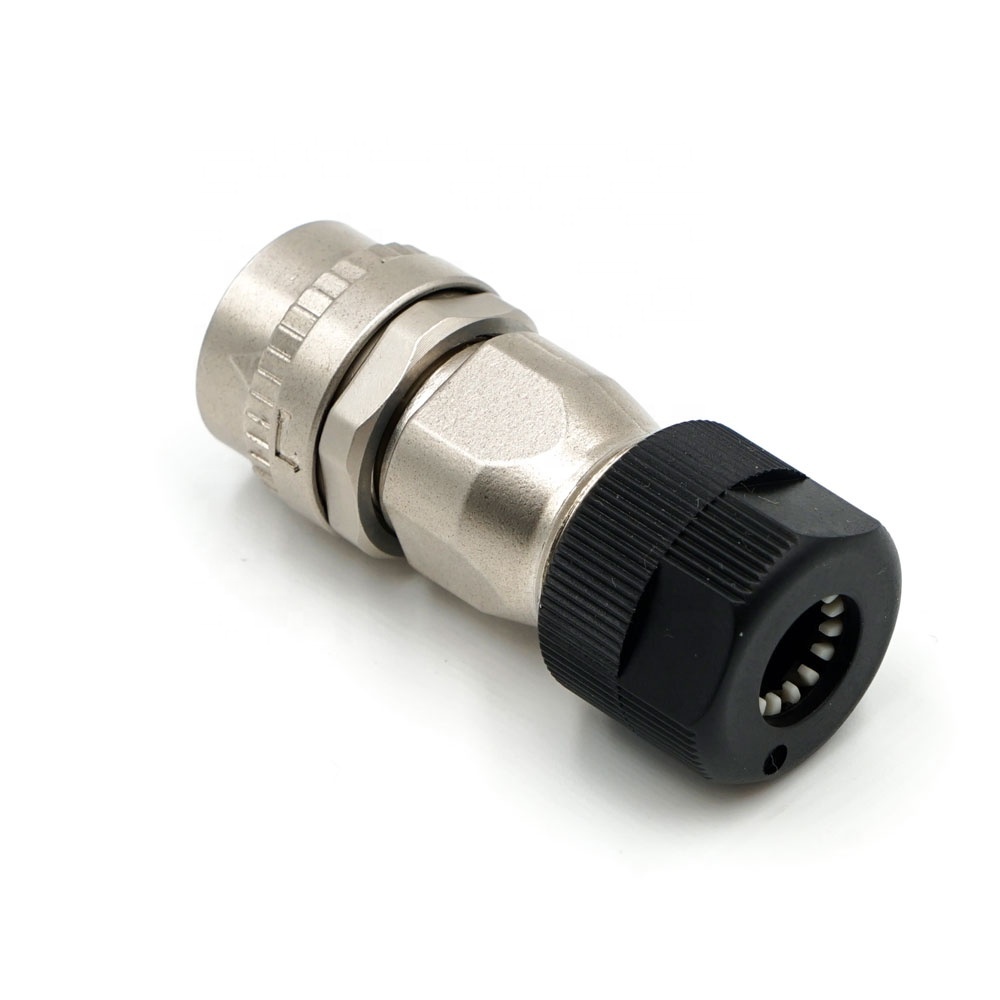

LECHUAN One Touch Locking Style Small Sized 2Pin Metal Straight Plug DDK CM10-SP10S-M Circular Connectors Plastic Copper Contact

Name: LECHUAN One Touch Locking Style Small Sized 2Pin Metal Straight Plug DDK CM10-SP10S-M Circular Connectors Plastic Copper Contact
Brand: lechuantech
SKU: 1600512201478
Price: 4.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.1600512201478

Color:

CM10-SP10S-M

Number of Cores:

10 Cores

Pins:

10P

Get The Latest Quote

Description

Key attributes

Contact Material

Copper

Rated Current

3 A

Place of Origin

Zhejiang, China

Model Number

CM10-SP10S-M

Brand Name

LECHUAN/OEM

Gender

Female

Housing Material

Zinc Alloy

IP Level

IP67

Shape

Rectangle, Round

Type

CM10

Type

Circular Connectors

Pin Rear Insulator

Plastic(UL94V-0)/Black

Pin Contact 10P

Copper Alloy/Gold Plating

O Ring(Mounting Side)

Synthetic Rubber/Black

Receptacle Shell

Zinc Alloy/Trivalent Chromium Finish(Black)

Retaining Ring

Copper Alloy/Nickel Plating

Copper Alloy/Gold Plating

Packaging and delivery

Selling Units

Single item

Single package size

7X8X10 cm

Single gross weight

1.000 kg

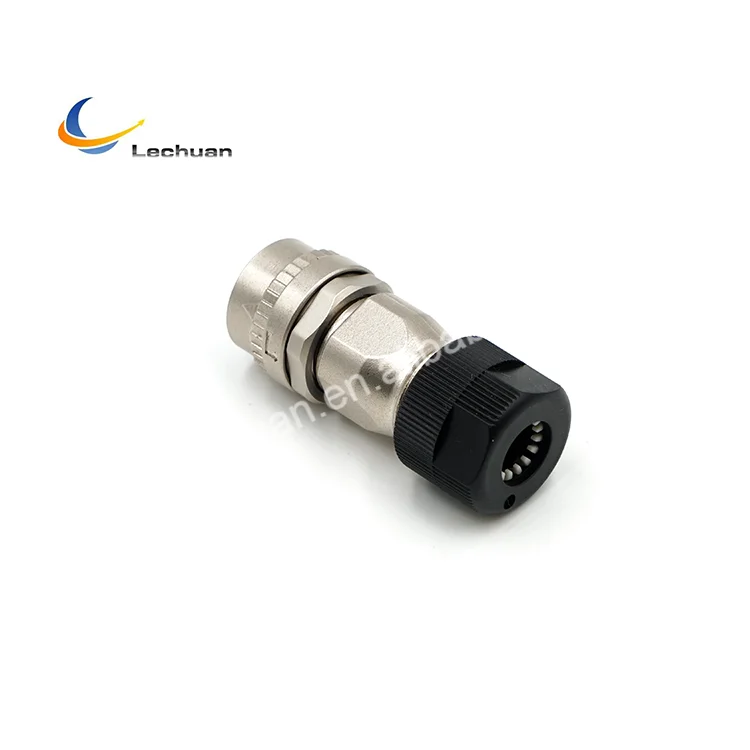

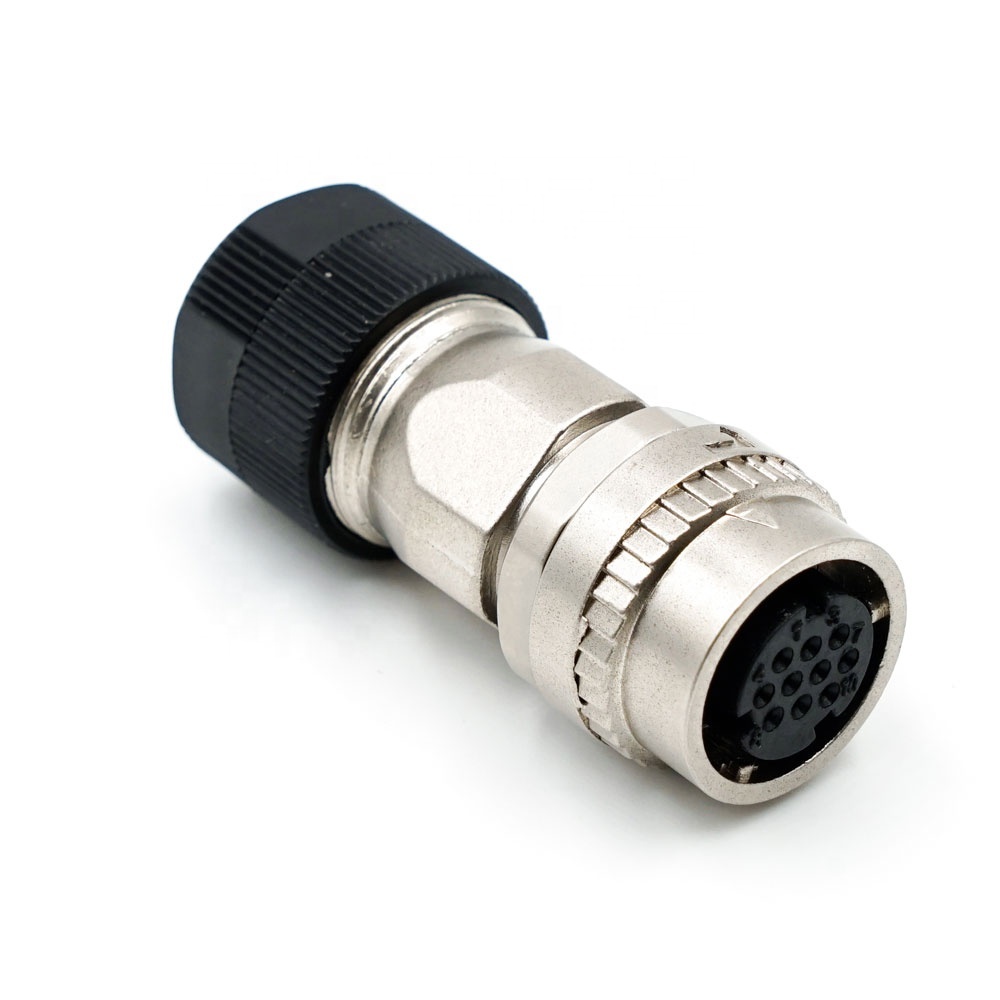

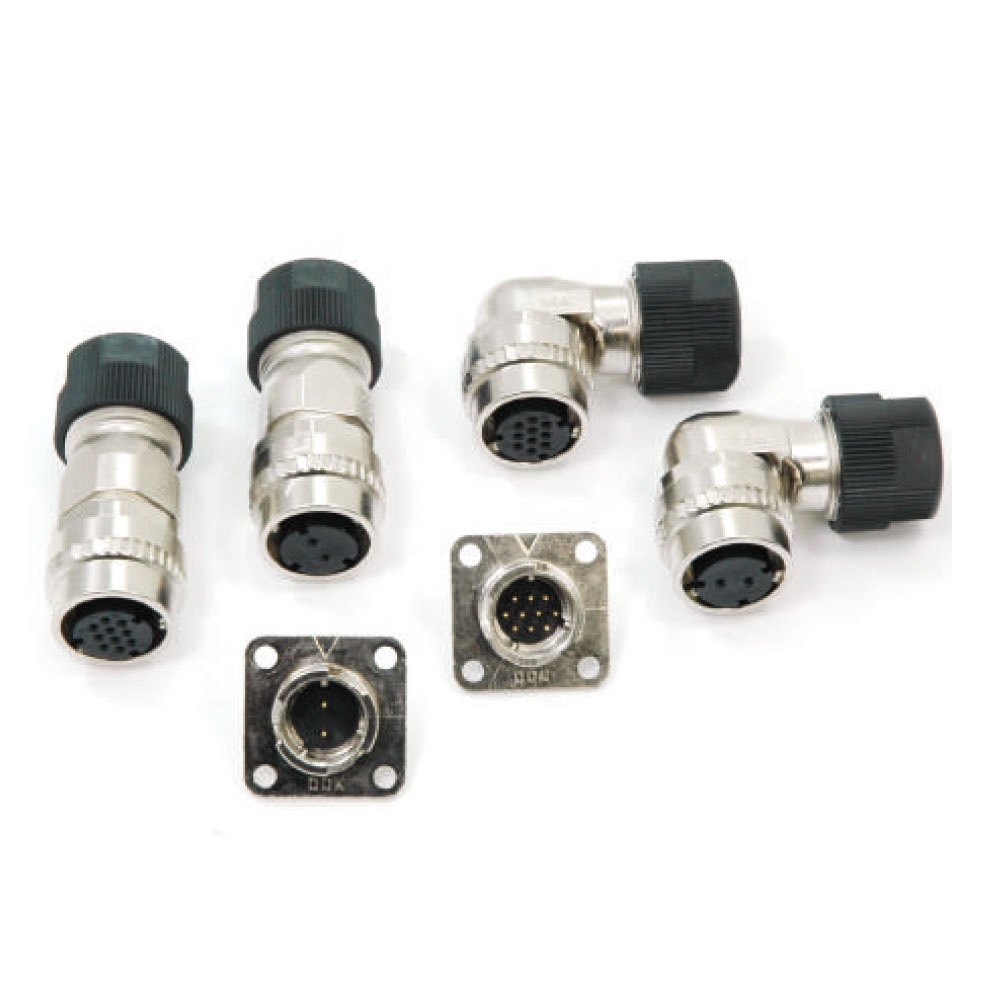

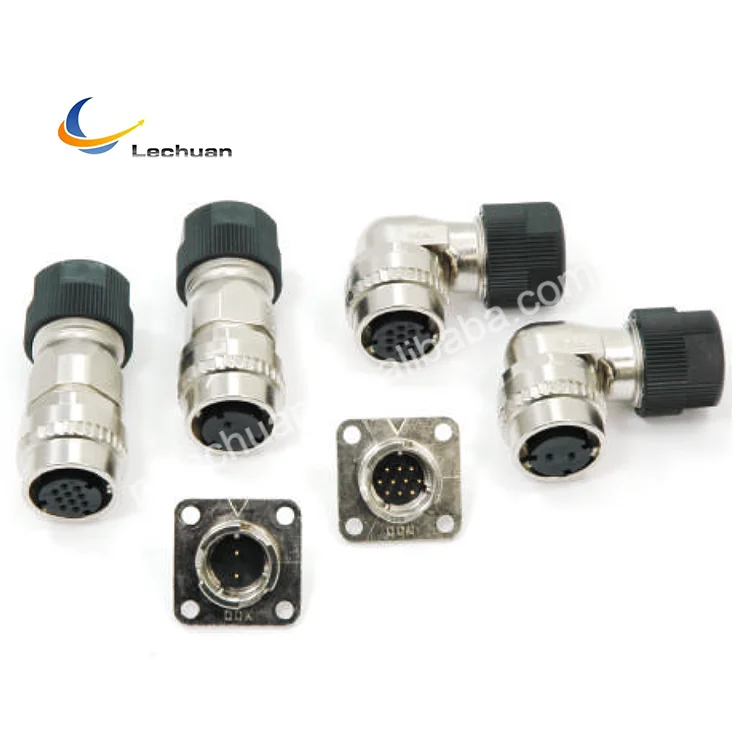

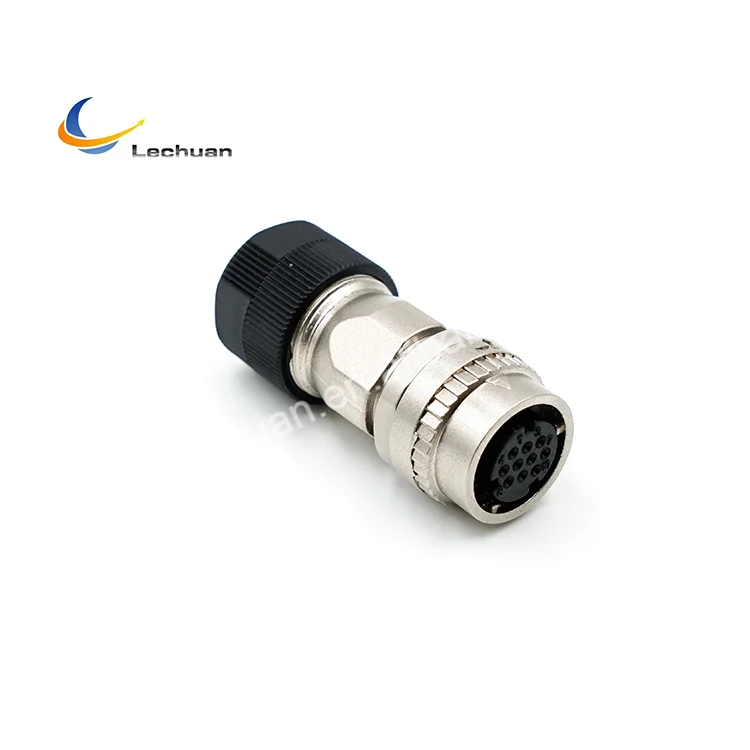

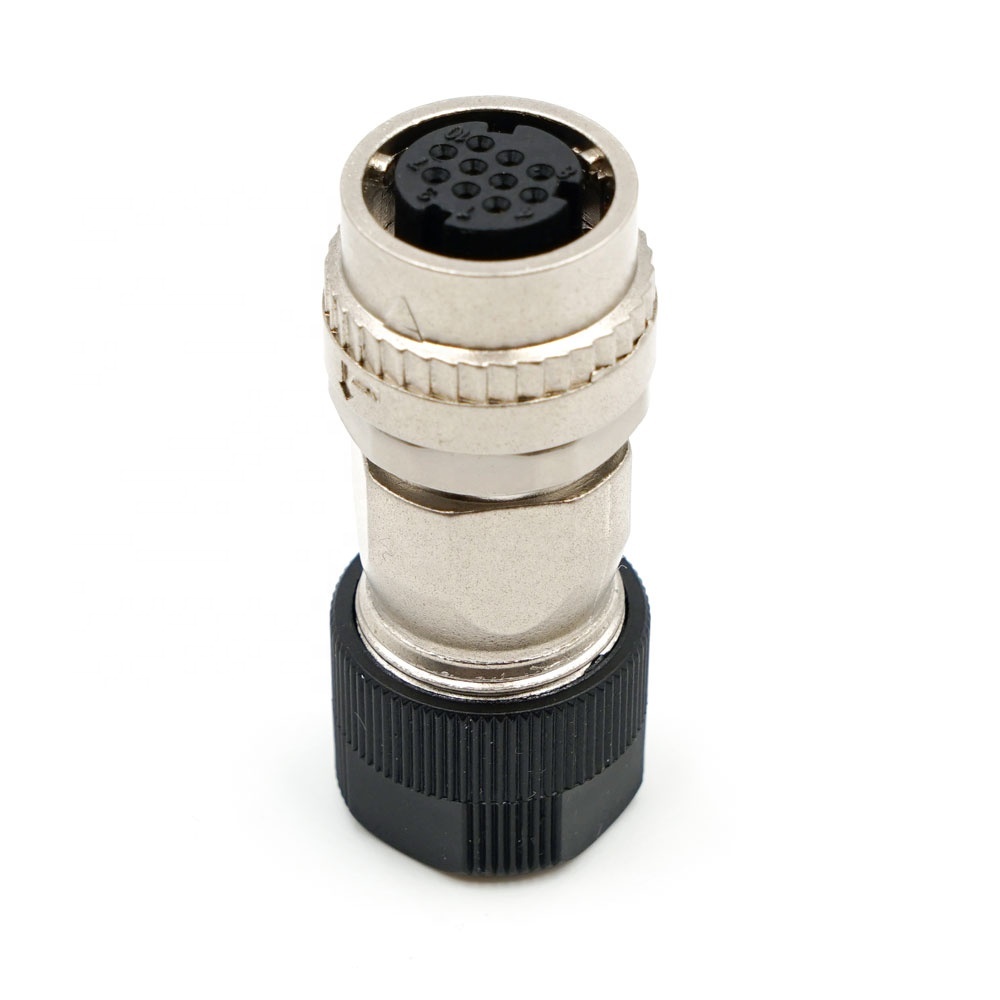

LECHUAN One Touch Locking Style Small Sized Encoder Connector 2Pin Metal Straight Plug DDK CM10-SP10S-M Circular Connectors

Product Name	DDK CM10-SP10S-S Connector
Electrical Characteristic	Rated Voltage:200V AC(r.m.s.)
		Rated Current:3A／Contact
		Dielectric Withstanding Voltage: 1500V AC(r.m.s.)／１minute. [2-Contact] 900V AC(r.m.s.)／１minute. [10-Contact]
		Insulation Resistance:1000MΩ min. at 500V DC
Environment	Operating Temperature:-25℃ to +85℃
