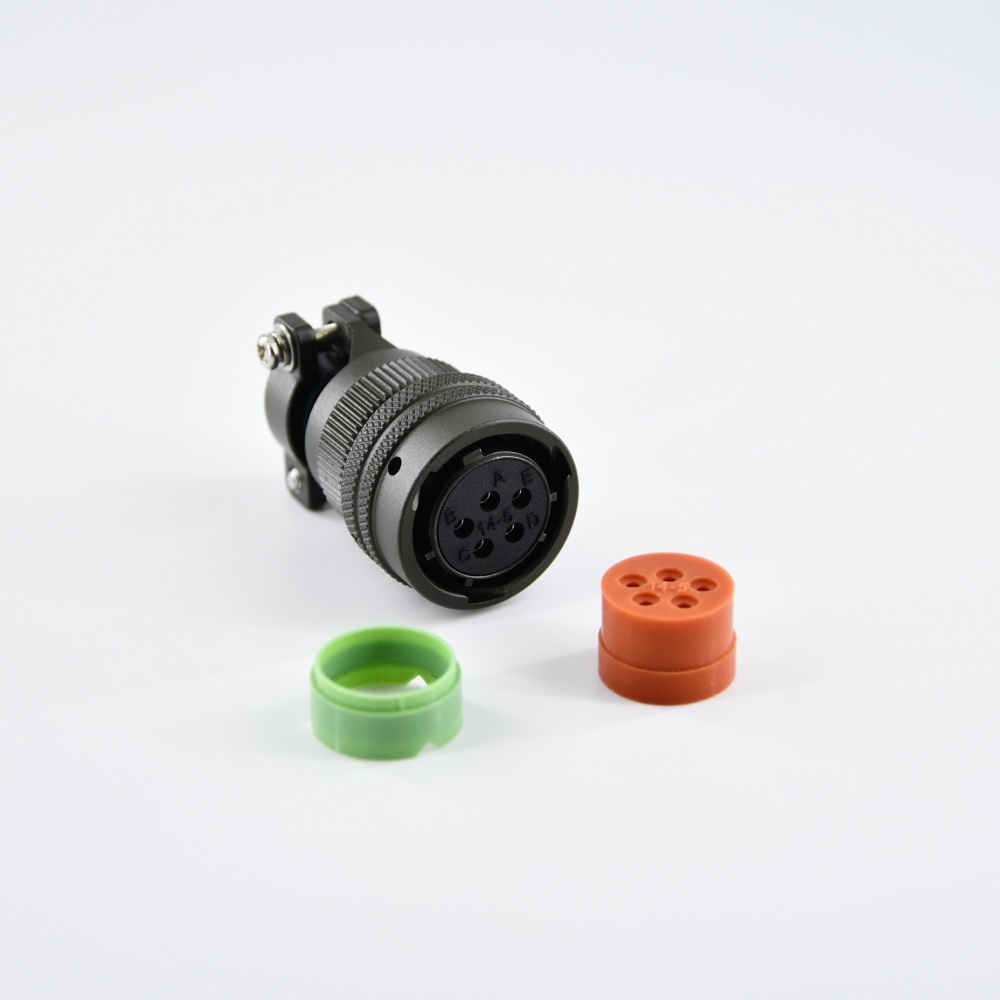

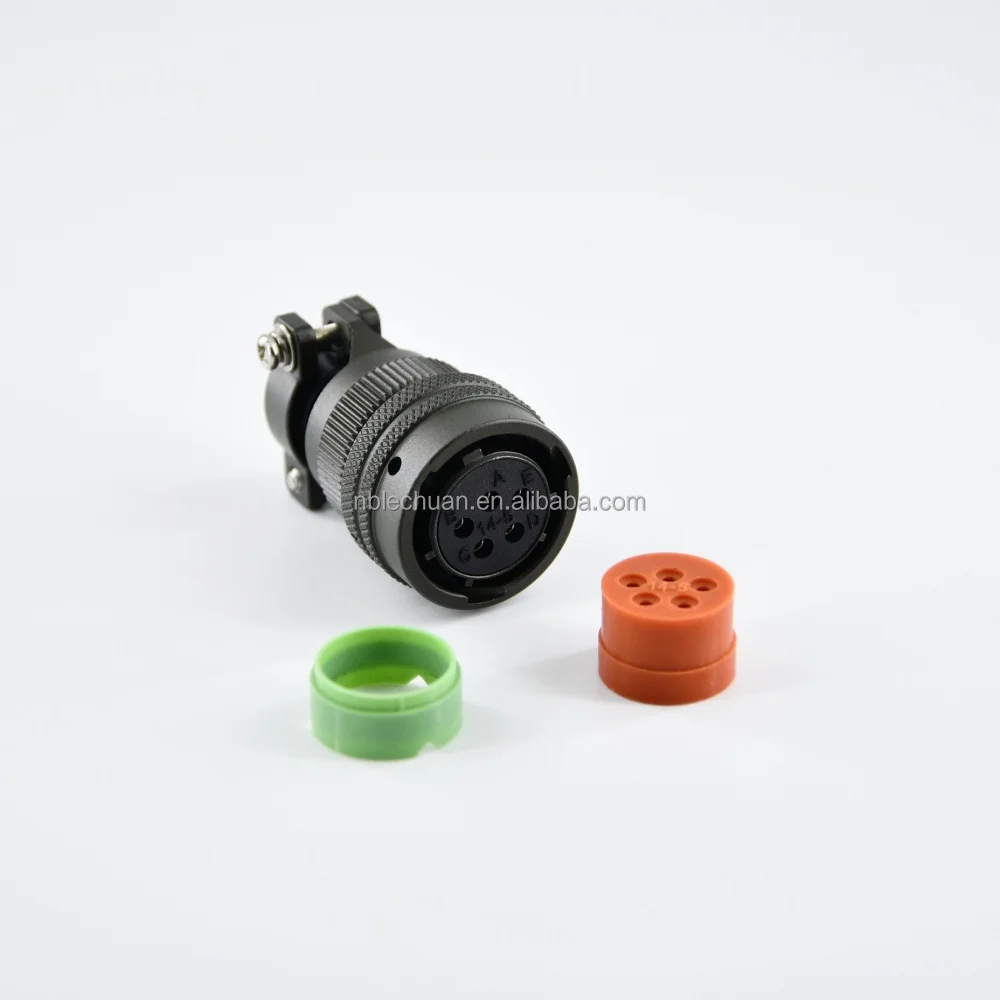

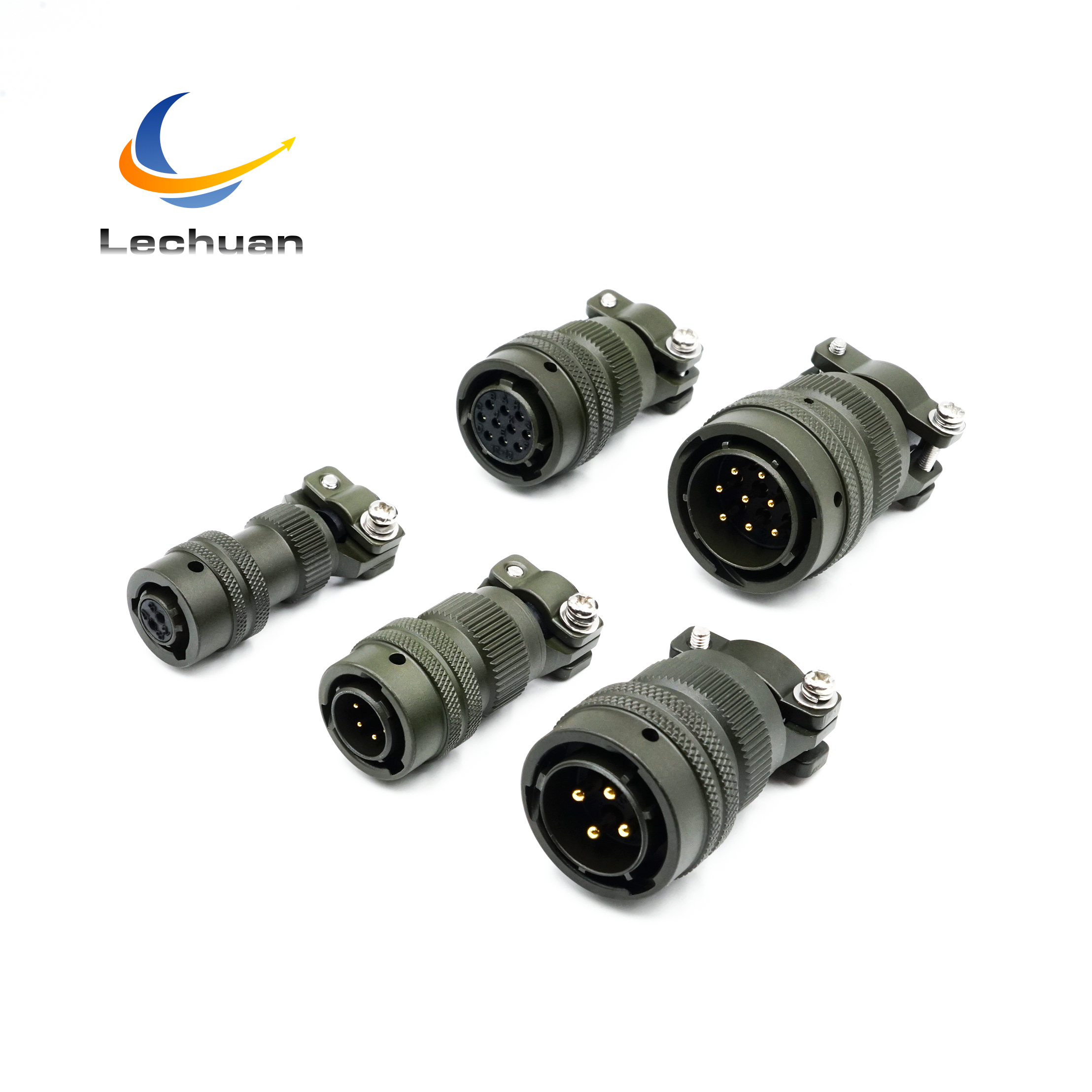

MS3116F 14-5S Military Circular Connector | MIL-DTL-26482 Standard, 5-Pin Solder Cup, Straight Female Plug

Lechuan offers the high-reliability MS3116F 14-5S circular connector, fully compliant with MIL-DTL-26482 specifications. This 5-pin, straight-plug, solder cup female connector is the ideal choice for aerospace, defense, and industrial applications, and is fully interchangeable with major manufacturer equivalents.

Key Features & Benefits

Full Specification Compliance: 100% compliant with MIL-DTL-26482 Series I military specifications, guaranteeing performance and reliability in harsh environments.

Direct Form-Fit-Function Replacement: Serves as a drop-in alternative for Amphenol MS3116F14-5S and ITT Cannon KPT06E14-5S / KPT06H14-5S. Also compatible with equivalents from TE Connectivity (D-26482-5P), Glenair, and Souriau (8T Series).

Rugged Construction: Metal shell provides excellent EMI shielding and mechanical strength. Straight plug design facilitates panel mounting and cable routing.

Secure Termination: Five solder cup contacts ensure robust wire termination and superior electrical conductivity.

Environmental Durability: Engineered to resist vibration, shock, moisture, and extreme temperatures, meeting stringent military and aerospace requirements.

Technical Specifications

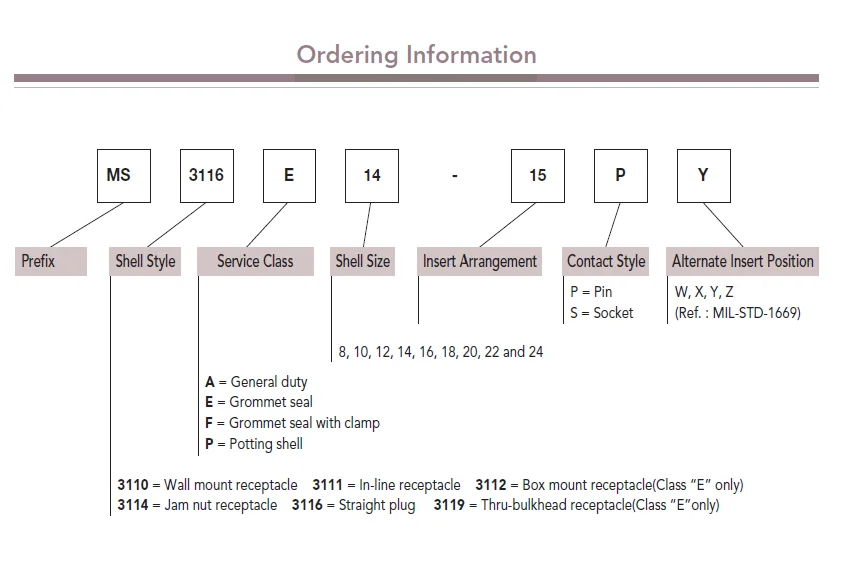

• Part Number: MS3116F 14-5S

• Governing Specification: MIL-DTL-26482

• Connector Type: Female Plug

• Contact Configuration: 5 Position (Pin)

• Shell Style: Straight

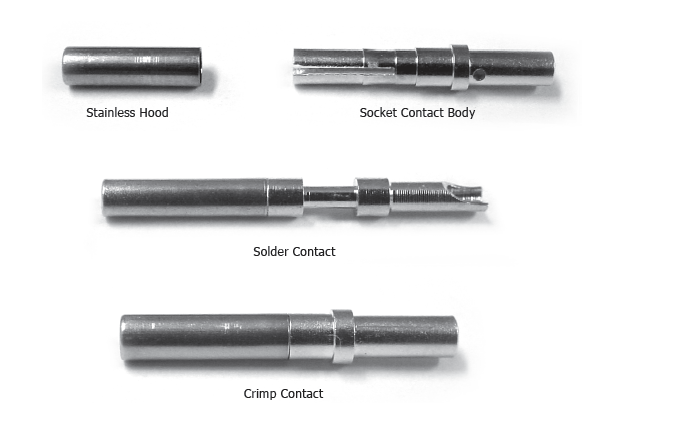

• Termination Type: Solder Cup

• Shell Material: High-Strength Metal with Corrosion-Resistant Finish

• Insulator: High-Temperature Thermoplastic

• Operating Temperature: -55°C to +125°C (or as per grade)

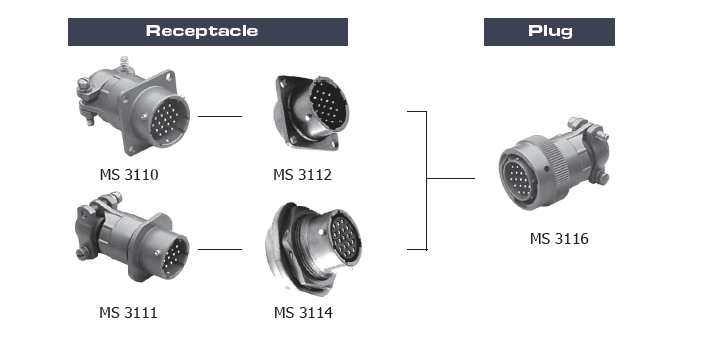

• Mating Interface: Standard MS3116 Series interface, ensuring proper engagement with corresponding jacks or receptacles.

Cross-Reference / Interchangeable Part Numbers

Our MS3116F 14-5S provides seamless form-fit-function replacement for these major brand equivalents, offering optimal supply chain diversification:

• Amphenol: MS3116F14-5S

• ITT Cannon: KPT06E14-5S, KPT06H14-5S

• TE Connectivity: D-26482-5P (and similar)

• Glenair: G-26482-MS3116F14-5S

• Souriau (Eaton): 8T 611 014 05S (and similar)

• Positronic: DSS Series compatible products



Typical Applications

• Military & Aerospace Avionics

• Ground Support Equipment (GSE)

• Radar & Communication Systems

• Test & Measurement Instrumentation

• Marine & Naval Equipment

• High-Reliability Industrial Control Systems
