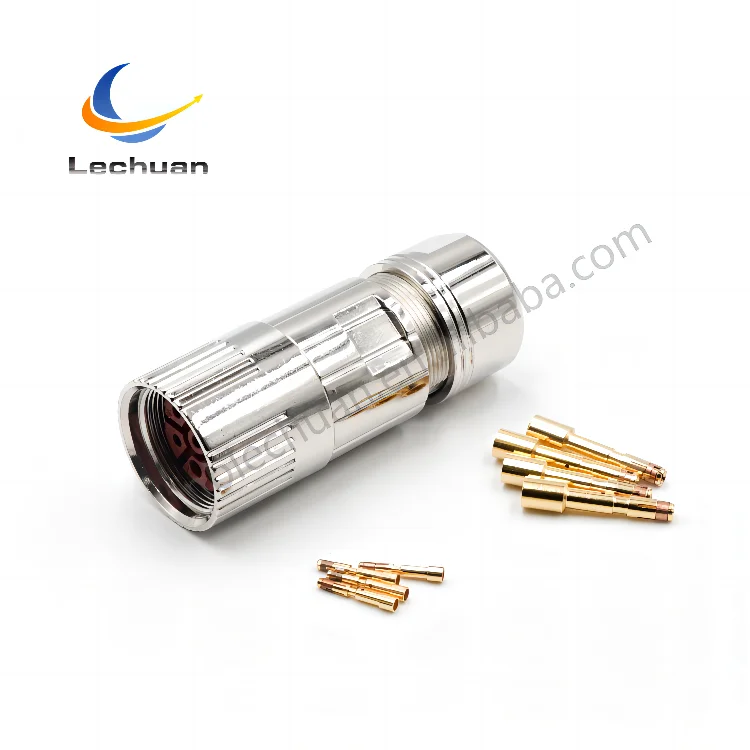

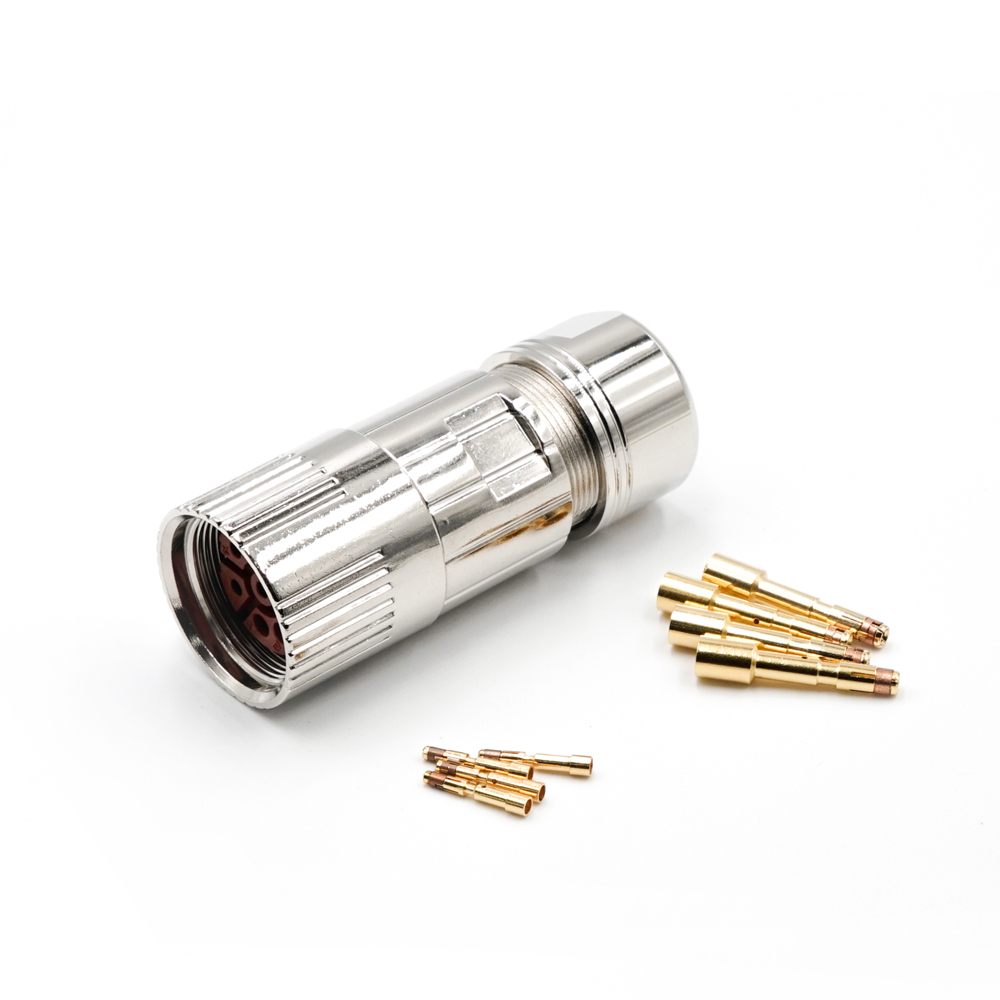

Product
|
Orientation:Straight
|
|
Shielding :Shielded
|
|
|
Shell Size :M23
|
|
|
Mounting Type:Cable Mount
|
|
|
Material
|
Shell Material:Copper Alloy
|
|
|
Insulation Material :PA66
|
|
|
Contact Material:Copper Alloy
|
|
|
Shell Finish:Zinc Plating
|
|
Contact Finish:Gold Plating
|
|
|
Number Of Positions:6 Pin,8 Pin
|
|
|
Electrical Characteristic
|
Rated current/Voltage: 28A 600V
|
|
|
Operation limt voltage(AC.Vrms) :0/800
|
|
|
Withstanding voltage(AC.V.rms)1 min.: 4000/2500
|
|
|
Insulation resistance (MΩ min.)at dc :500V
|
|
Contact resistance(MΩ max.)at dc 1A: 3
|
|
|
Contact resistance Φ(mm) :2.0
|
|
|
Solder inter diameterΦ(mm) :6x2
|
