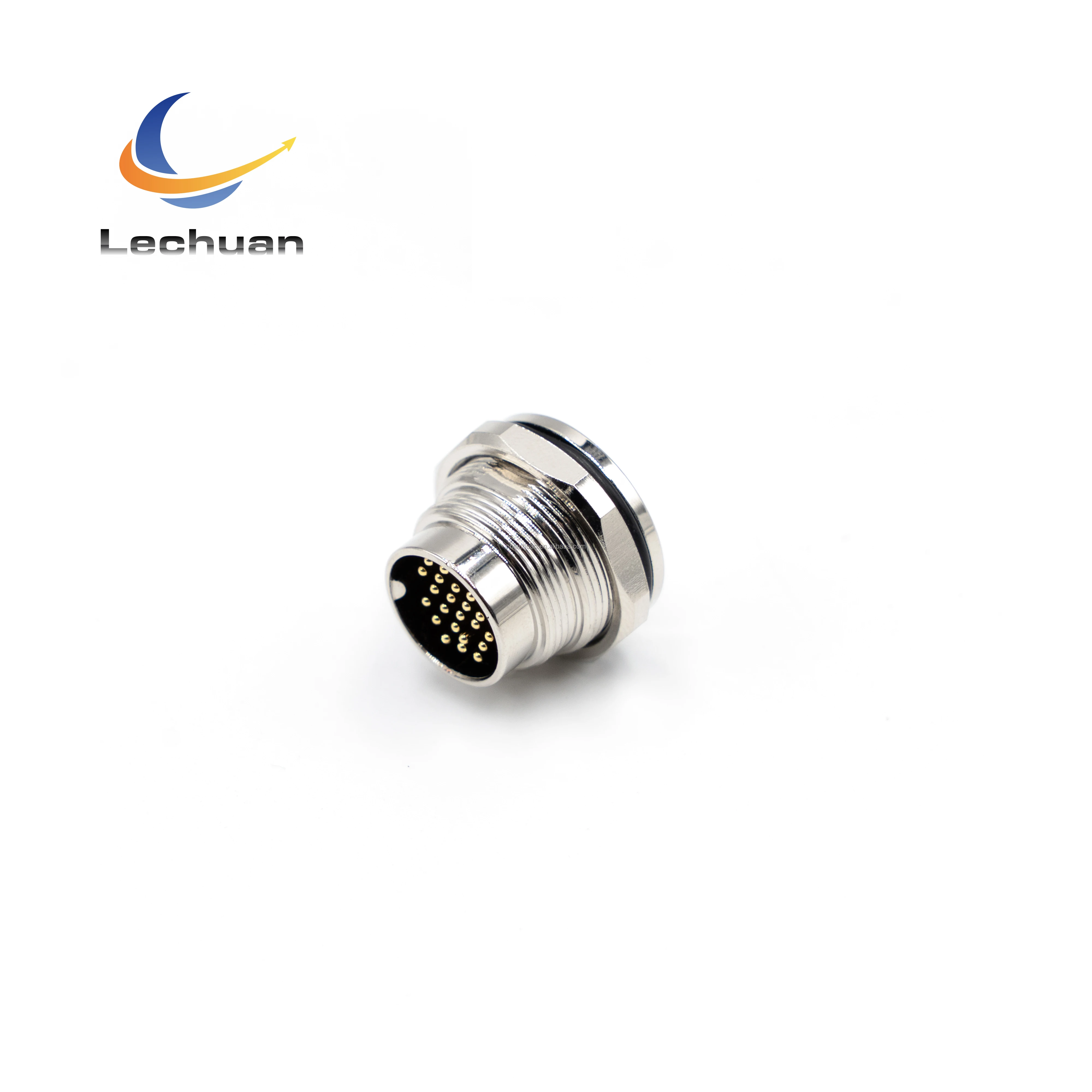

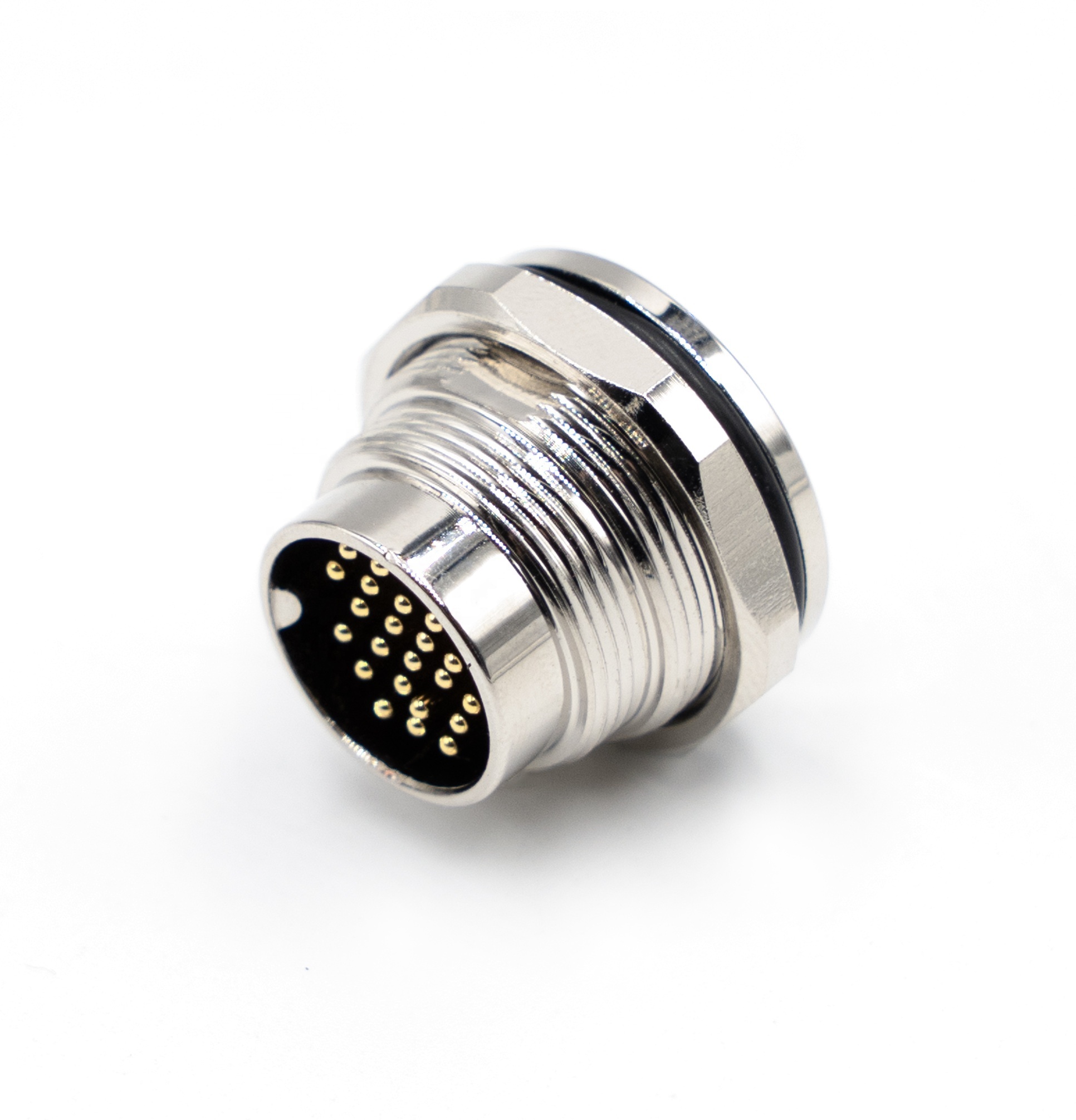

The LECHUAN M16 connector circular socket features 14/16 pins with IP67 waterproofing and hex flange panel mount, designed for reliable PCB connector applications by leading circular connector manufacturers.
Functional Positioning for Industrial and Embedded Systems
The LECHUAN M16 connector is engineered for professionals requiring dependable electrical connection solutions in compact form factors. Targeted at engineers, system integrators, and procurement specialists, this connector circular interface supports reliable panel-mounted PCB applications where IP67 ingress protection is essential. Its compatibility with a range of wire gauges and pin configurations makes it suitable for embedded control systems, instrumentation, and industrial equipment demanding robust signal and power transmission. Military connector manufacturers often prioritize such designs for their stringent environmental resilience and consistent performance under challenging conditions.
Technical Specifications Emphasizing Reliability and Precision
This 5 pin circular connector type features a copper alloy shell with zinc plating, delivering enhanced corrosion resistance vital for harsh industrial environments. Its gold-plated copper alloy contacts ensure excellent electrical conductivity and signal integrity, critical for high-frequency data transfer and power distribution. Rated for 10 A and 300 V, the LECHUAN M16 connector withstands operational temperatures from -40°C to 100°C. The straight solder termination facilitates secure PCB integration, while the rear hex flange panel mount guarantees stable installation. With IP67 waterproof sealing, it reliably prevents dust and water ingress, extending operational longevity and reducing maintenance intervals in demanding applications.
Industrial Applications and Integration Benefits
In sectors such as automation, control panels, and embedded systems, the LECHUAN M16 connector enhances system reliability and serviceability. Its circular connector design allows streamlined wiring in compact spaces while maintaining ruggedness against environmental stresses. Industrial circular connector manufacturers value such solutions for field service environments where waterproof connections reduce downtime risks. Its use in custom laboratory instruments and prototyping contexts offers flexible, high-quality connections conducive to rapid development cycles. By delivering a standardized interface with proven durability, this m16 connector facilitates global supply chain integration and compliance with industrial quality standards.
|
Product
|
Orientation:Straight
|
|
Shielding :Shielded
|
|
|
Shell Size :M16
|
|
|
Mounting Type:Panel Mount
|
|
|
Material
|
Shell Material:Copper Alloy
|
|
|
Insulation Material :PA66
|
|
|
Contact Material:Copper Alloy
|
|
|
Shell Finish:Zinc Plating
|
|
Contact Finish:Gold Plating
|
|
|
Number Of Positions:5 Pin
|
|
|
Electrical Characteristic
|
Rated current/Voltage: 10A 300V
|
|
|
Contact Plating :Gold/Au-Plating
|
|
|
Contact Diameter.: 1.5mm
|
|
|
Min Wire Gauge:0.05mm
|
|
Max Wire Gauge:0.5mm
|
|
|
Lower Temperature: - 40℃
|
|
|
Upper Temerature: 100 ℃
|
Design and Structural Integrity Tailored for Harsh Environments
The LECHUAN M16 connector’s design integrates a copper alloy shell with zinc plating and gold-plated contacts, optimizing corrosion resistance and conductivity. Its hex flange rear panel mount secures the connector firmly in place, preventing mechanical stress on the PCB and wiring. The straight solder termination simplifies circuit board assembly while maintaining robust electrical contact points. This connector circular architecture supports modular system configurations, allowing scalable pin counts and variants. Such thoughtful structural design elements meet the requirements of military connector manufacturers seeking rugged and adaptable interconnect solutions.
Enhanced Performance and Operational Usability
Operationally, the LECHUAN M16 connector supports current loads up to 10 A and voltages up to 300 V, enabling use in varied power and signal applications with assured safety margins. The IP67 rating offers dependable performance in dusty or temporarily submerged environments, reducing equipment failure risks. Ease of assembly through straight solder termination and secure rear flange mounting improves production efficiency and reliability. For design engineers and procurement teams, this pcb connector provides consistent electrical performance, durability, and straightforward integration into existing system workflows, thus maximizing return on investment by minimizing downtime and maintenance.
Application in Industrial Control Panels for Harsh Conditions
In industrial automation and control panel environments, the LECHUAN M16 connector serves as a dependable interface for signal and power wiring within protective enclosures. The hex flange panel mount ensures mechanical stability under vibration and shock, while IP67 sealing prevents ingress of contaminants that could disrupt operations. This circular connector’s compatibility with multiple pin configurations allows integration with complex control systems. Its corrosion-resistant contacts maintain signal integrity over prolonged operational periods. Embedded system manufacturers use these connectors to achieve compliance with industrial standards and enhance system robustness in factories and processing plants.
Role in Prototyping and Field Maintenance of Rugged Equipment
During prototyping phases or field service applications, this 5 pin circular connector enables quick assembly and reliable connections on PCB assemblies that require waterproof integrity. Its standardized m16 connector dimensions facilitate compatibility with existing housings and cable assemblies. Maintenance technicians benefit from the straightforward solder termination and rear flange mount, enabling rapid replacement and troubleshooting under demanding conditions. Circular connector manufacturers recognize its value in test fixtures and embedded equipment exposed to dust, moisture, or mechanical stress. The LECHUAN solution integrates seamlessly into workflows requiring durable, easily manageable connector interfaces.
