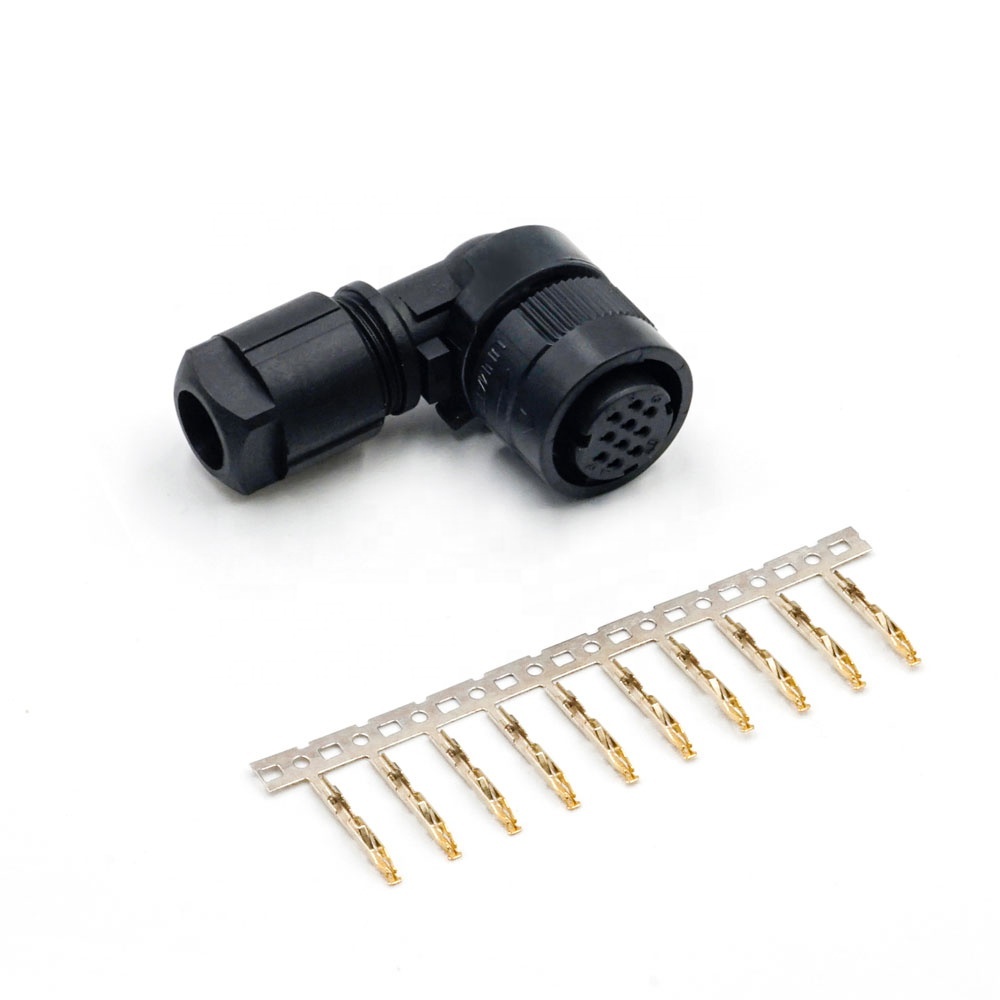

The LECHUAN JN1FS10SL2 10-position circular connector provides reliable, corrosion-resistant connections with gold-plated copper alloy contacts. Ideal for precise compact cable connector applications in wire harness connector manufacturing.
Functional Scope and Target Engineering Users
The LECHUAN JN1FS10SL2 circular connector is engineered for electrical systems requiring compact interconnection solutions, particularly in applications where a 10-position interface without socket contacts is essential. Targeted primarily at wire harness connector manufacturers and electronic connector manufacturers, this component facilitates streamlined assembly of cable connectors in environments demanding durability and compact form factors. Its design supports free-hanging mounting, enabling flexibility in harness layouts and reducing spatial constraints in compact equipment. This connector is optimized for engineers and procurement managers seeking robust, reliable interconnectivity in prototype development and production-level manufacturing.
Technical Specifications and Performance Metrics
Featuring a resin shell molded in black, the LECHUAN JN1FS10SL2 ensures lightweight yet sturdy enclosure protection rated for 200 VAC and continuous operation at currents up to 3 A. Gold-plated copper alloy contacts promote superior corrosion resistance and signal integrity, minimizing electrical resistance and wear over extended duty cycles. The connector’s crimp termination method enhances assembly consistency and maintenance efficiency. Being part of the JN1 family, it offers seamless mating compatibility with related receptacles, optimizing board to board connector integration where space optimization and reliable electrical performance are critical.
Industrial Applications and System Integration Benefits
This 10-position circular connector finds utility in compact control modules, test bench assemblies, and small robotics projects demanding precise and stable connections. Its attributes support electrical connectors manufacturers involved in producing modular, field-upgradable instrumentation and automation systems. The design facilitates quick-connect cable configurations within wire harness assemblies, ensuring efficient workflow integration and component interchangeability. By delivering a reliable signal and power interface in space-constrained environments, it enhances system durability and operational uptime, meeting compliance and quality standards required in industrial electronic manufacturing.
Structural and Modular Design Strengths
The JN1FS10SL2 leverages a resin shell construction combined with gold-plated copper alloy contacts to achieve a balance of robustness and corrosion resistance, crucial for industrial reliability. Its free-hanging mounting style allows adaptable integration into wire harness assemblies without imposing design constraints, supporting modular system architectures. The crimp termination design simplifies manufacturing processes and improves mechanical retention, reducing assembly time while maintaining electrical performance. This connector’s compatibility with the broader JN1 family enables flexible system design options for electrical connectors manufacturers seeking scalable solutions within their product lines.
Operational Performance and Usability Benefits
From a performance perspective, the connector sustains continuous operation at 3 A with a 200 VAC voltage rating, accommodating modest power and control signaling demands. The gold-plated contacts assure consistent signal transmission, reducing maintenance frequency and improving lifecycle costs. Usability is enhanced through its push-pull mating style, facilitating quick and secure connections in field or manufacturing environments. These features collectively maximize value for electronic connector manufacturers focused on delivering dependable cable connector assemblies that optimize production efficiency while ensuring long-term operational integrity.
Use Scenarios
Compact Control Systems Integration in Industrial Automation
In automated industrial environments, compact control modules require dependable electrical connectors to ensure seamless signal and power transmission. The LECHUAN JN1FS10SL2, as a 10-position cable connector, optimizes spatial efficiency within dense wiring harnesses, critical when integrating sensors and controllers. Its resilient resin housing with gold-plated contacts withstands mechanical vibration and environmental exposure, providing consistent connectivity essential for process control reliability. This connector’s standardized interface supports rapid deployment and replacement within modular automation units, facilitating maintenance workflows and compliance with industrial quality requirements.
Prototyping and Testing in Electronic Development Laboratories
Within electronic development and testing facilities, the need for quick assembly and reconfiguration of cable harnesses is frequent. The JN1FS10SL2 connector’s crimp termination and free-hanging mount style enable swift cable assembly and disassembly, accelerating prototype iteration cycles. Its compatibility within the wire harness connector manufacturing domain simplifies the development of custom configurations while maintaining standard mating interfaces for interoperability. The connector supports rigorous reliability and mating tests, ensuring electronic connector manufacturers can validate system durability and performance under simulated operational stresses effectively.
|
Product Name
|
Circular Connector
|
|
Material
|
Contact Material:Copper Alloy
|
|
|
Color:Black
|
|
|
Packaging:Tray
|
|
Shell Material:Resin
|
|
|
Type
|
Current Rating:3 A
|
|
|
Housing Gender:Male
|
|
|
Mating Style:Push-Pull
|
|
|
Mounting Angle:Right Angle
|
|
Product Type:Standard Circular Connector
|
|
|
Environment
|
Voltage Rating:200 VAC
|
What materials are used in the LECHUAN JN1FS10SL2 connector contacts?
Our JN1FS10SL2 connector features copper alloy contacts plated in gold, ensuring durability and corrosion resistance. This choice supports reliable signal transfer in various industrial environments, aligning with our focus as trusted electronic connector manufacturers.
Can you customize the termination style for bulk orders of this connector?
We offer the LECHUAN JN1FS10SL2 with standard crimp termination, optimized for quick assembly. For customized termination solutions, please contact us directly to discuss your application and requirements as experienced electrical connectors manufacturers.
What installation methods are recommended for the JN1FS10SL2 connector?
This model uses a free-hanging mounting style designed for compact cable harnesses. Installation involves crimp termination of wires for secure and efficient cable connection, fitting well in control panels and automation modules requiring reliable cable connector solutions.
How are your connectors packaged and shipped for international orders?
Our connectors are packed in practical trays to protect components and facilitate handling. With a strong international export network via Cixi Lechuan Import and Export Co., Ltd., we ensure prompt delivery and compliance with global shipping standards.
