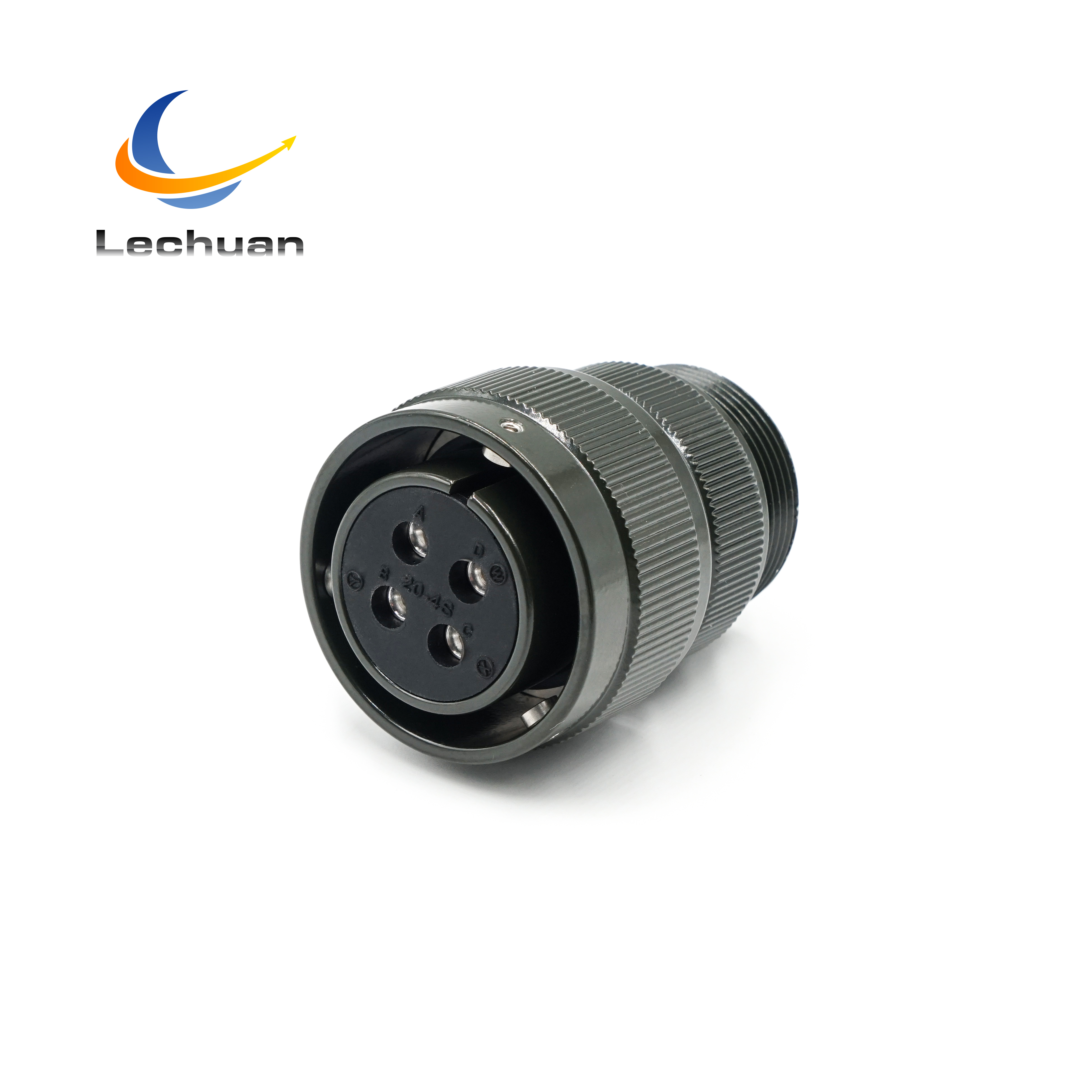

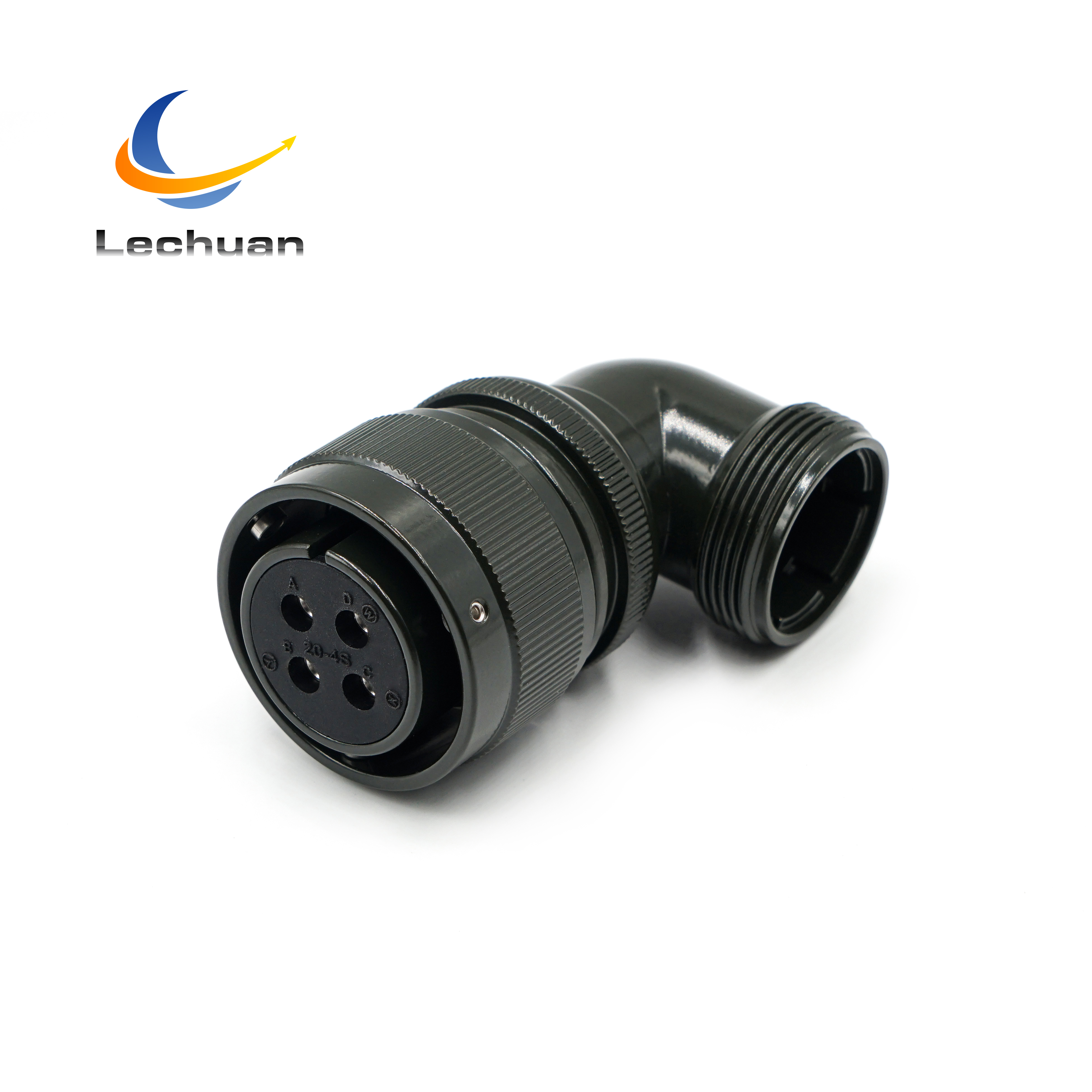

Product Name
|

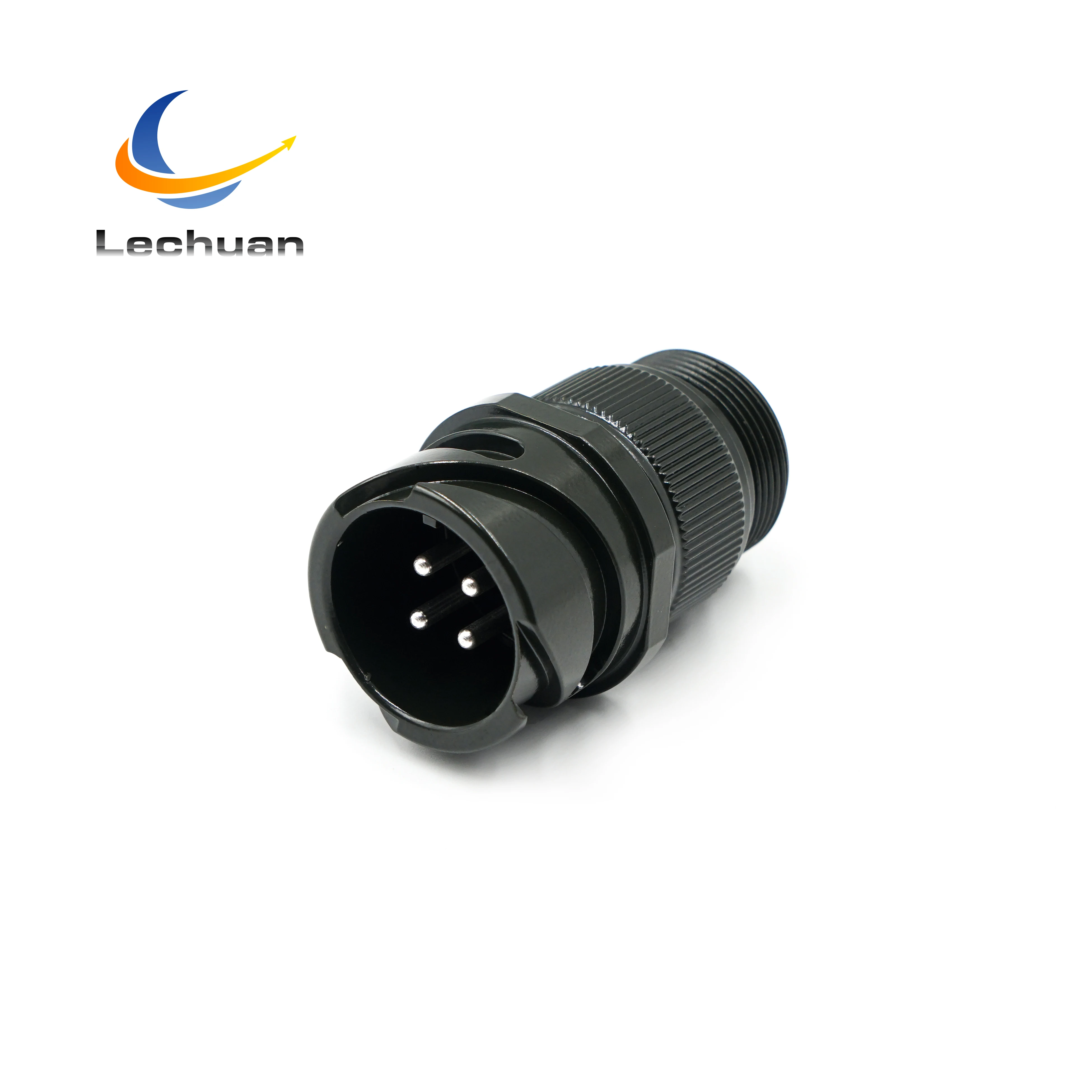

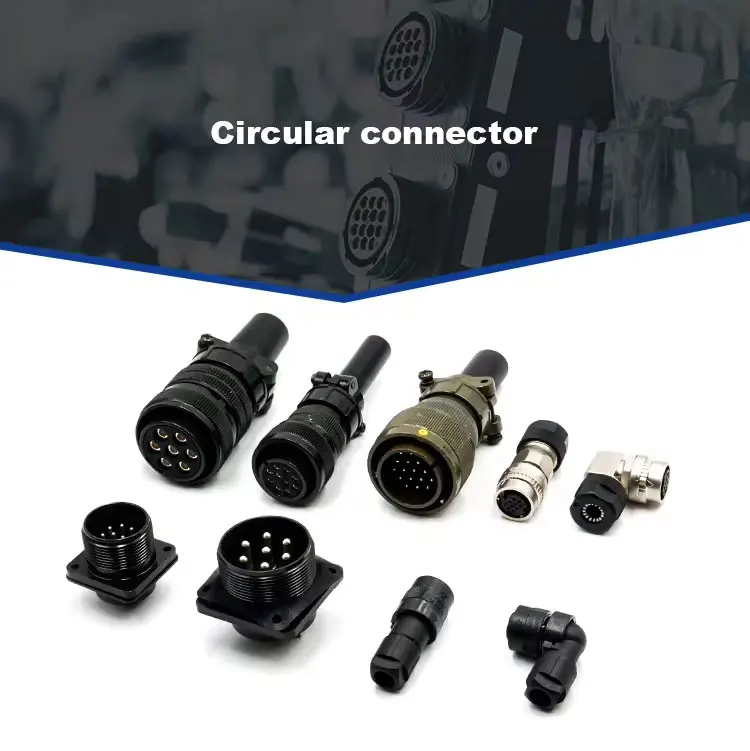

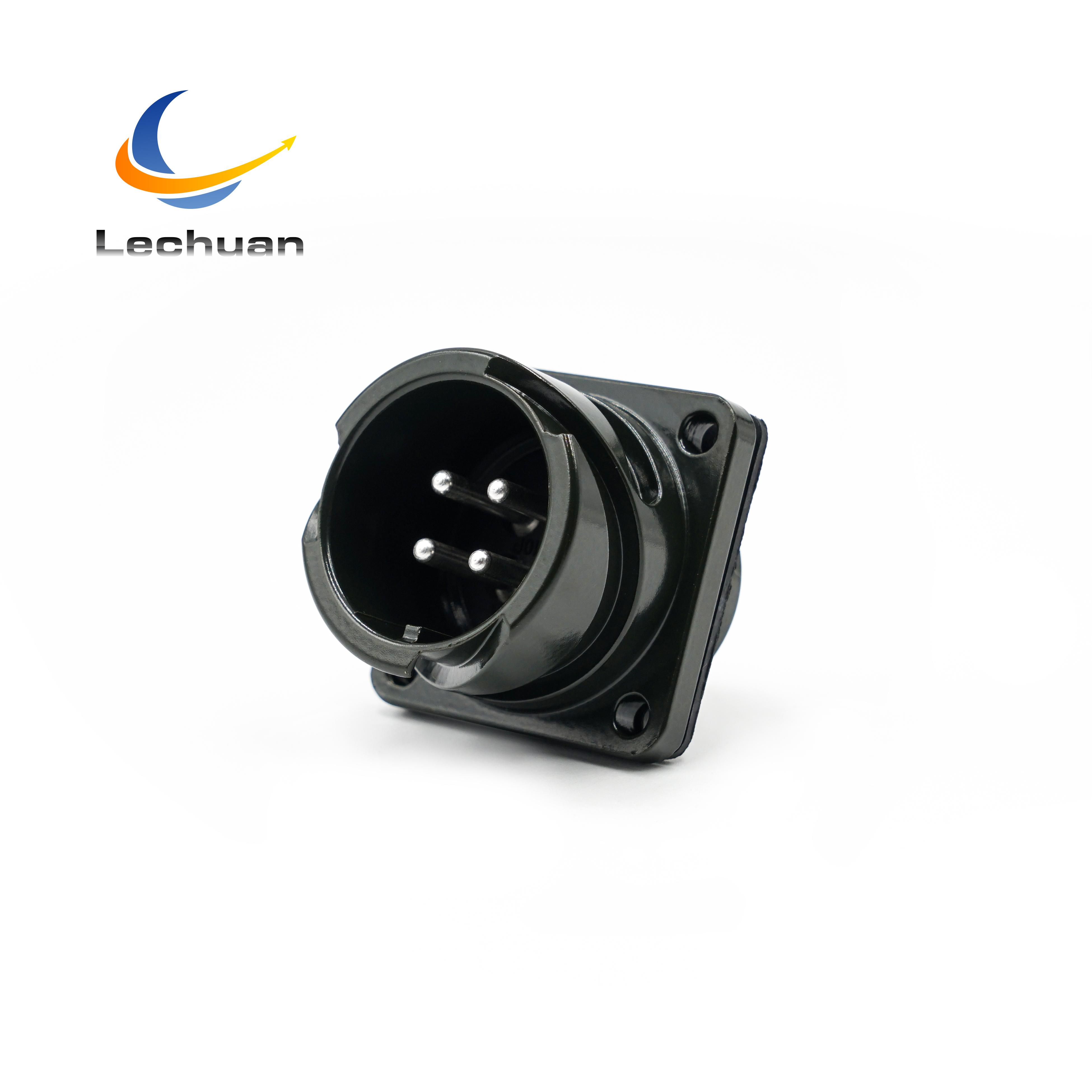

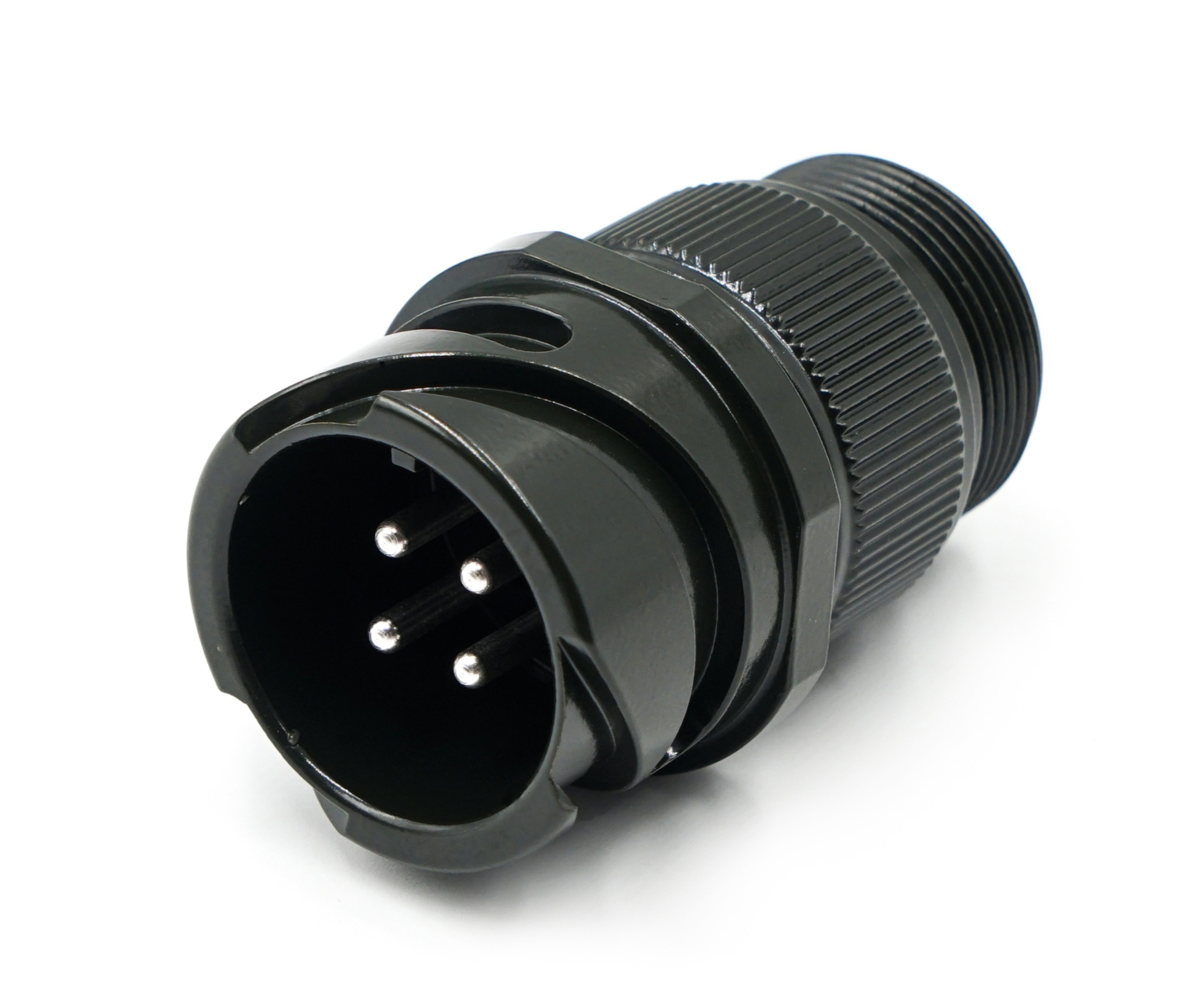

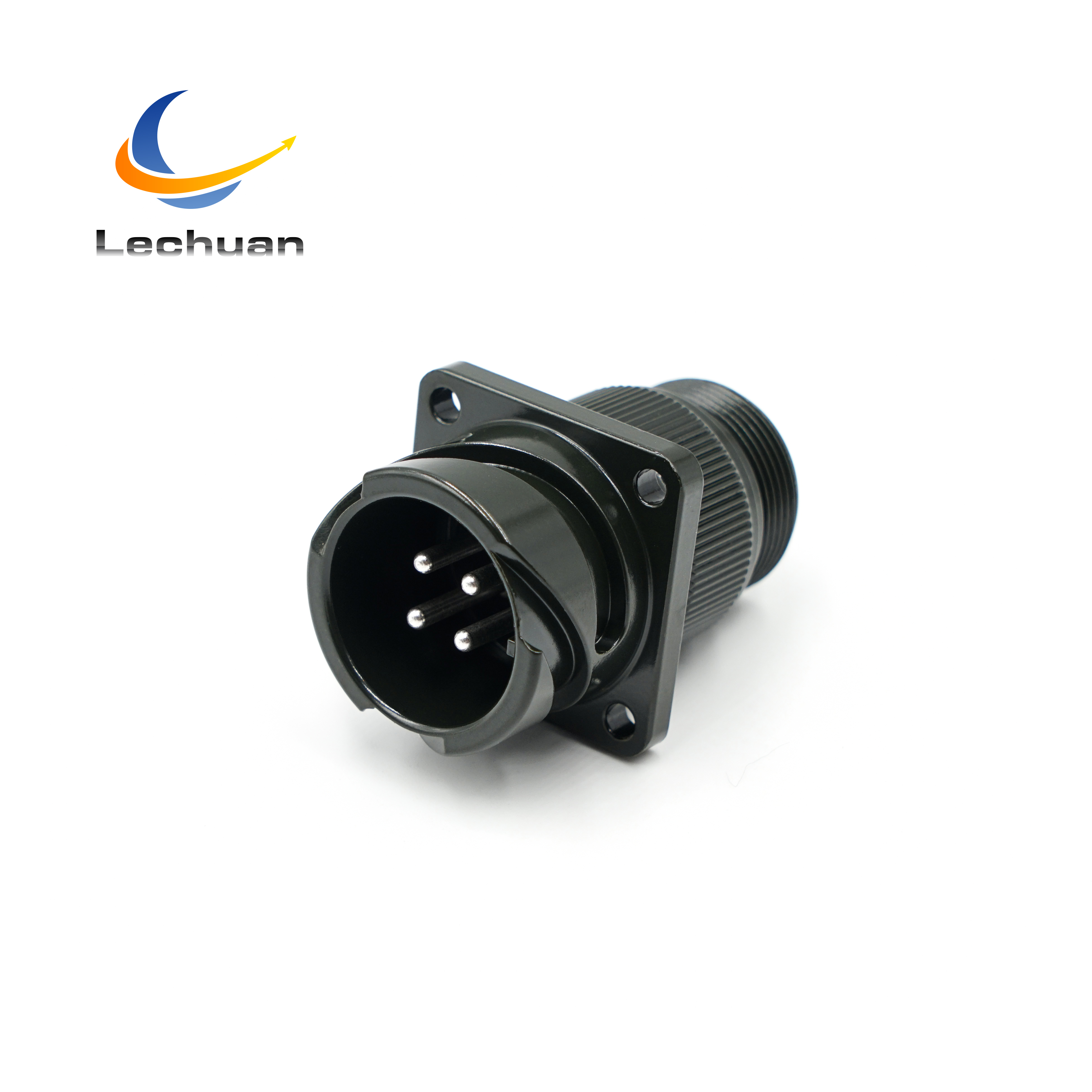

Circular Spec Connector
|
|
Material
|
Socket Cover Insulator Plastic(UL94V-0)
|
|
Black Socket Insulator :Plastic(UL94V-0)/Black
|
|
|
Fixed Pin Copper :Alloy/Nickel Plating
|
|
|
Contact Copper :Alloy/Gold Plating
|
|
|
Coupling Ring: Zinc Alloy/Nickel Plating
|
|
|
O Ring(Mating Side) :Synthetic Rubber/Black
|
|
|
Plug Shell:Zinc Alloy/Nickel Plating
|
|
|
ELECTRICAL
|
Rated Current 3A Max.
|
|
Contact Rated Voltage 200V AC(r.m.s.)
|
|
|
Max. Dielectric Withstanding Voltage 1500V AC(r.m.s.) ／ 1 minute
900V AC(r.m.s.) |
|
|
Insulation Resistance 1,000M Ω Min. at 500V DC
|
|
|
Operating Temperature Range -25℃ to +85℃
|
|
|
Applicable Wire Receptacle, Cable Receptacle
・Soldering only, 20AWG max. Plug ・Crimp：16AWG-20AWG ・Soldering Use,：16AWG Max. Receptacle, Cable Receptacle ・Soldering Use,：20AWG Max Plug ・Crimp：20AWG-28AWG RoHS ・Soldering Use,：20AWG Max. |
