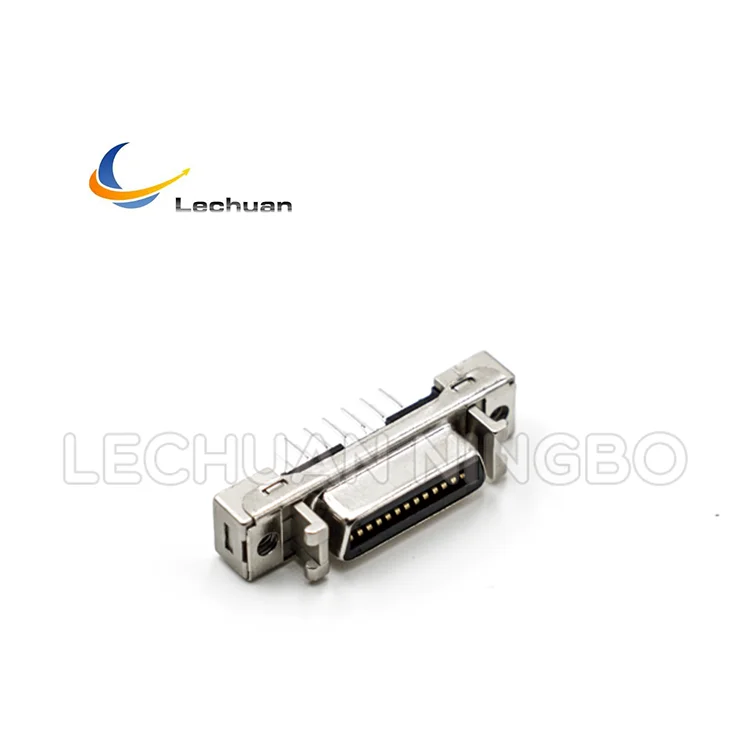

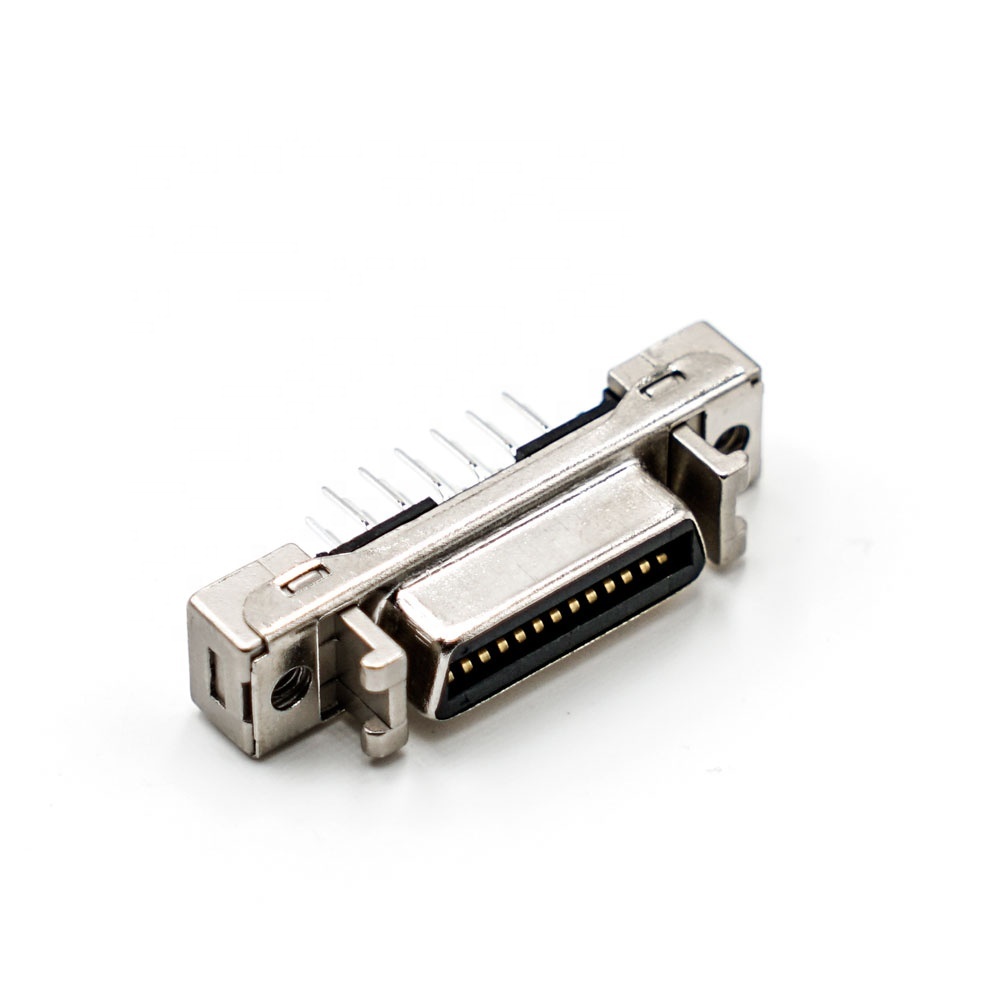

The 26Pin Female Straight Right Angle MDR Connector offers reliable PCB I/O connections with a compact 1.27mm pitch. This solution by leading electronic connector manufacturers ensures durable board to board connector integrity in demanding environments.
Functional Integration for High-Density PCB Connectivity
Designed primarily for electrical connectors manufacturers serving industrial and communications sectors, this 26-pin female MDR connector fulfills the need for compact, high-reliability PCB I/O interfaces. Targeted users include engineers and OEM designers requiring robust board to board connector solutions in constrained layouts. The straight and right-angle options provide flexibility in system integration, supporting 1A current applications typical of backplane and peripheral interconnects. This product supports efficient circuitry design while facilitating maintenance and replacement in complex assemblies.
Technical Composition and Measurable Specifications
Constructed with copper alloy contacts plated in gold over nickel, this MDR connector ensures low resistance and stable conductivity vital for performance consistency. The zinc alloy housing grants mechanical strength and environmental resilience, complemented by an IP67-rated sealing that protects against dust and water ingress. Offering a precise 1.27mm pitch and solder termination compatibility, the connector supports standardized manufacturing and assembly processes. The 26-pin configuration aligns with international norms and supports integration with cable connector assemblies in precision electronic applications.
Industry Deployment and Operational Efficiency
In industrial automation, telecommunications, and embedded systems, this connector facilitates secure electrical connections critical for system reliability. Its compact footprint is advantageous in densely populated circuit boards, enabling efficient use of space without sacrificing performance. Wire harness connector manufacturers benefit from its application in custom cable assemblies where robust female MDR interfaces are essential. The product complies with industry standards, enhancing lifecycle management and enabling seamless integration into various supply chains.
Design Precision and Integration Flexibility
The MDR connector’s modular design allows quick adaptation to multiple PCB configurations with straight or right-angle orientations, simplifying system architecture. Its zinc alloy housing and gold-over-nickel plated contacts enhance durability and electrical integrity, offering resistance to corrosion and wear. Such specifications facilitate use in demanding environments, positioning the connector as a preferred choice among electrical connectors manufacturers focused on robust terminal block connector and board to board connector assemblies. Its IP67 rating ensures operational reliability in sealed systems where environmental factors are critical considerations.
Operational Excellence and Usability Benefits
Users benefit from the easy solder termination method which streamlines PCB assembly, reducing installation time and potential errors. The connector maintains stable electrical properties under operational stresses thanks to its high-quality contact materials and plating, supporting consistent signal transmission in cable connector and fpc connector environments. Its design supports system maintainability and reliability, providing end users with a dependable interface that minimizes downtime and enhances overall workflow efficiency in production and maintenance cycles.
Use Scenarios
Integration in PCB Backplane Interfaces for Industrial Equipment
In industrial manufacturing, the 26Pin MDR connector plays a vital role connecting multiple PCB layers within backplane assemblies. Its compact 1.27 mm pitch enables dense wiring harness configurations essential for automation controllers and embedded system boards. The IP67-rated housing protects circuitry against contamination, while reliable solder terminations conform to high-volume assembly standards upheld by wire harness connector manufacturers. This integration improves operational robustness by ensuring secure board to board connector engagement essential in complex machine control modules.
Application in Test Fixtures and Prototype Development
Within R&D labs and test environments, the connector is employed on evaluation boards and custom cable assemblies to simulate operational conditions of electronic devices. Its standardized 26-pin interface supports rapid prototyping, allowing electronic connector manufacturers to validate design concepts and system compatibility efficiently. The straight/right angle options accommodate various circuit layouts, optimizing test fixture configurations. The robust construction and predictable current rating enhance durability, facilitating compliance checking and iterative development in advanced electronics testing workflows.
|
Material
|
Insulator：Glass filled PBT UL94V-0,Black
|
|
|
Contact Plating： Copper Alloy，Full Gold over Nickle
|
|
Supporting Part：Zinc Alloy,Nickle plating
|
|
|
|
Housing：SPCC, Nickle plating
|
|
fastener：Copper Alloy，Tin plating
|
|
|
Electrical Characteristic
|
Mark: Logo and Part Number
|
|
|
Contact Resistance :30MΩmax ,at DC 100mA
|
|
|
Insulator Resistance: 500MΩmin ,at 500V DC
|
|
|
Withstanding Voltage: 500V AC/rm 50Hz for 1 minute
|
|
Current Rating: 1 Amp AC/DC
|
|
|
Environment
|
Operating Temperature:-40℃～+105℃
|
|
Soldering temperature:265℃max for 6sec.max
|
What materials are used in the 26Pin Female MDR connector?
Our 26Pin Female MDR connector features copper alloy contacts plated with full gold over nickel for excellent conductivity and corrosion resistance. The housing is zinc alloy, providing durability and environmental protection with an IP67 rating. This ensures long-lasting performance in demanding applications.
Can you provide straight and right-angle versions of this connector?
Yes, we offer both straight and right-angle mounting options for the 26Pin Female MDR connector, allowing flexibility for various PCB layouts. You can choose the configuration that best fits your design to optimize space and electrical connectivity.
Do you support customization for cable connector specifications?
We focus on delivering reliable cable connector solutions, and while this model is a standard 26-pin MDR SCSI connector, you can contact us to discuss any specific requirements or customization possibilities for your project needs.
What certifications and quality standards cover your electronic connector manufacturing?
Our manufacturing strictly follows ISO9000 Quality Management principles and complies with electronic connector manufacturers' key certifications such as ROHS, CE, and REACH. This guarantees consistent quality and adherence to international environmental and safety standards.
