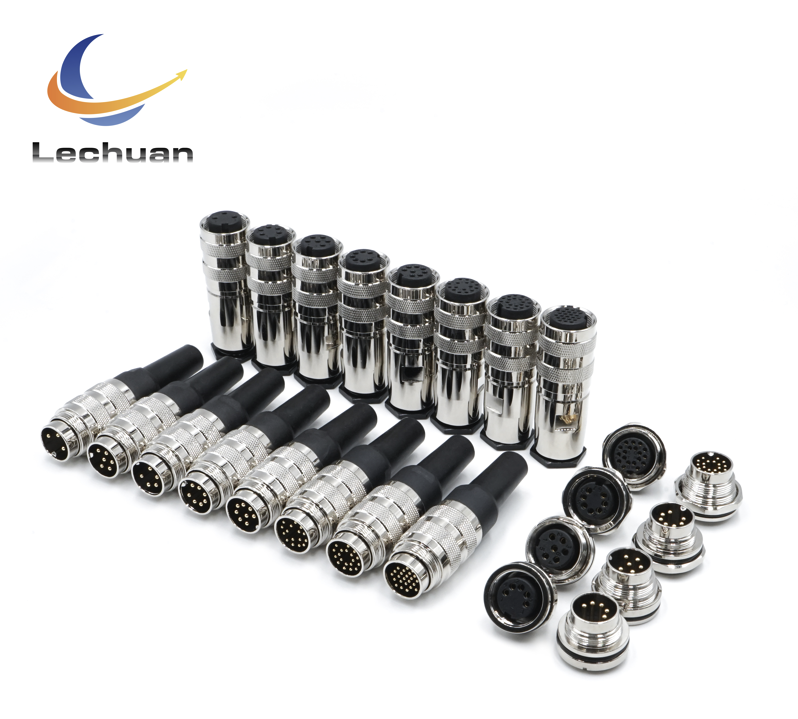

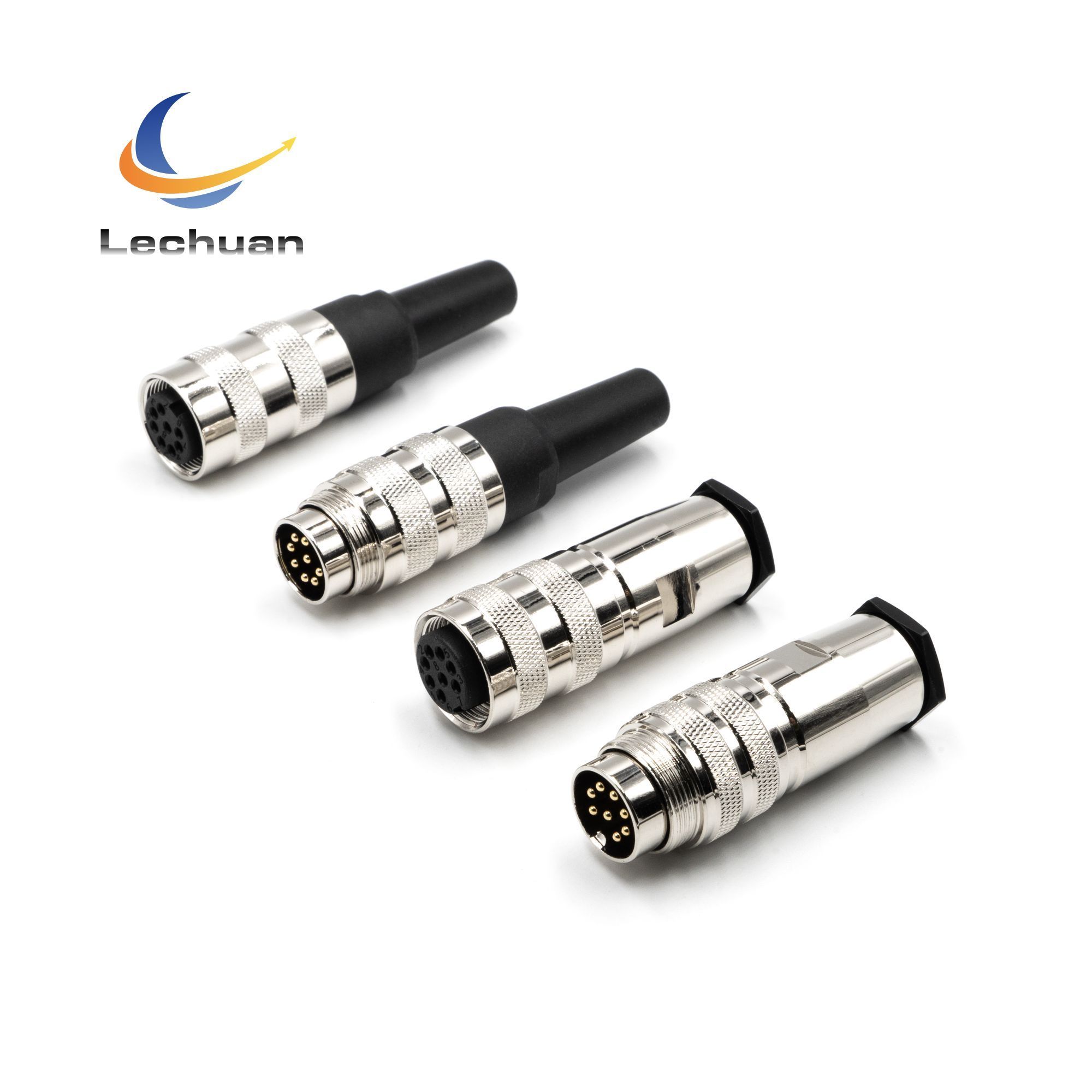

LECHUAN Custom M16 Waterproof Circular Connector Binder Amphonel Compatible 2P 3P 5P 8P 12P Rear Fasten PCB

Name: LECHUAN Custom M16 Waterproof Circular Connector Binder Amphonel Compatible 2P 3P 5P 8P 12P Rear Fasten PCB
Brand: lechuantech
SKU: 1601426377152

No.1601426377152

Specification:

M16-F-2P

M16-F-3P

M16-F-4P

M16-F-5P

M16-F-6P

M16-F-7P

M16-F-8P

M16-F-12P

M16-F-14P

M16-F-16P

M16-F-19P

M16-F-24P

Get The Latest Quote

Description

Key attributes

Model Number

M16-R-XP

Type

Circular Connectors

Brand

nblechuan

Number of Cores

Place of Origin

Zhejiang, China

Packaging

Bulk Packing

Description

M16 Connector

Date Code，指元器件在生产商的生产日期或生产批次

10A/300V

Pins

2-24P

Product name

Panel Mount M16 Connector

Orientation

Straight

Number Of Positions

2-24P

Shielding

Shielded

Mounting Type

Rear Panel Mount

Shell Size M16

M16

Shell Material Aluminum Alloy

Copper Alloy

Shell Finish Ni-Plating

Zinc Plating

Termination Solder

Solder

IP-class mated IP67

IP67

Packaging and delivery

Selling Units

Single item

Single package size

15X7X8 cm

Single gross weight

1.000 kg

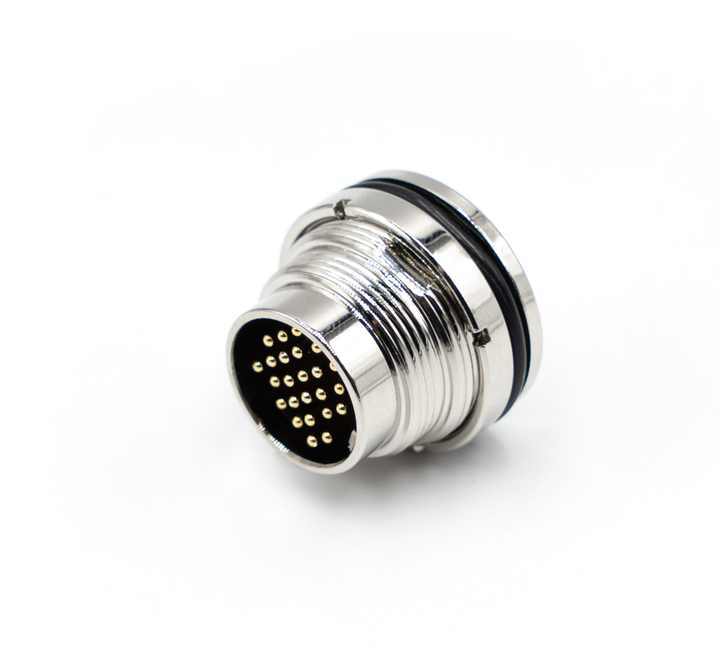

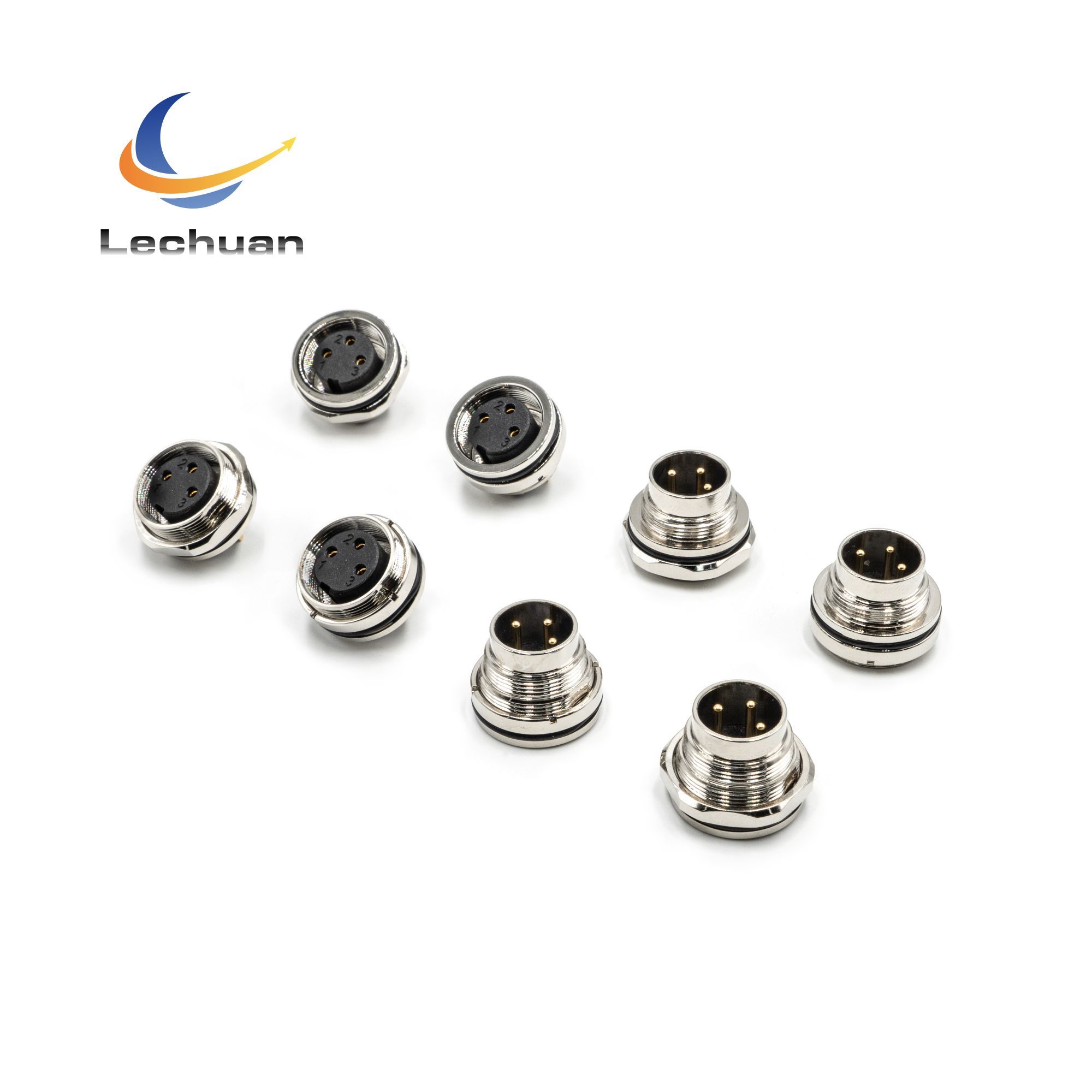

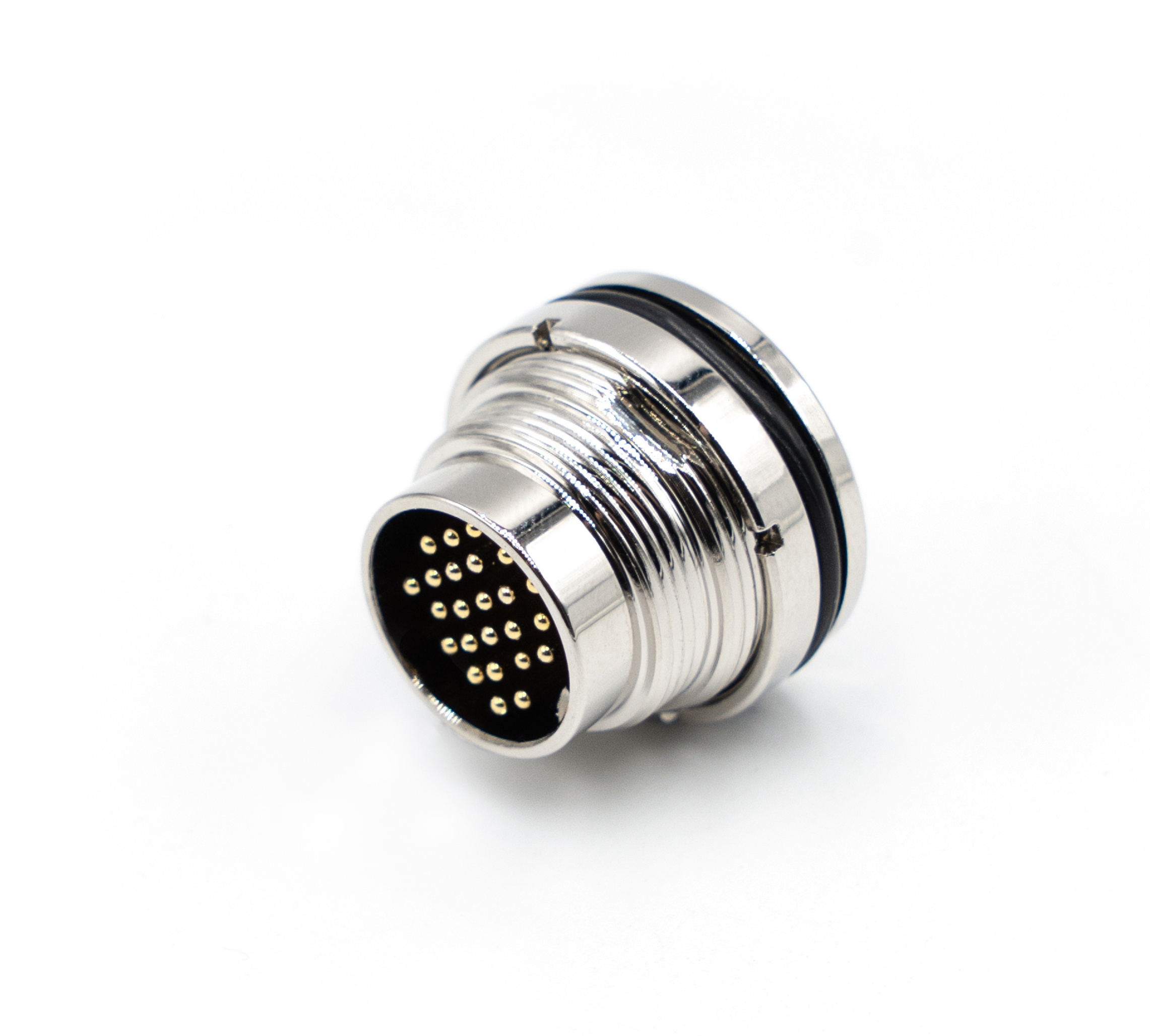

LECHUAN M16 Rear Panel Mount Socket Male Straight Solder Cable Connector

Product	Orientation:Straight
		Shielding :Shielded
		Shell Size :M16
		Mounting Type:Panel Mount
Material	Shell Material:Copper Alloy
		Insulation Material :PA66
		Contact Material:Copper Alloy
Plating	Shell Finish:Zinc Plating
		Contact Finish:Gold Plating
		Number Of Positions:5 Pin
Electrical Characteristic	Rated current/Voltage: 10A 300V
		Contact Plating :Gold/Au-Plating
		Contact Diameter.: 1.5mm
		Min Wire Gauge:0.05mm
		Max Wire Gauge:0.5mm
		Lower Temperature: - 40℃
		Upper Temerature: 100 ℃
