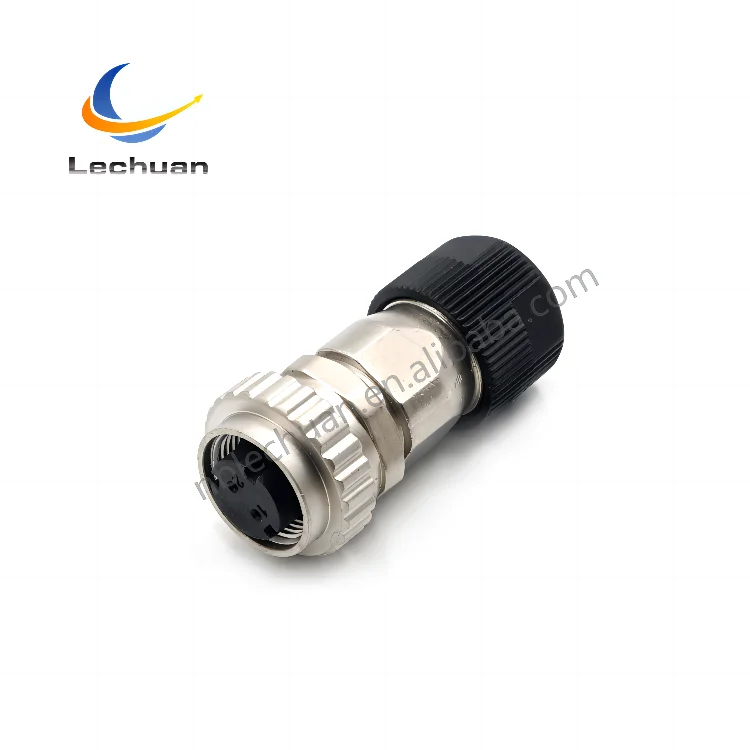

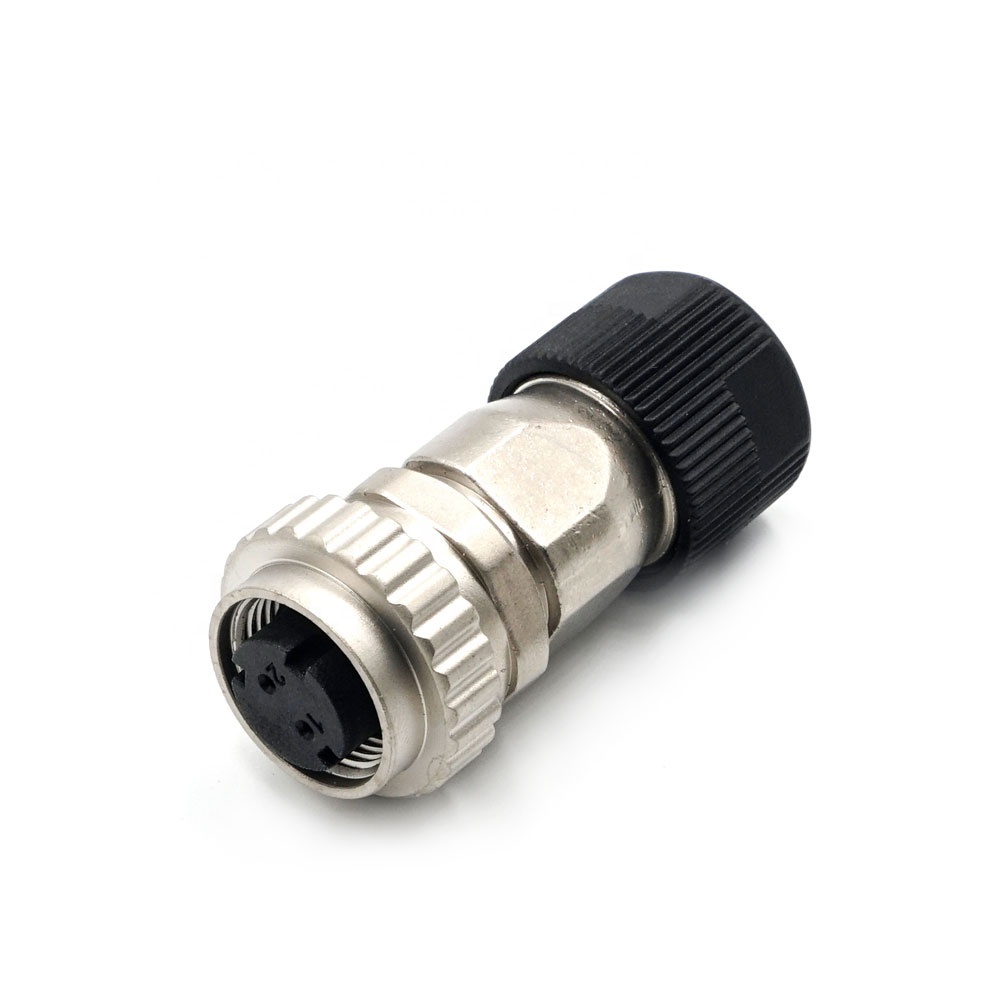

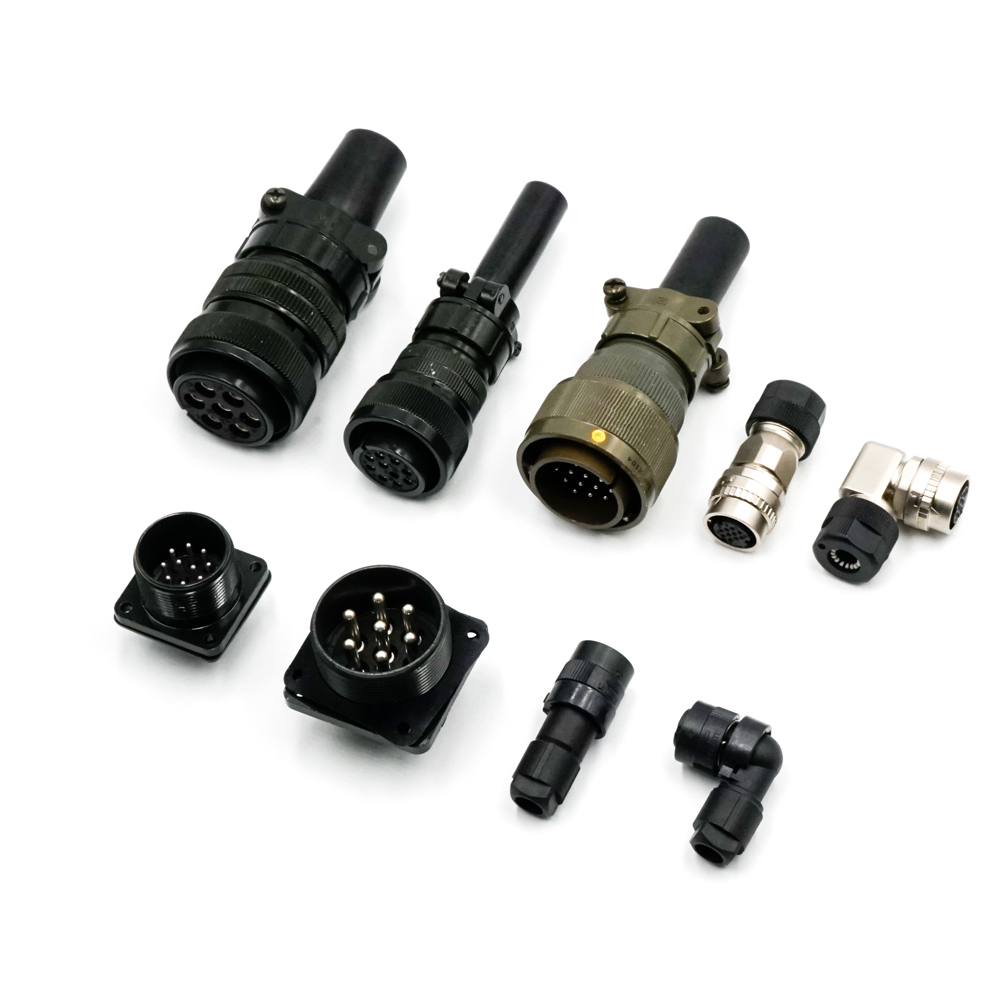

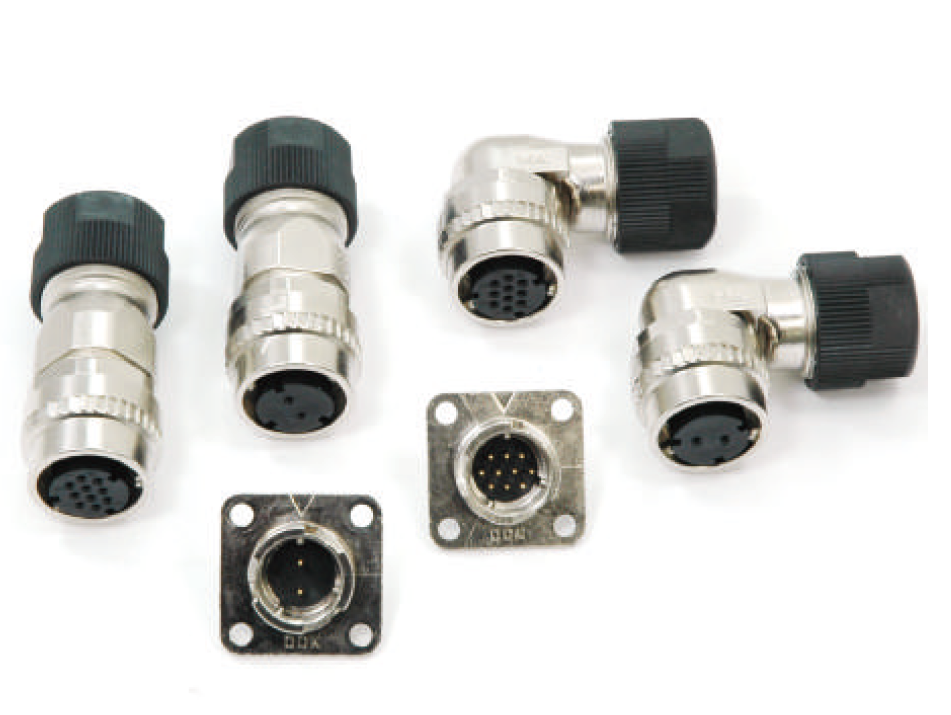

The LECHUAN CMV1S-SP2S-L small-sized circular connector offers reliable locking and IP67 protection, ideal for servo motor applications. Trusted by electrical connectors manufacturers and wire harness connector manufacturers for rugged performance.
Targeted for Precision Servo Motor Assemblies
The LECHUAN CMV1S-SP2S-L circular connector is engineered specifically for servo motor systems where dependable connections and environmental resilience are essential. This connector caters to engineers and procurement specialists involved in designing and maintaining high-reliability servo assemblies, often within aerospace and robotic applications. It delivers a compact locking solution favored by electrical connectors manufacturers and wire harness connector manufacturers requiring secure engagement against vibration and frequent mating cycles. Its design supports integration in complex wire harnesses, providing system designers the confidence of enduring durability under operational stresses.
Technical Composition and Performance Metrics
Incorporating a zinc alloy receptacle shell with black trivalent chromium plating, the CMV1S-SP2S-L offers corrosion resistance aligned with IP67-rated sealing via synthetic rubber O-rings. The copper alloy contacts feature gold plating to ensure low contact resistance and maintain signal integrity at rated voltages up to 200V AC (r.m.s.) and currents of 3A. Insulation materials meet UL94V-0 standards, supporting operation across -25°C to +85°C temperature ranges. This precision-engineered connector exemplifies quality that electronic connector manufacturers and cable connector integrators value for consistent electrical performance and mechanical reliability in demanding environments.
Application in Aerospace and Robust Industrial Settings
This compact circular connector is widely deployed in aerospace-adjacent servo motor applications, robotics, and industrial automation systems requiring ruggedized connections. It supports critical signal and moderate current transmission in control harnesses, helping maintain system integrity in dust- and moisture-prone environments. The IP67 rating ensures compliance with industry standards for ingress protection, enabling its use in outdoor or harsh operational settings. Maintenance teams and design engineers trust this solution to improve overall system uptime and lifecycle costs by reducing connection failures in complex wire harness assemblies.
Product Advantages
Design and Material Excellence for Reliable Connectivity
The CMV1S-SP2S-L employs a locking style configuration that enhances connector retention under dynamic loads, a key design feature sought by wire harness connector manufacturers and electrical connectors manufacturers concerned with long-term mating cycle durability. The use of nickel alloy plating along with a zinc alloy shell provides robust corrosion resistance and mechanical strength without compromising weight. The compact form factor facilitates integration into dense harness environments while maintaining excellent sealing via synthetic rubber O-rings, ensuring IP67 compliance. The strategic combination of gold-plated copper alloy contacts further improves conductivity and minimizes wear over repetitive use.
Optimized Performance and Integration Efficiency
This circular connector supports seamless installation with clear polarity keys, reducing assembly errors common in multi-pin setups. Its 3A current rating and 200V AC voltage capacity make it suitable for moderate power relay in servo motor circuits. The UL94V-0 rated plastic rear insulator enhances safety by meeting flame resistance requirements. Such technical specifications allow electronic connector manufacturers and cable connector assemblers to achieve consistent quality control and system interoperability across diverse manufacturing environments. The connector’s operational temperature range assures dependable performance in varied climatic conditions, enhancing product life cycles and lowering system maintenance expense.
Use Scenarios
Medical Robotics and Precision Automation Integration
In medical robotics manufacturing environments, the LECHUAN CMV1S-SP2S-L circular connector functions as a critical component for servo control harnesses where compact, highly reliable connections are necessary. Its IP67 sealing meets contamination control standards while the gold-plated contacts ensure signal fidelity. These features facilitate regulatory compliance and functional safety, supporting accurate motor positioning and responsive control commands. Integration into wire harnesses managed by wire harness connector manufacturers results in assemblies able to endure repetitive sterilization and frequent handling, thus maintaining operational consistency in clinical settings.
Aviation Servo System Cable Assembly Validation
Within aerospace production and maintenance operations, this connector is used extensively by electrical connectors manufacturers to develop and test cable assemblies for servo motors in aviation equipment. The locking mechanism guarantees secure mating under vibration and shock conditions introduced during flight operations. The connector’s resistance to humidity and dust ingress aligns with aerospace environmental standards, minimizing failure modes. Its design streamlines workflow by facilitating quick assembly and demating cycles during testing and replacements, critical for on-ground aircraft servicing and component validation processes.
|

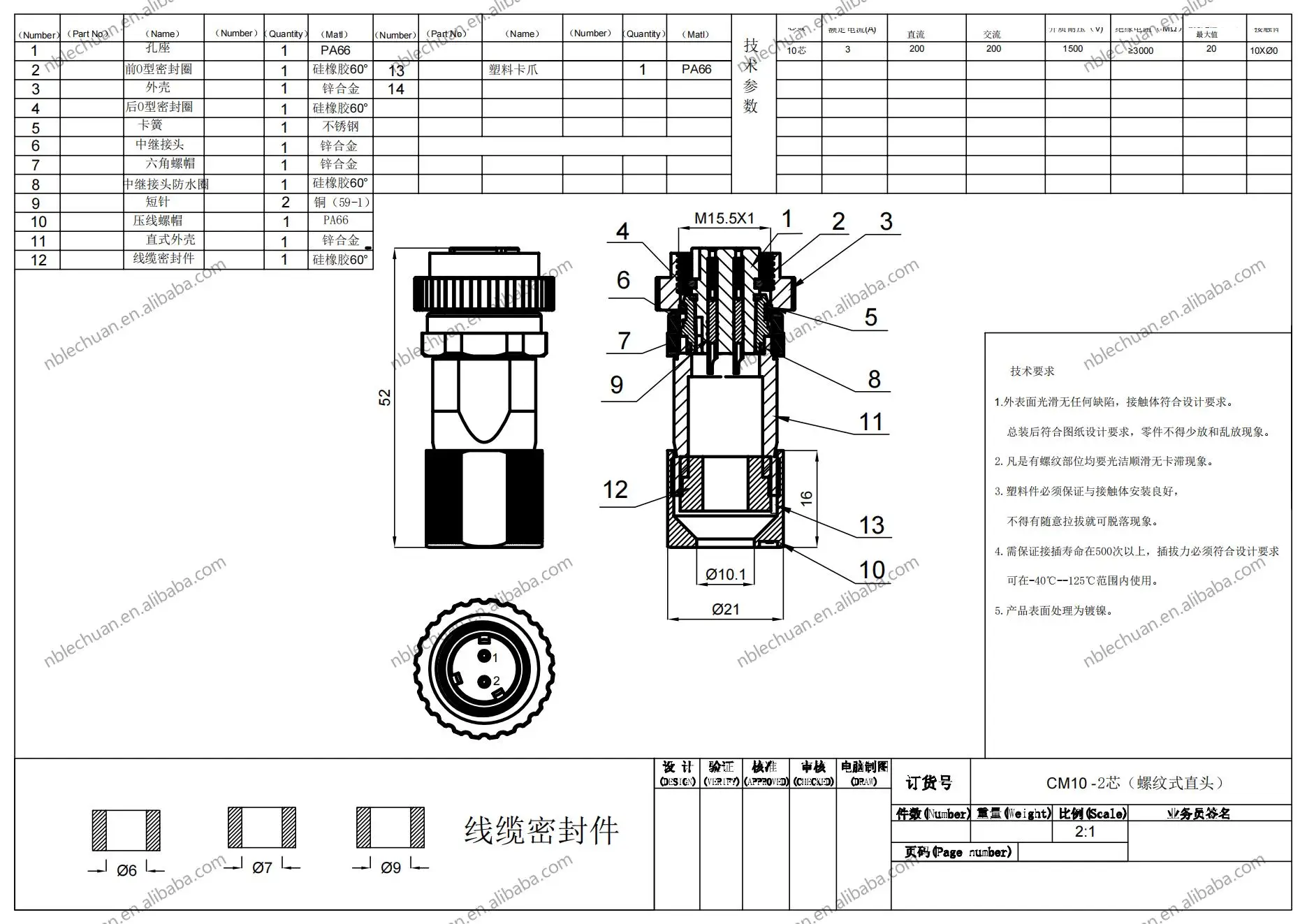

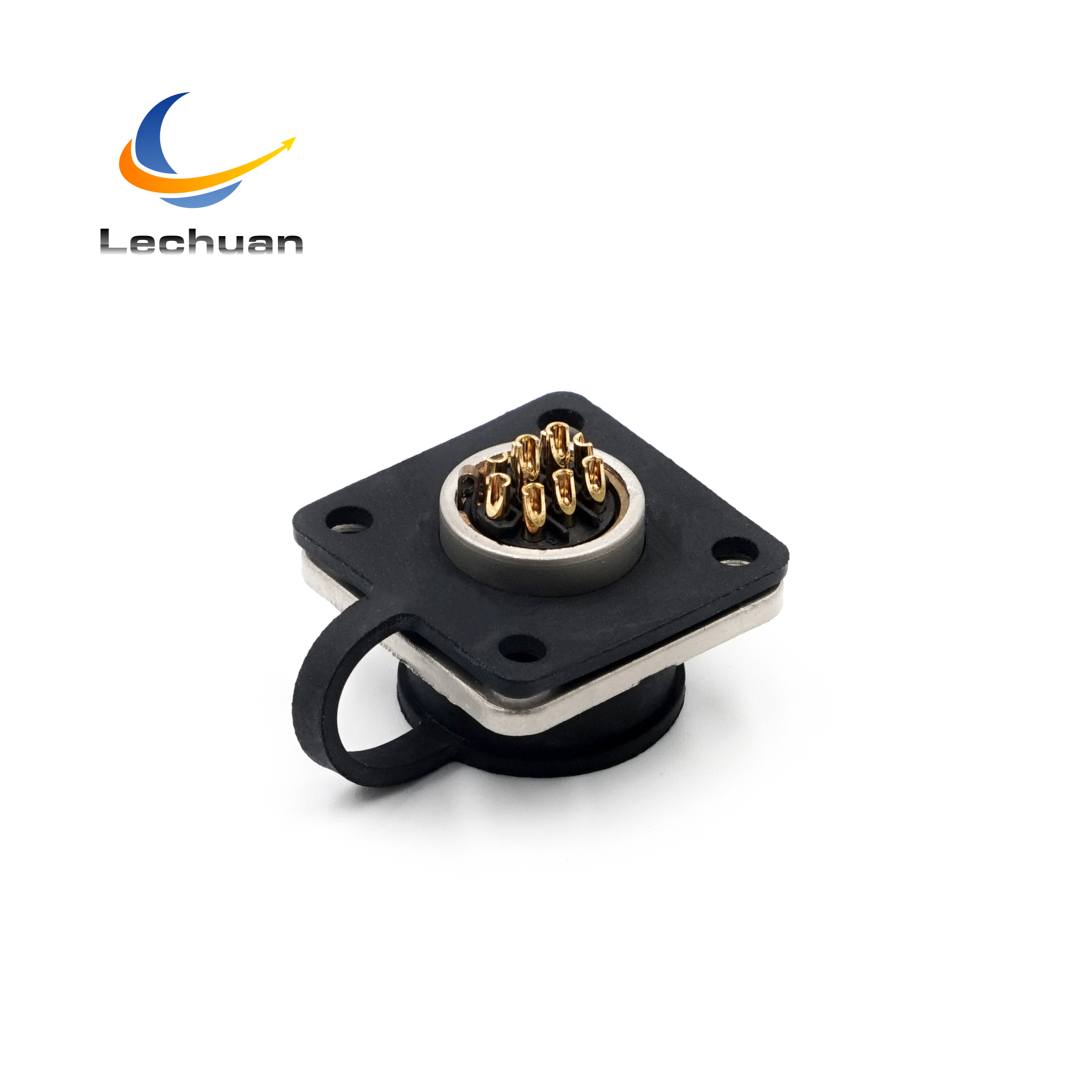

Product Name
|
Circular Connector
|
|
Material
|
Pin Front Insulator:Synthetic Rubber/Black
|
|
|
Pin Rear Insulator:Plastic(UL94V-0)/Black
|
|
|
O Ring(Mounting Side):Synthetic Rubber/Black
|
|
Receptacle Shell Zinc Alloy/Trivalent Chromium Finish(Black）
|
|
|
|
Pin Contact:Copper Alloy/Gold Plating
|
|
Retaining Ring Copper Alloy/Nickel Plating
|
|
|
Ground Lug Copper Alloy/Gold Plating
|
|
|
Type
|
Rated Voltage:200V AC(r.m.s.)
|
|
|
Rated Current:3A／Contact
|
|
|
Dielectric Withstanding Voltage:
1500V AC(r.m.s.)／１minute. [2-Contact]
900V AC(r.m.s.)／１minute. [10-Contact]
|
|
|
Insulation Resistance:1000MΩ min. at 500V DC
|
|
Environment
|
Operating Temperature:-25℃ to +85℃
|
What materials are used in the LECHUAN CMV1S-SP2S-L connector’s construction?
Our CMV1S-SP2S-L model features a zinc alloy housing with a black trivalent chromium finish for durability. The pin contacts use copper alloy plated with gold to ensure excellent conductivity. These materials meet stringent aerospace and industrial requirements, guaranteeing reliable performance in demanding environments.
Can you provide customization options for your wire harness connector products?
We understand diverse customer needs and offer customization options for our wire harness connector manufacturers clients. You can request specific plating, pin counts, or cable configurations to suit your application. Contact us directly to discuss tailored solutions that maintain the high quality and standards of our connectors.
How do I install the LECHUAN servo motor connector for optimal performance?
Our locking style connectors feature a secure mating mechanism for stable engagement. Installation requires proper alignment and firm locking to maintain IP67 sealing against dust and moisture. We recommend following specific servo motor harness assembly guidelines to ensure long service life and electrical integrity.
What shipping and delivery options are available for your cable connectors?
We export to over 20 countries through our global logistics network, providing reliable delivery for our cable connector range. Depending on your location and order size, we offer multiple shipping methods with tracking services. Contact us for detailed logistics support and lead times tailored to your purchase requirements.
