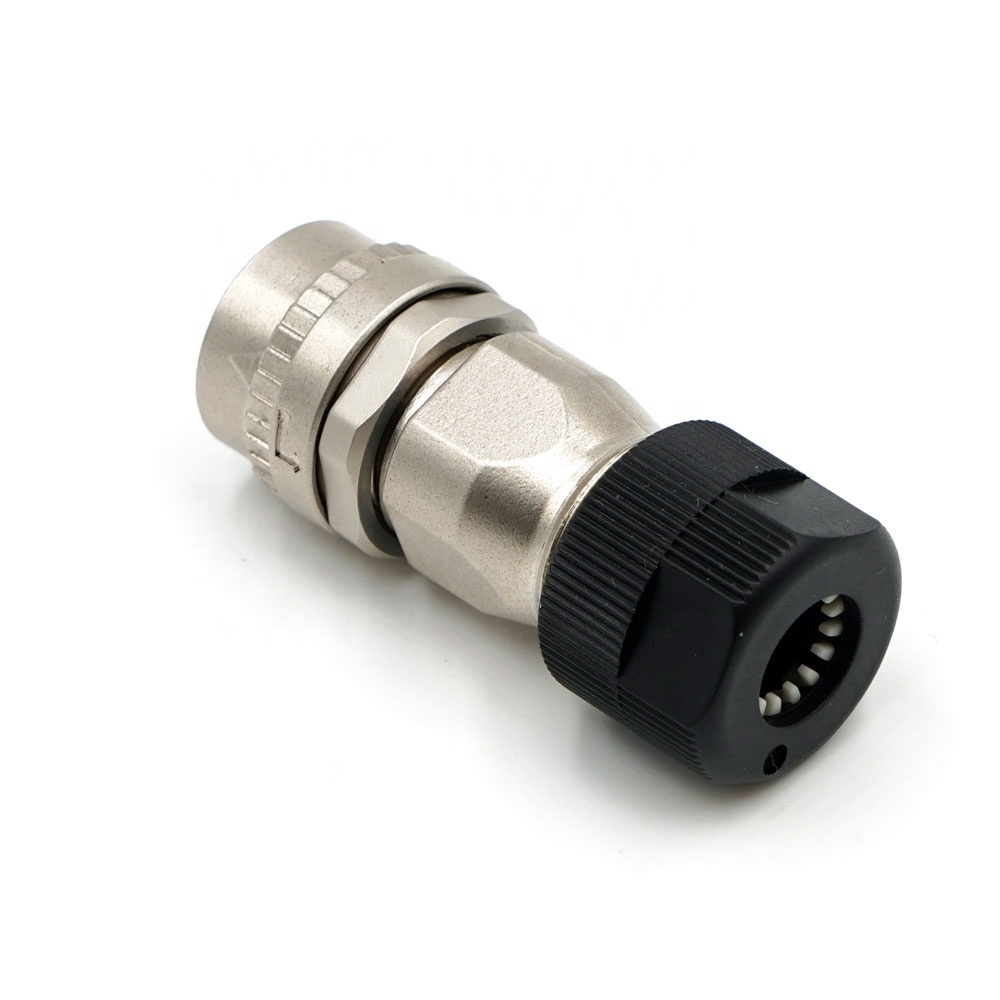

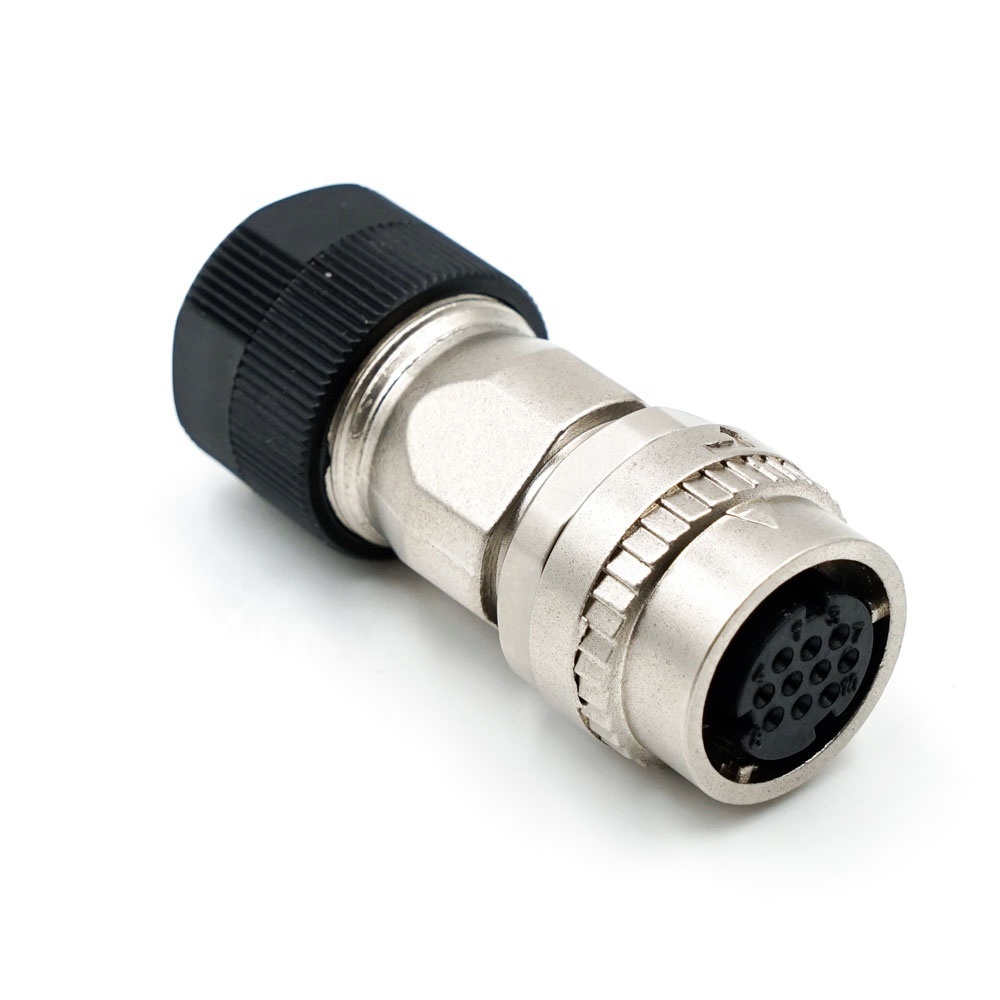

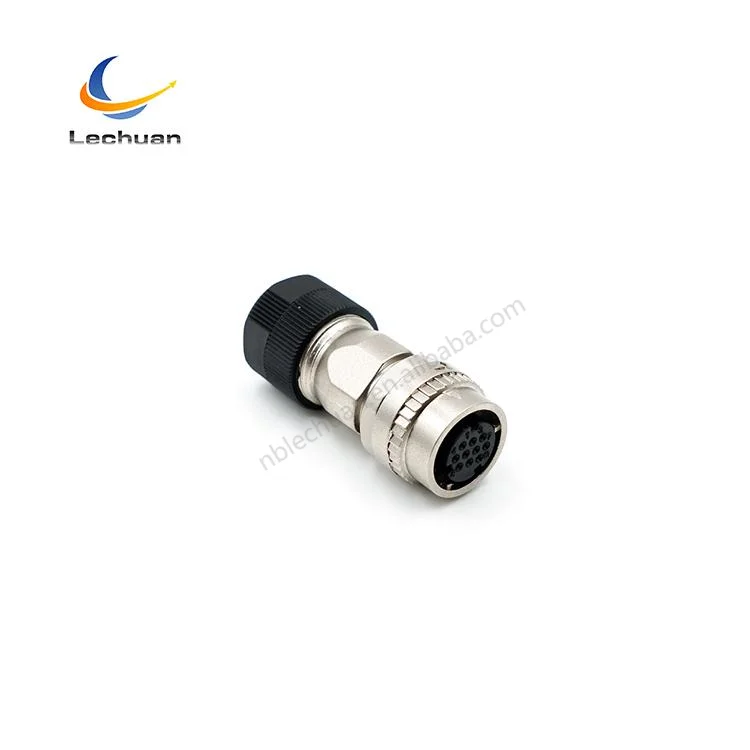

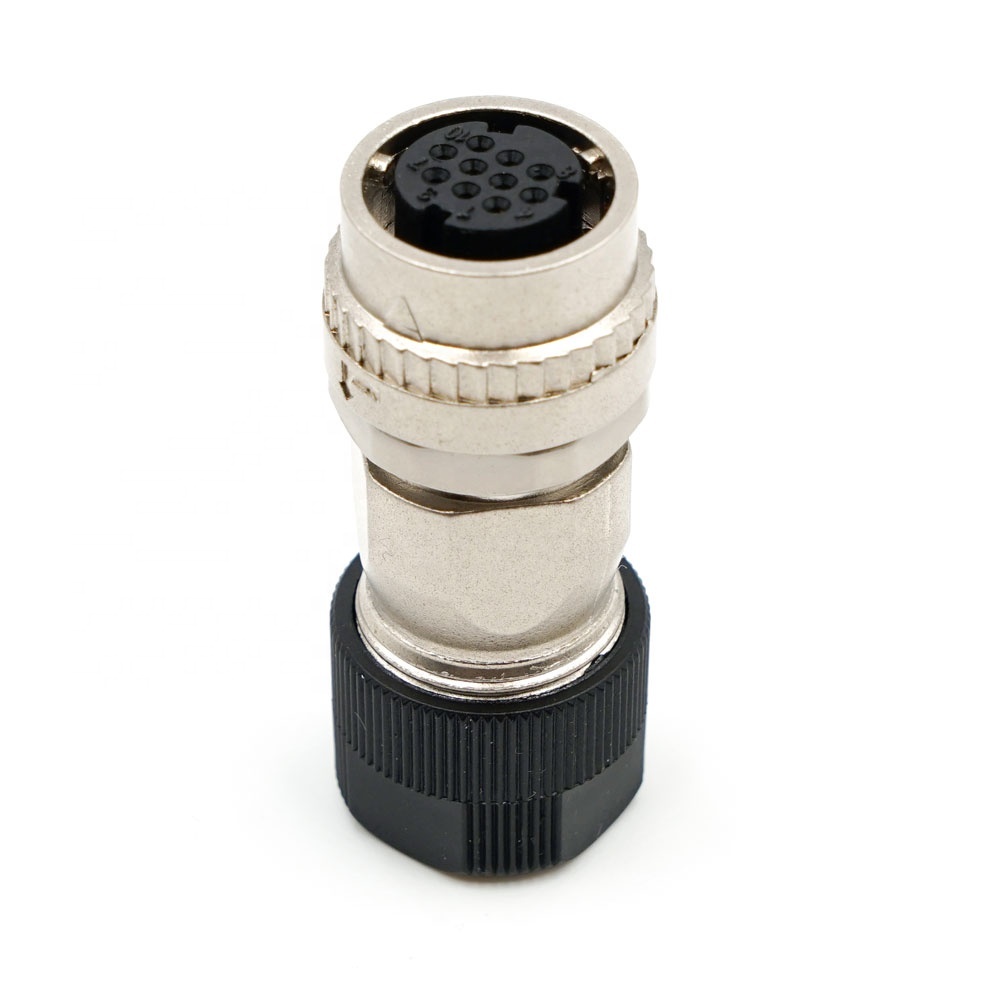

The LECHUAN CM10 SP10S-M is a rugged 10-pin circular connector offering waterproof IP67 protection for dependable encoder signal transmission. Ideal for precise industrial integration, supplied by trusted electronic connectors suppliers.
Optimized Connectivity Solution for Industrial Automation
The LECHUAN CM10 SP10S-M 10-pin circular encoder connector is engineered to meet the requirements of industrial automation engineers and system integrators seeking robust, reliable signal interfaces. Manufactured by a reputable electronic connector manufacturer, this product targets applications involving motor control and automation equipment where secure, interference-free wiring is critical. Its design facilitates compatibility with existing aviation connector form factors, enabling streamlined integration into compact control panels and machinery. By addressing the needs of wire harness connector manufacturers, it provides an efficient means to enhance encoder signal fidelity and system uptime.
Advanced Technical Specifications Ensure Durability and Performance
This connector delivers high performance through precision-engineered features, including gold-plated copper alloy contacts rated at 3 A per pin withstanding up to 200 V AC, ensuring low contact resistance and long-term corrosion resistance. The IP67-rated zinc alloy housing, treated with a trivalent chromium finish and complemented by synthetic rubber seals, guarantees dustproof and waterproof protection suitable for temperatures ranging from -25°C to +85°C. Designed with a right-angle configuration, it supports space-saving PCB mounting and clean cable routing. Additionally, its dielectric withstand voltage reaches 1500 V AC for one minute, reinforcing electrical isolation critical for sensitive automation systems.
Versatile Applications Across Rigorous Industrial Environments
This 10-pin circular connector from LECHUAN provides significant value in automation, robotics, and motor control assemblies, where reliable encoder signal transmission is essential under challenging environmental conditions. Its IP67 rating and rugged construction make it ideal for outdoor, harsh environments, as well as applications requiring frequent field maintenance or quick replacements. The connector enables compact system layouts without compromising durability, aligning with the stringent requirements of electrical connectors manufacturers focused on high-performance cable connectors for mission-critical machine interfaces.
Product Advantages
Robust Structural Design Tailored for Industrial Integration
The CM10 SP10S-M’s design incorporates a durable zinc alloy receptacle with trivalent chromium coating for enhanced corrosion and mechanical resistance, fulfilling industrial standards expected from respected electrical connectors manufacturers. Gold-plated copper alloy contacts minimize contact resistance and deliver stable conductivity essential for precision signal transmission. The right-angle form factor supports both compact PCB mounting and efficient cable harness routing, meeting the demands of wire harness connector manufacturers seeking modular, space-optimized solutions. This combination of material resilience and ergonomic design ensures secure connector mating and longevity under repeated connection cycles.
Enhanced Performance and User-centric Usability Features
From a performance standpoint, the connector achieves consistent electrical insulation and waterproofing with synthetic rubber seals meeting IP67 criteria, guaranteeing reliability in harsh operating conditions. Rated current and voltage specifications allow for integration in medium-power control circuits, balancing safety and performance. The compact right-angle housing simplifies equipment assembly and streamlines maintenance workflows, fostering reduced downtime. By facilitating easy replacement and reliable mechanical retention, this product supports operational efficiency and cost-effectiveness, appealing to electronic connector manufacturers focused on optimized usability and system dependability.
Key attributes
Use Scenarios
Key Component in Automated Machinery Signal Transmission
In industrial automation, the LECHUAN CM10 SP10S-M serves as a critical interface component within encoder signal paths of automated machinery such as CNC equipment and robotic arms. Operating in environments often exposed to dust, moisture, and temperature fluctuations, the connector’s IP67 sealing and rugged build ensure uninterrupted signal integrity. It integrates seamlessly with control systems, supporting precise motor position feedback. Its compatibility with aviation standard connectors facilitates integration into existing wire harness assemblies, helping wire harness connector manufacturers deliver reliable products suitable for high-precision industrial workflows.
Essential for Harsh Outdoor Installations and Field Maintenance
This circular waterproof cable connector is extensively employed in outdoor installation scenarios where robust electrical connections are essential despite adverse weather conditions. Its resistance to water ingress and corrosion makes it suitable for motor control assemblies exposed to environmental stressors. Furthermore, the right-angle design enhances system compactness, aiding field engineers in maintaining and replacing encoders swiftly without disassembling complex cable systems. It thus aligns with the operational priorities of electrical connectors manufacturers emphasizing maintenance efficiency and long service life in challenging deployment contexts.
|

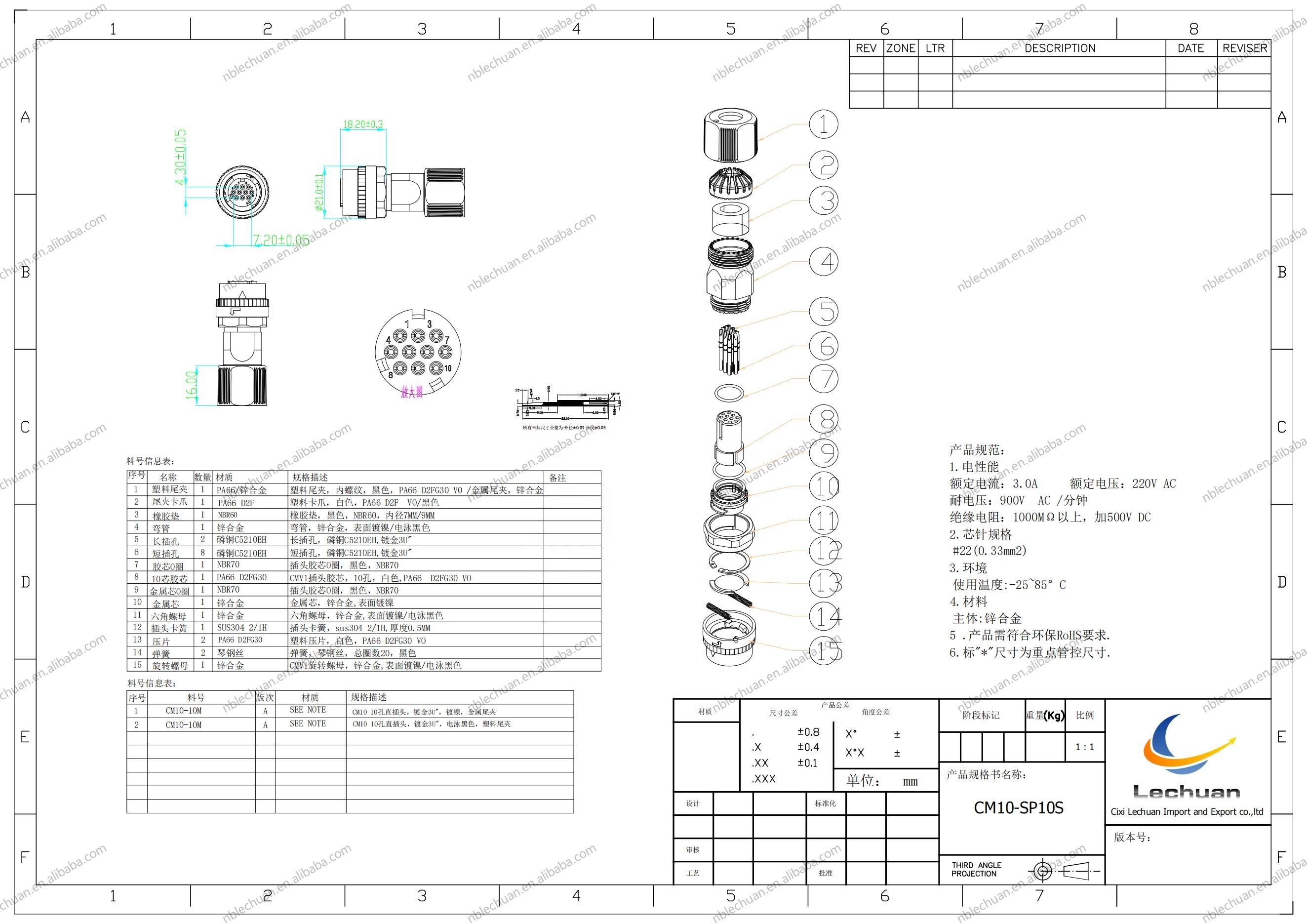

Product Information
|
Pin Front Insulator： Synthetic Rubber/Black
|
|
Pin Rear Insulator ：Plastic(UL94V-0)/Black
|
|
|
Pin Contact ： Copper Alloy/Gold Plating
|
|
|
O Ring(Mounting Side) ：Synthetic Rubber/Black
|
|
|
Receptacle Shell Zinc Alloy/Trivalent Chromium Finish(Black） Retaining Ring Copper Alloy/Nickel Plating Ground Lug Copper
Alloy/Gold Plating |
|
|
Electrical Characteristic
|
Rated Voltage:200V AC(r.m.s.)
|
|
|
Rated Current:3A／Contact
|
|
|
Dielectric Withstanding Voltage: 1500V AC(r.m.s.)／１minute. [2-Contact] 900V AC(r.m.s.)／１minute. [10-Contact]
|
|
|
Insulation Resistance:1000MΩ min. at 500V DC
|
|
Environment
|
Operating Temperature:-25℃ to +85℃
|
What materials are used in the LECHUAN CM10 SP10S-M encoder connector?
Our CM10 SP10S-M uses copper alloy contacts plated with gold to ensure low resistance and corrosion protection. The housing is zinc alloy with a trivalent chromium finish, and seals employ synthetic rubber, delivering durability and reliable electrical isolation under harsh conditions.
Can you provide custom configurations of your circular connectors for specific industrial applications?
Yes, we offer customization options for our circular connector designs to meet specific requirements. Our expertise in electrical connectors manufacturers allows us to adapt pin count, plating, and housing finishes to fit your system's needs. Contact us to discuss your project details and receive tailored solutions.
How does the right-angle design of the CM10 SP10S-M support integration into compact control panels?
The right-angle form factor enables tight PCB mounting and efficient cable routing, reducing panel space without compromising reliability. This design is ideal for automation systems requiring compact layouts, helping engineers streamline assembly and maintenance workflows.
What measures do you take to ensure fast delivery and quality assurance for your cable connectors?
Our production follows ISO9000 standards with strict quality controls at every stage. We maintain an international logistics network supporting prompt dispatch to over 20 countries. Our commitment to consistent quality and on-time delivery meets the expectations of B-end customers needing reliable cable connectors for industrial use.
