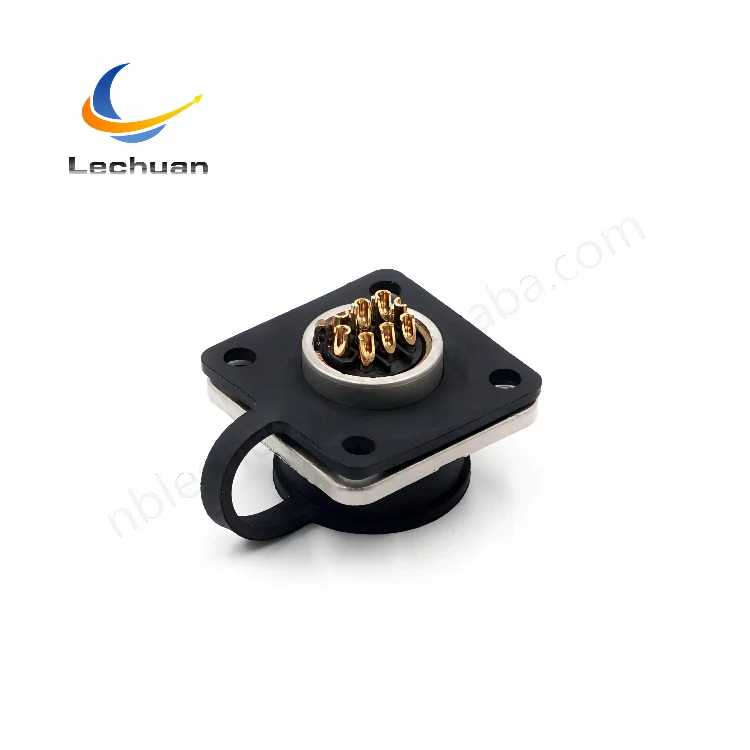

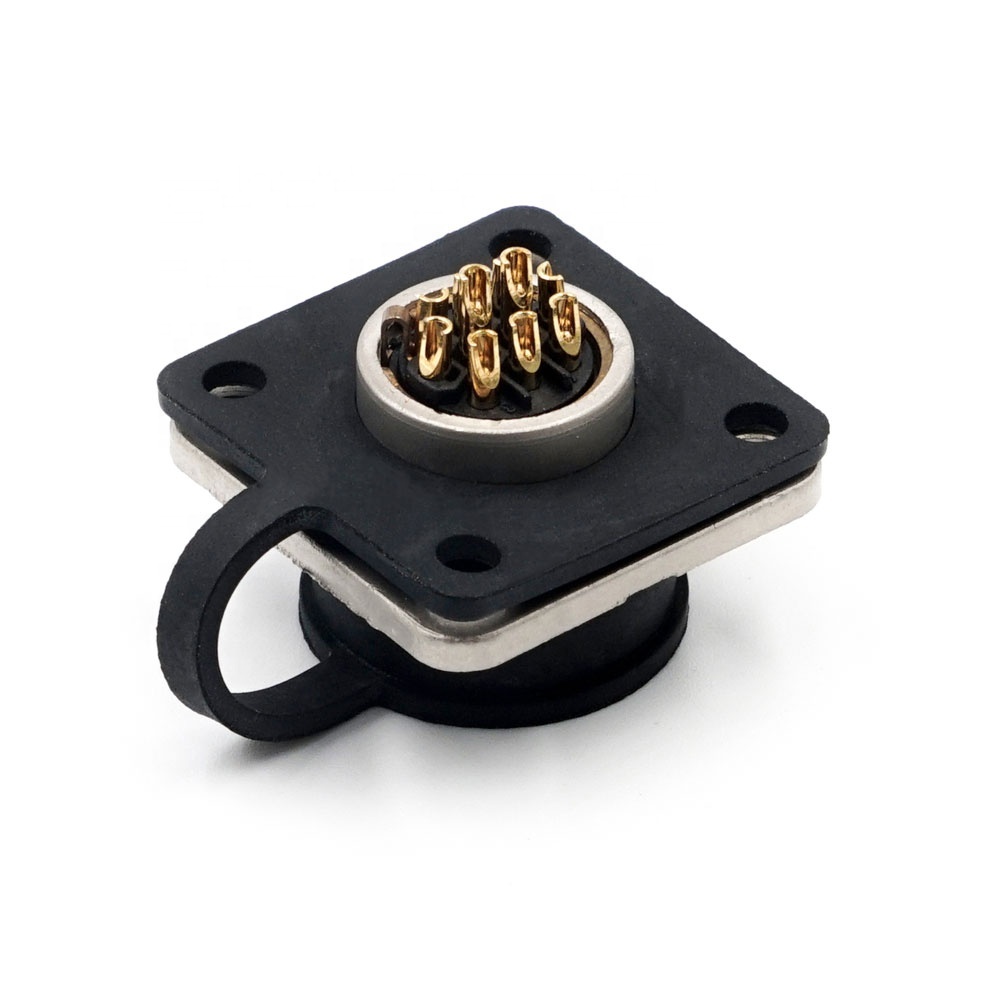

LECHUAN CM10 Series 10-Pin DC D Type Receptacle with Bayonet Quick Connect One-Touch Lock Circular Connector

Name: LECHUAN CM10 Series 10-Pin DC D Type Receptacle with Bayonet Quick Connect One-Touch Lock Circular Connector
Brand: lechuantech
SKU: 1600753044061
Availability: InStock
Rating: 5 (1 reviews)

No.1600753044061

Color:

CM10-R10P

Pins:

10P

Get The Latest Quote

Description

Key attributes

Place of Origin

Zhejiang, China

Model Number

CM10-R10P

Brand Name

LECHUAN/OEM

Type

CM10 Series

Contacts

10P

Rated Current

3A Max. / Contact

Rated Voltage

200V AC(r.m.s.) Max.

Dielectric Withstanding Voltage

1500V AC(r.m.s.) / 1 minute 900V AC(r.m.s.) / 1 minute

Insulation Resistance

1,000M Ω Min. at 500V DC

Operating Temperature Range

-25℃ to +85℃

Conductor Size

# 22

Protection Rate

IP67

Packaging and delivery

Selling Units

Single item

Single package size

7X8X10 cm

Single gross weight

1.000 kg

Product descriptions from the supplier

LECHUAN CM10 Series D Type Receptacle 10 Pin Solder Contacts Bayonet Quick Connect One-Touch Lock Circular Connecter

Product	Contacts：10P
		Conductor Size ＃ 22
		Protection Rate IP67 when mated (Receptacle : Individually waterproof)
Electrical Characteristic	Rated Current ：3A Max. ／ Contact
		Rated Voltage： 200V AC(r.m.s.) Max.
		Dielectric Withstanding Voltage： 1500V AC(r.m.s.) ／ 1 minute 900V AC(r.m.s.) ／ 1 minute
		Insulation Resistance 1,000M Ω Min. at 500V DC
Environment	Operating Temperature Range -25℃ to +85℃
