Product Name
|

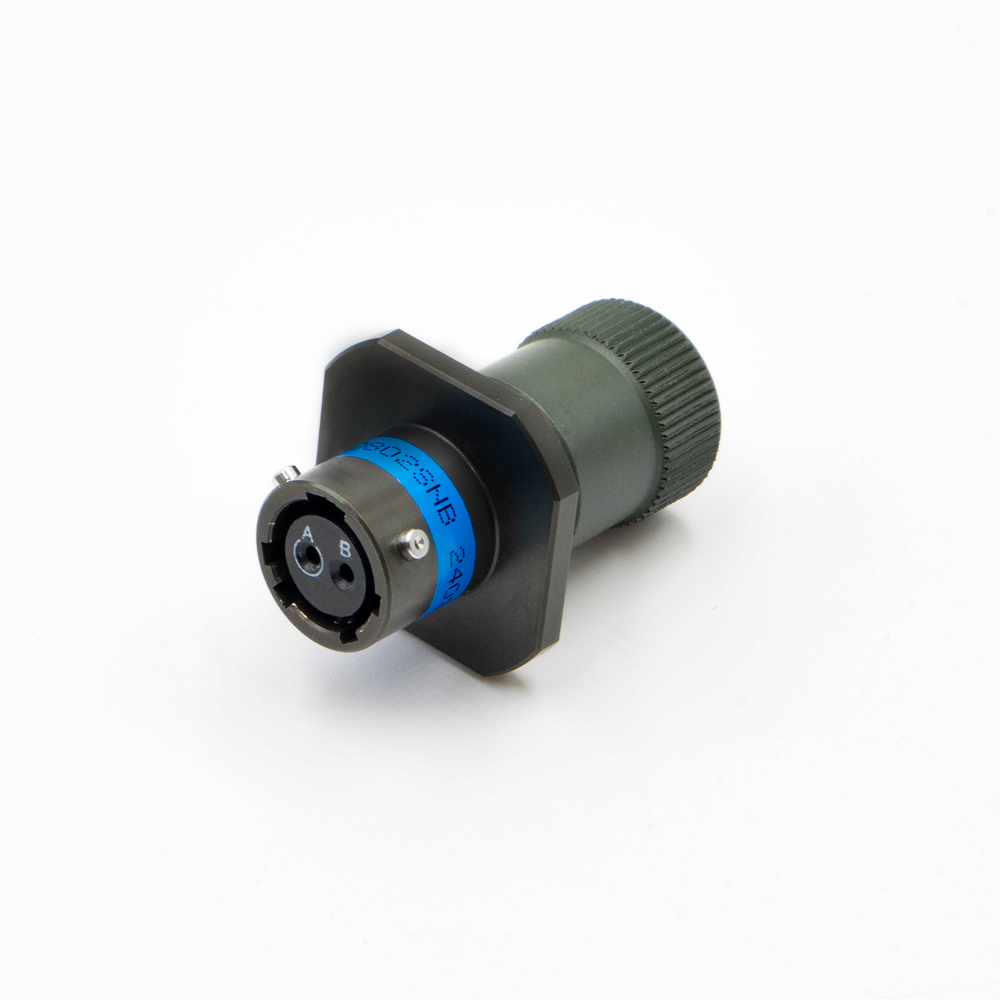

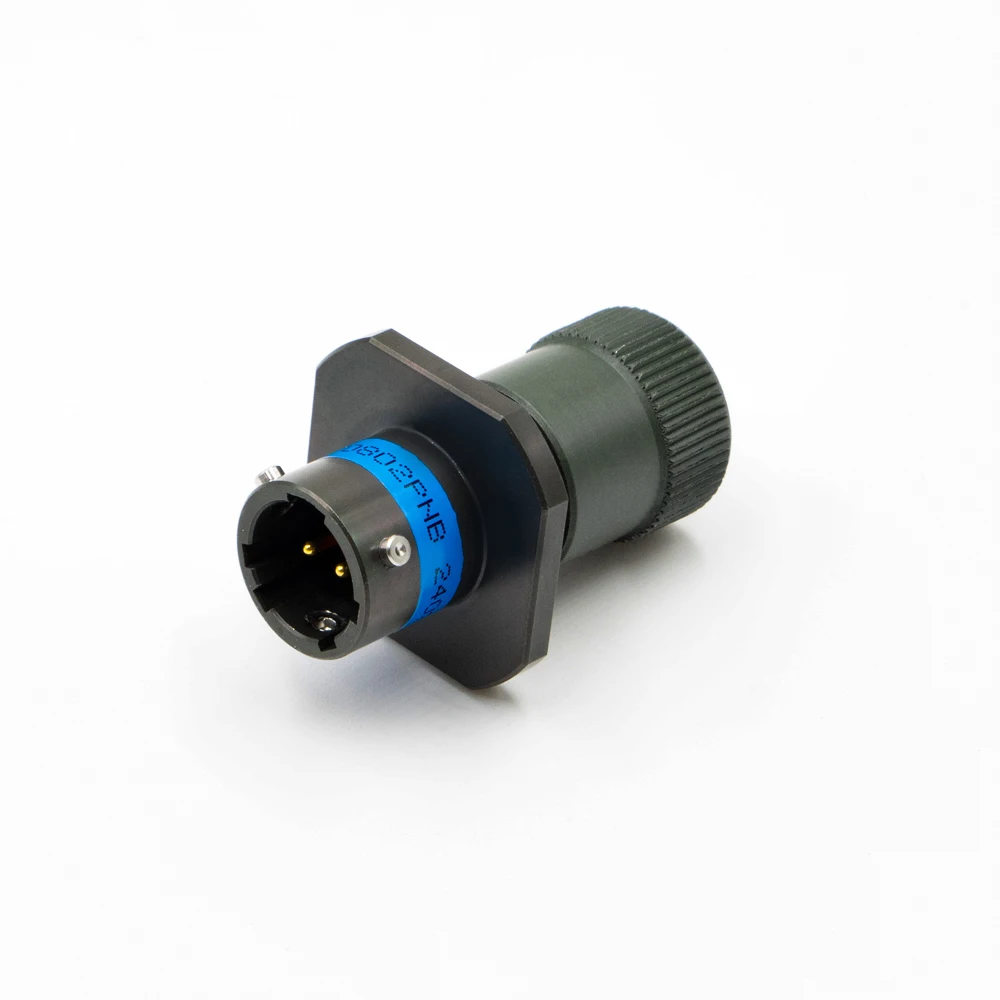

MIL-DTL-26482 MS3110 Circular Connector
|
|
Material
|
Shell Plating: Chromate coating over cadmium or nickel plating
|
|
|
Shell Material: Aluminum alloy / Olive drab
|
|
Insulator: Synthetic rubber
|
|
|
|
Contact Material: Copper alloy
|
|
Contact Plating: Gold plating
|
|
|
Gasket and Grommet: Synthetic rubber
|
|
|
Electrical Data
|
Maximum Operating Voltage: DC850
|
|
|
Currrent rating: 7.5A(20# Contact size) 13.0A(16# Contact size)
|
|
|
Wire range size: 24 to 16 AWG
|
|
|
Insulator Resistance: Min.5000MΩ
|
