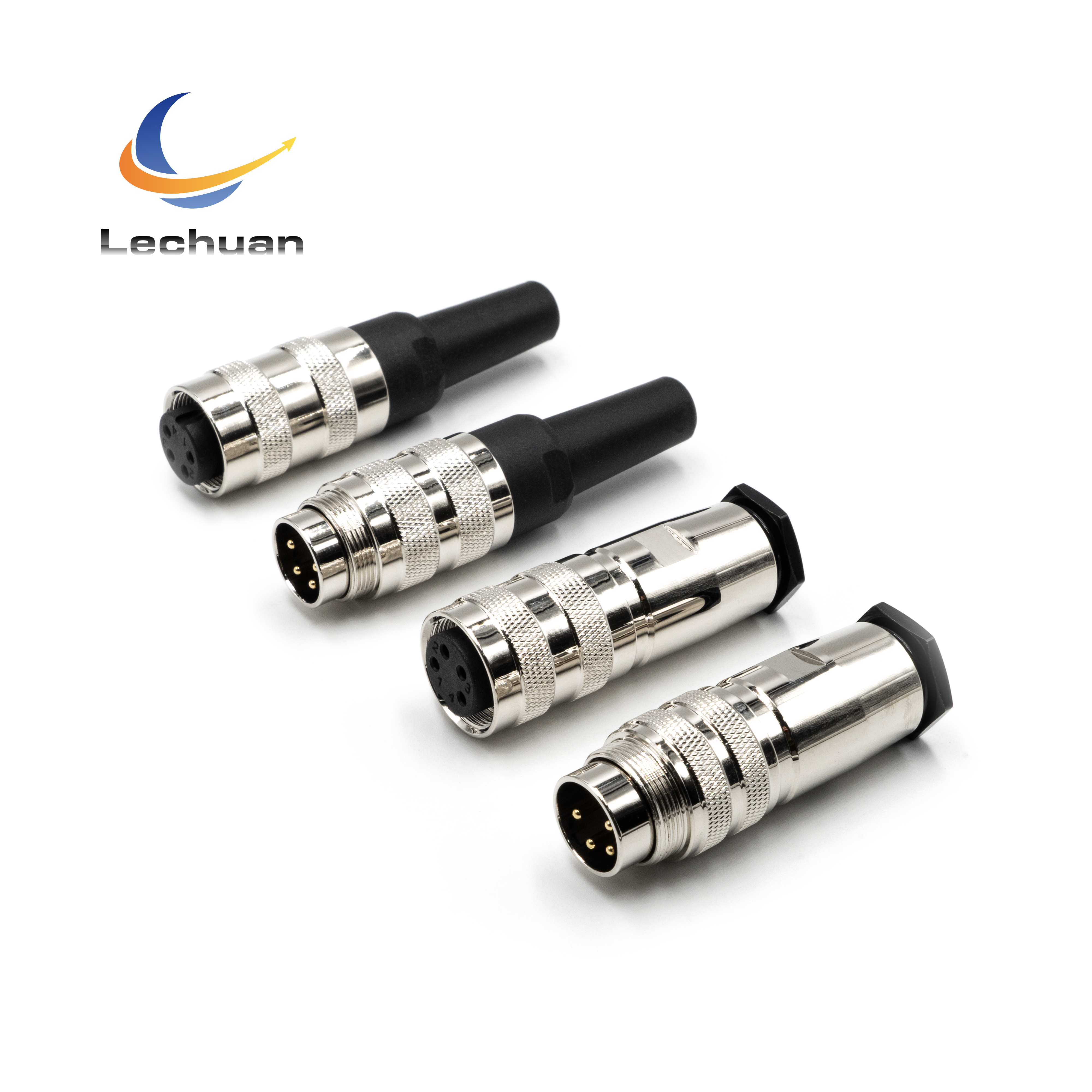

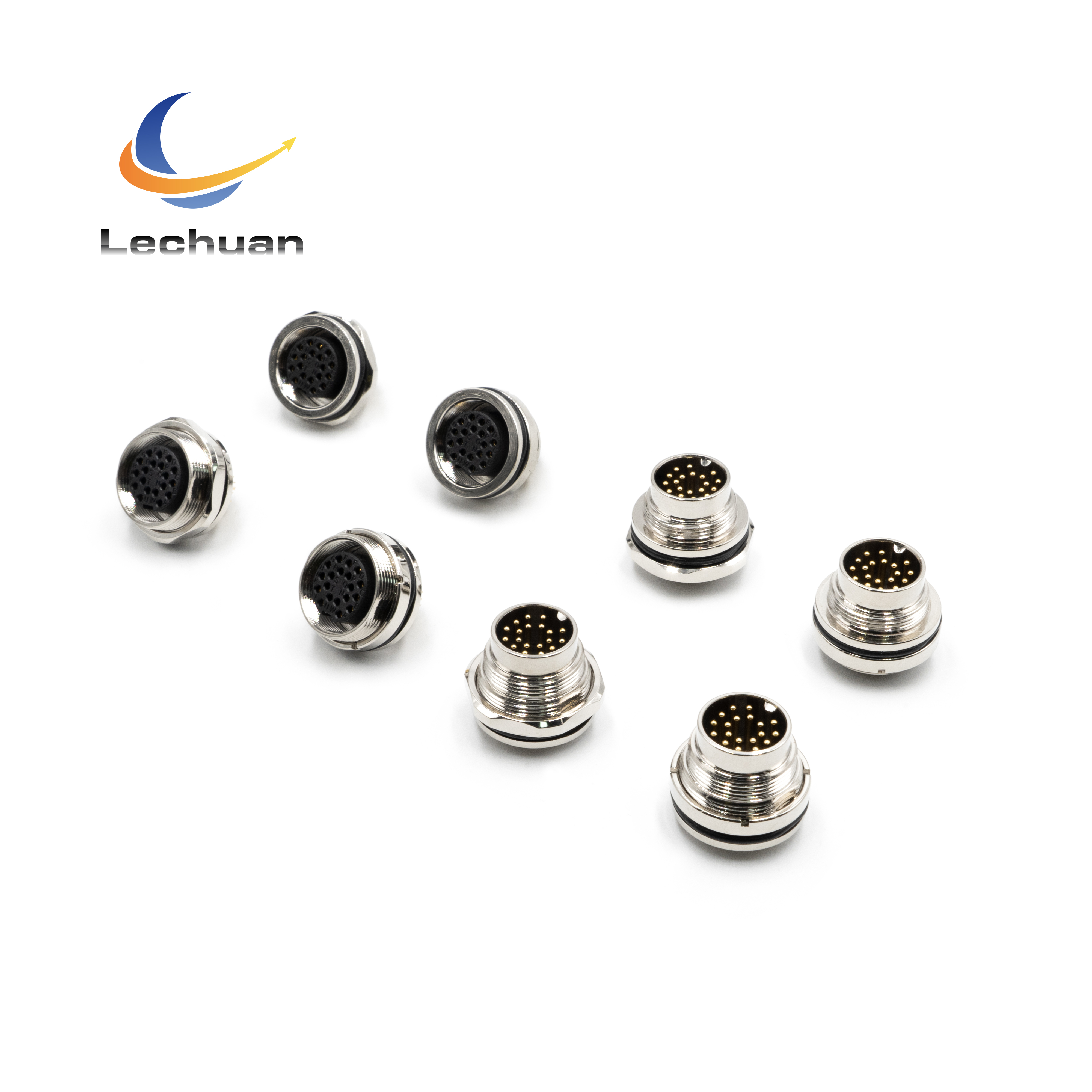

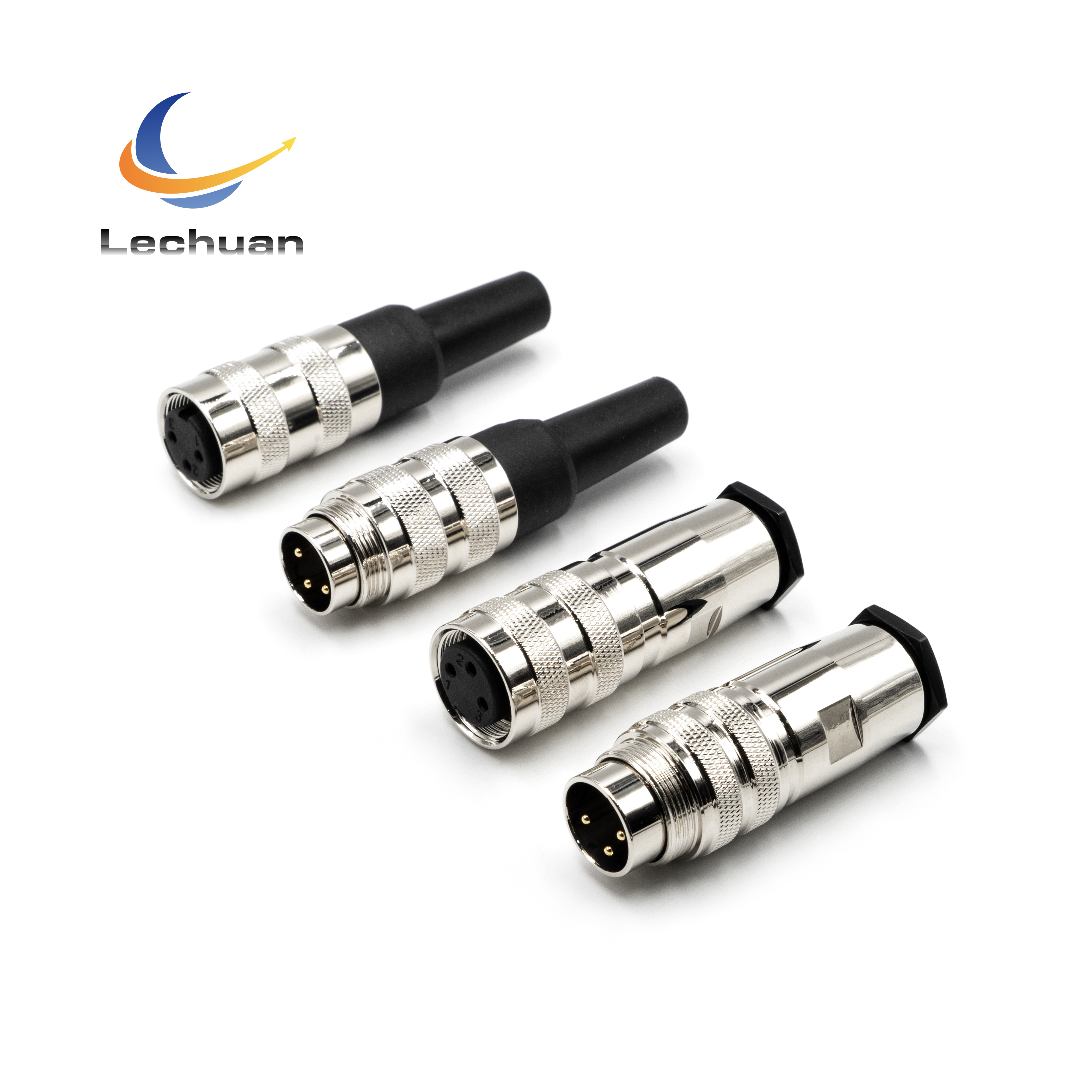

The LECHUAN C091 J09 series offers robust, waterproof m16 connector solutions, featuring 5 to 24 pins in a metal shell with IP67 protection. Ideal from circular connector manufacturers for secure industrial connections.
Precision Connectivity for Industrial and Automation Engineers
The LECHUAN C091 J09 m16 connector targets engineers and system integrators requiring compact, reliable interconnections for complex sensing and automation networks. Produced by reputable circular connector manufacturers, this model supports configurations ranging from 5 to 24 pins, accommodating diverse signal and power needs. Its design focuses on secure interfacing for sensor arrays, instrumentation, and control units in applications demanding robustness and consistent operational integrity. This connector is tailored to professionals who prioritize compliance with industrial standards and expect seamless integration into existing hardware architectures.
Robust Construction and Technical Specifications Ensuring Reliability
Built with metal shells composed of aluminum and copper alloys, supplemented by nickel or zinc plating, this connector circular configuration resists corrosion and mechanical stress. The IP67 rating certifies dust-tight and water immersion protection, suitable for harsh environments. Internally, gold-plated contacts maintain excellent conductivity and minimize signal degradation under electrical loads rated at 10A and 300V. The solder termination combined with straight cable orientation enhances installation efficiency and field serviceability. These measurable specifications confirm the connector’s capability to maintain stable connectivity even amidst vibration or environmental challenges common in industrial settings.
Versatile Applications Supporting Industrial Automation and Field Deployment
This connector solution finds wide application across industrial automation, environmental monitoring, and control panel systems requiring dependable multi-pin signal transfer. The available 5 pin circular connector options make it particularly suitable for sensor network deployment where compactness and waterproofing are critical. Designed to endure outdoor conditions, these connectors facilitate dependable integration of actuators, sensors, and controllers in robotics and instrumentation fields. Their proven durability and compliance ensure extended lifecycle performance while enabling rapid prototyping and system upgrades, thereby supporting comprehensive engineering workflows.
|
Product
|
Orientation:Straight
|
|
Shielding :Shielded
|
|
|
Shell Size :M16
|
|
|
Mounting Type:Cable Mount
|
|
|
Material
|
Shell Material:Copper Alloy
|
|
|
Insulation Material :PA66
|
|
|
Contact Material:Copper Alloy
|
|
|
Shell Finish:Zinc Plating
|
|
Contact Finish:Gold Plating
|
|
|
Number Of Positions:5 Pin
|
|
|
Electrical Characteristic
|
Rated current/Voltage: 10A 300V
|
|
|
Contact Plating :Gold/Au-Plating
|
|
|
Contact Diameter.: 1.5mm
|
|
|
Min Wire Gauge:0.05mm
|
|
Max Wire Gauge:0.5mm
|
|
|
Lower Temperature: - 40℃
|
|
|
Upper Temerature: 100 ℃
|
Innovative Structural Design and Integration Features
The LECHUAN C091 J09 incorporates a robust metal-shell m16 connector design that combines durability with modular flexibility. The multi-pin range, from 5 to 24 pins, allows tailored configurations for complex multi-signal systems. The circular connector format simplifies panel and cable mount installations, while the screw-type locking mechanism secures connections against mechanical loosening. Its corrosion-resistant plating and compact dimensions meet stringent requirements set by professional circular connector manufacturers, facilitating seamless integration into standardized industrial assemblies and equipment infrastructures.
Enhanced Electrical Performance and User-Centric Usability
This connector excels in delivering stable electrical performance through gold-plated contacts that ensure low-resistance transmission in demanding environments. The IP67-rated enclosure protects against dust and water ingress, optimizing reliability under field conditions. The solder termination with straight orientation balances ease of installation with maintenance efficiency, allowing engineers to perform quick replacements and system modifications. The secure locking system enhances operational safety and reduces downtime. These attributes collectively contribute to superior user value by minimizing failure rates and maximizing system uptime in professional applications.
Deployment in Outdoor Environmental Monitoring Systems
In outdoor sensor networks tracking environmental variables, the LECHUAN 5 pin circular connector offers critical performance advantages. Operating in weather-exposed installations, its IP67 waterproof rating ensures functionality despite moisture, dust, and temperature fluctuations. The compact connector circular structure facilitates deployment in constrained spaces while providing reliable multi-signal transmission between sensors and control units. Integration with weather stations or ecological monitoring platforms is streamlined by the connector’s robust electrical specifications and corrosion-resistant metallic shell, meeting the stringent durability requirements of environmental engineers.
Integration Within Industrial Automation and Robotics Assemblies
In manufacturing and robotic automation environments, the rugged design of this m16 connector supports secure interfacing of actuators, sensors, and controllers exposed to vibration and mechanical stress. Its metal shell construction, combined with the screw-lock mechanism, guarantees resistance to loosening under dynamic conditions. Providing electrical continuity at 10A and 300V with stable gold-plated contacts, the connector suits real-time control system demands. Installation ease via solder termination expedites assembly lines and field service operations, making it a favored choice for engineers who prioritize operational stability and rapid maintenance in automated process controls.
