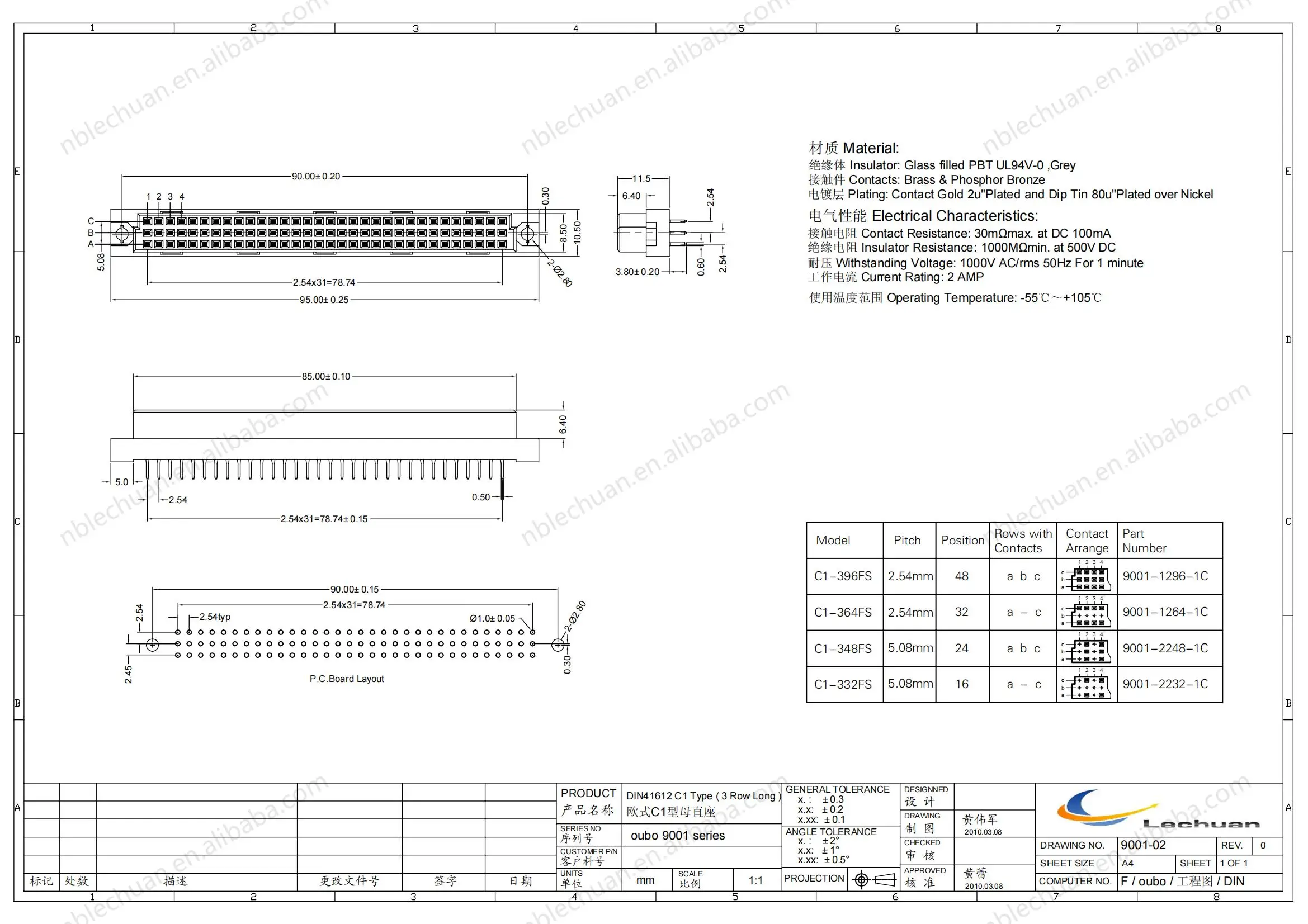

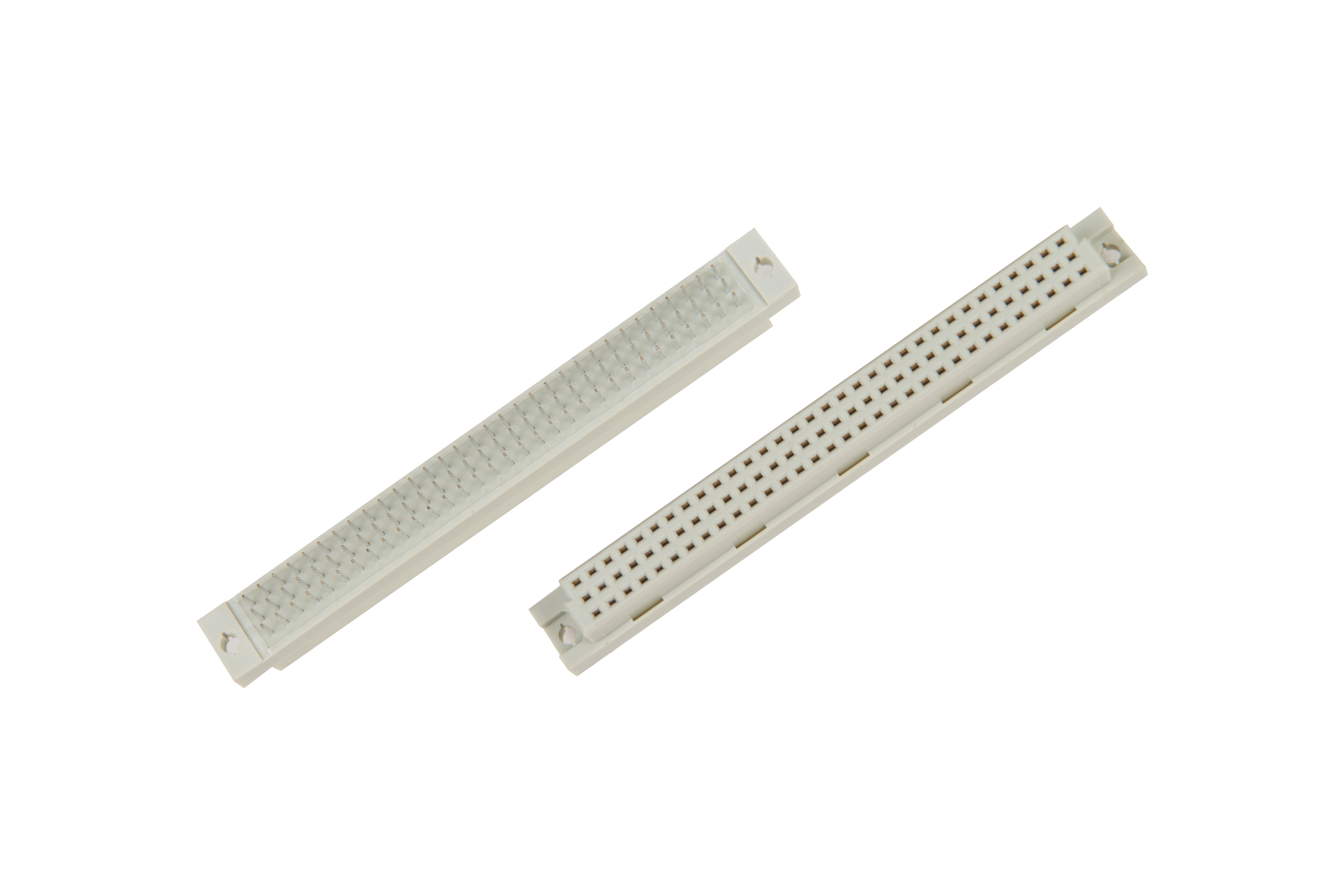

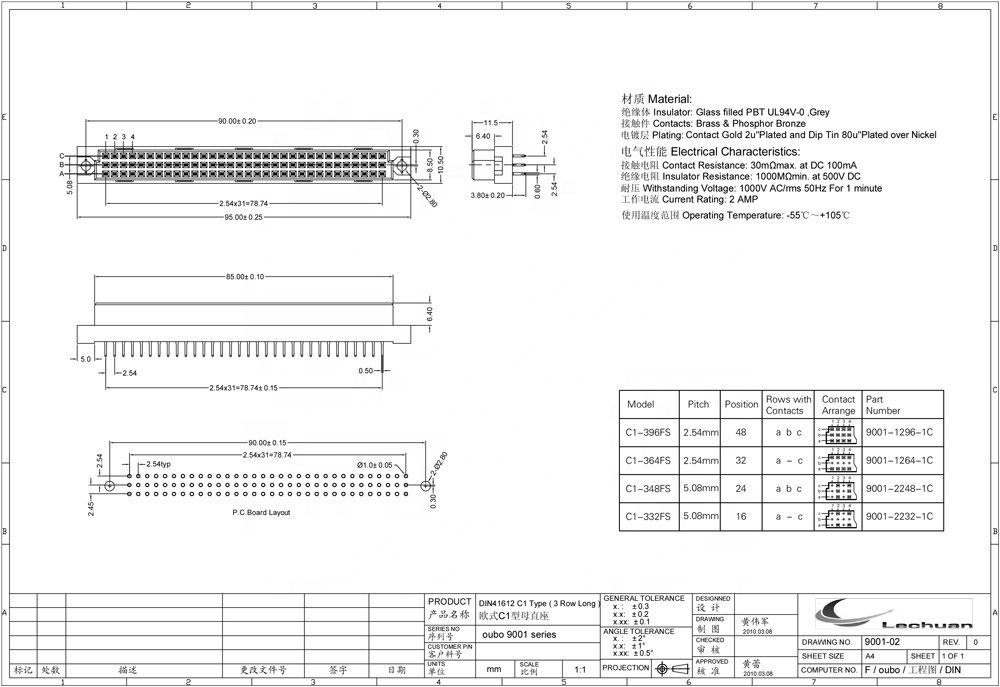

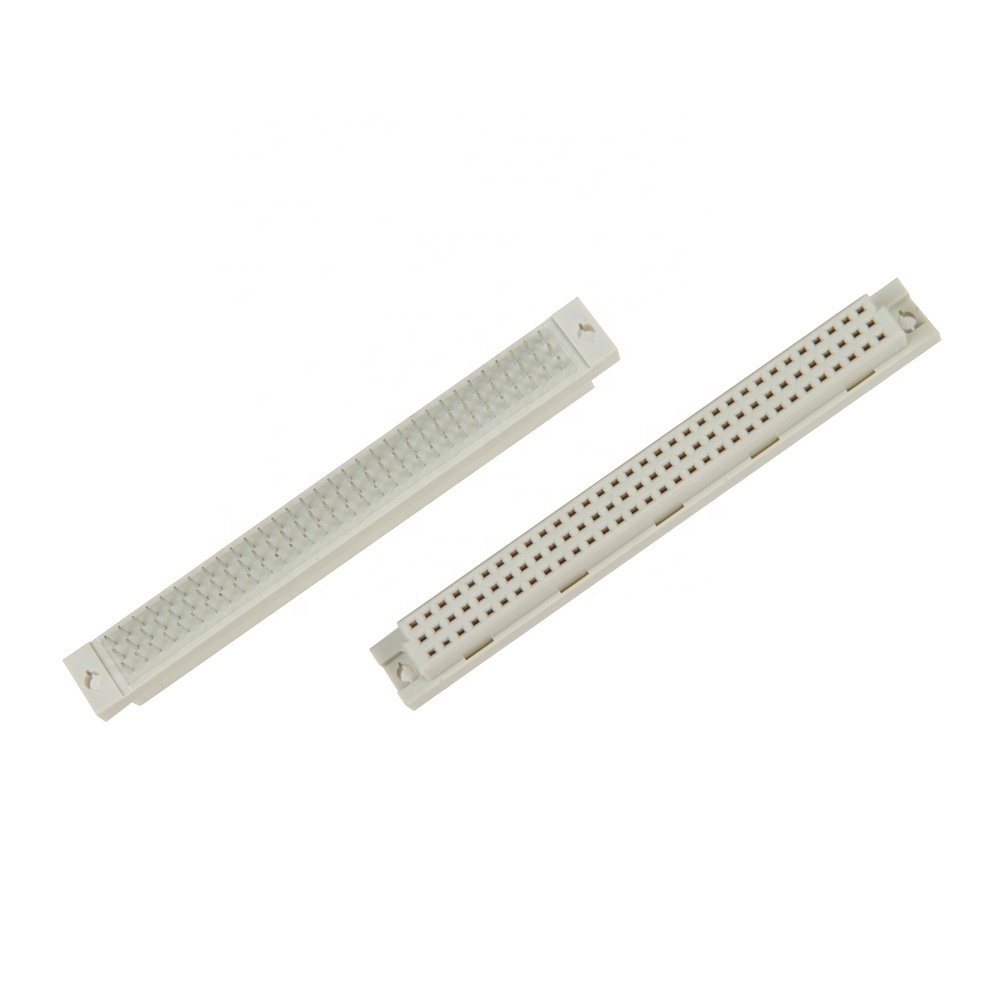

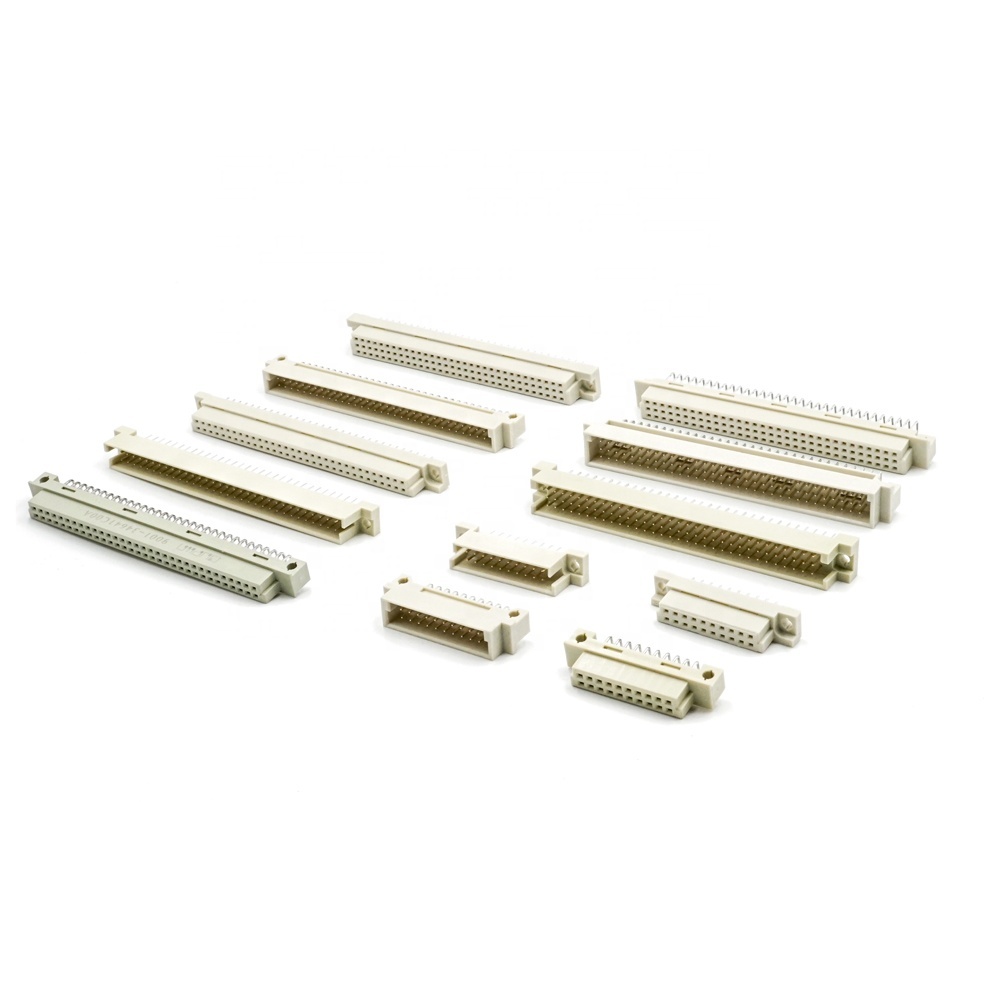

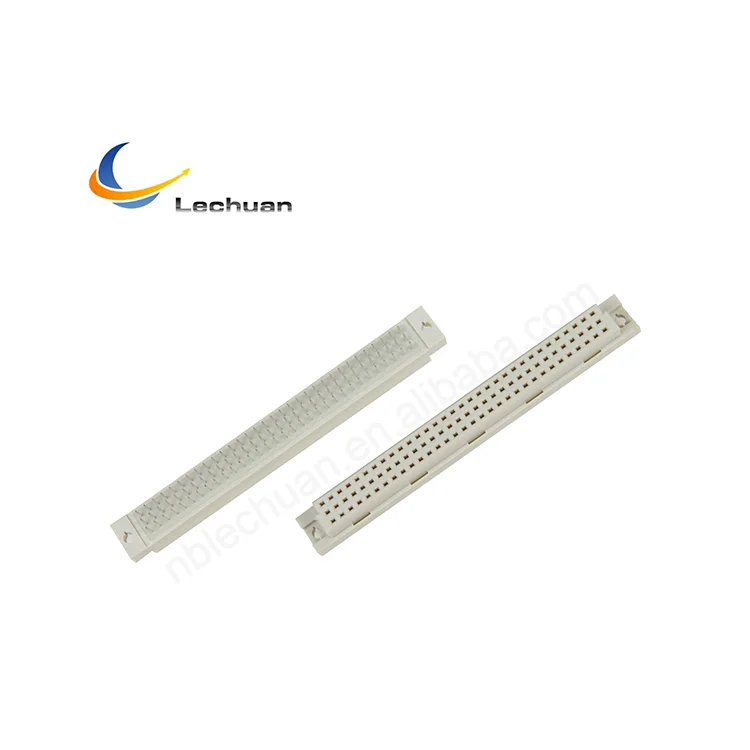

The LECHUAN 96Pin 3 Row DIN41612 Eurocard Connector is designed for high-current, reliable board-to-board connections. This high-performance solution suits applications needing precise electrical connectors manufacturers and board to board connector systems.
Functional Role in High-Density Interconnections
This 96-pin, 3-row DIN41612 Eurocard connector functions as a critical interface within systems requiring stable high-current female receptacle connections. Electrical engineers and procurement specialists in industries demanding complex board-to-board connector solutions benefit from its straight female receptacle design. As one of the recognized electronic connector manufacturers, LECHUAN provides this connector for prototype development, testing fixtures, and modular backplane assemblies, supporting seamless integration and enhanced system reliability in professional environments.
Technical Specifications and Material Composition
The connector features a precise 2.54 mm pitch with gold-plated contacts to ensure optimal conductivity and resistance to wear. Its insulator is constructed from PBT reinforced with 30% glass fiber, adhering to UL94V-0 flammability standards to guarantee durability in strict thermal conditions ranging from -55°C to +105°C operationally. Manufactured by trusted electronic connector manufacturers, it offers a current rating of 2 A and dielectric withstanding voltage of AC 1000 V, assuring adherence to stringent electrical performance metrics ideal for cable connector and terminal block connector integration.
Industry Application and Operational Value
Widely applied in Eurocard backplane assemblies and high-pin-count prototype testing, this connector supports board-to-board systems within industrial automation, telecommunication equipment, and modular computing platforms. Its reliability under ROHS, CE, and REACH standards ensures operational compliance across global markets. The product’s capability to sustain high currents and maintain signal integrity enhances the workflow efficiency of wire harness connector manufacturers and system integrators focusing on ethernet connector or fpc connector solutions.
Product Advantages
Robust Structural and Design Features
This connector’s design incorporates a three-row, 96-pin configuration optimized for compactness and high-density board-to-board connector scenarios, enabling system modularity. The gold-plated contacts over nickel provide corrosion resistance critical in cable connector and terminal block connector applications. The PBT insulator with glass fiber reinforcement improves mechanical stability, ensuring consistent mating cycles preferred by electrical connectors manufacturers focused on durable solutions in challenging environments.
Enhanced Performance and User Utility
From a performance perspective, the connector achieves reliable signal transmission with its gold contacts and tin-plated soldering zones, allowing stable solder joints that withstand thermal cycling. Its wide operating temperature range suits various industrial conditions where wire harness connector manufacturers require dependable durability. The straightforward straight female receptacle design accommodates ease of installation and verification processes, supporting faster production workflows and maintenance activities in board to board connector applications.
Use Scenarios
Industrial Automation Backplane Integration
In complex industrial automation environments, the LECHUAN 96Pin DIN41612 connector operates as a dependable interface in backplane assembly systems. Its ability to sustain 2 A current and maintain signal integrity is essential for industrial controllers and programmable logic controller (PLC) racks, where precise interconnections affect overall system performance. Manufacturers and integrators rely on its compliance with electronic connector manufacturers’ standards to ensure seamless integration within ethernet connector setups or cable connector networks critical for system uptime.
Prototyping and Testing in Electronics Development
During prototype development and testing, especially for high-pin-count board assemblies, this connector enables engineers to establish stable, repeatable board-to-board connections. Its straight, female receptacle facilitates quick assembly and disassembly, supporting iterative evaluation in R&D labs. Given its robust insulation and gold-plated contacts, it meets the demanding requirements imposed by wire harness connector manufacturers and electronic connector manufacturers engaged in design verification and signal integrity validation workflows, contributing to efficient product development cycles.
|
Material
|
Insulator：PBT&30%Glass Fiber, UL94V-0
|
|
|
Contact Plating：Male-Brass Female-Phosphor Bronze
|
|
Contact Area：Gold plated over Nickel
|
|
|
Soldering area：Tin plated over Nickel
|
|
|
Electrical Characteristic
|
Contact resistance: 30mΩmax. at DC 100mA
|
|
|
Insulator resistance: 1000MΩmin. at DC 500V
|
|
|
Dielectric Withstanding Voltage: AC 1000V for 1 minute
|
|
|
Current Rating: 2 AMP
|
|
Environment
|
Operating Temperature: -55℃~+105℃
|
|
Storage temperature：-40℃~+85℃
|
|
|
Constant Moisture：95%RH,40℃for 96Hrs
|
|
|
Soldering：After flux 230±5℃for 5±0.5 seconds
95%coverage
|
|
|
Soldering temperature：260±5℃for 5±1 seconds
|
|
|
Type
|
Positions：10 to 96 Pins
|
|
Pitch：2.54mm
|
|
|
Insertion Force：
10 Pin max.9N 20 Pin max.18N 30 Pin max.27N
16 Pin max.15N 32 Pin max.30N 48 Pin max.45N
44 Pin max.40N 64 Pin max.60N 96 Pin max.90N
|
|
|
Plating：
Contact area Gold plating:2µ"" ,Sodering Area Tin Plating:80µ"" Over Nickle
|
What materials are used in the LECHUAN 96Pin 3 Row DIN41612 Eurocard connector?
Our connector features an insulator made of PBT reinforced with 30% glass fiber (UL94V-0) for durability and flame resistance. The contacts include male brass and female phosphor bronze, both gold-plated over nickel to ensure superior signal integrity and corrosion protection.
Can you provide custom options for this 96-pin board to board connector?
We offer customization based on your technical requirements. Since we are experienced electronic connector manufacturers, we can assist with variations in pin counts, plating, or configuration. Contact our technical team with your specifications for tailored solutions.
How should I install or solder this high-current female receptacle connector?
Soldering should be done at 260±5°C for 5±1 seconds, following flux application at 230±5°C for 5±0.5 seconds. We recommend this precise process to ensure secure connections and reliable performance in demanding board to board connector applications.
What certifications and quality standards do your cable connector products meet?
All our connectors, including this model, meet ROHS, CE, and REACH requirements and are produced under a strict ISO9000 quality management system. These certifications guarantee compliance, safety, and consistent quality for your industrial applications.
