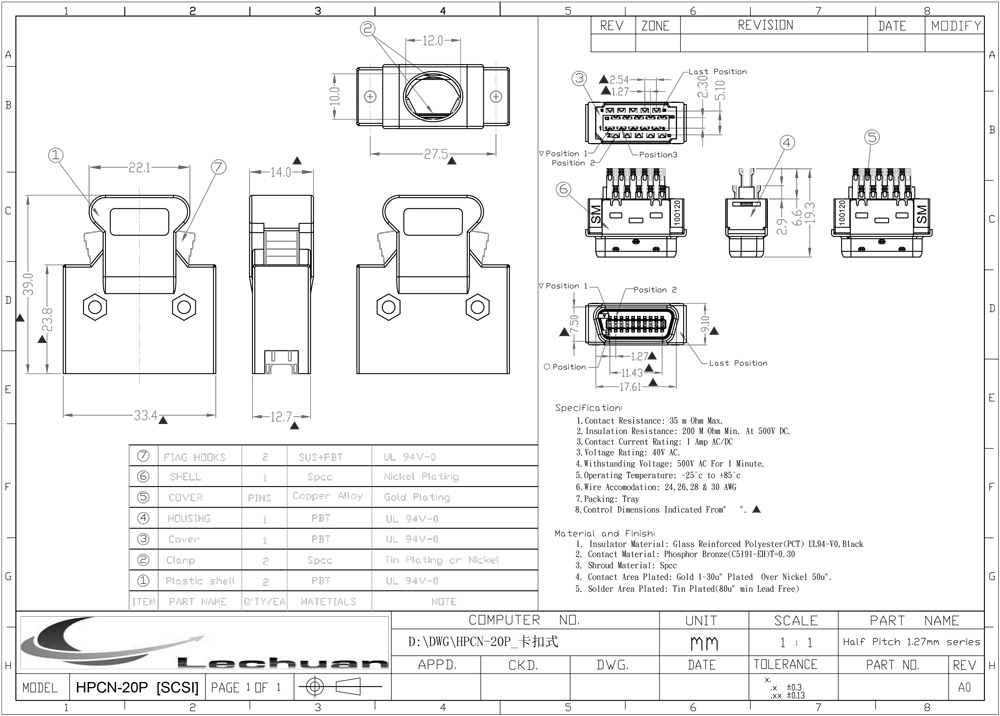

Material
|
Housing : PBT,UL94V-0,Black
|
|
|
Cable Clamp： Spcc，Tin plating over Nickel
|
|
Contact Plating：Phosphor Bronze,T=0.3，Gold plating over Nickel
|
|
|
|
Body：PBT,UL94V-0,Black
|
|
Metal Housing:Spcc, Nickle plating
|
|
|
Ground Plate：Iron/Nickle
|
|
|
Fastener：Glass Reinforced Polyester(PBT)
|
|
|
Electrical Characteristic
|
Mark： Logo and Part Number
|
|
|
Wire Accomadation：24,26,28&30AWG
|
|
|
Contact Resistance:30MΩmax ,at DC 100mA
|
|
|
Insulator Resistance:500MΩmin ,at 500V DC
|
|
Withstanding Voltage: 500V AC/rm 50Hz for 1 minute
|
|
|
Current Rating: 1 Amp AC/DC
|
|
|
Environment
|
Operating Temperature:-55℃～+105℃
|
|
Soldering Temperature:235℃max for 6sec.max
|
