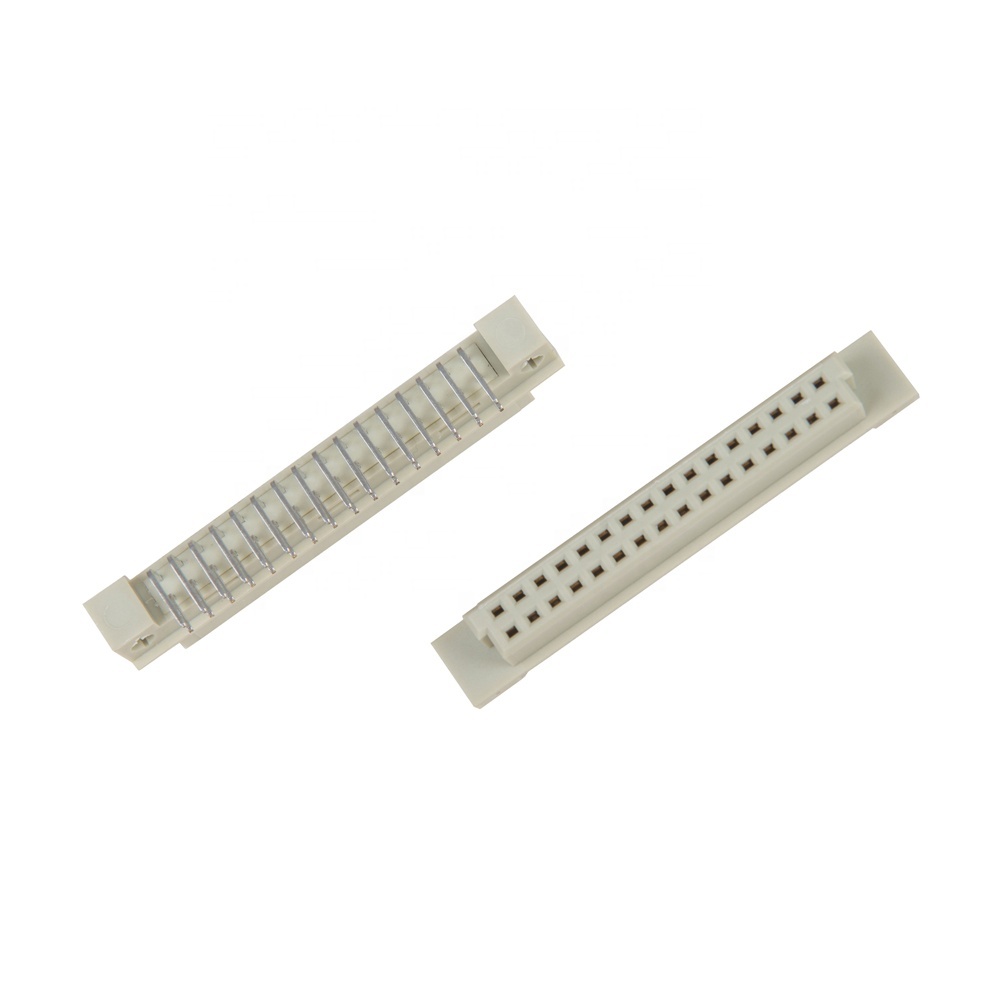

Material
|
Insulator：PBT&30%Glass Fiber, UL94V-0
|
|
|
Contact Plating：Male-Brass Female-Phosphor Bronze
|
|
Contact Area：Gold plated over Nickel
|
|
|
Soldering area：Tin plated over Nickel
|
|
|
Electrical Characteristic
|
Contact resistance: 30mΩmax. at DC 100mA
|
|
|
Insulator resistance: 1000MΩmin. at DC 500V
|
|
|
Dielectric Withstanding Voltage: AC 1000V for 1 minute
|
|
|
Current Rating: 2 AMP
|
|
Environment
|
Operating Temperature: -55℃~+105℃
|
|
Storage temperature：-40℃~+85℃
|
|
|
Constant Moisture：95%RH,40℃for 96Hrs
|
|
|
Soldering：After flux 230±5℃for 5±0.5 seconds
95%coverage
|
|
|
Soldering temperature：260±5℃for 5±1 seconds
|
|
|

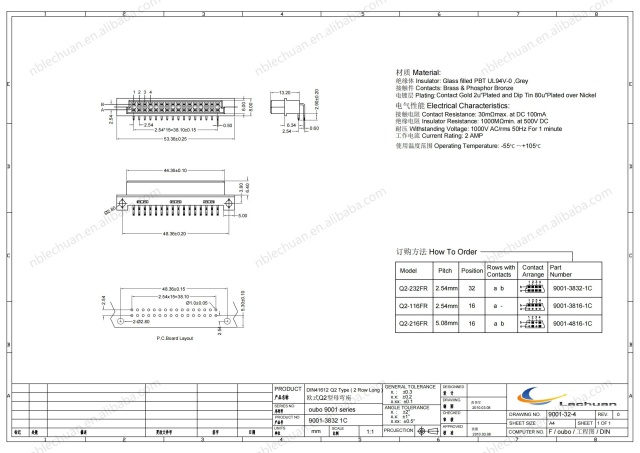

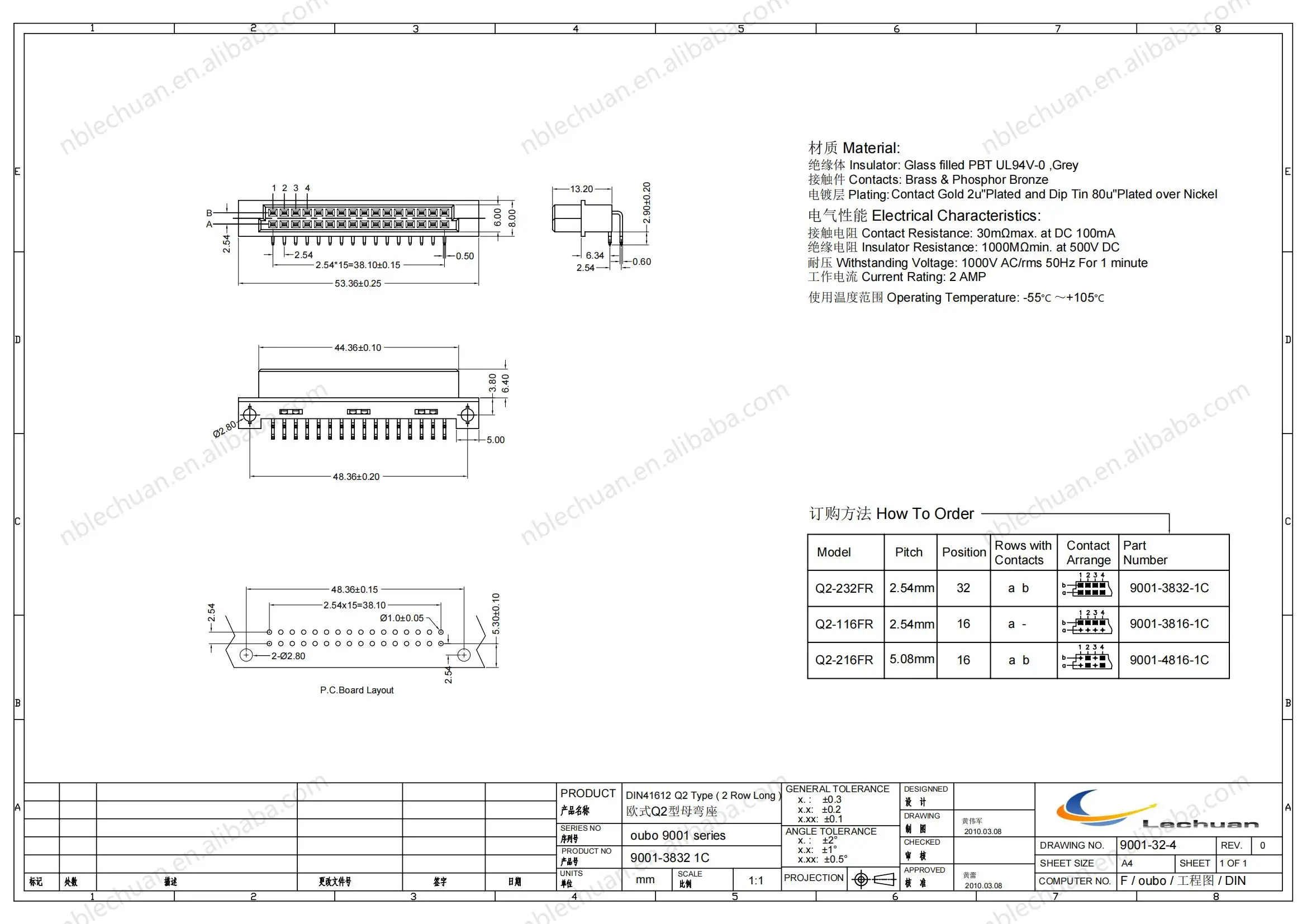

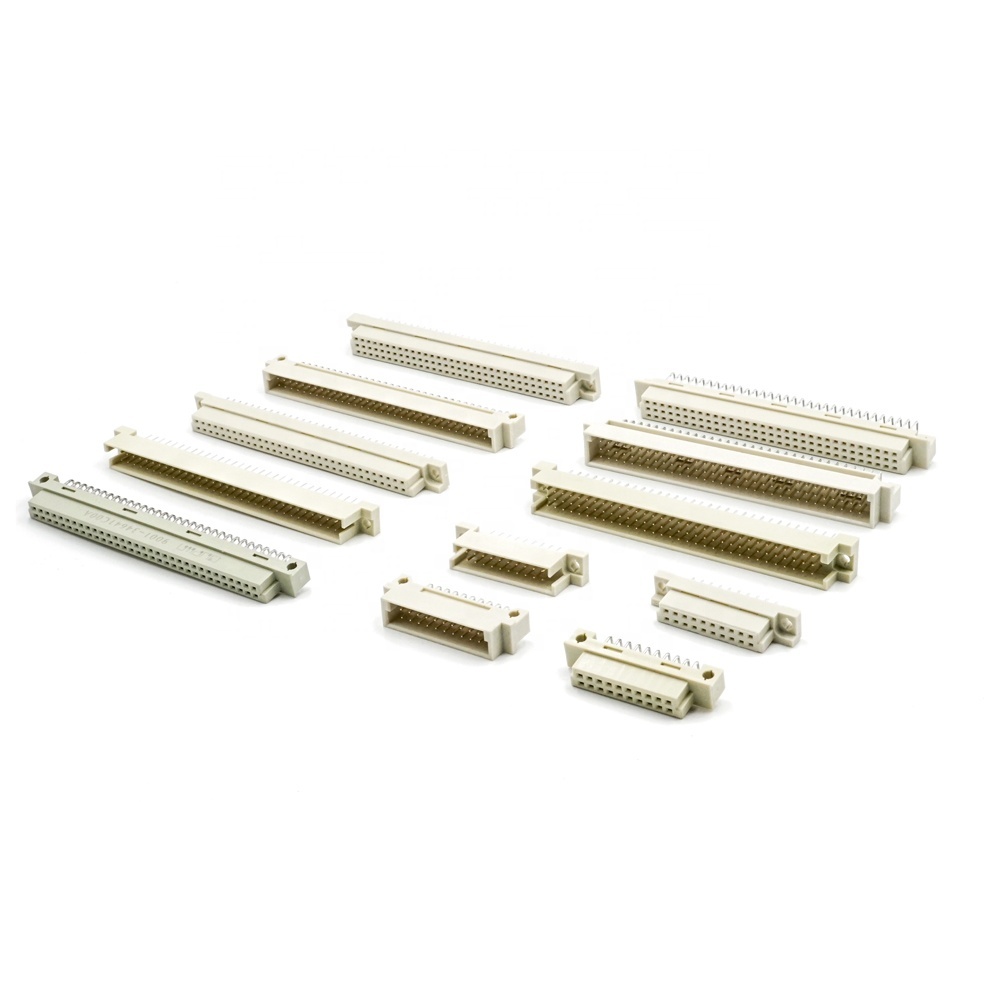

Type
|
Positions：10 to 96 Pins
|
|
Pitch：2.54mm
|
|
|
Insertion Force：
10 Pin max.9N 20 Pin max.18N 30 Pin max.27N
16 Pin max.15N 32 Pin max.30N 48 Pin max.45N
44 Pin max.40N 64 Pin max.60N 96 Pin max.90N
|
|
|
Plating：
Contact area Gold plating:2µ"" ,Sodering Area Tin Plating:80µ"" Over Nickle
|
