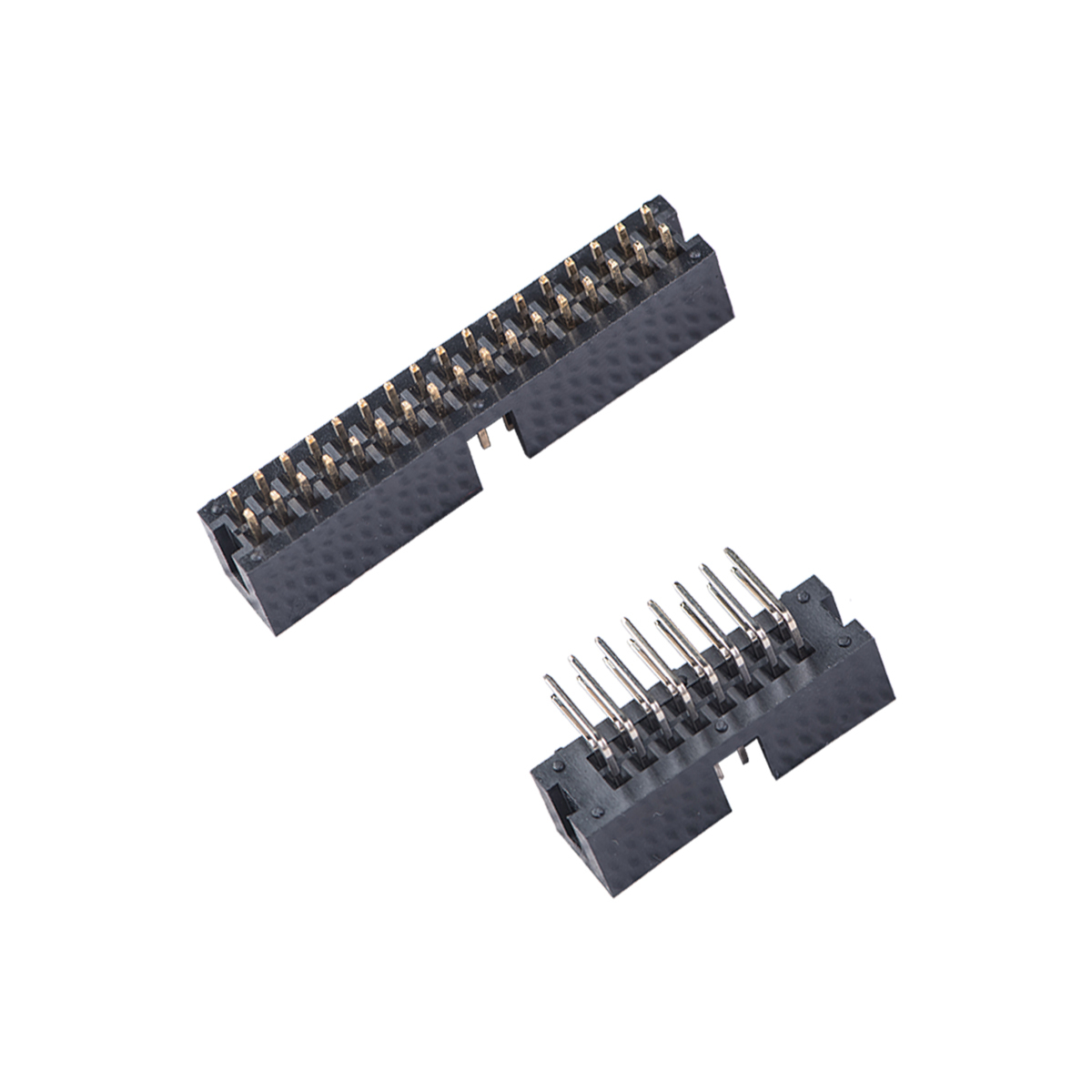

LECHUAN 2.54mm Pitch 180 Degrees Straight Right Angle SMT DIP Male PCB Connector Box Header Wire to Board Connectors

Precision Wire-to-Board Solutions for Engineering Applications
The LECHUAN 2.54mm pitch male box connector is engineered for demanding PCB interconnections, targeting electronics manufacturers and integration specialists requiring dependable wire to board connectors. Its compatibility with standard 2.54mm spacing and availability in both straight and 180-degree right angle SMT and DIP configurations streamline assembly processes. This product line supports a wide range of pin counts from 6 to 64, enabling optimal scalability for complex circuit designs and modular hardware development within industrial production and prototyping environments.

Technical Specifications Tailored for Rigorous Electronic Performance

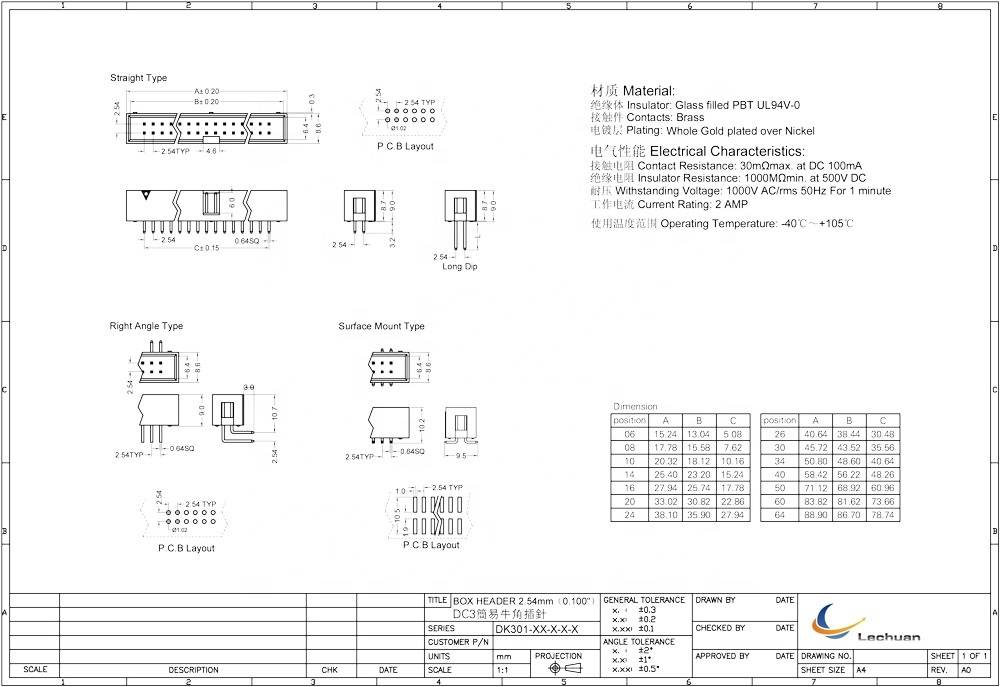

Constructed with brass contacts featuring gold plating over weld tin nickel tails and housed in UL94V-0 rated glass-filled PBT insulators, this connector delivers superior electrical and mechanical stability. It supports continuous current ratings up to 2AMP withstanding up to 1000V AC/rms at 50Hz, addressing voltage isolation requirements in critical electronic applications. The contact resistance remains ≤30mΩ under operational conditions, and the device tolerates ambient temperature variations from -40°C to +105°C. Such measurable specifications ensure reliable performance and compliance with international quality standards for wire harness connector manufacturers.

Industry Versatility in PCB Assembly and Electronic Integration
The male box connector’s robust design fulfills use cases spanning automated PCB assembly lines, signal routing in consumer electronics, and field service repairs requiring quick connector replacement. Its functional adaptability supports various electronic devices including instrumentation, control units, and communication hardware. By facilitating secure electrical contacts and mechanical robustness, this wire to board connector enhances product lifecycle and system reliability, providing measurable operational ROI for manufacturers and system integrators seeking standardized, durable connector solutions.


Product Advantages

Modular Design and Manufacturing Integration
The LECHUAN box connector embodies modularity with consistent 2.54mm pitch spacing and offers both straight and right-angle configurations to accommodate PCB layouts with diverse spatial constraints. The use of flame-retardant glass-filled PBT insulators combined with reliable brass contacts ensures system safety and corrosion resistance, meeting industry standards. This structural versatility allows for streamlined integration within existing wire harness connector manufacturers’ assemblies and seamless adaptation into automated production lines, reducing inventory complexity and improving supply chain efficiency.

Reliable Electrical Performance and User-Centric Assembly
Designed to maintain low contact resistance and high thermal endurance, this wire to board connector supports continuous operation in challenging industrial environments. Its gold-plated contacts minimize signal loss and oxidation risks, enhancing long-term functionality. The straightforward SMT or DIP installation enables efficient PCB soldering processes, reducing assembly time and user error. These performance characteristics offer end users dependable connectivity solutions, optimized for maintainability and minimizing downtime in electronic system deployment.


Use Scenarios

Application in Industrial Automation and Control Systems
Within the industrial automation sector, precise, durable connections are critical to system reliability. This box connector supports wire to board interfaces integral to robotics controllers, sensor modules, and power distribution units. Its high-voltage rating and current capacity ensure electrical integrity under fluctuating loads. Straight and right-angle mounting options facilitate compact PCB configurations that satisfy spatial constraints of industrial panels. The connector’s compliance with fire retardancy and insulation standards aligns with safety protocols, enabling efficient integration into automated control architectures.

Role in Electronic Prototyping and Repair Services
In electronics prototyping and field repair operations, flexibility and adaptability of connector types are paramount. The LECHUAN male box connector’s extensive pin range and multiple mounting orientations cater to various board designs and wiring setups. It enables engineers and technicians to quickly implement or replace connectors without extensive redesign. Its robust construction and high durability withstand repeated insertion cycles, enhancing usability in iterative prototype testing and modular system maintenance. This wire to board connector supports workflow efficiency and component interchangeability in dynamic development environments.
