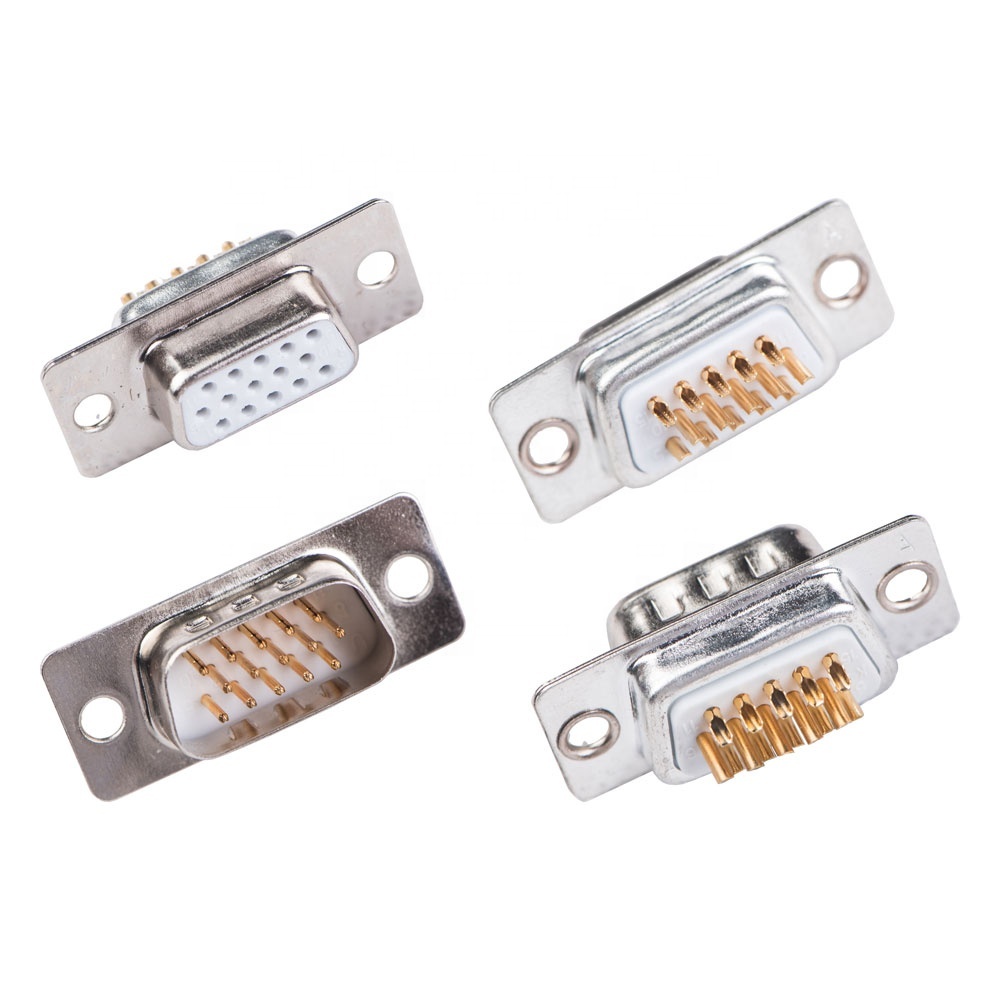

The LECHUAN 15-position High-Density D-SUB Connector provides reliable solder-type electrical connections with male and female options, suited for compact harness designs by leading electronic connector manufacturers and wire harness connector manufacturers.
Optimized for High-Density Connection Applications
This LECHUAN 15-position high-density D-SUB connector is engineered to serve electronics engineers and system integrators requiring precise solder-type terminations with optional male and female configurations. It addresses the needs of compact and space-efficient wiring harness assemblies produced by professional wire harness connector manufacturers. The design enables compatibility with various control panel and PCB applications, offering flexible mating combinations to enhance system modularity. Such configurations allow engineering teams to streamline prototype development and product revisions efficiently while maintaining secure interconnections within high-density environments.
Technical Composition and Electrical Specifications
Constructed with a glass-filled PBT UL94V-0 insulator and brass or phosphor bronze contacts, this solder-type D-SUB cable connector guarantees high electrical integrity. The gold and tin plating over nickel contact surfaces reduce resistance to 30 mΩ max and ensure wear resistance in demanding environments. The insulator resistance rating is 1000 MΩ at 500V DC, withstanding voltage up to 1000V AC/rms at 50 Hz for one minute. Rated for 3A current and operational within -40°C to +105°C, this connector meets stringent standards needed by electrical connectors manufacturers who require reliable performance across diverse conditions. Color options further facilitate system identification and compliance with design specifications.
Industry Integration and Application Versatility
Widely implemented across manufacturing sectors, the LECHUAN 15-position D-SUB connector fulfills critical roles in prototype evaluation and replacement within legacy device maintenance. Industrial automation systems and test equipment assemblies benefit from its solder-type precision and high-density configuration. As a trusted component offered by electronic connector manufacturers, it supports seamless mating with standard D-sub sockets and integrates well with board to board connector solutions in complex assemblies. The robustness and adaptability it provides accelerate system prototypes and ongoing equipment upgrades, contributing to process efficiency and reduced downtime in industrial settings.
Product Advantages
Design and Modular Integration Advantages
The LECHUAN solder-type 15-position D-SUB connector features a modular design optimized for integration into compact wire harness assemblies manufactured by wire harness connector manufacturers. Its optional male/female configurations allow system designers enhanced flexibility in mating combinations, supporting scalable layouts. The glass-filled PBT UL94V-0 insulator contributes to structural durability and flame retardance per industry safety standards, while premium contact materials with gold and tin plating ensure long-lasting electrical connectivity. This comprehensive design approach enhances compatibility with cable connector arrays and terminal block connector components commonly used in complex electrical systems.
Performance Reliability and User Value
Engineered for performance, this connector ensures consistent low contact resistance and high insulator resistance, minimizing signal loss and improving overall circuit reliability, key factors for electrical connectors manufacturers targeting high-quality output. Its broad operating temperature range and ability to withstand high voltage surges offer resilience in industrial and field environments. The ease of solder termination aids rapid prototyping and maintenance operations, reducing technician handling time. By delivering reliable mating and high-density pin configurations, it supports enhanced system efficiency and user confidence in demanding technical installations requiring precise electronic connector manufacturers’ solutions.
Use Scenarios
Application in Electronic Prototype Development
In R&D and engineering laboratories, the LECHUAN 15-position high-density D-SUB connector plays a pivotal role during the design and evaluation phase of new electrical assemblies. Its solder-type termination adapts well to prototype PCBs, facilitating quick iteration and verification by integrating seamlessly with standard board to board connector setups. The precision plating and stringent electrical specifications fulfill the requirements of electronic connector manufacturers dedicated to delivering accurate test results. This enables engineers to validate signal integrity and connectivity within compact harness designs, improving development timelines for industrial and automation applications.
Role in Industrial Automation and Control Systems
Within industrial automation settings, the robust design and high electrical performance of this cable connector integrate effectively into control panel wiring harnesses and signal distribution modules. Electrical connectors manufacturers rely on its ability to maintain low contact resistance under continuous operational stresses and variable temperatures ranging from -40°C to +105°C. Its optional male/female configuration simplifies system customization, allowing easy replacement or upgrading of existing terminal block connectors and ethernet connector setups. Consequently, it supports uninterrupted workflow and system reliability in manufacturing lines, process controls, and automated testing environments.
|
Product Name
|

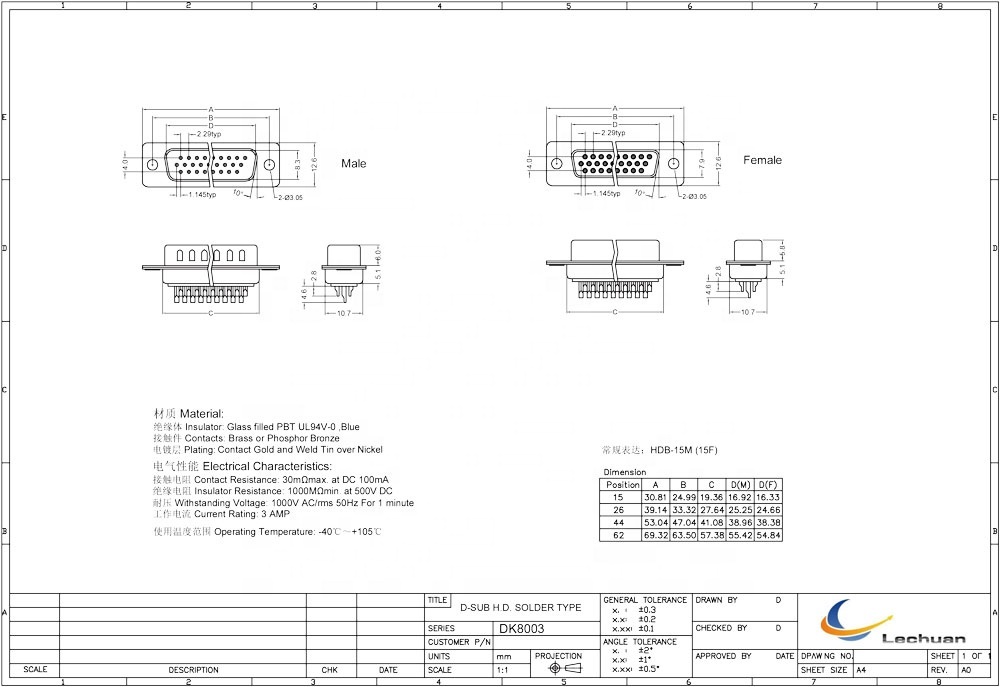

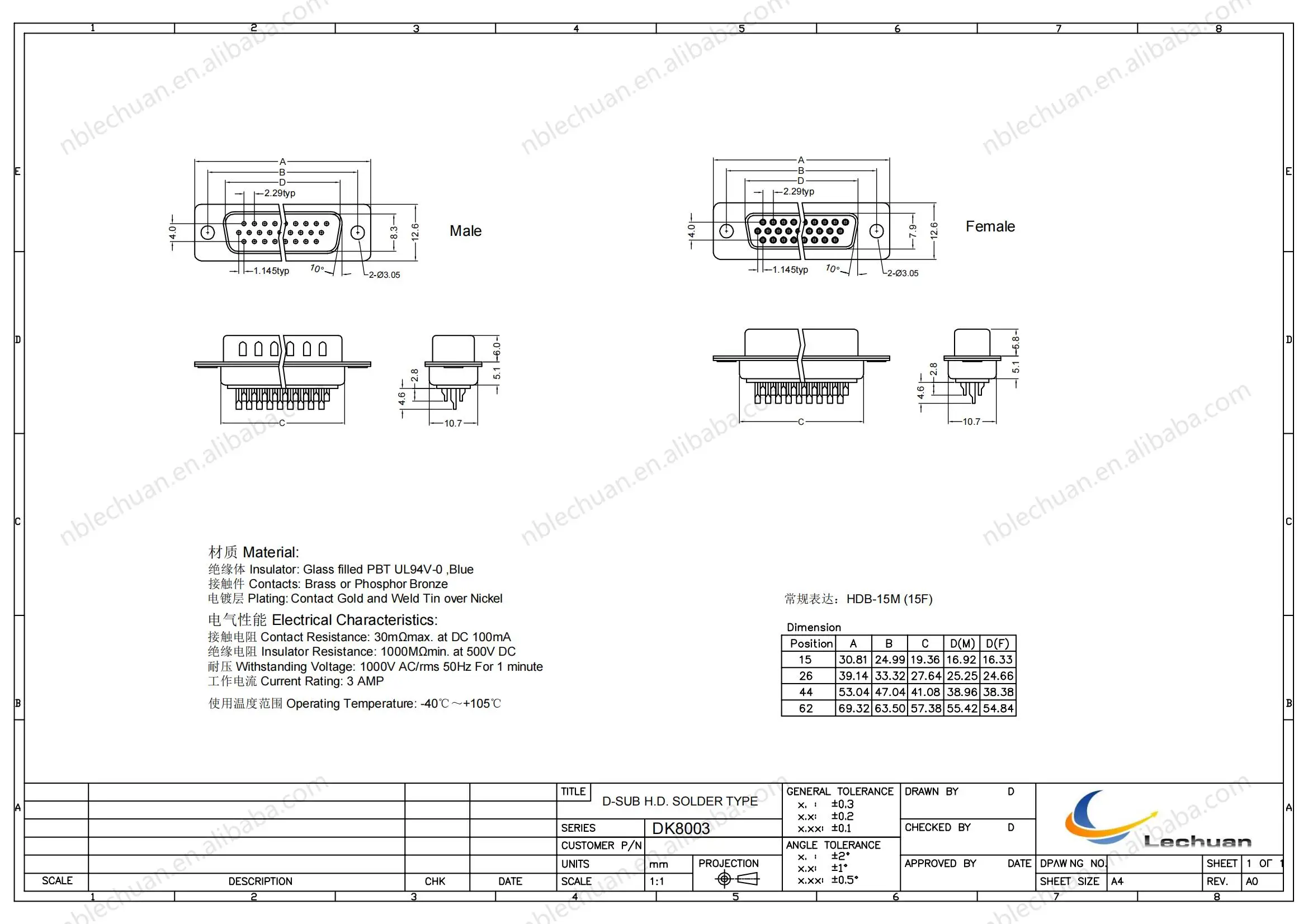

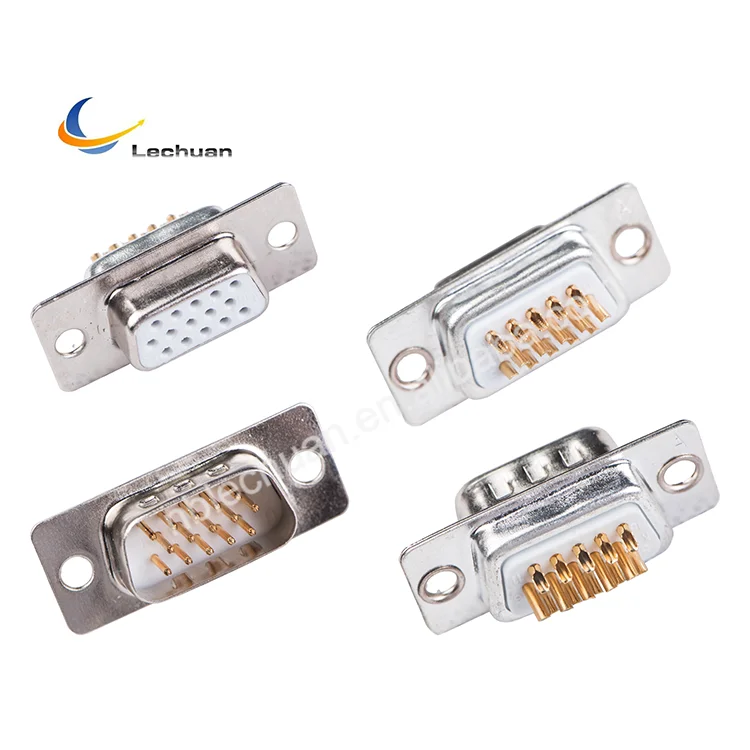

D-SUB CONNECTOR, SOLDER TYPE
|
|
Material
|
Insulator:Glass filled PBT UL94V-0
|
|
|
Contacts:Brass or Phosphor Bronze
|
|
Plating:Contact Gold and Weld Tin over Nickel
|
|
|
Electrical Characteristic
|
Insulator Resistance:1000MΩmin. at 500V DC
|
|
|
Contact Resistance:30mΩmax. at DC 100mA
|
|
|
Withstanding Voltage:1000V AC/rms 50Hz For 1 minute
|
|
|
Current Rating:3 AMP
|
|
Environment
|
Operating Temperature:-40℃～+105℃
|
What materials are used in your LECHUAN 15-position high-density D-SUB connector?
We manufacture this connector using a glass-filled PBT UL94V-0 insulator and brass or phosphor bronze contacts. The plating includes gold and weld tin over nickel, ensuring durability and low contact resistance, suitable for demanding electrical connector applications.
Do you provide customization options for the solder-type D-SUB connectors?
Yes, we offer optional male and female versions of the LECHUAN 15-position D-SUB connector to fit your specific wiring needs. Our flexible configurations support various wire harness connector manufacturers requirements for compact and reliable connections.
How is the LECHUAN D-SUB connector packaged and shipped?
The connectors are securely packed in cartons measuring 7 x 8 x 10 cm, weighing approximately 1.000 kg per unit. This professional packaging protects the product during transportation and maintains quality until delivery.
What operating conditions can the LECHUAN HDB9 solder-type connector withstand?
Our connector operates reliably in temperatures ranging from -40°C to +105°C. It withstands voltages up to 1000V AC/rms at 50 Hz for 1 minute, with excellent contact resistance, making it suitable for industrial and electronic hardware environments.
