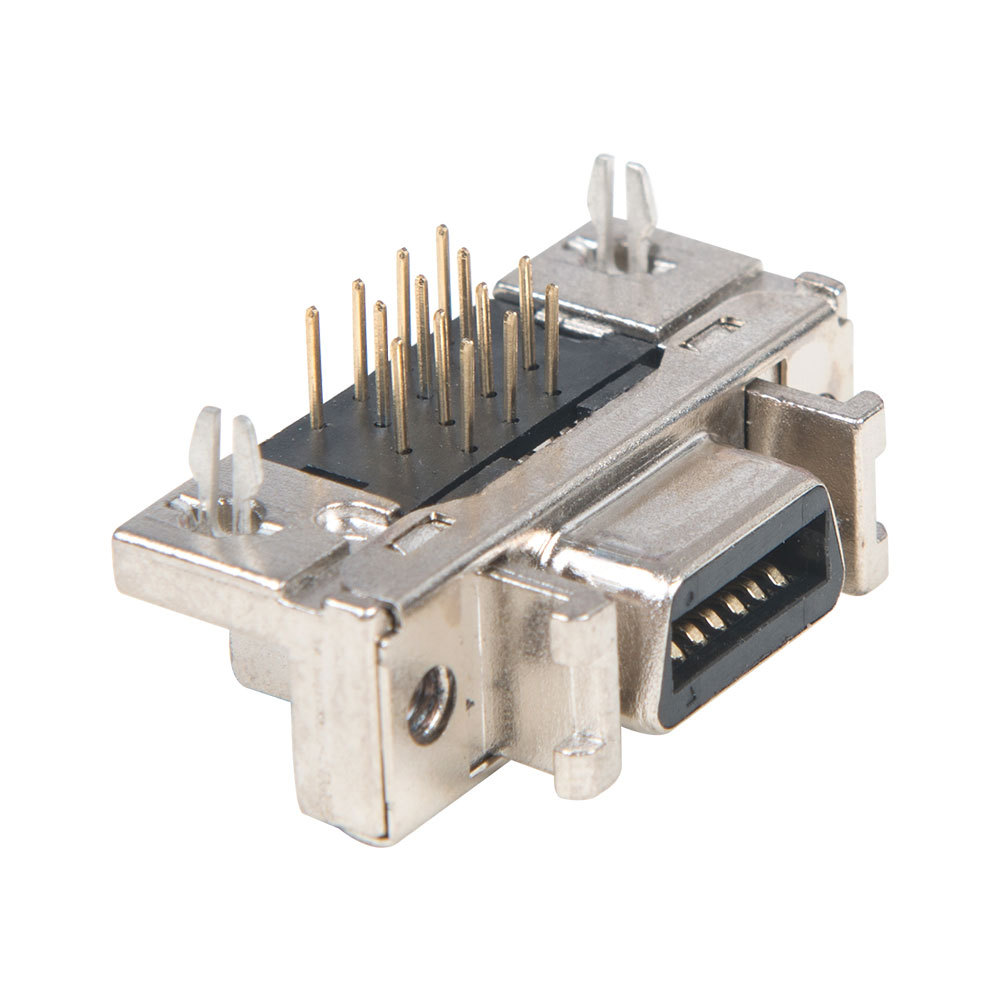

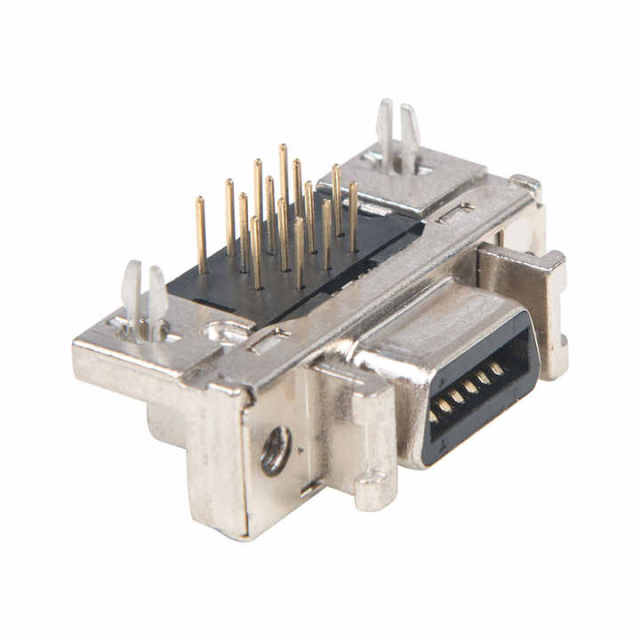

The LECHUAN 14Pin SCSI MDR Female Connector is a rugged right-angle PCB mount designed for reliable board to board connector applications. It features gold-plated contacts ensuring low resistance from trusted electronic connector manufacturers.
Functional Integration for SCSI MDR Interface Systems
This 14-pin SCSI MDR female connector, manufactured by experienced electronic connector manufacturers, is engineered specifically for PCB assemblies requiring a high-density, right-angle D-Sub Micro-D receptacle. Targeted at design engineers and system integrators, it facilitates precise, compact interconnections within data acquisition, computing, and communication equipment. As a board to board connector, it supports stable signal transmission in demanding environments, providing a reliable interface for complex wire harness connector manufacturers needing durable connectors for modular system layouts.
Technical Construction with Verified Electrical Specifications
Constructed using a glass-filled PBT UL94V-0 insulator combined with copper alloy contacts plated fully in gold over nickel, this cable connector guarantees minimal contact resistance and superior corrosion resistance. The SPCC nickel-plated housing and zinc alloy components ensure mechanical integrity and durability. Rated for 1 A current and operation between -40°C and +105°C, this terminal block connector withstands 500 V AC (50 Hz) for one minute and supports soldering up to 265°C. These technical parameters meet rigorous electrical standards essential for ensuring consistent performance in harsh industrial conditions.
Application in Industrial and Test Equipment Solutions
The connector excels in applications requiring robust, precision connections such as PCB design verification, electrical characterization, and retrofit of legacy SCSI MDR connectors in instrumentation and networking hardware. Electronic connector manufacturers supply this component to optimize compact system architectures, ensuring secure cable connector interfaces for high-reliability Ethernet connector and terminal block connector environments. It integrates seamlessly into prototyping and production lines, enhancing workflow efficiency and minimizing failure rates across industrial sectors demanding compliant, quality connectors.
Structural and System Design Excellence
The LECHUAN 14Pin SCSI MDR connector benefits from a meticulous design integrating a right-angle, through-hole PCB mounting style that reduces board space while enhancing mechanical stability. Crafted with a robust SPCC nickel-plated housing and supported by zinc alloy components, it is engineered for longevity and resistance to mechanical stress. This structural approach supports optimal electromagnetic compatibility and precise mating with corresponding D-Sub Micro-D connectors, favored by wire harness connector manufacturers aiming for modular system scalability within electronic assemblies.
Optimized Performance and User Reliability
Performance-wise, the full gold plating over nickel on the copper alloy contacts delivers superior electrical conductivity and corrosion resistance, lowering signal loss and contact degradation. The connector’s ability to endure harsh thermal and voltage conditions — including soldering at 265°C and operation over a wide temperature range — ensures consistent connectivity vital for reliability-focused electronic connector manufacturers. Its user-centric features facilitate straightforward soldering and seamless integration on PCB lines, reducing production complexity and improving overall maintenance cycles in mission-critical applications.
Use Scenarios
Use Case in PCB Design and Validation Testing
In advanced PCB manufacturing environments, this 14-pin SCSI MDR connector serves as a critical interface within test fixtures and validation equipment. Electrical engineers deploy it to verify system compatibility and evaluate signal integrity across board to board connectors. Its robust plating and precise tolerances provide repeatable, reliable connections essential for test automation setups. Integrations with electronic connector manufacturers’ established standards ensure compliance-focused solutions, reducing downtime during prototype iterations and supporting quality assurance workflows in high-volume electronics fabrication.
Role in Networking and Industrial Communication Systems
Within industrial networking hardware, this connector forms a reliable bridge in compact Ethernet connector applications requiring space-saving right-angle connections. It serves as a cable connector interface for internal circuit interconnections, maintaining signal integrity under electrically noisy environments. Its thermal and voltage ratings align with strict IP and safety standards, making it suitable for use by electrical connectors manufacturers in factory automation and telecommunications. By enabling secure board to board connections, it supports streamlined system assembly and robust data transmission in critical communication infrastructures.
|
Material
|
Insulator：Glass filled PBT UL94V-0,Black
|
|
|
Contact Plating： Copper Alloy，Full Gold over Nickle
|
|
Supporting Part：Zinc Alloy,Nickle plating
|
|
|
|
Housing：SPCC, Nickle plating
|
|
fastener：Copper Alloy，Tin plating
|
|
|
Electrical Characteristic
|
Mark: Logo and Part Number
|
|
|
Contact Resistance :30MΩmax ,at DC 100mA
|
|
|
Insulator Resistance: 500MΩmin ,at 500V DC
|
|
|
Withstanding Voltage: 500V AC/rm 50Hz for 1 minute
|
|
Current Rating: 1 Amp AC/DC
|
|
|
Environment
|
Operating Temperature:-40℃～+105℃
|
|
Soldering temperature:265℃max for 6sec.max
|
What materials are used in the LECHUAN 14Pin SCSI MDR Female Connector?
Our connector features a glass-filled PBT UL94V-0 insulator combined with copper alloy contacts plated in full gold over nickel for low contact resistance. The housing uses SPCC steel with nickel plating, and zinc alloy supporting parts ensure robust mechanical stability, meeting high durability and performance standards.
Can you customize connectors for specific PCB applications?
We offer customization options for our connectors to accommodate various PCB assembly needs, including adjustments in pin configuration and mounting style. As experienced electronic connector manufacturers, we work closely to provide tailored solutions for your board-to-board connection requirements.
How should I install the LECHUAN 14Pin SCSI MDR Female Connector on my PCB?
Our connector is designed for through-hole, right-angle PCB mounting. We recommend standard soldering practices with a maximum temperature of 265°C for up to 6 seconds to ensure optimal mechanical and electrical connections without damaging the components.
Do you provide support for shipping and logistics internationally?
Yes, through Cixi Lechuan Import and Export Co., Ltd., we export to over 20 countries worldwide. Our experience as electrical connectors manufacturers ensures reliable global delivery and support for bulk orders, enabling a smooth supply chain for all your connector and wire harness connector manufacturers needs.
