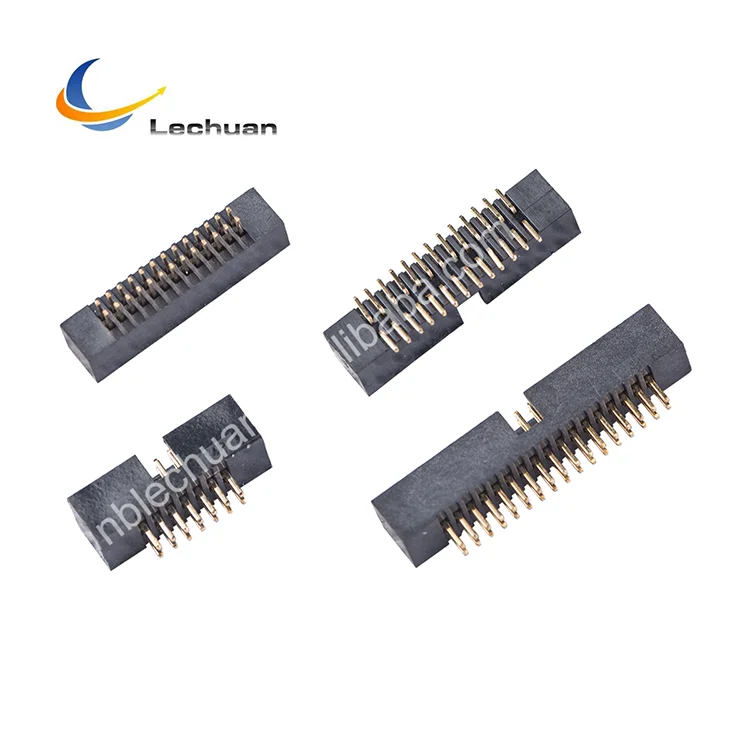

Lechuan’s 1.27mm pitch 2x10P box header PCB connector provides compact, reliable board interconnectivity with gold-plated brass contacts. Ideal for precise board to board connector applications by leading electronic connector manufacturers.
Compact Interconnection Solution for Electronics Integration
Designed for professionals in electronics manufacturing and system design, this 1.27mm pitch 2x10P box header PCB connector offers a precise and compact solution to interconnect printed circuit boards in high-density layouts. Its dual-row configuration supports versatile applications in prototype development and production environments requiring space-saving board to board connector implementations. This component serves engineers and procurement managers implementing modular designs necessitating consistent connectivity solutions from trusted electrical connectors manufacturers. Its configuration supports both straight and right-angle SMT mounting, enhancing flexibility across diverse assembly processes.
Gold-Plated Brass Contacts and Robust Nylon Housing Excellence
Featuring 20 copper contacts with brass plating and a gold-over-nickel finish, this connector ensures low contact resistance and long-term durability, critical parameters in reliable electrical performance. The Nylon housing provides mechanical strength while accommodating the 1.27mm pitch spacing that facilitates precise board alignment. The device supports a current rating of 1.5A, suitable for low-to-moderate power circuits. Available in straight and right-angle SMT options, its IP67-like protective features and compliance with ISO9000 quality standards underscore its robustness in demanding electronics manufacturing environments, further promoted by trusted electronic connector manufacturers.
Versatile Industry Applications Enhancing System Reliability
Widely applicable in consumer electronics, instrumentation, and compact embedded systems, this box header enables efficient signal and power transmission within minimal form factors. Its compatibility with SMT and through-hole assembly techniques supports integration into diverse workflows, including cable assemblies and harness developments by specialized wire harness connector manufacturers. The connector is essential in design iteration phases, reliability testing, and product upgrades, providing predictable performance and adhering to international certifications like ROHS, CE, and REACH. This facilitates its adoption in regulated sectors requiring dependable electrical connectors manufacturers solutions.
Innovative Structural Design and Modular Versatility
The connector’s modular dual-row design with a 1.27mm pitch maximizes circuit density without compromising mechanical stability, facilitating compact board to board connector configurations. The brass contacts with gold plating ensure efficient conductivity and corrosion resistance, enhancing connector lifespan under frequent mating cycles. The availability of different housing materials such as Nylon, PBT, and LCP allows customization based on thermal and mechanical requirements, supporting varied environmental conditions. These structural provisions support seamless integration by electronic connector manufacturers into complex wiring systems and PCB assembly processes, optimizing layout and design efficiency for modern electronics.
Enhanced Performance and Reliability for End Users
With a current rating of 1.5A and low contact resistance due to gold-over-nickel plating, the connector delivers consistent electrical performance vital for critical signal integrity in dense electronic circuits. The Nylon housing affords durability under mechanical stress, extending operational lifetime and reducing maintenance cycles. SMT and right-angle mounting options increase usability and streamline automated assembly workflows. Its compliance with stringent ISO9000 standards and certifications like ROHS and CE assures procurement teams of quality control adherence. These factors collectively reduce failure rates and total cost of ownership, adding measurable ROI in applications relying on miniaturized board to board connector and electronic connector manufacturers products.
Use Scenarios
Compact Consumer Electronics Assembly and Prototyping
In the consumer electronics industry, space-constrained device designs demand compact and reliable interconnect solutions. This 1.27mm pitch 2x10P box header supports dense PCB layouts within smartphones, wearable devices, and handheld modules. Its role includes facilitating board-to-board connections in compact enclosures where electrical signal integrity and mechanical reliability are paramount. The gold-plated brass contacts reduce contact resistance and ensure stable connections despite repeated mating cycles, while the Nylon housing withstands physical stress and environmental exposure. This connector integrates into SMT assembly lines, optimizing production efficiency while meeting quality standards expected from top-tier electronic connector manufacturers and wire harness connector manufacturers.
Industrial Equipment Wiring and Modular System Integration
Industrial automation and instrumentation sectors require reliable connectors compatible with rugged environments and frequent equipment maintenance. This box header is deployed in modular PCBs within control systems, enabling quick disconnection and reconnection during diagnostics or servicing. Its 1.5A current rating and robust plating support signal and power transmission with minimal loss. Customizable housing materials such as PBT and LCP provide additional chemical and thermal resistance needed in harsh industrial conditions. Compliance with IP67-like protective parameters enhances its suitability in dusty or moisture-prone settings. Seamless integration with cable connectors and terminal block connectors from reputable electrical connectors manufacturers further streamlines system assembly and promotes long-term operational dependability.
|

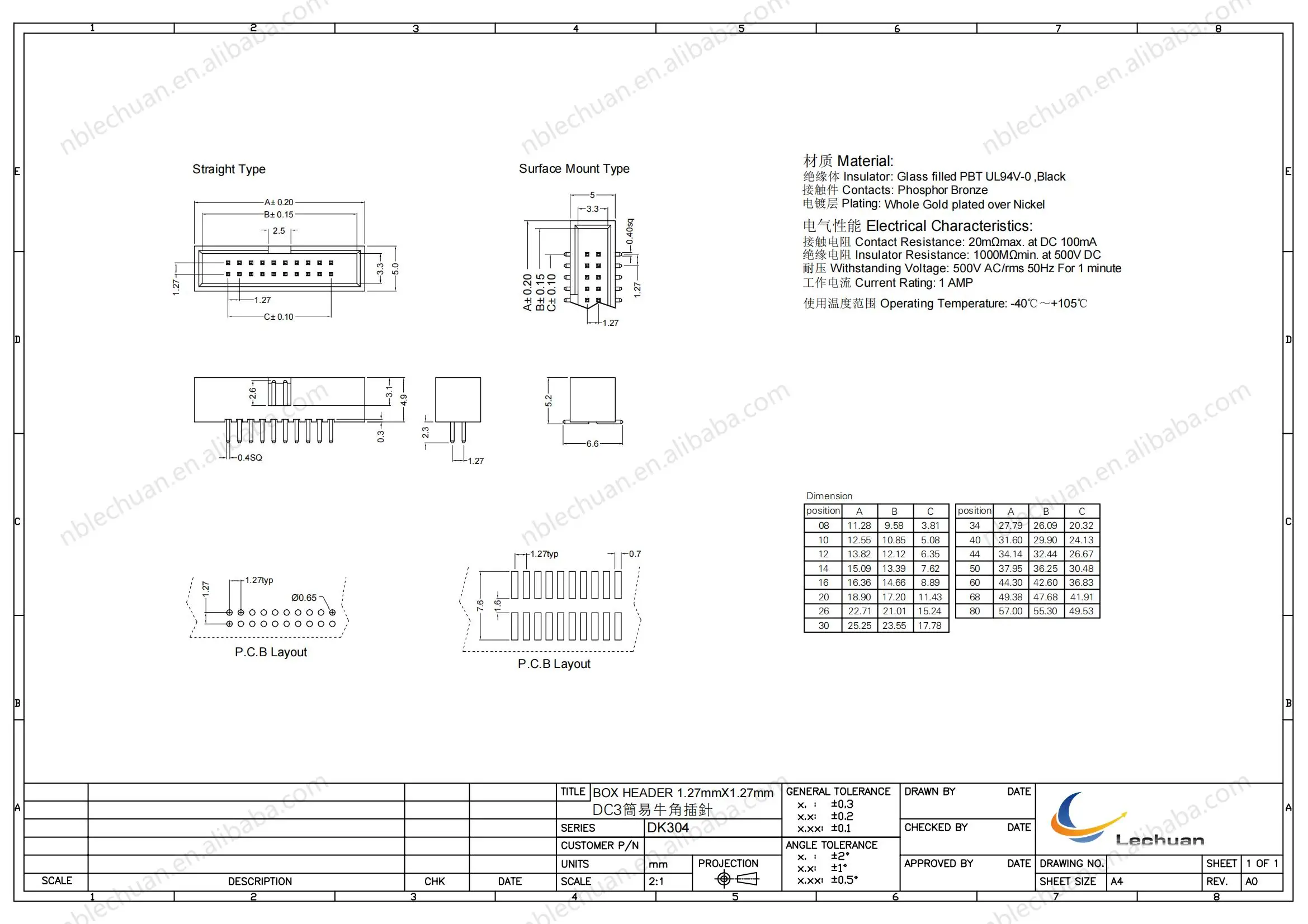

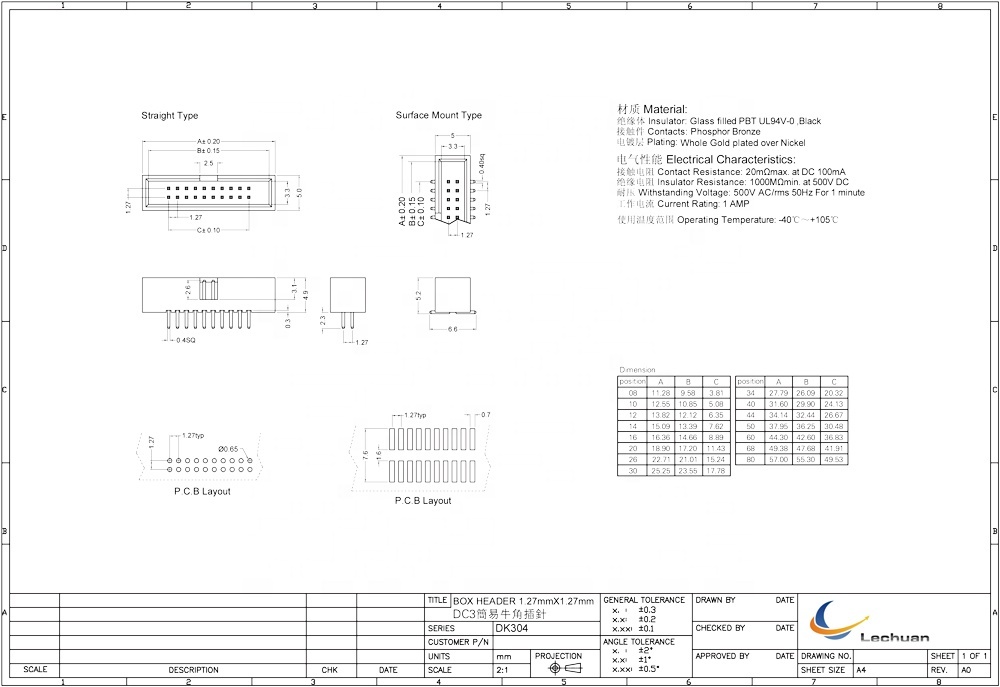

Product Name
|
BOX HEADER
|
|
Material
|
Insulator:Glass filled PBT UL94V-0
|
|
|
Contacts: Brass
|
|
|
Plating:Contact Gold and Weld Tin over Nickel
|
|
Electrical Characteristic
|
Contact Resistance: 30mΩmax. at DC 100mA
|
|
|
Insulator Resistance: 1000MΩmin. at 500V DC
|
|
|
Withstanding Voltage: 1000V AC/rms 50Hz For 1 minute
|
|
|
Current Rating: 2AMP
|
|
Environment
|
Operating Temperature: -40℃～+105℃
|
What materials are used in the LECHUAN 1.27mm Pitch 2x10P Box Header PCB Connector?
Our connector features copper contacts with brass plating and gold over nickel for optimal conductivity and durability. The housing is primarily Nylon, with optional PBT or LCP materials available to meet various mechanical and environmental requirements in board to board connector applications.
Can I customize the housing material or color for this box header?
Yes, we offer customization options including housing materials such as Nylon, PBT, or LCP to fit your application needs. The standard color is black, but please contact us for inquiries about alternative specifications within our electronic connector manufacturers services.
How is the LECHUAN Box Header suitable for SMT mounting and PCB assembly?
Our box header supports both straight and right-angle SMT mounting, designed for compact, reliable connection on PCBs. The product's IP67-like protection and gold-plated contacts ensure performance stability in industrial wire harness connector and board to board connector setups.
What certifications and quality standards does Lechuan maintain for its connectors?
We strictly comply with ROHS, CE, and REACH regulations. Our manufacturing process aligns with the ISO9000 Quality Management System, guaranteeing the reliability and consistency expected by global buyers of electrical connectors manufacturers products. Contact our experts for production details.
