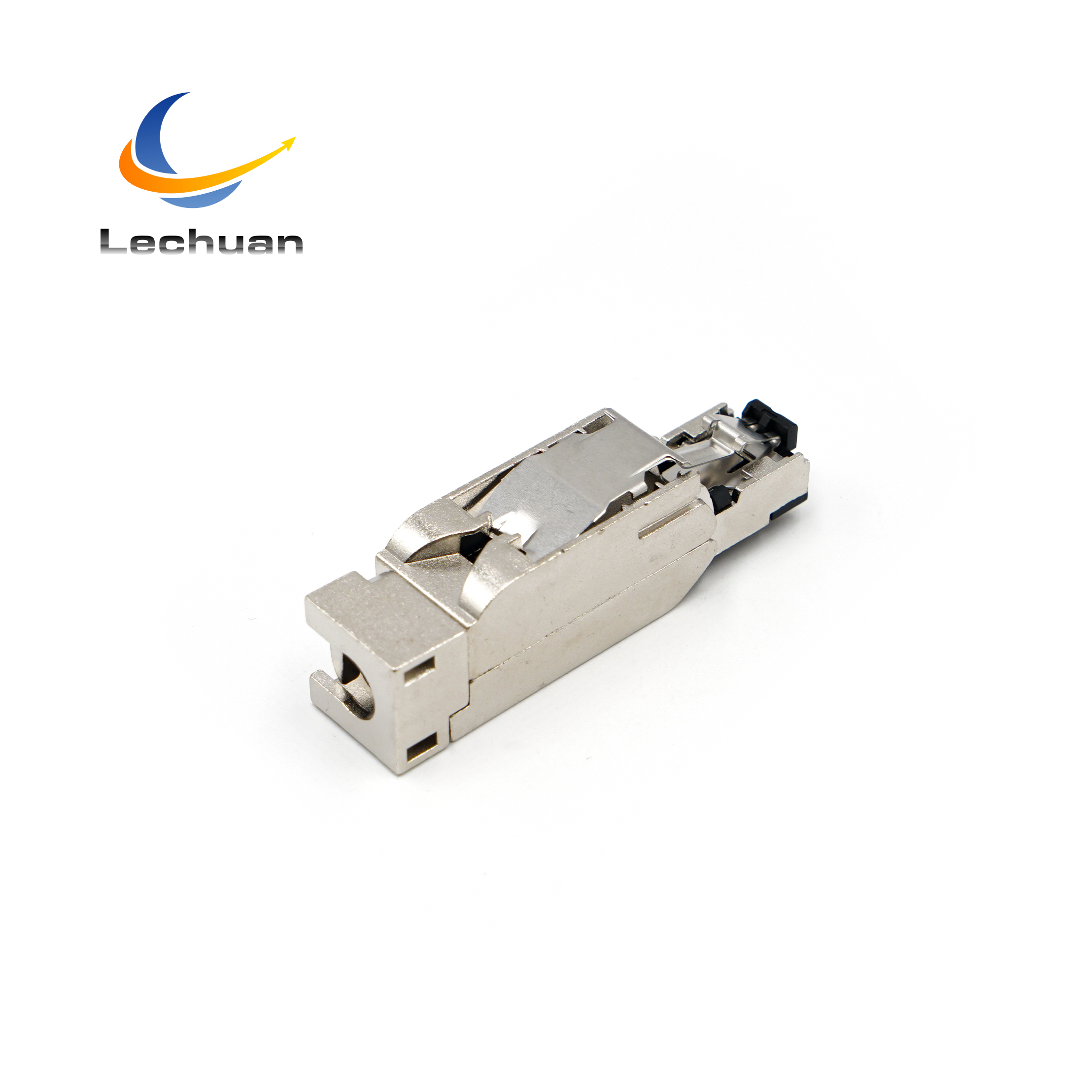

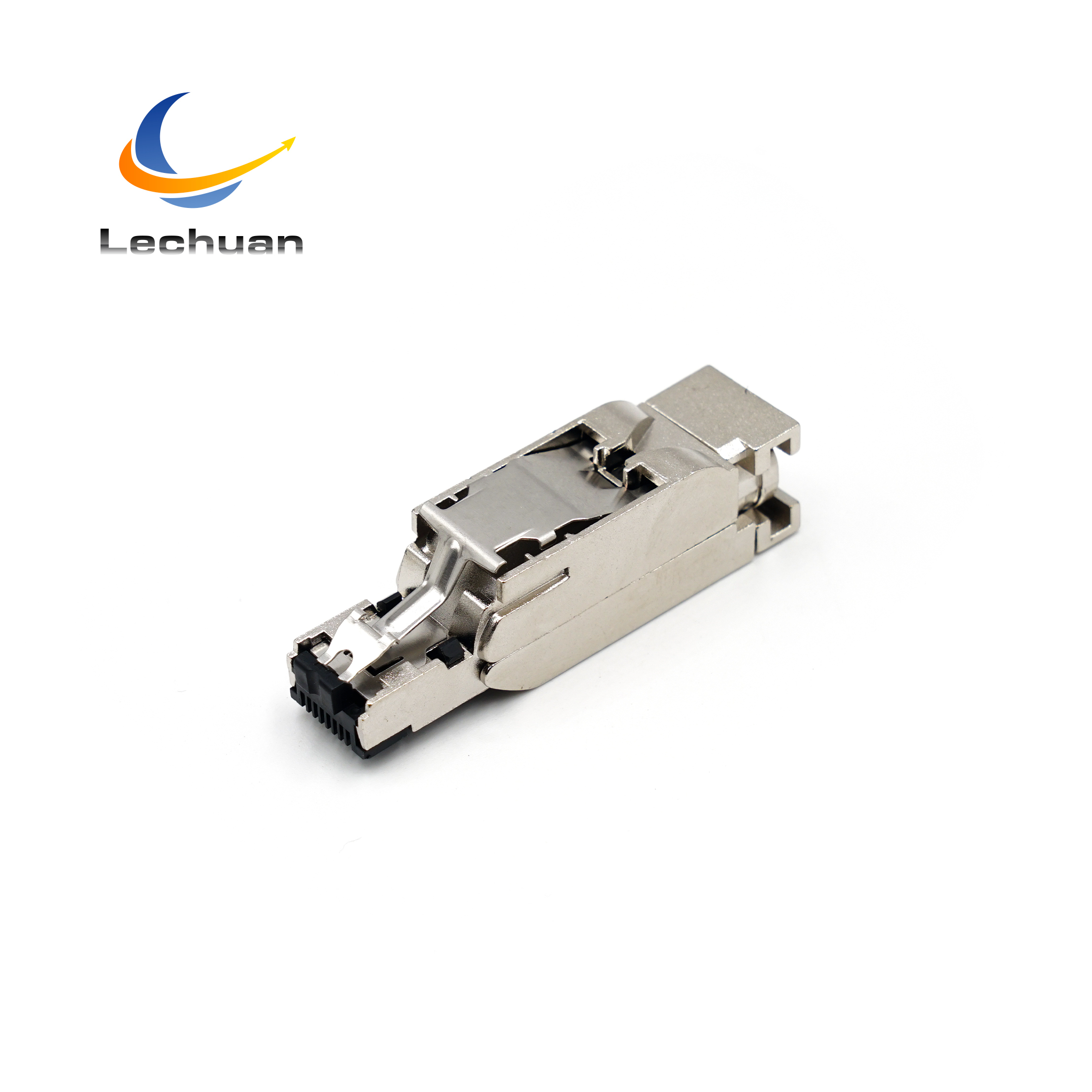

Direct replacement for the Siemens 6GK1901-1BB10-2AA0 IE FC RJ45 Plug 180 2x2. It is an RJ45 plug for Industrial Ethernet at 10/100 Mbit/s with a rugged metal enclosure and the FastConnect cut-and-clamp system, for IE FC TP cable 2x2.
WHAT YOU GET

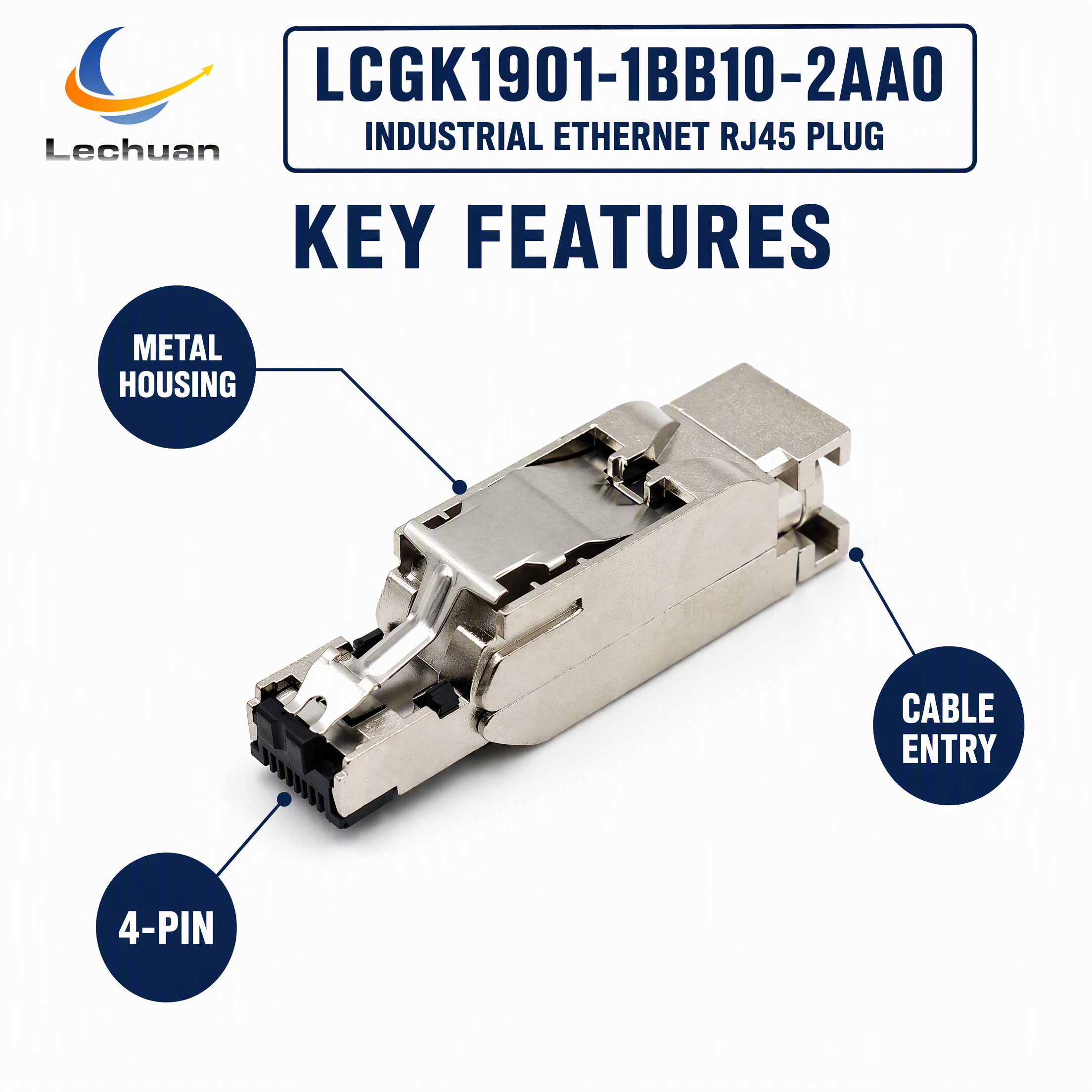

Main body, POM black
4 contacts, phosphor bronze, nickel and gold plated
1 stainless steel spring 3 die cast zinc parts, nickel plated: frame, cover, locking ring
Industrial Ethernet and PROFINET networks at 10/100 Mbit/s
APPLICATION Industrial Ethernet and PROFINET wiring for factory automation. Because the plug is specified together with marine, food, trailing, torsion and festoon cables, it is used on drag chains, robots, cranes, marine and food and beverage installations. It also serves machine vision links.
SPECIFICATION
Contacts: 4 Wiring: T568A and T568B
Cable range: 22-24 AWG
Insertion force: max 30 N
Holding strength between spring and plug: 70 N
Mechanical life: spring at least 750 cycles, piercing contacts at least 10 cycles
Operating temperature: -40 C to +85 C

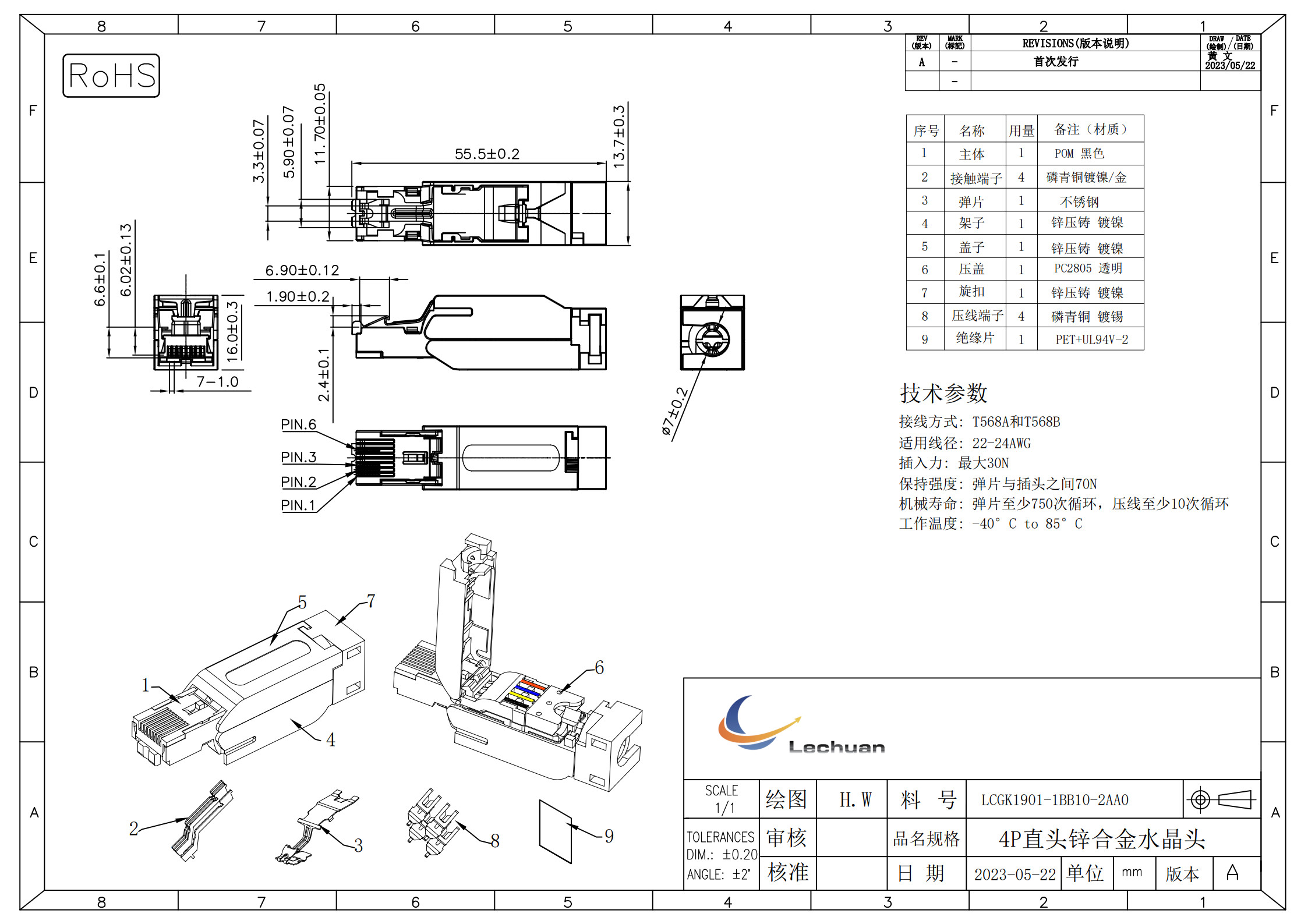

Size: 55.5 x 16.0 x 13.7 mm,
Cable entry 7.0 mm dia
Tolerance +/-0.20 mm
