SCHNEIDER VW3M5B12 REPLACEMENT SERVO MOTOR POWER CONNECTOR KIT
Direct replacement for the Schneider VW3M5B12 motor power connector kit, toward back, plastic size 1. It is the motor end power plug of the Easy Lexium 18 servo system and fits BCH18 servo motors with the plastic size 1 connector (220 V, 80 mm flange), so you can build the power cable in the length your machine needs.

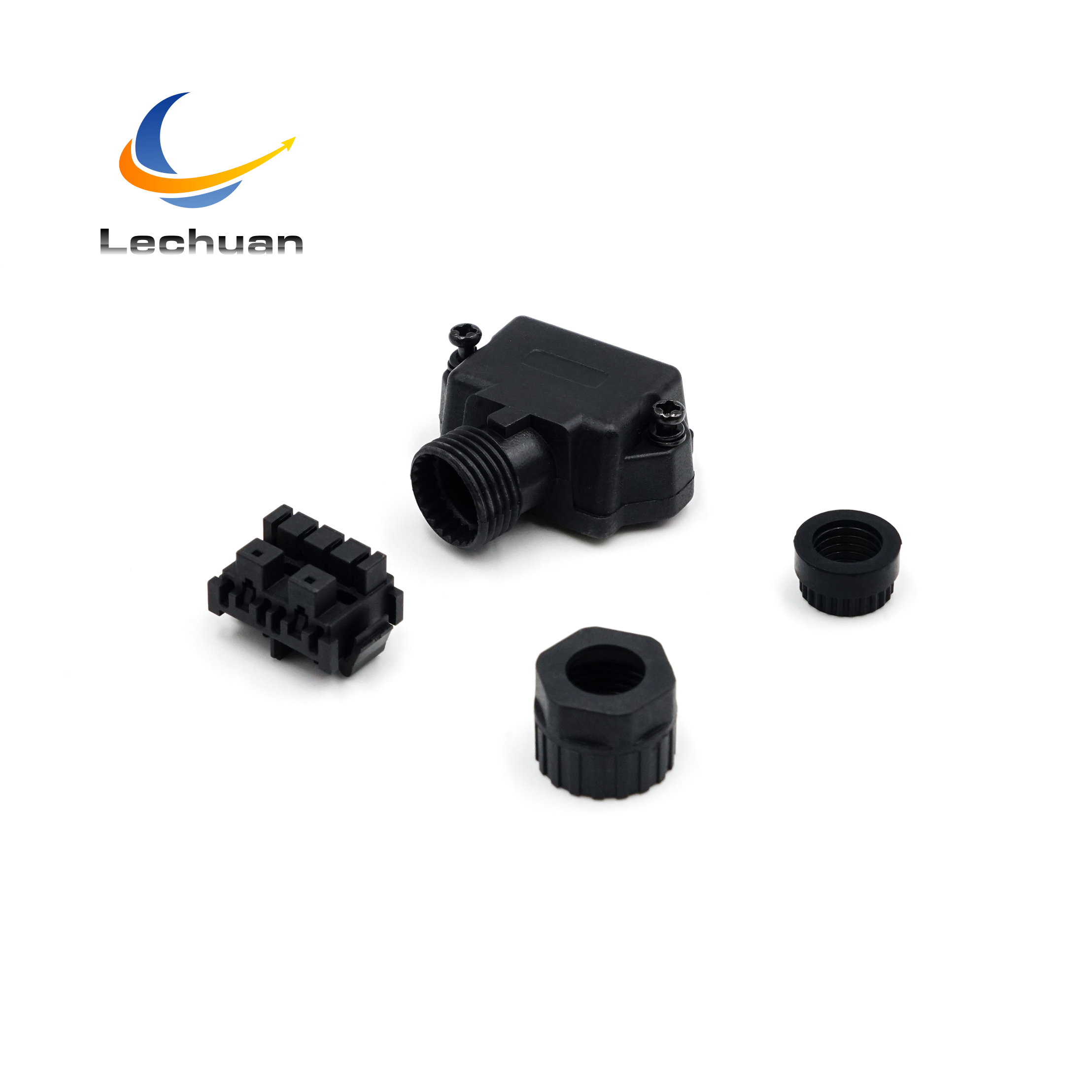

WHAT YOU GET

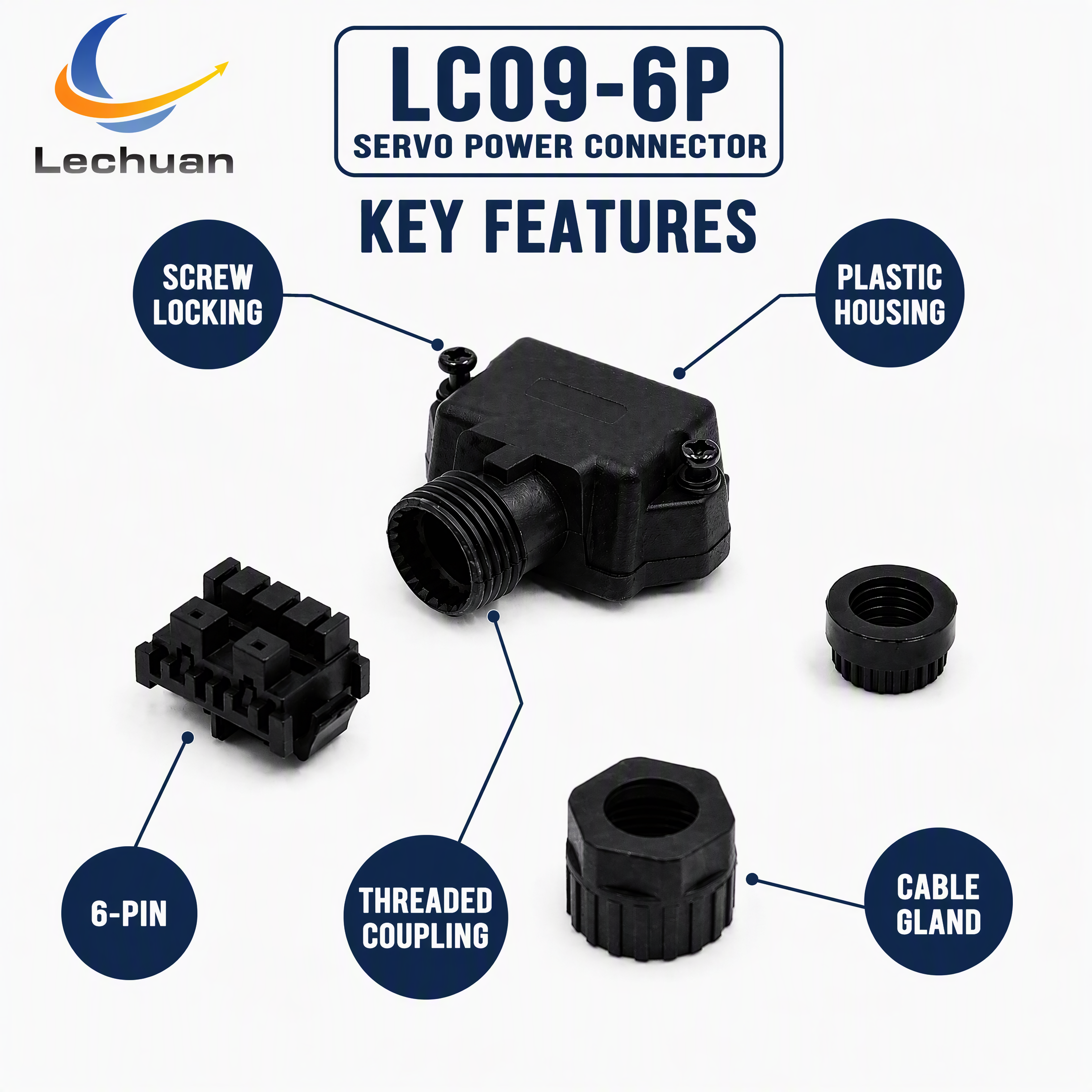

Plastic housing with threaded coupling, cable gland, locking screws Contact body for 4 power and 2 brake terminals Sealing ring and sealing plug
WHY BUY IT
Build any cable length on site: no lead time, no waste on fixed lengths
6 positions: 4 power contacts, 7 A max, plus 2 brake contacts, 1 A max
IP67 sealed: threaded coupling and sealing parts keep water and dust out 75 degree cable outlet saves space in tight machine frames
Schneider VW3M5B12 power connector kit, toward back, plastic size 1
Motor end plug of VW3M5B13Rpp and VW3M5B14Rpp power cables
BCH18LD, LF, MD, MF and BEH18 D / F series motors Lexium 18P / 18E / 18ME drives
APPLICATION
The original maker lists the Easy Lexium 18 range for constant speed duties in electronics, semiconductor, material working and packaging machines; also used on machine tools, robots, conveyor lines and printing equipment.
Size: 28.20 x 12.00 x 32.63 mm, outlet angle 75 degrees

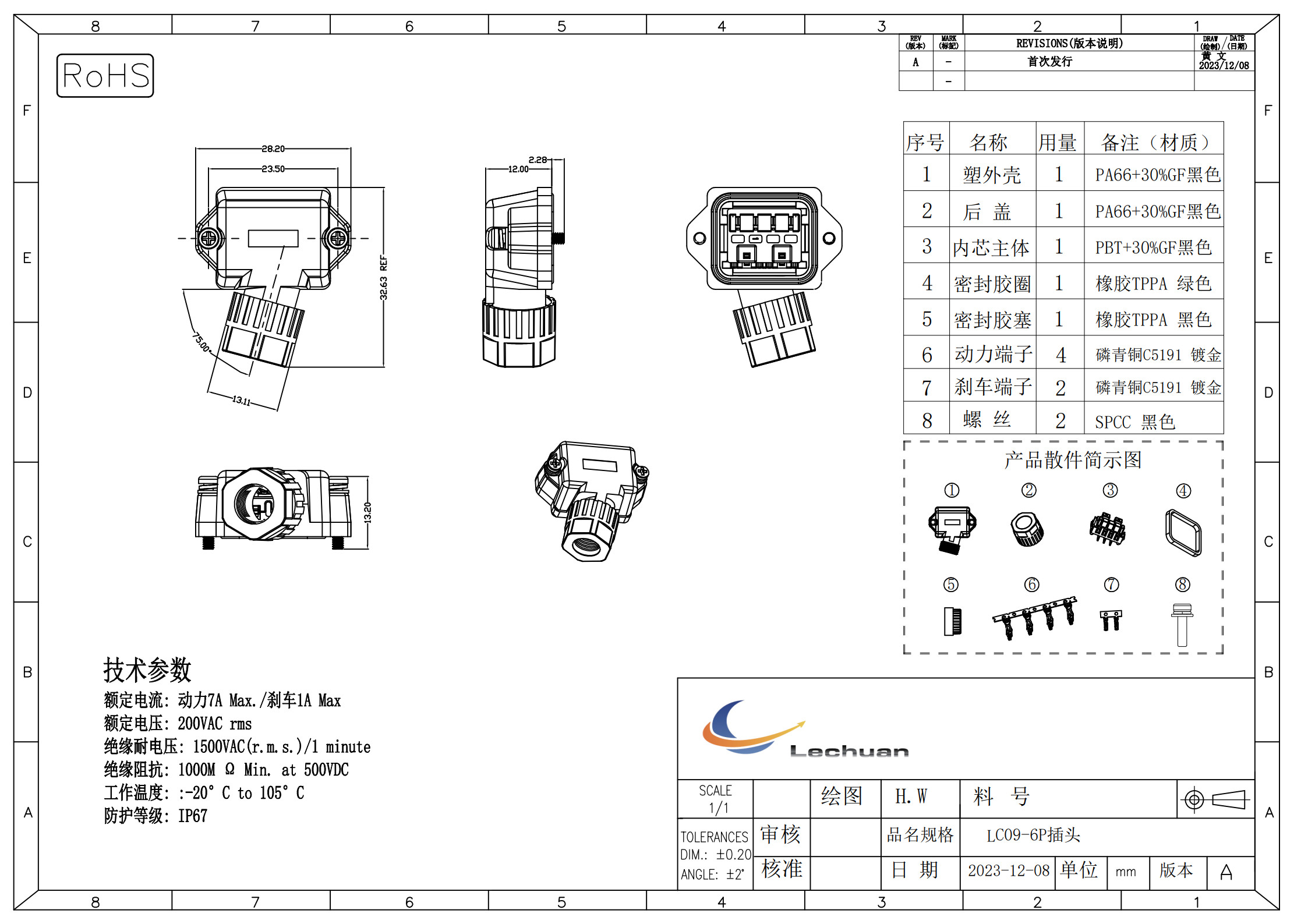

ROHS RoHS compliant: produced under the RoHS directive; the drawing is marked RoHS.
