Power and brake connector for Panasonic MINAS servo motors. Four power contacts and two brake contacts sit in one housing, so a single plug carries the motor supply together with the holding brake, and you can build the cable at the length your machine needs.

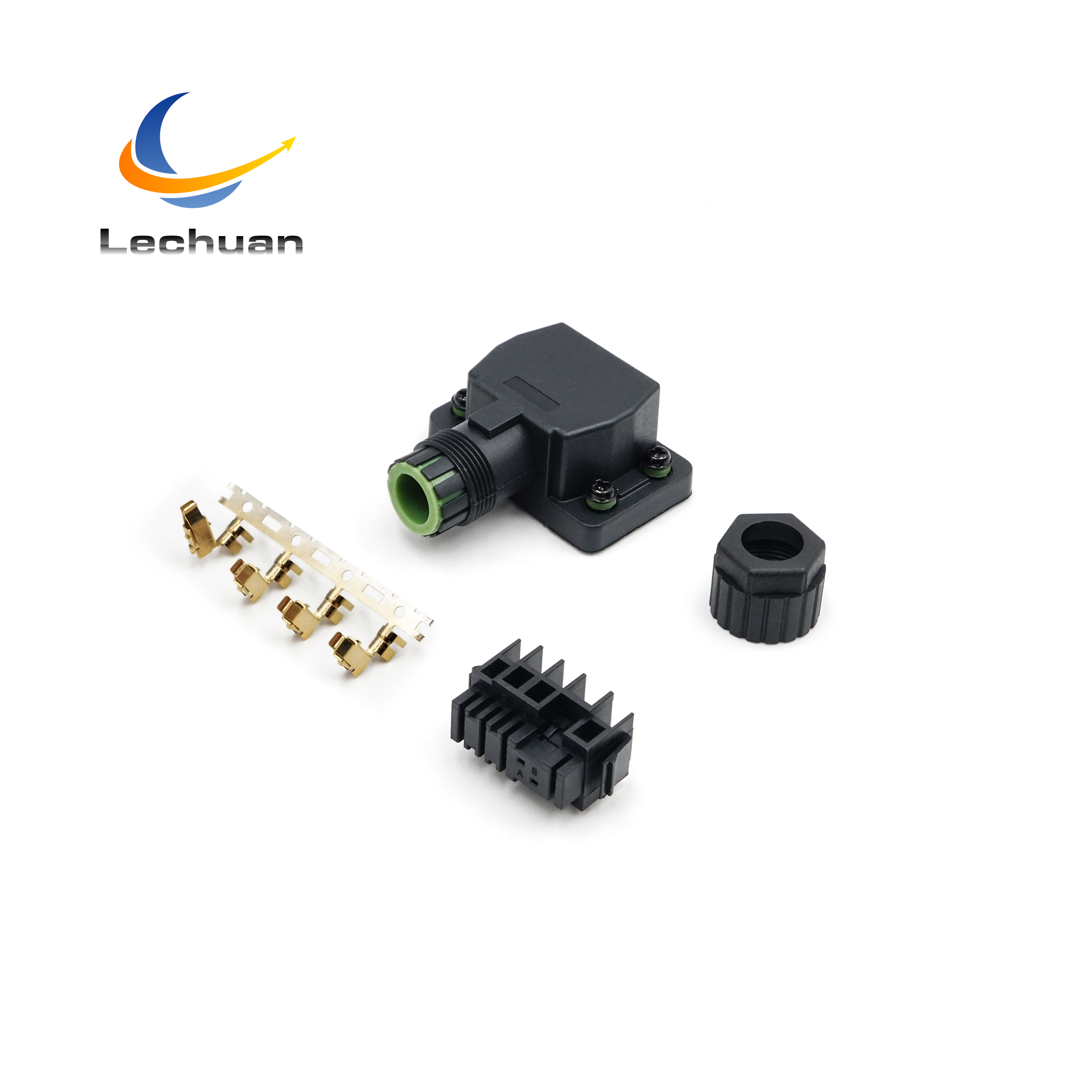

WHAT YOU GET
Plastic housing, inner contact body and rear cover, PA66+25% GF, black
Sealing ring and sealing tube, TPPA rubber, green
4 power terminals and 2 brake terminals, phosphor bronze C5191, gold plated
4 screws PM2x6.0 with 4 TPPA rubber screw seals

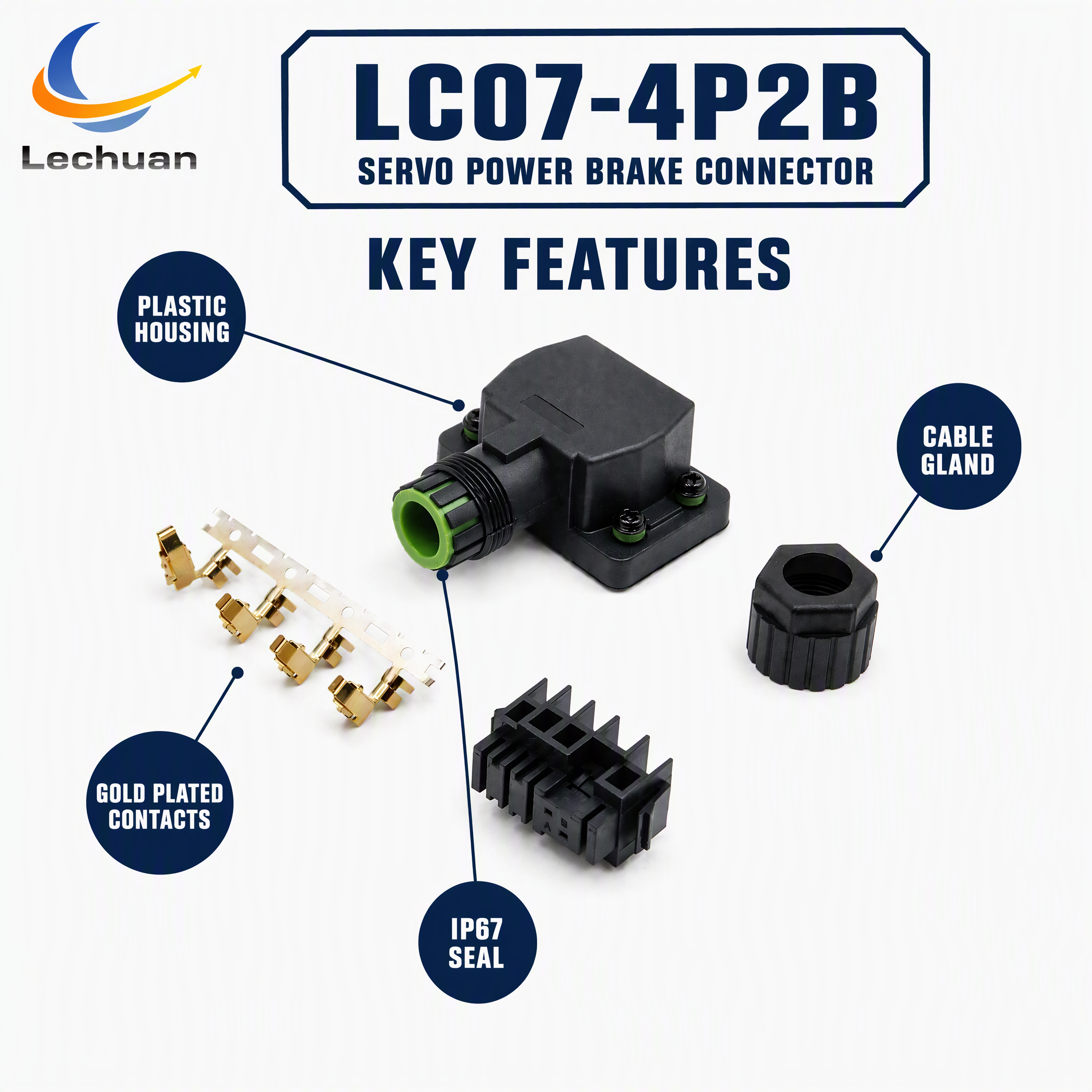

WHY BUY IT
Power and brake in one connector, fewer parts and fewer cable runs
IP67 sealed, with a green TPPA rubber seal ring and screw seals
Gold plated phosphor bronze contacts, 7 A power and 5 A brake
200 V AC rms rated, 1500 V AC dielectric strength
Works from -20 C to 105 C
RoHS compliant
COMPATIBLE WITH
Panasonic MINAS E7 series servo motors
Panasonic MINAS A6 and A5 series servo motors
200 V AC servo motor power and holding brake wiring
APPLICATION Servo motor power and brake wiring. Suits servo driven machinery such as industrial automation lines, packaging machines and conveyors, and suits service work where the motor cable has to be built to length on site.

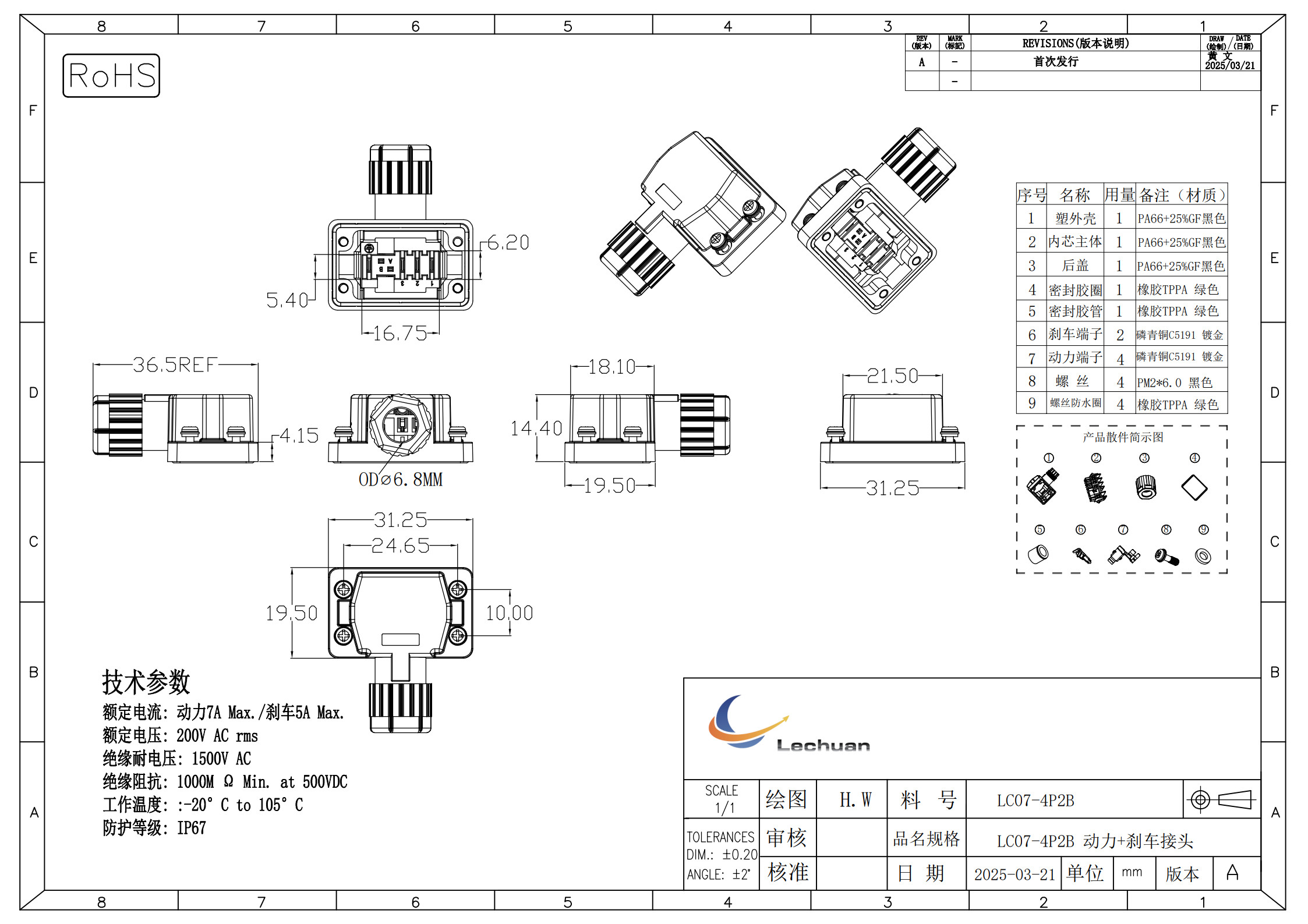

SPECIFICATION
Contacts: 4 power plus 2 brake
Rated current: 7 A max power, 5 A max brake
Rated voltage: 200 V AC rms
Dielectric strength: 1500 V AC
Insulation resistance: 1000 MOhm min at 500 VDC
Operating temperature: -20 C to 105 C
Protection: IP67
Cable OD: 6.8 mm
Size: 31.25 x 24.65 x 19.50 mm
Tolerance +/-0.20 mm
About this supplier
With over 20 years of deep industry experience, Cixi Lechuan is a diversified enterprise of industrial connectivity and electronic component solutions. Integrating manufacturing, sales, and comprehensive technical support. Our core expertise lies in the design, development, and production of high-performance industrial electrical connectors and electronic components.We serve Industries like, Industrial Automation Robotics,Energy Power Systems, Telecommunications and Security Surveillance Systems ect.At Lechuan, we are more than a manufacturer; we are a strategic partner dedicated to powering progress through superior connectivity.
Company overview
Customization capabilities
OEM & ODM Customization ServicesFrom drawing to sample to mass production, we support the full customization cycle for your brand.Custom Capabilities- Custom Design: Send us your drawings, samples or specifications. Our engineers review your requirements and confirm feasibility before production.- Rapid Prototyping: Samples are produced to verify design, fit and performance, so you can validate the product before mass production.
- Custom Logo: Laser engraving, pad printing and label customization are available to carry your brand.- Custom Packaging: Retail packaging, blister packs, anti-static bags and export cartons are made to your specification.- Custom Color: Standard and custom color options are available to match your brand identity.- Custom Specification: Materials, dimensions and performance levels can be adjusted to meet your application.
FAQs
Manufacturer or trading company? Where is the company located?
We have own factory in Ningbo Cixi which specializing in domestic supply, starting from, we set up the exporting department.
How long have you been involved in this market?
We have been in this market more then 20 years.
Does the product itself support OEM customization?
We support OEM
Mass production time and delivery time.
7-15 days
What parts can the company supply?

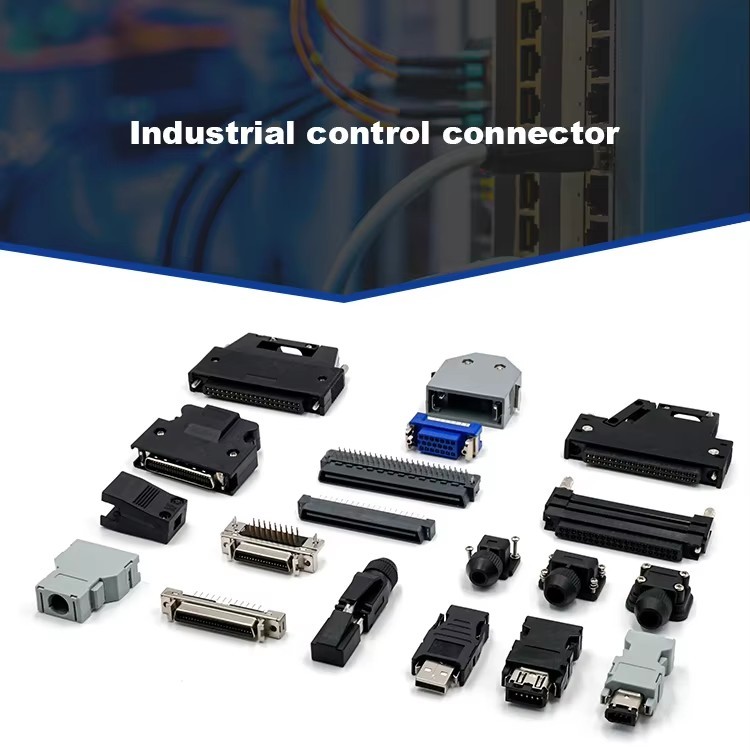

Our main products are: Industrial control connectors, Circular connector, PCB board connectors and other electric components.
