Small power connector for Panasonic MINAS servo motors. Six gold plated contacts sit in a sealed housing, so you can build the motor cable at the length your machine needs.

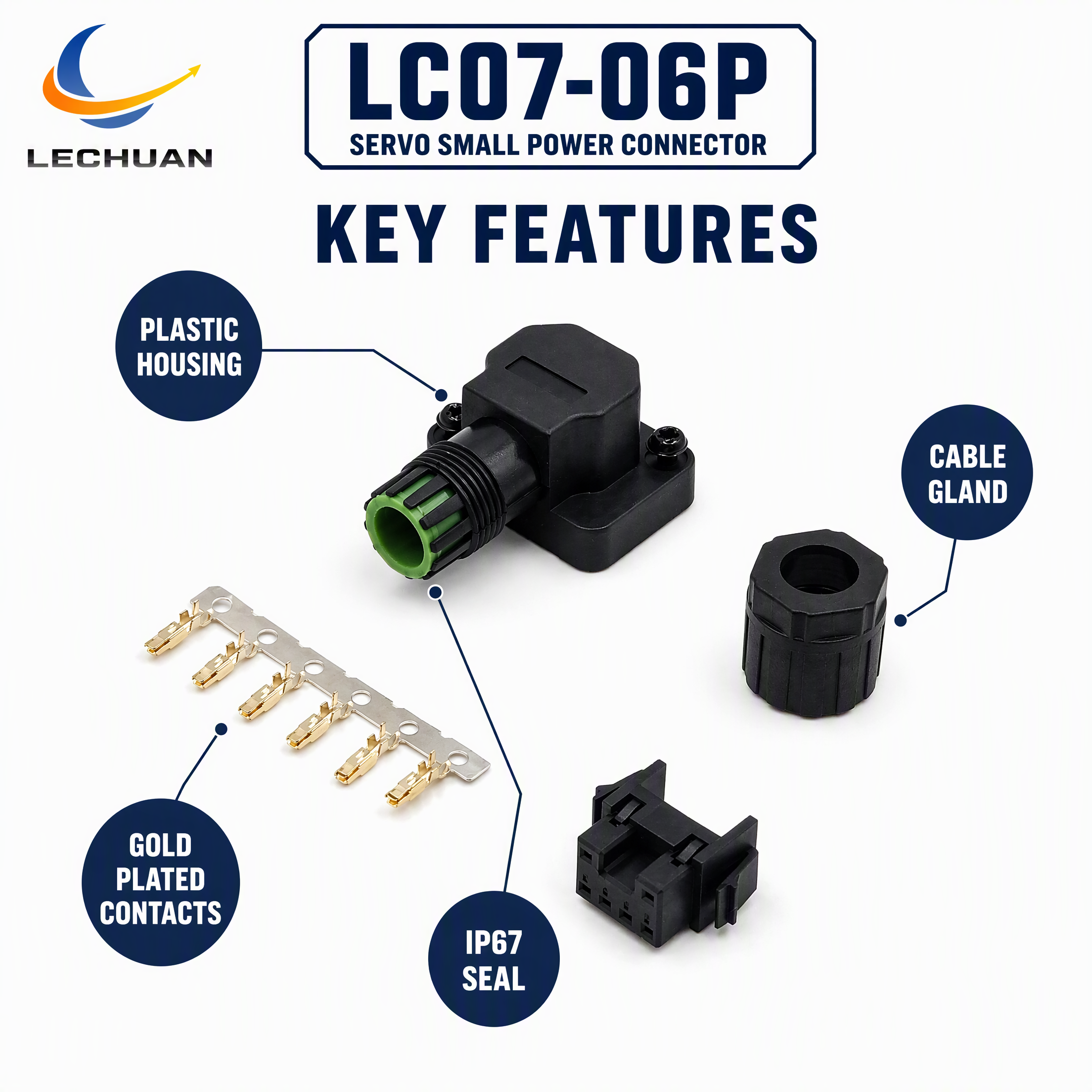

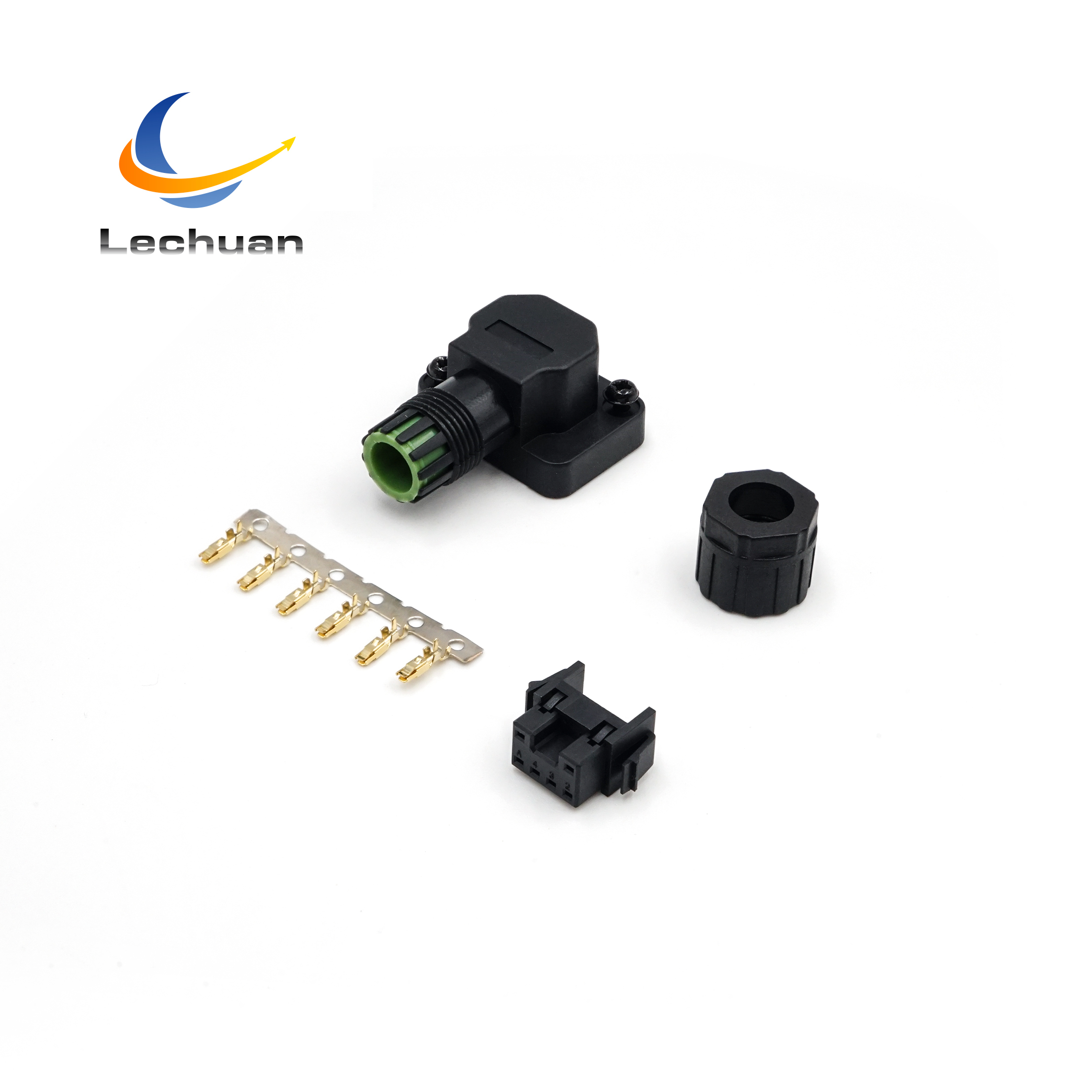

WHAT YOU GET -
Plastic housing, inner contact body and rear cover, PA66+GF, black
Sealing ring and sealing tube, TPPA rubber
6 gold plated terminals, phosphor bronze C5191
2 screws PM2x6.0, black
WHY BUY IT -
IP67 sealed, with a TPPA rubber seal ring and a sealed cable entry
Gold plated phosphor bronze contacts - Compact housing, 30.5 mm long
Cable entry for a 6.0 mm outer diameter cable
RoHS compliant
COMPATIBLE WITH
Panasonic MINAS E7 series servo motors
Panasonic MINAS A6 and A5 series servo motors
Low current servo motor wiring, 1 A at 100 V AC rms
APPLICATION
Low current servo motor wiring Suits compact servo driven equipment such as semiconductor production machines, robotics and medical equipment, and suits service work where the motor cable has to be built to length on site.

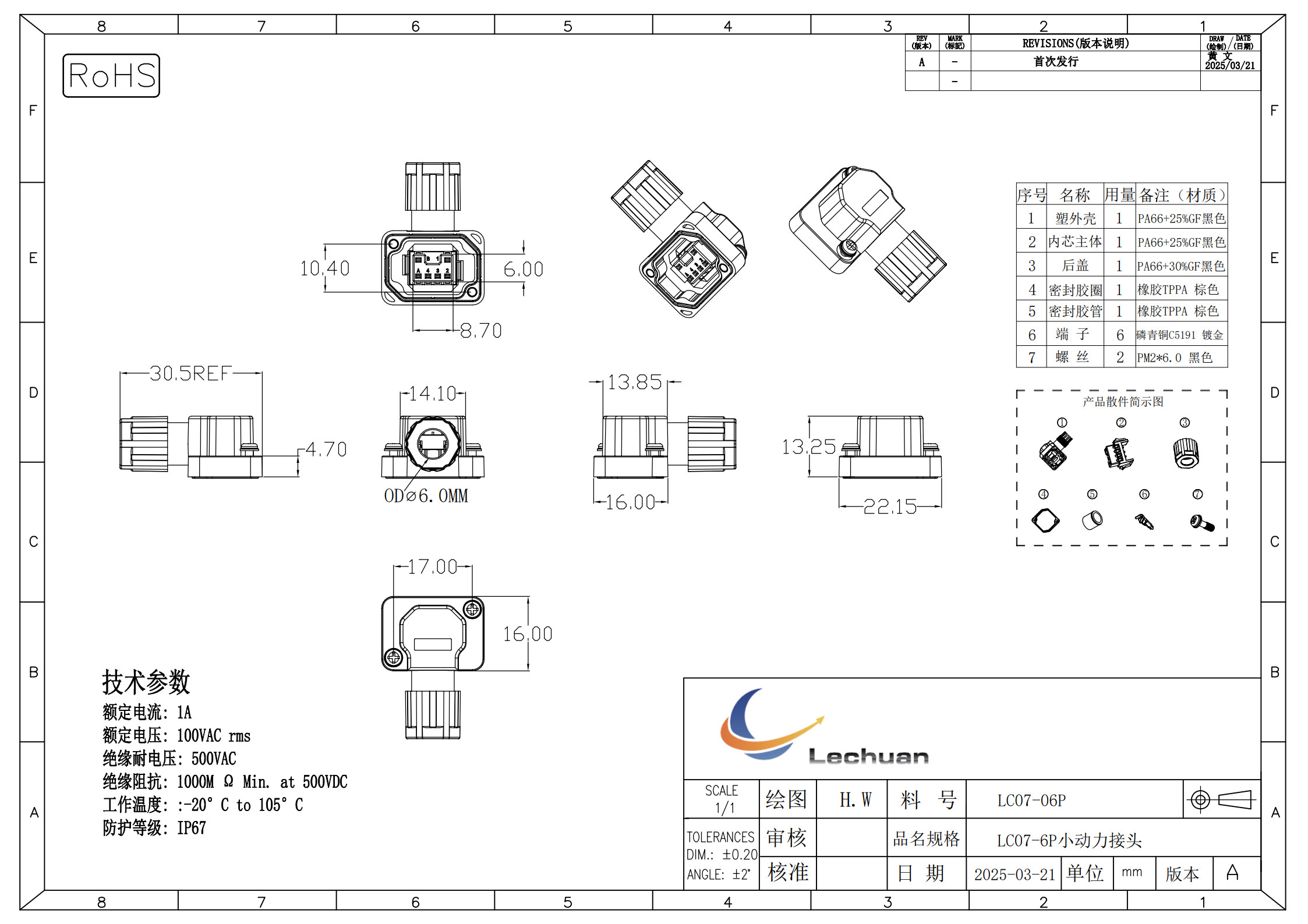

SPECIFICATION
Contacts: 6 - Rated current: 1 A
Rated voltage: 100 V AC rms
Dielectric strength: 500 V AC
Insulation resistance: 1000 MOhm min at 500 VDC
Operating temperature: -20 C to 105 C
Protection: IP67 - Cable OD: 6.0 mm
Size: 30.5 x 22.15 x 16.00 mm
Tolerance +/-0.20 mm
About this supplier
With over 20 years of deep industry experience, Cixi Lechuan is a diversified enterprise of industrial connectivity and electronic component solutions. Integrating manufacturing, sales, and comprehensive technical support. Our core expertise lies in the design, development, and production of high-performance industrial electrical connectors and electronic components.We serve Industries like, Industrial Automation Robotics,Energy Power Systems, Telecommunications and Security Surveillance Systems ect.At Lechuan, we are more than a manufacturer; we are a strategic partner dedicated to powering progress through superior connectivity.
Company overview
Customization capabilities
OEM & ODM Customization ServicesFrom drawing to sample to mass production, we support the full customization cycle for your brand.Custom Capabilities- Custom Design: Send us your drawings, samples or specifications. Our engineers review your requirements and confirm feasibility before production.- Rapid Prototyping: Samples are produced to verify design, fit and performance, so you can validate the product before mass production.
- Custom Logo: Laser engraving, pad printing and label customization are available to carry your brand.- Custom Packaging: Retail packaging, blister packs, anti-static bags and export cartons are made to your specification.- Custom Color: Standard and custom color options are available to match your brand identity.- Custom Specification: Materials, dimensions and performance levels can be adjusted to meet your application.
FAQs
Manufacturer or trading company? Where is the company located?
We have own factory in Ningbo Cixi which specializing in domestic supply, starting from, we set up the exporting department.
How long have you been involved in this market?
We have been in this market more then 20 years.
Does the product itself support OEM customization?
We support OEM
Mass production time and delivery time.
7-15 days
What parts can the company supply?

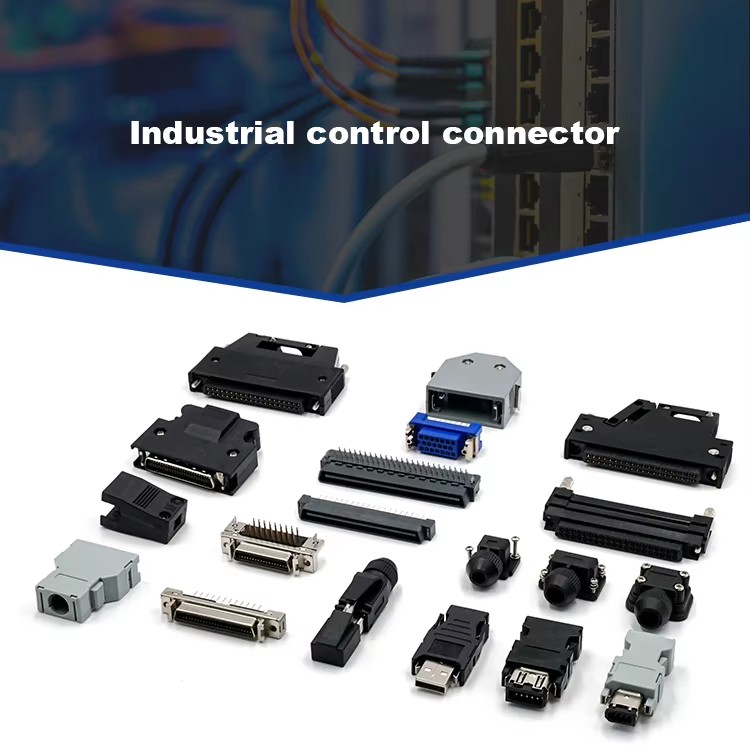

Our main products are: Industrial control connectors, Circular connector, PCB board connectors and other electric components.
