Name: Factory LC02-07P 7 Pin Copper Gold Plated Encoder Connector IP67 Rated Nylon Housing Leadshine Servo Motor Compatible CABLE-BMAH
Brand: lechuantech
SKU: 1601919994961
Price: 1.00 USD
Availability: InStock

Description

Key attributes

Application

LEADSHINE SERVO MOTOR

Type

Servo motor connector

Rated Current

Rated Voltage

250 V

IP Level

Ip67

Contact Material

Copper

Housing Material

Nylon

Gender

Female

Shape

Rectangle

Model Number

LC02-07P

Place of Origin

Zhejiang, China

Brand Name

Lechuan

Number of Position

7 Position

Contact Gender

With Socket Contacts

Termination Style

Crimp

Contact Plating

Gold

Packaging

Tray/BULK Packing

Application

Leadshine Servo Motor

Packaging and delivery

Selling Units

Single item

Single package size

7X8X15 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

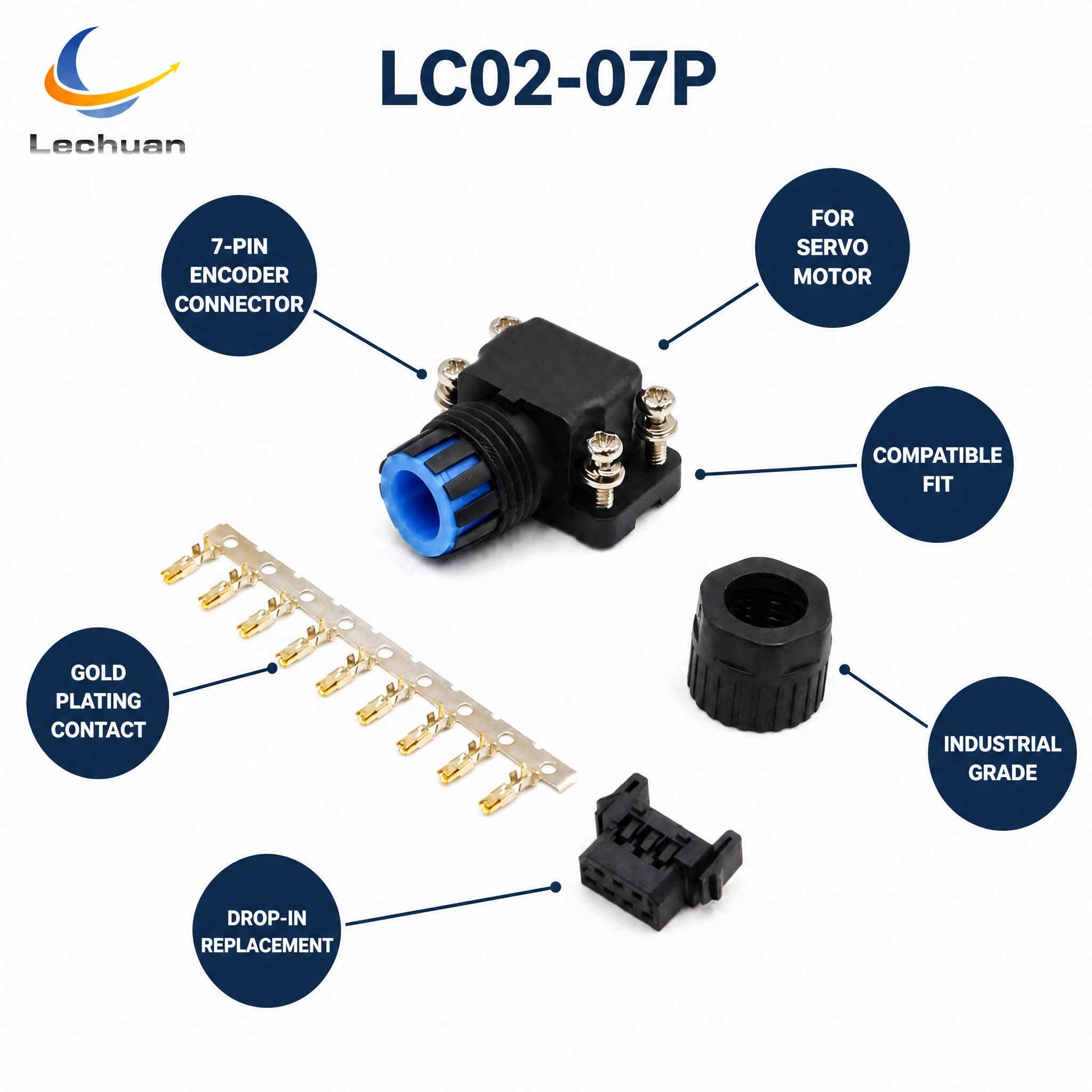

Highlights at a glance

PRODUCT OVERVIEW

7-pin encoder connector for Leadshine ACM series servo motors, compatible with the original CABLE-BMAH / CABLE-BMH encoder cables. Reliable encoder signal connection between motor and drive. Matching cable kits available.

KEY FEATURES

1. 7-PIN ENCODER DESIGN - 7-position connector for servo motor encoder signal wiring.

2. LEADSHINE COMPATIBLE - Designed for Leadshine ACM series servo motors, works with CABLE-BMAH / CABLE-BMH encoder cables.

3. DROP-IN REPLACEMENT - Direct replacement for the original connector, no modification required.

4. RELIABLE CONTACT - Stable contact pressure for consistent signal transfer.

5. INDUSTRIAL GRADE - Built for demanding servo drive environments.

6. COMPACT SIZE - Space-saving connector for motor and cable assembly.

7. EASY WIRING - Straightforward termination for field replacement.

8. CABLE KITS AVAILABLE - Matching encoder cable assemblies available.

MATCHING CABLE KITS

- CABLE-BMAH*M*-124-TS - absolute encoder cable (direct connector type), *M* = length in meters

- CABLE-BMH*M*-114-TS - incremental encoder cable (direct connector type), *M* = length in meters

- CABLE-7BMA*M*-HZ - absolute encoder cable (aviation connector type)

- CABLE-7BMA*M*-H / CABLE-7BMA*M*-HD - encoder cable (aviation connector type)

- CABLE-7BMA*M*-HZ-180 - absolute encoder cable for 180 frame - Regular lengths: 0.5 / 1 / 2 / 3 / 5 / 6 / 8 / 10 m, other lengths on request

APPLICATIONS -

Industrial automation - CNC machine tools

Packaging machinery - Robotics

Textile machinery

Printing machinery

COMPATIBILITY

Replaces: Leadshine LC02-07P (7-pin encoder connector)

Fits: Leadshine ACM series servo motors with incremental / absolute encoder

About this supplier

With over 20 years of deep industry experience, Cixi Lechuan is a diversified enterprise of industrial connectivity and electronic component solutions. Integrating manufacturing, sales, and comprehensive technical support. Our core expertise lies in the design, development, and production of high-performance industrial electrical connectors and electronic components.We serve Industries like, Industrial Automation Robotics,Energy Power Systems, Telecommunications ,Military and Security Surveillance Systems ect.At Lechuan, we are more than a manufacturer; we are a strategic partner dedicated to powering progress through superior connectivity.

Company overview

FAQs

Manufacturer or trading company? Where is the company located?

We have own factory in Ningbo Cixi which specializing in domestic supply, starting from, we set up the exporting department.

What parts can the company supply?

Our main products are: Industrial control connectors, military Circular connector, PCB board connectors and other electric components.

How long have you been involved in this market?

We have been in this market more then 20 years.

Does the product itself support OEM customization?

We support OEM

Mass production time and delivery time.

7-15 days
