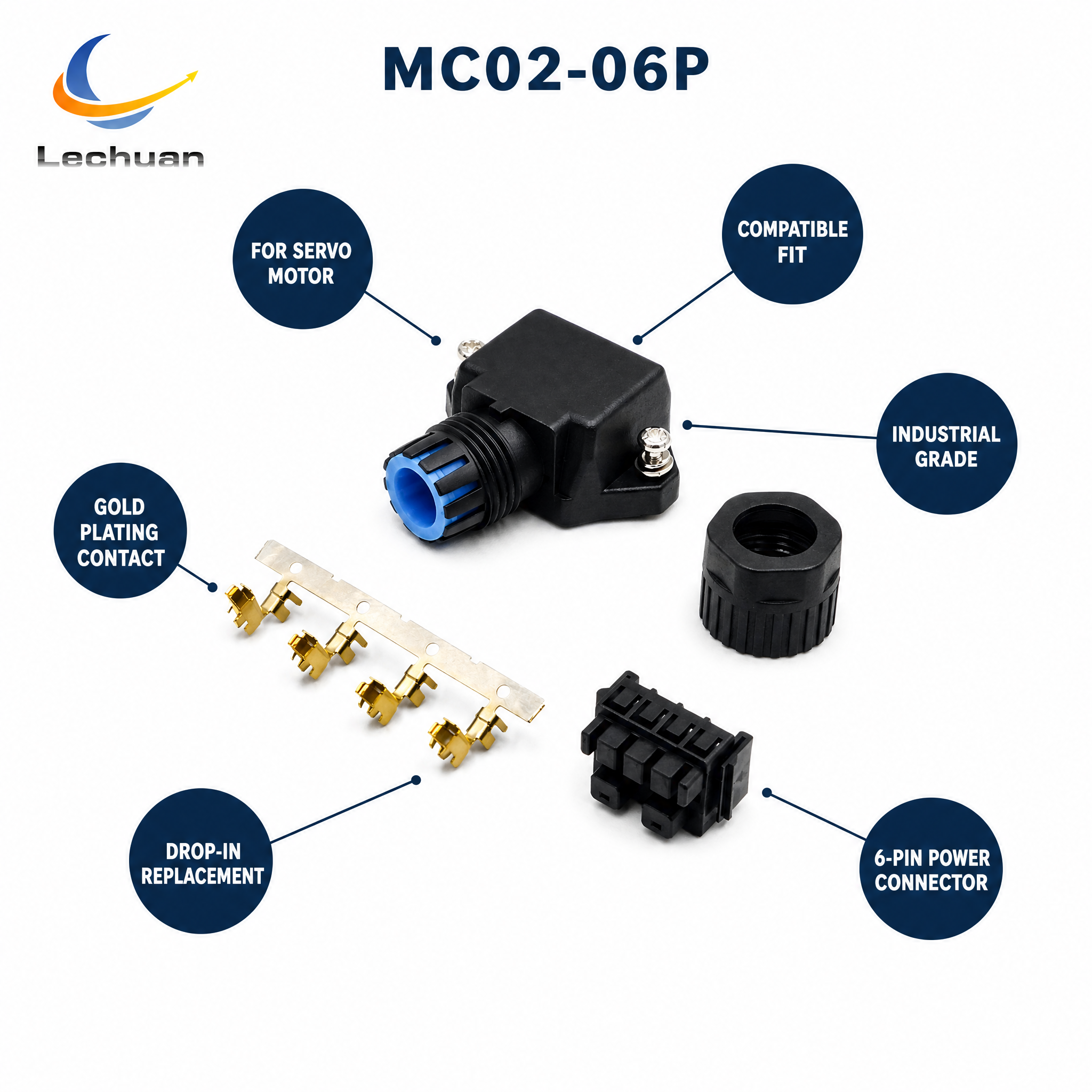

6-pin power connector for Leadshine ACM series servo motors, compatible with the original CABLE-RZSH motor cable connector. 6 positions for motor power and brake wiring (U/V/W/PE/BK+/BK-). Reliable power connection for servo drive applications in industrial automation. Matching cable kits available.
KEY FEATURES
1. 6-PIN POWER DESIGN - 6-position connector for servo motor power and brake wiring (U/V/W/PE/BK+/BK-).
2. DUAL BRAND COMPATIBLE - Fits Leadshine ACM series servo motors and XINJE servo motors.
3. DROP-IN REPLACEMENT - Direct replacement for the original connector, no modification required.
4. RELIABLE CONTACT - Stable contact pressure for consistent power transfer.
5. INDUSTRIAL GRADE - Built for demanding servo drive environments.
6. COMPACT SIZE - Space-saving connector for motor and cable assembly.
7. EASY WIRING - Straightforward termination for field replacement.
8. CABLE KITS AVAILABLE - Matching motor and encoder cable assemblies available.
MATCHING CABLE KITS
- CABLE-RZSH*M*-114-TS - motor cable with brake (6-core), *M* = length in meters
- CABLE-RZH*M*-114-TS - motor cable without brake (4-core), *M* = length in meters
- CABLE-7BMA*M*-HZ - absolute encoder cable
- CABLE-7BMA*M*-H / CABLE-7BMA*M*-HD
- encoder cable - Regular lengths: 0.5 / 1 / 2 / 3 / 5 / 6 / 8 / 10 m, other lengths on request
APPLICATIONS
- Industrial automation - CNC machine tools
- Packaging machinery - Robotics
- Textile machinery
- Printing machinery
COMPATIBILITY
- Replaces: Leadshine MC02-06P (6-pin power connector)
- Fits: Leadshine ACM series servo motors and XINJE servo motors (power + brake wiring)
