D38999/20WH53SN WALL MOUNT RECEPTACLE CIRCULAR CONNECTOR
Wall mounting circular receptacle for high density signal and power wiring.

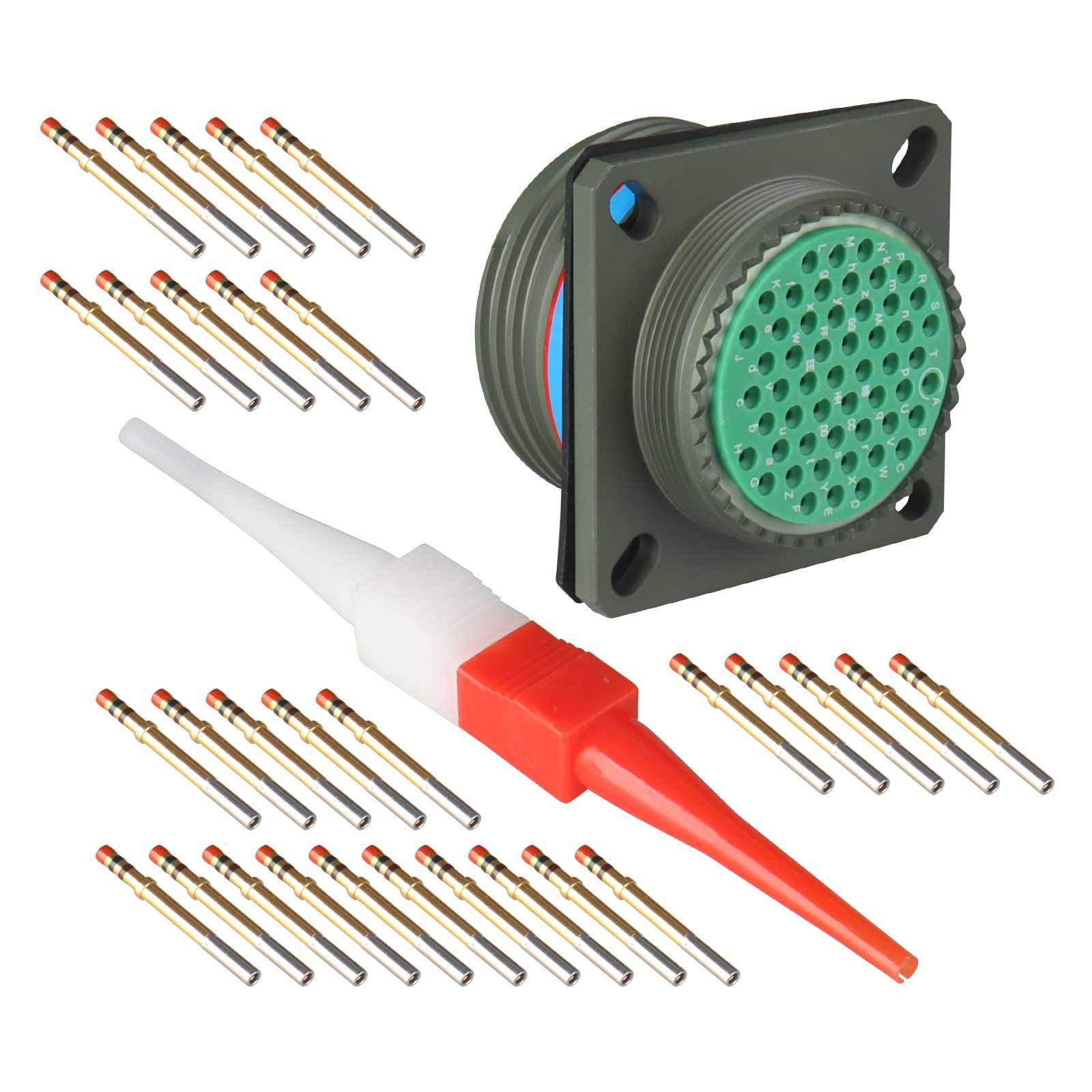

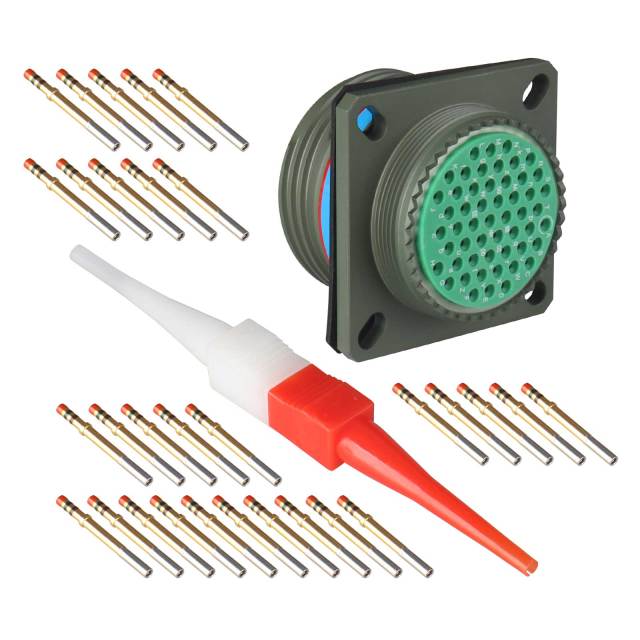

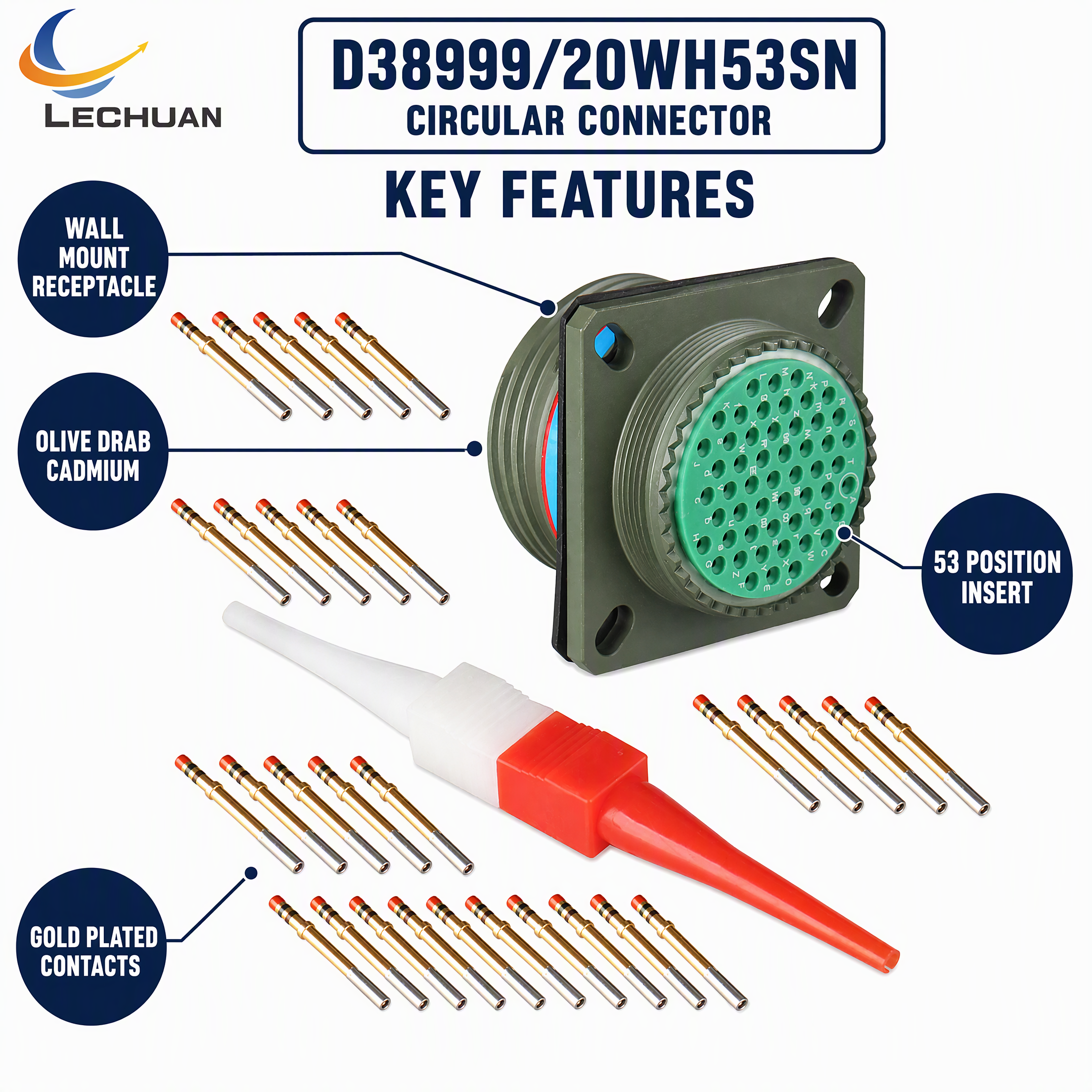

53 contacts in a miniature shell with a threaded coupling ring, supplied as a kit with loose gold plated crimp contacts and an insertion and extraction tool, so you can build the harness on site.
WHAT YOU GET
Wall mount receptacle, square flange, olive drab cadmium plated shell
Contact test current 7.5 A Operating temperature -65 C to 175 C
RoHS compliant
COMPATIBLE WITH D38999/20WH53SN
wall mount receptacle D38999 Series III connectors
Crimp contacts for 24 to 20 AWG wire
APPLICATION
Signal and power wiring on equipment that has to survive vibration, moisture and wide temperature swings, such as petrochemical plant, railway rolling stock and power generation equipment.
SPECIFICATION
Shell type: wall mount receptacle, square flange
Shell size: 23
Insert arrangement: H53
Contacts: 53, socket
Insert rotation: normal
Contact type: crimp, size 20
Wire size: 24 to 20 AWG
Contact material: copper alloy
Contact plating: gold over nickel
Shell material: aluminum
Shell finish: olive drab cadmium Insert material: plastic and silicone
Test current: 7.5 A
Voltage rating: 600 V AC, 850 V DC
Operating temperature: -65 C to 175 C
Insulation resistance: 5000 MOhm min
EMI shielding: 65 dB minimum at 10 GHz
Salt spray: 500 hours
Coupling: threaded Sealing: grommet and interfacial seal
ROHS RoHS compliant.
