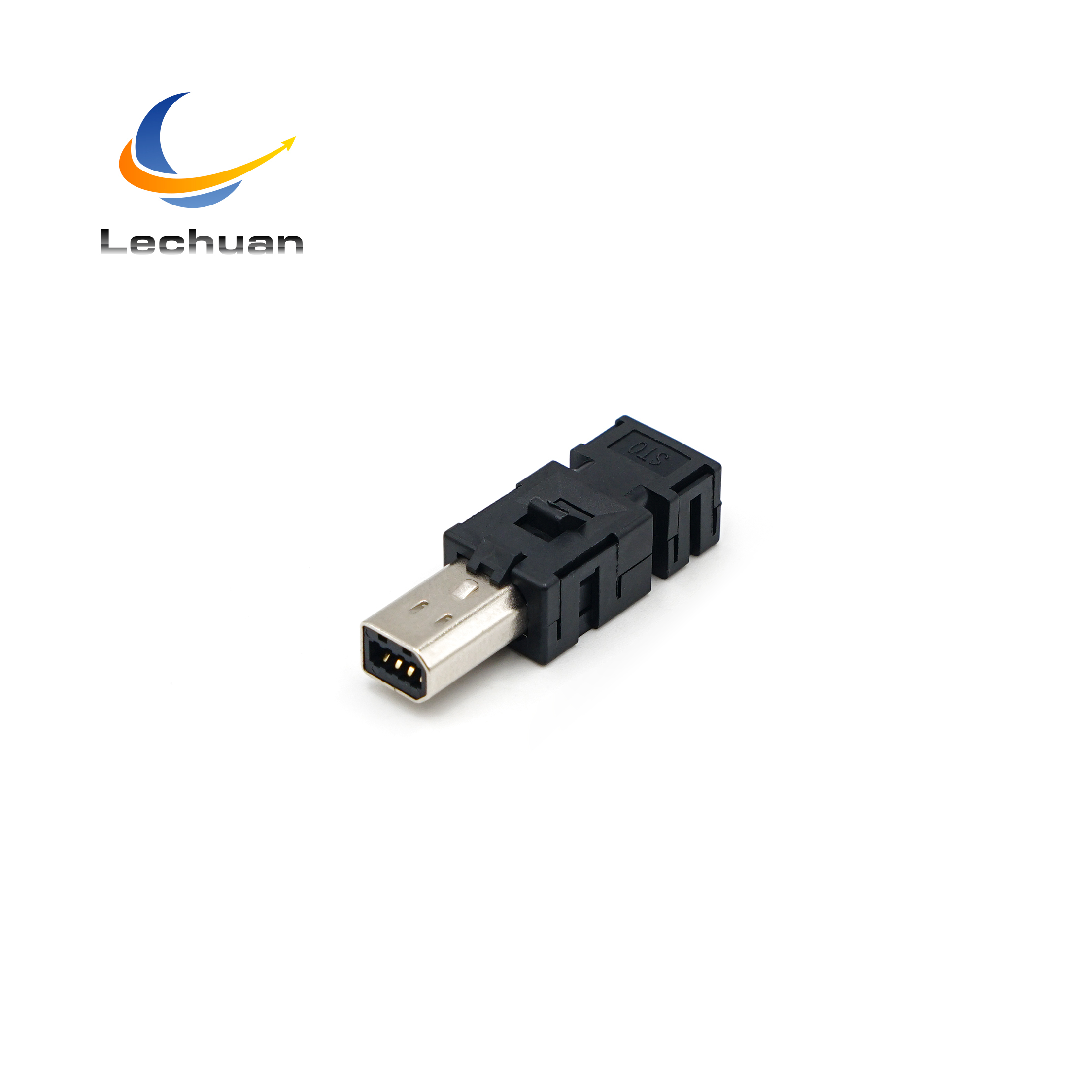

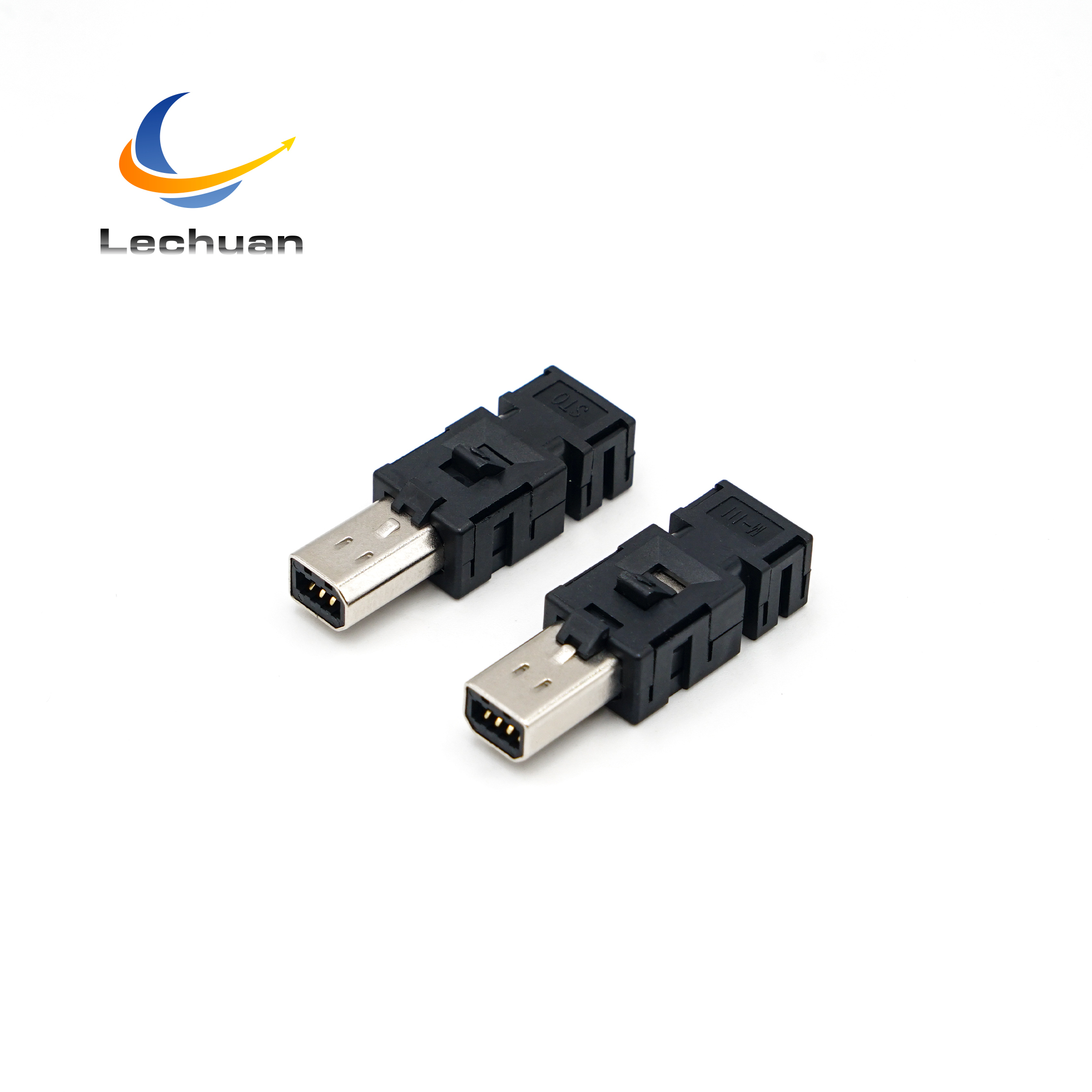

TE 2013595-1 REPLACEMENT INDUSTRIAL MINI I/O PLUG KIT TYPE 1
Direct replacement for the TE 2013595-1 Industrial Mini I/O plug kit, D-shape Type 1. This is the 8 position shielded plug that Panasonic lists for the X3 safety function connector on MINAS A5 and A6 servo drives, so you can build the cable at the length your machine needs.

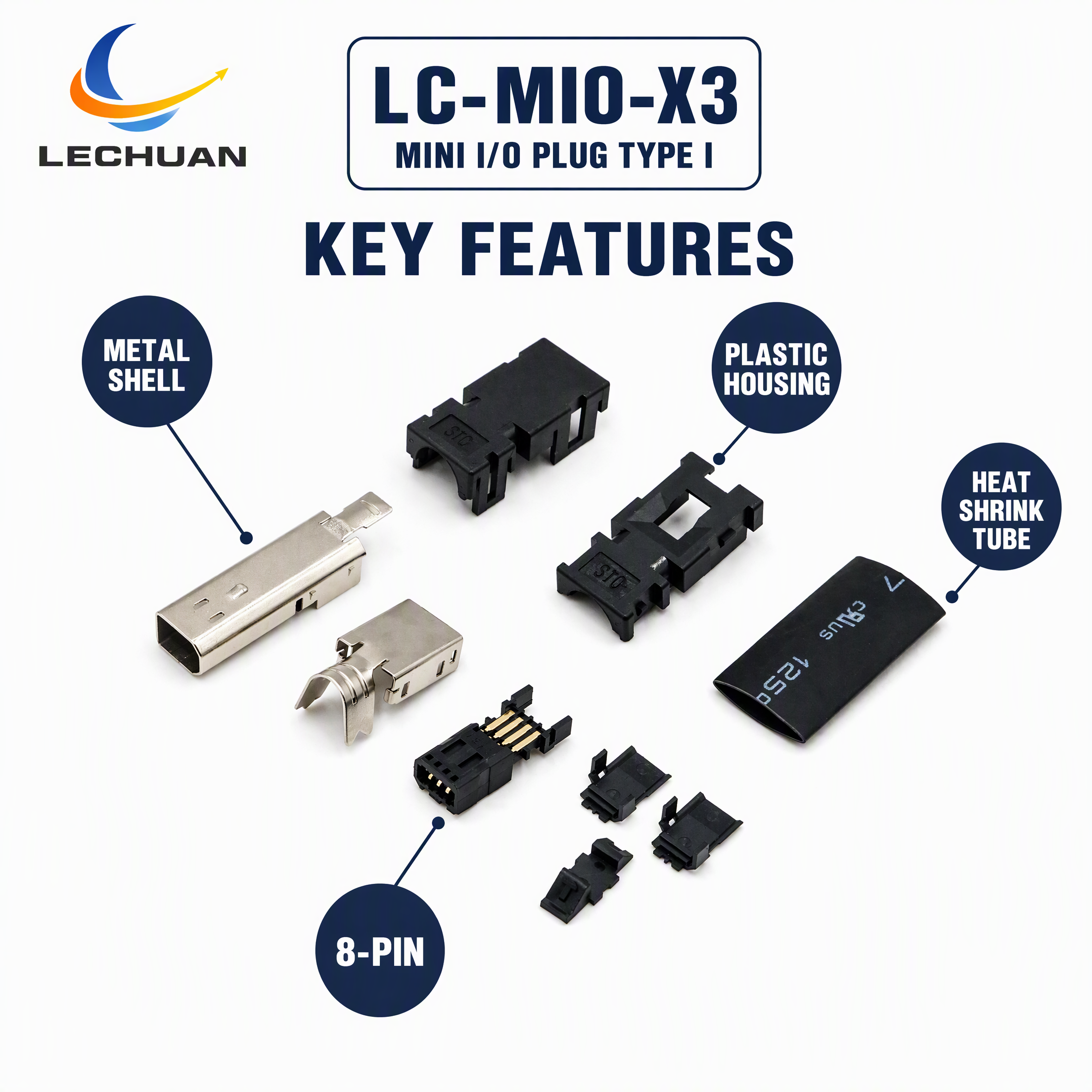

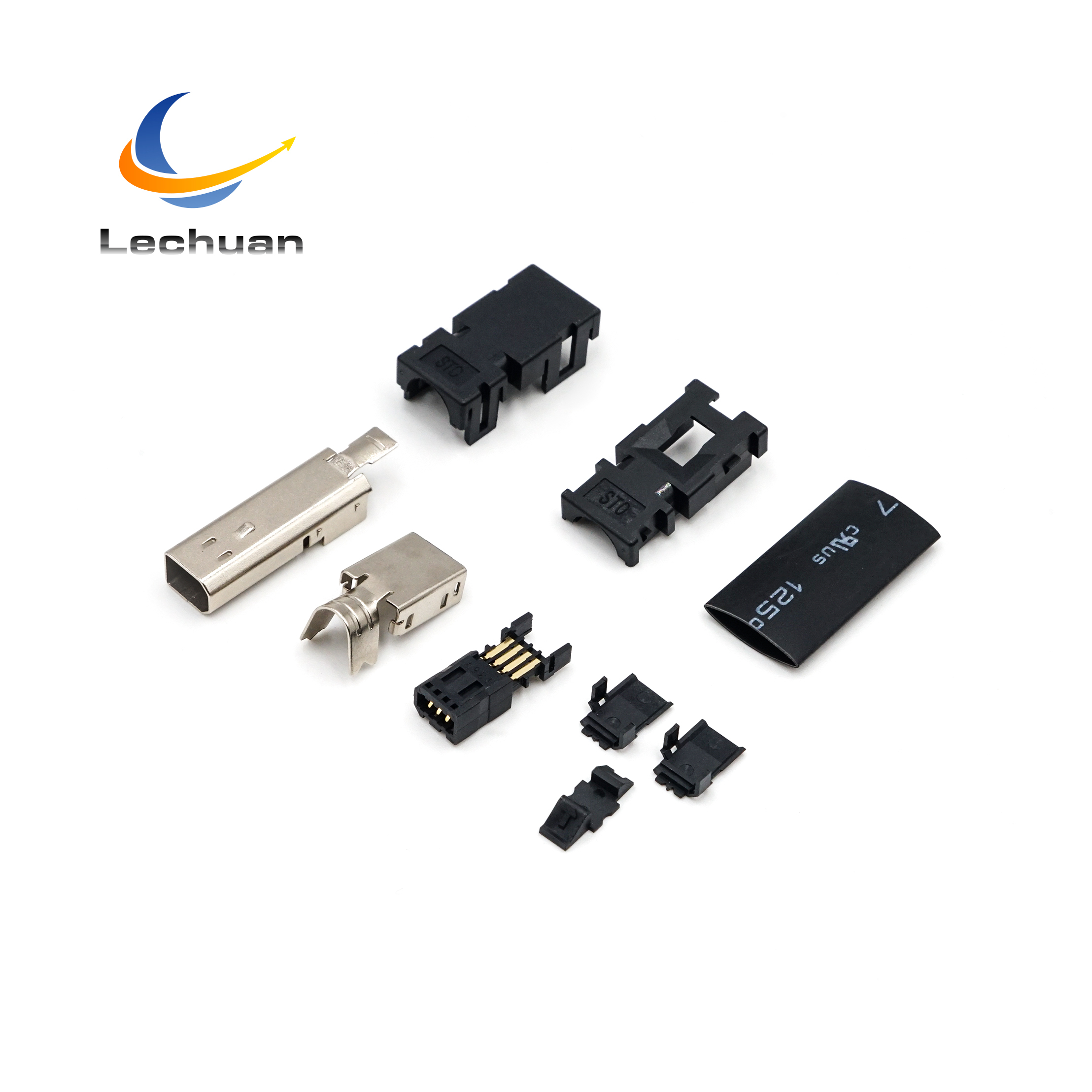

WHAT YOU GET
Plug housing sub assembly, copper alloy contacts, nickel and gold plated
Plug housing covers, 2 pcs, PBT UL94V-0
Top and bottom shell, 1 pc each: steel, copper and nickel plated
Lock ejector, 1 pc, PBT UL94V-0
Top and bottom cover, 1 pc each, PBT UL94V-0
Heat shrink tube, 1 pc, cross-linked polyolefin
WHY BUY IT
Shielded metal shell, steel with copper and nickel plating
8 positions with gold plated contact area
Keyed mating alignment to prevent wrong insertion
Metal covers for strain relief and shielding
Suits AWG30-26 8 core cable, up to AWG22 4 core
RoHS compliant
REPLACES / COMPATIBLE WITH
TE 2013595-1 Industrial Mini I/O plug kit, D-shape Type 1
Panasonic MINAS A5 and A6 servo drives, X3 safety function connector
Cable to board and cable to cable links

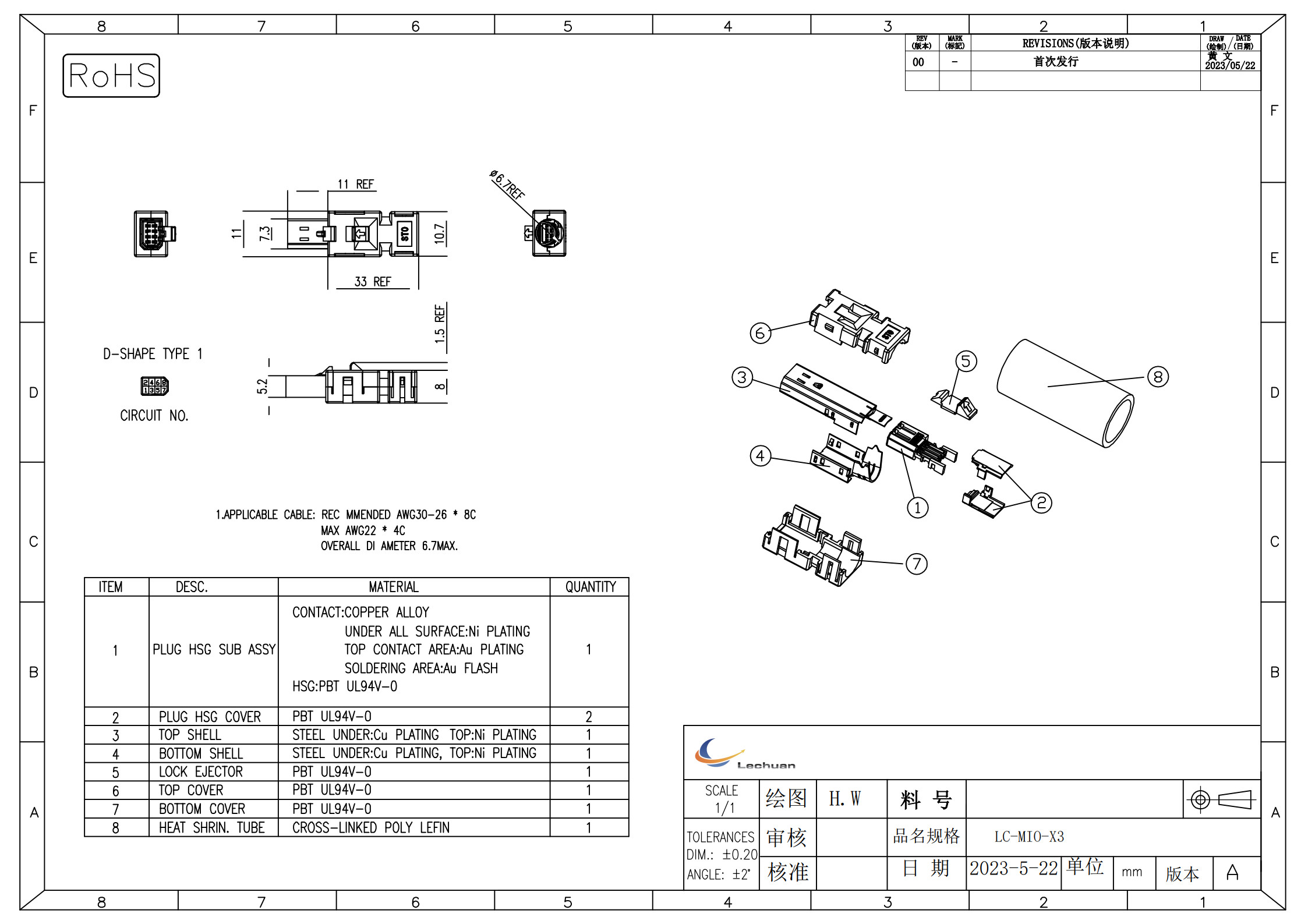

SPECIFICATION
Positions: 8
Contacts: copper alloy, nickel under plating, gold plated contact area
Shells: steel, copper under plating, nickel top plating
Housing, covers, lock ejector: PBT, UL94V-0
Cable: AWG30-26 x 8 core recommended;
AWG22 x 4 core max;
overall diameter 6.7 mm max
Size: 33 x 10.8 x 10.5 mm
Tolerance +/-0.20 mm
