Name: Factory 80Pin 1.27mm Copper Plastic Male Right Angle SCSI Mini D Ribbon MDR Plug 5175472-9 Board Connector PCB Application
Brand: lechuantech
SKU: 1601112456156
Price: 1.50 USD
Availability: InStock

Factory 80Pin 1.27mm Copper Plastic Male Right Angle SCSI Mini D Ribbon MDR Plug 5175472-9 Board Connector PCB Application

No.1601112456156

Color:

BTB-P-M-80P-RA

Pins:

80p

Description

Key attributes

Application

PCB

Type

Board to Board

Rated Current

1.5A

Rated Voltage

250 V

Contact Material

Copper

Housing Material

Nylon

Gender

Male

Shape

Rectangle

Model Number

BTB-P-M-80P-RA

Place of Origin

Zhejiang, China

Brand Name

Lechuan

Position

Housing

LCP UL 94V-0 Black

Contact

Phosphor Bronze

Boardlock

Brass

Mounting Orientation

Right Angle

Gender

Male/ Plug

Product name

Board to Board Connector

Packaging and delivery

Selling Units

Single item

Single package size

7X8X10 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

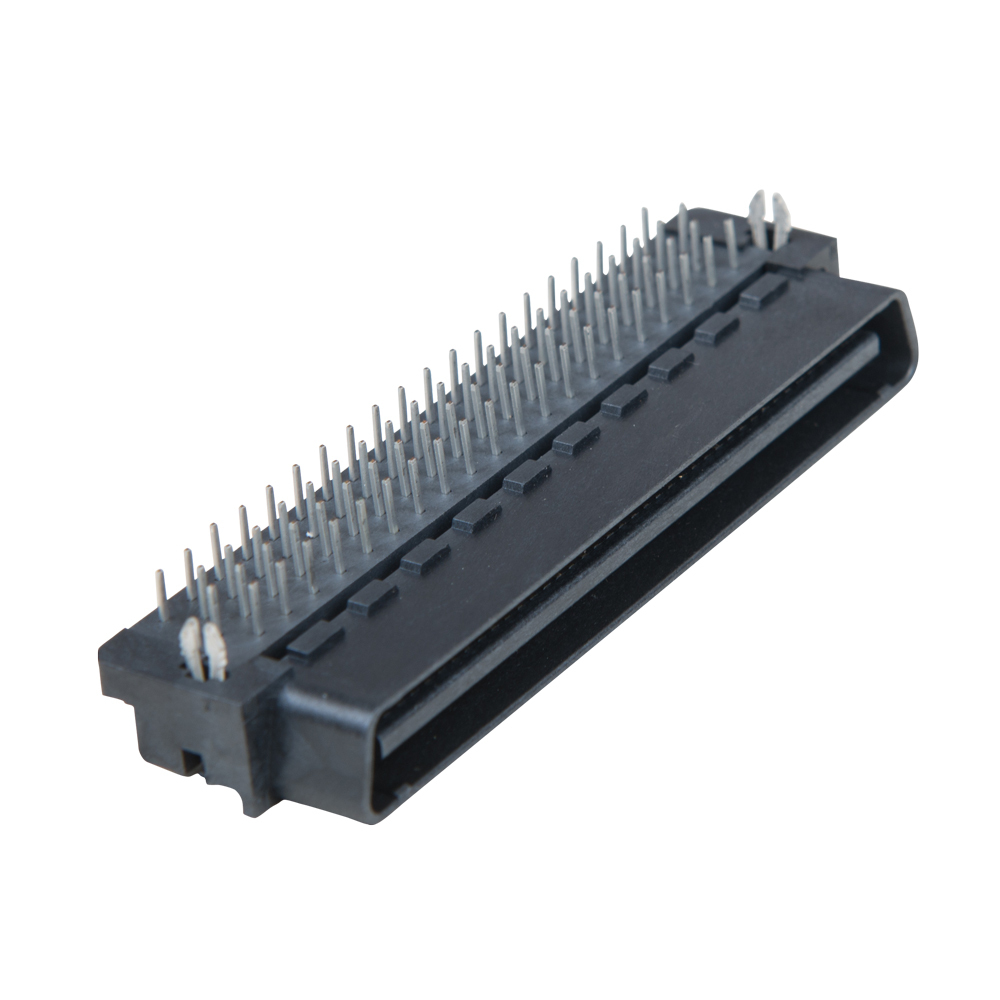

This 80 pin 1.27 mm plastic male right angle plug is a board to board connector designed as a drop-in replacement for TE / AMP (Tyco) 5175472-9 CHAMP .050 Series I PCB mount header. Right angle through hole solder tails, gold plated dual row contacts, fully shrouded housing.

Key Selling Points

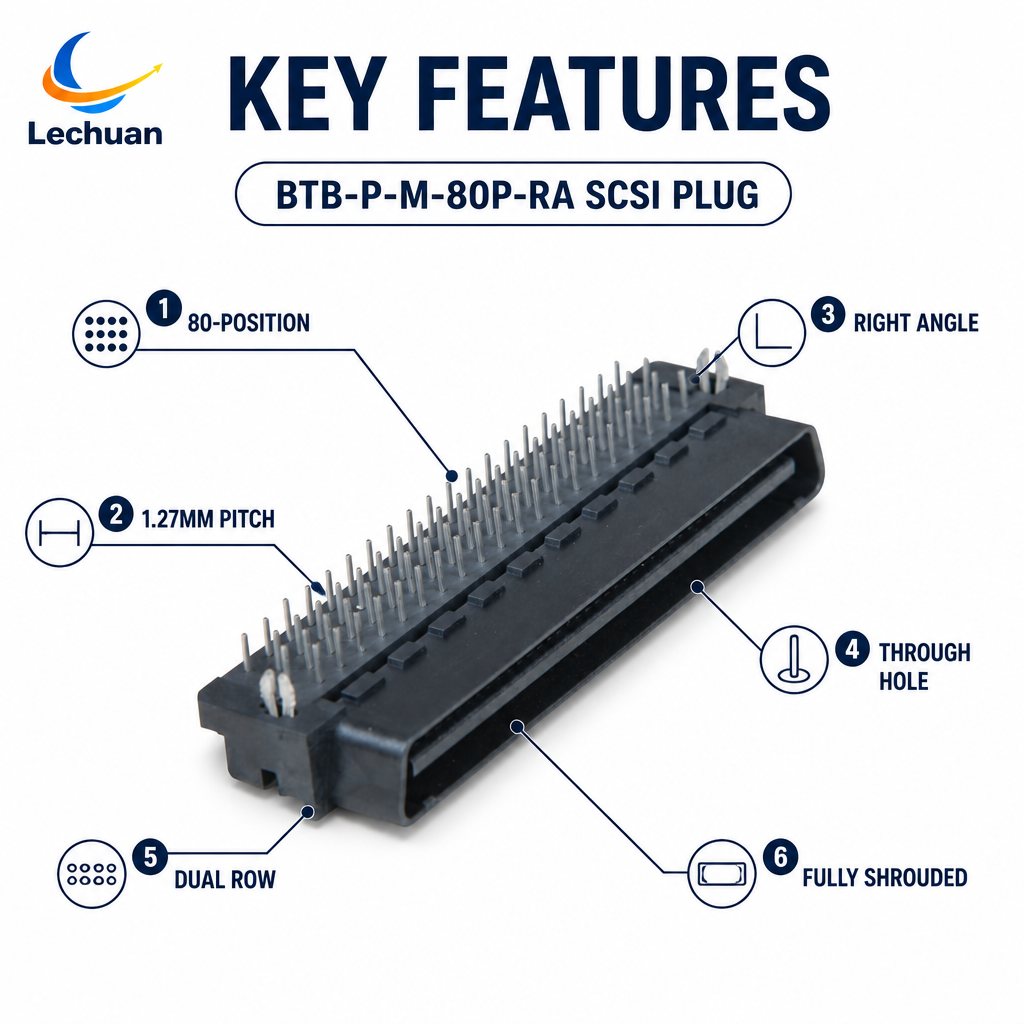

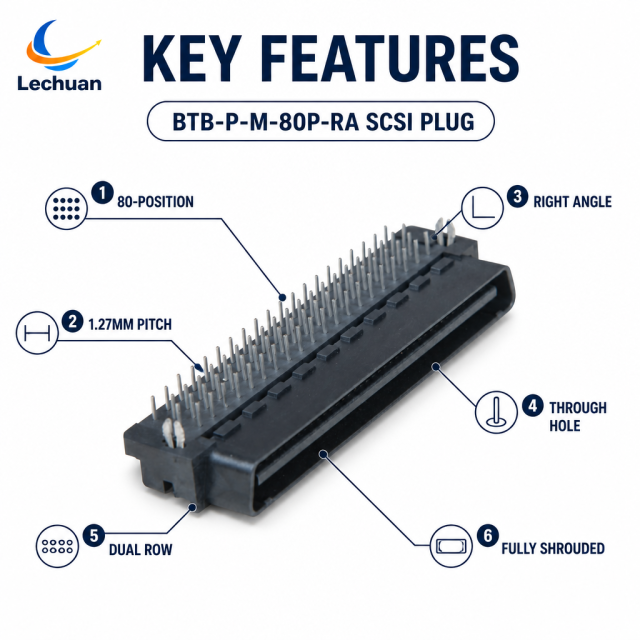

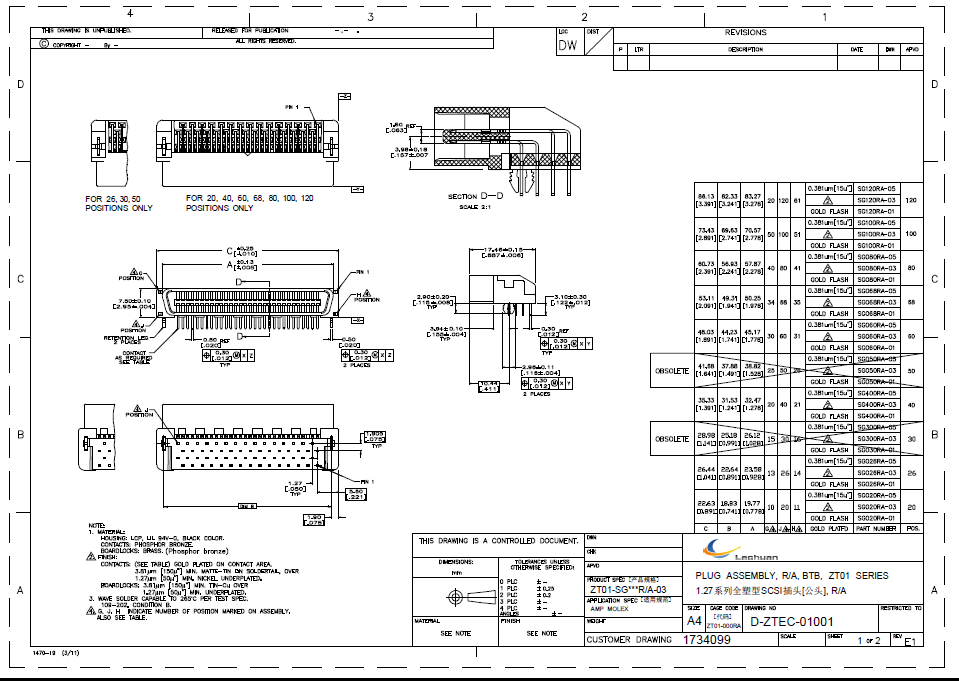

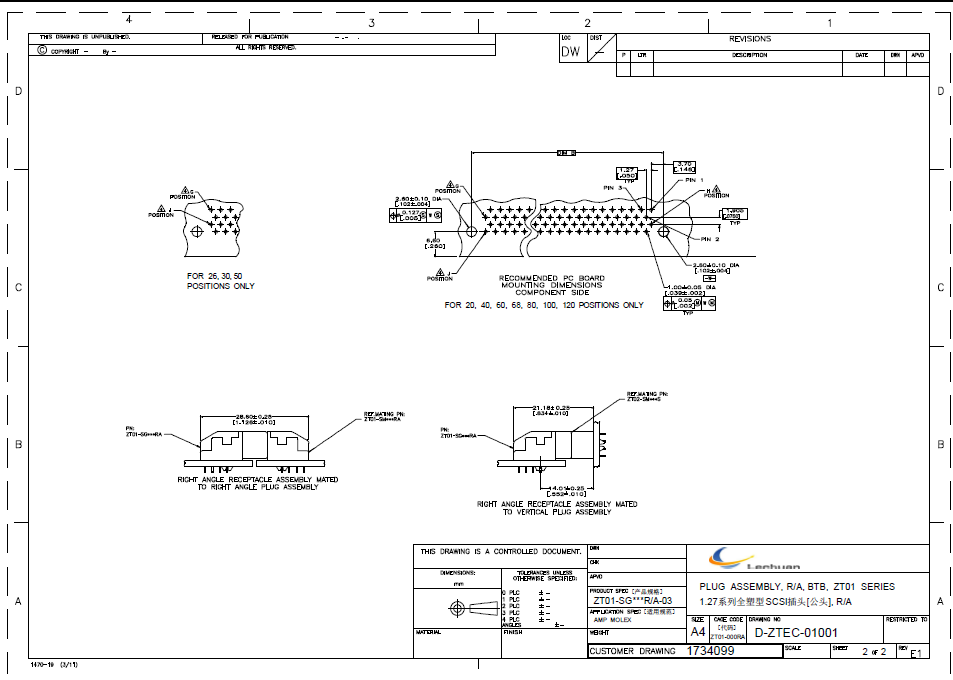

1. 1.27 mm High Density - 80 positions on 1.27 mm (0.050 in) centerline for high-density board to board connections.

2. Right Angle Through Hole - Right angle solder tails fit standard PCB layouts for compact board edge mounting.

3. Fully Shrouded - Shrouded housing protects pins and prevents mis-mating in dense layouts.

4. Gold Plated Contacts - Gold plated contacts ensure stable signal transmission and long mating life.

5. Dual Row Layout - Dual row high-density signal layout suits parallel bus and I/O interconnects.

6. Plastic Housing - Glass filled plastic housing provides mechanical strength and stable insulation.

7. Drop-in Replacement - Direct replacement for TE / AMP (Tyco) 5175472-9, same 80 pin 1.27 mm footprint and mounting.

8. B2B Customization - Custom plating, packaging and volume supply available; samples welcome.

Application Scenarios

Server and Storage Docking - Board to board docking between server blades, storage modules and backplanes in rack systems.

Telecom and Networking Equipment - Module to backplane connections in switches, routers and base station equipment.

Test and Measurement Instruments - Internal board interconnects in oscilloscopes, analyzers and bench instruments.

Industrial Control Systems - PLC, drive and control module interconnects in industrial automation cabinets.

Medical Equipment - Board to board connections in patient monitors, analyzers and imaging equipment.

SCSI and I/O Interfaces - High-density parallel I/O and SCSI style interfaces in peripheral and data equipment.
