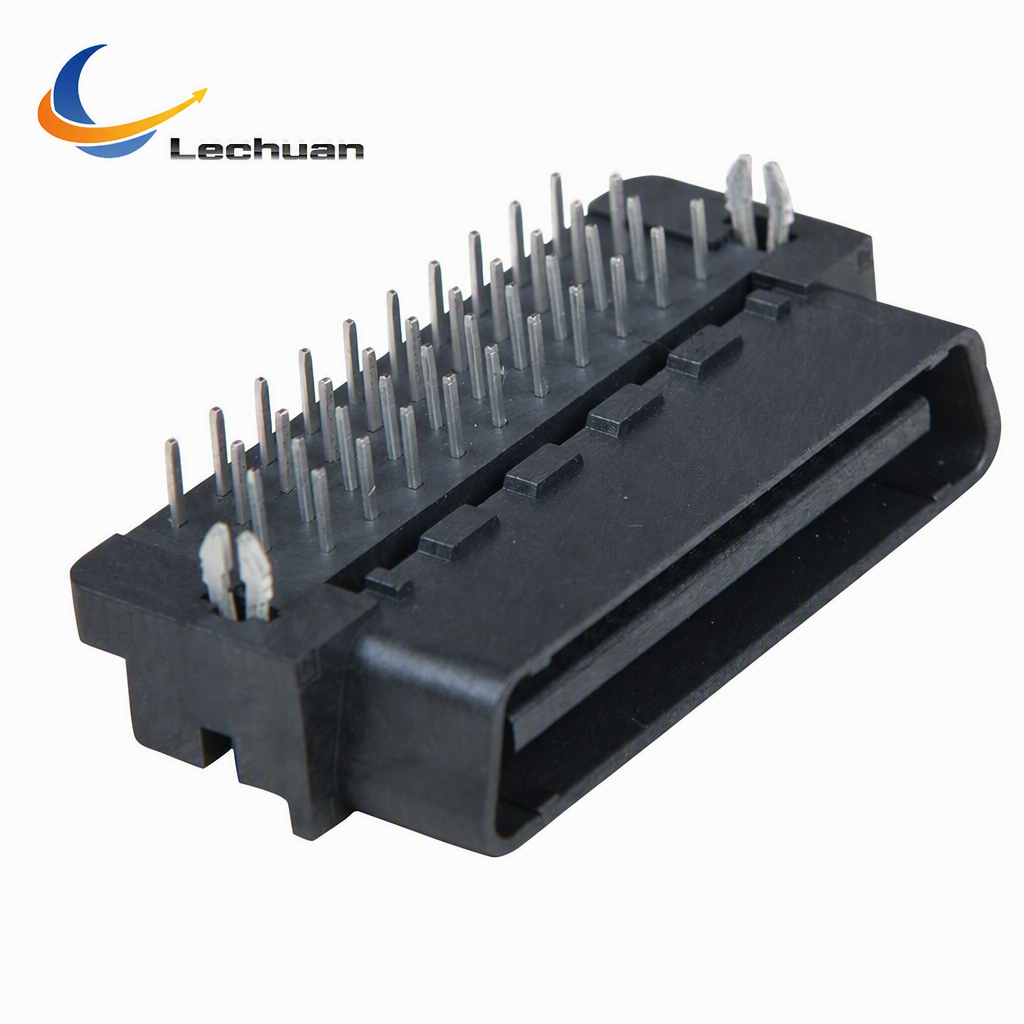

This 40 pin 1.27 mm plastic male right angle plug is a board to board connector designed as a drop-in replacement for TE 5175472-5 (CHAMP .050 Series I) and Molex 0716612040 (EBBI 50D). Through hole solder tails, gold plated dual row contacts, fully shrouded housing - ZT01 series full plastic SCSI plug.

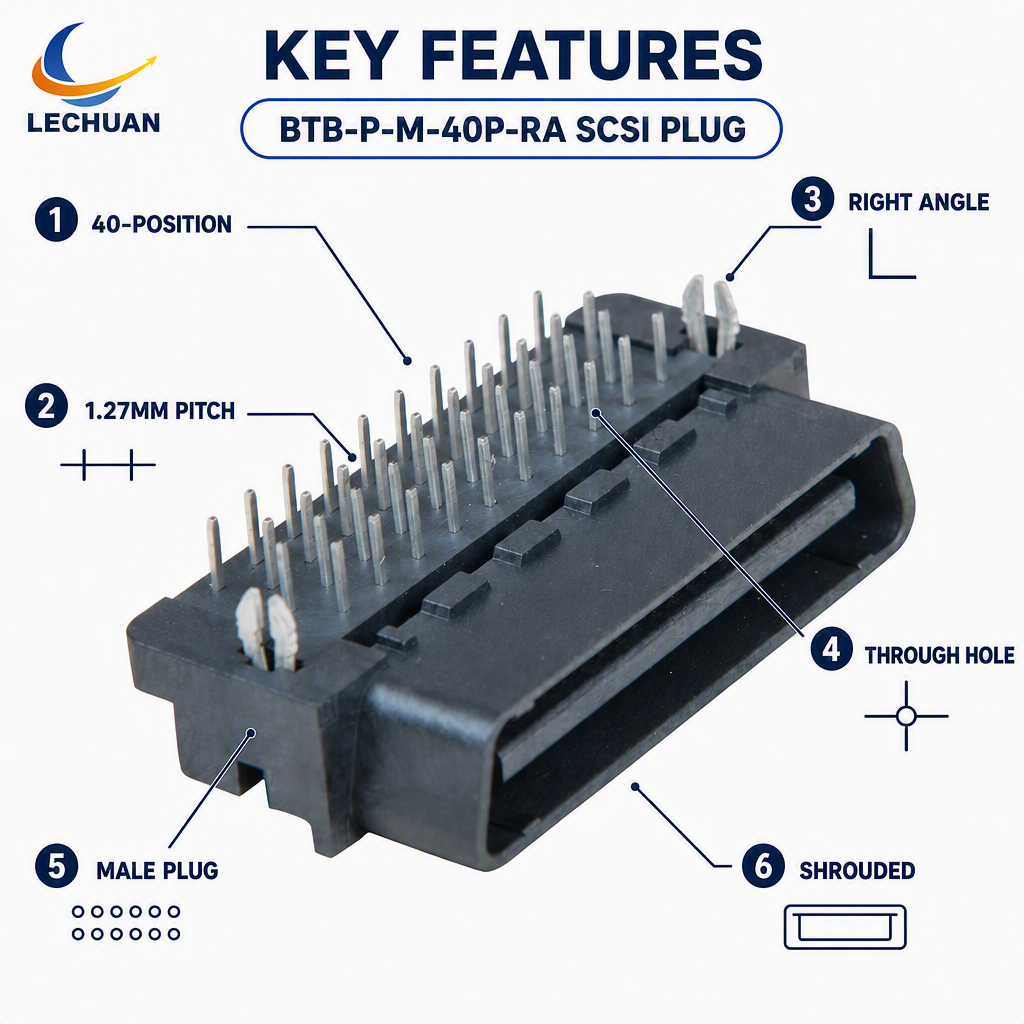

Key Selling Points
1. 1.27 mm High Density - 40 positions on 1.27 mm pitch for high-density board to board connections.
2. Right Angle Through Hole - Right angle solder tails fit standard PCB layouts for compact mounting.
3. Fully Shrouded - Shrouded housing protects pins and prevents mis-mating in dense layouts.
4. Gold Plated Contacts - Gold plated contacts ensure stable signal and long mating life.
5. Dual Row Layout - Dual row high-density signal layout for parallel bus and I/O.
6. Plastic Housing - Glass filled plastic housing for strength and insulation.
7. Drop-in Replacement - Direct replacement for TE 5175472-5 and Molex 0716612040, same 40 pin footprint.
Replaces or mates with 1.27 mm MDR / SCSI plug series from TE (CHAMP .050: 5175472-5 / 1734099), Molex (EBBI 50D: 0716612040 / 71661-2040) and 3M (MDR 101). Same 1.27 mm pitch and shrouded interface.
Certifications RoHS compliant; manufactured in an ISO 9001 certified facility.
Application Scenarios
Server and Storage Docking - Docking between server blades and backplanes.
Telecom and Networking - Module to backplane connections in switches and routers.
Test and Measurement - Internal board interconnects in analyzers and instruments.
Industrial Control Systems - PLC, drive and control module interconnects.
Medical Equipment - Board to board connections in monitors and imaging equipment.
SCSI and I/O Interfaces - High-density parallel I/O and SCSI interfaces in data equipment.
About this supplier
With over 20 years of deep industry experience, Cixi Lechuan is a diversified enterprise of industrial connectivity and electronic component solutions. Integrating manufacturing, sales, and comprehensive technical support. Our core expertise lies in the design, development, and production of high-performance industrial electrical connectors and electronic components.We serve Industries like, Industrial Automation Robotics,Energy Power Systems, Telecommunications and Security Surveillance Systems ect.At Lechuan, we are more than a manufacturer; we are a strategic partner dedicated to powering progress through superior connectivity.
Company overview
FAQs
Manufacturer or trading company? Where is the company located?
We have own factory in Ningbo Cixi which specializing in domestic supply, starting from, we set up the exporting department.
What parts can the company supply?

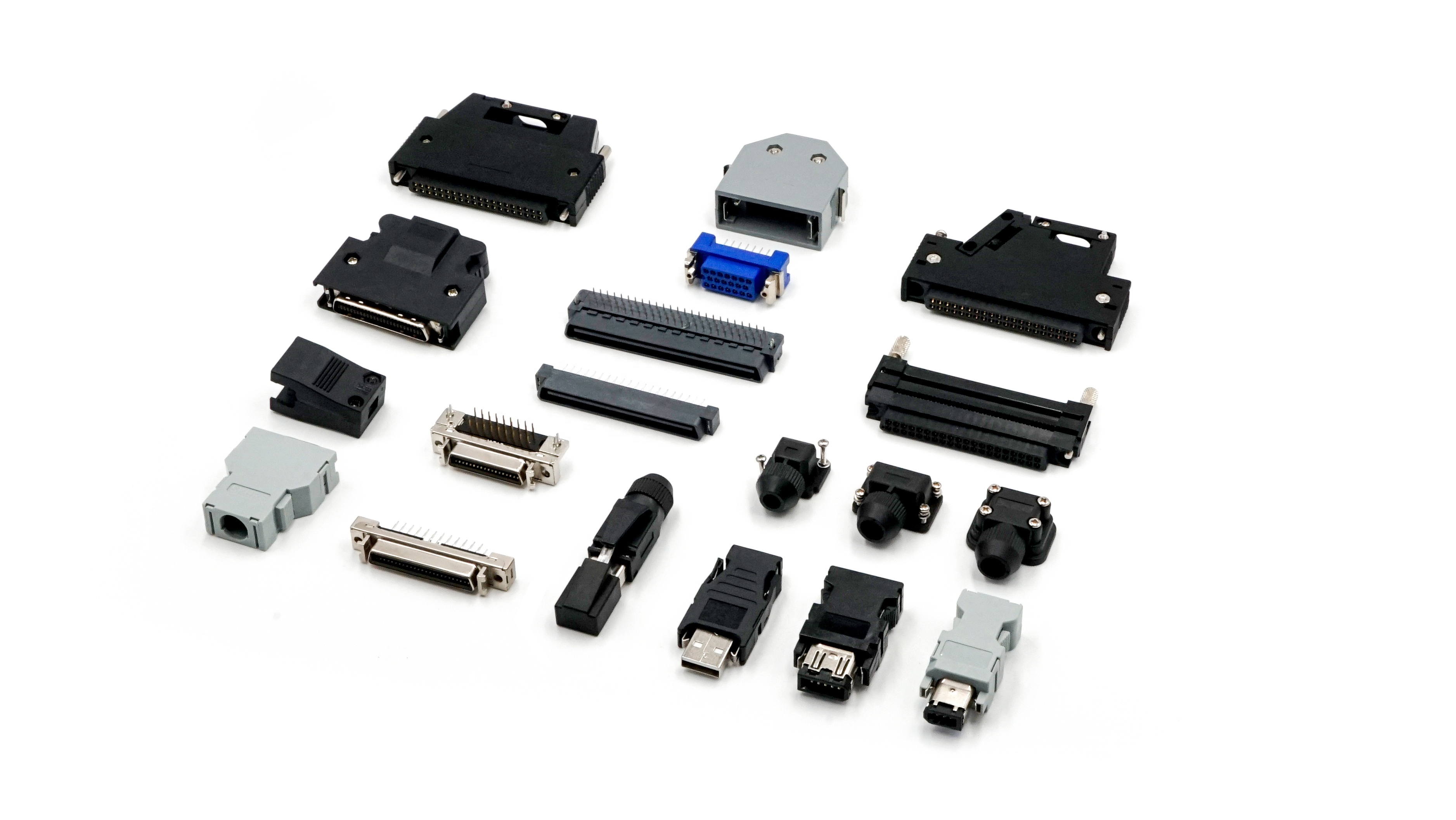

Our main products are: Industrial control connectors, military Circular connector, PCB board connectors and other electric components.
How long have you been involved in this market?
We have been in this market more then 20 years.
Does the product itself support OEM customization?
