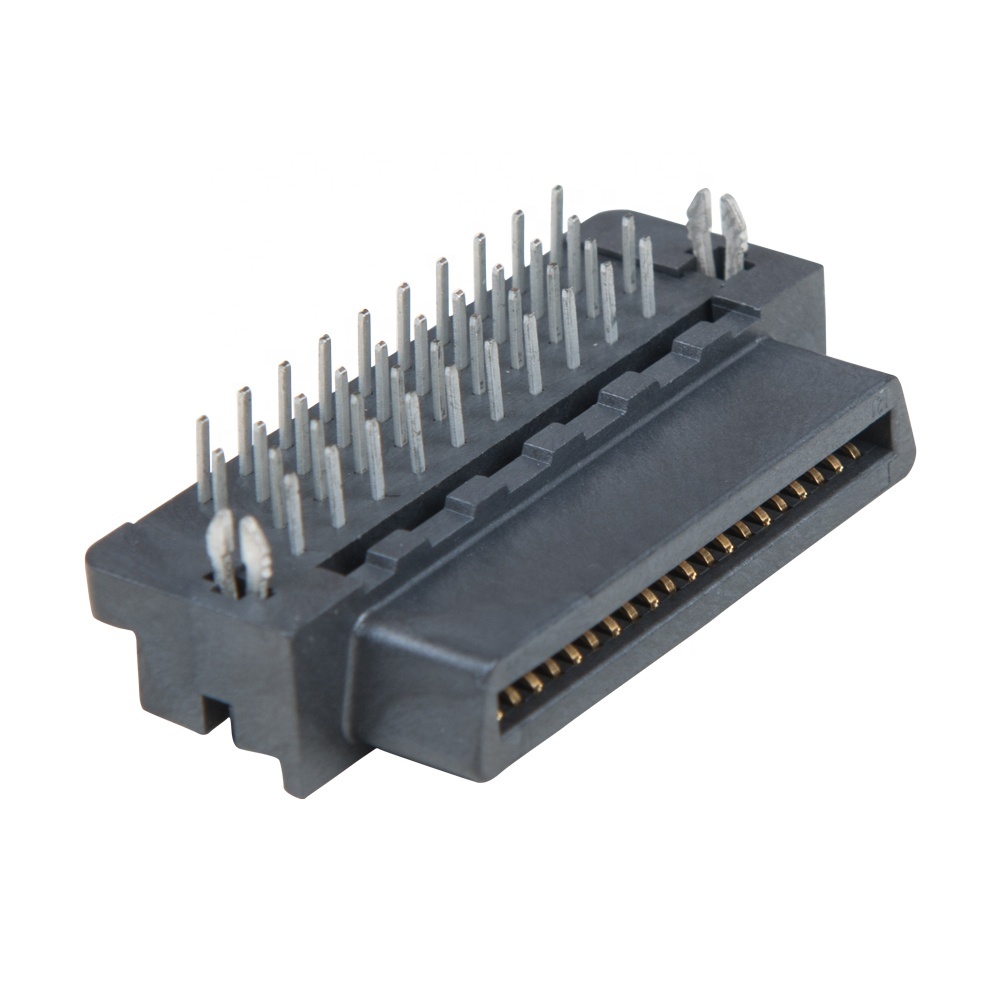

This 40 pin 1.27 mm plastic female right angle receptacle is a board to board connector designed as a drop-in replacement for TE / AMP (Tyco) 5175474-5 CHAMP .050 Series I PCB mount receptacle. Right angle through hole solder tails, gold plated dual row contacts, fully shrouded housing.

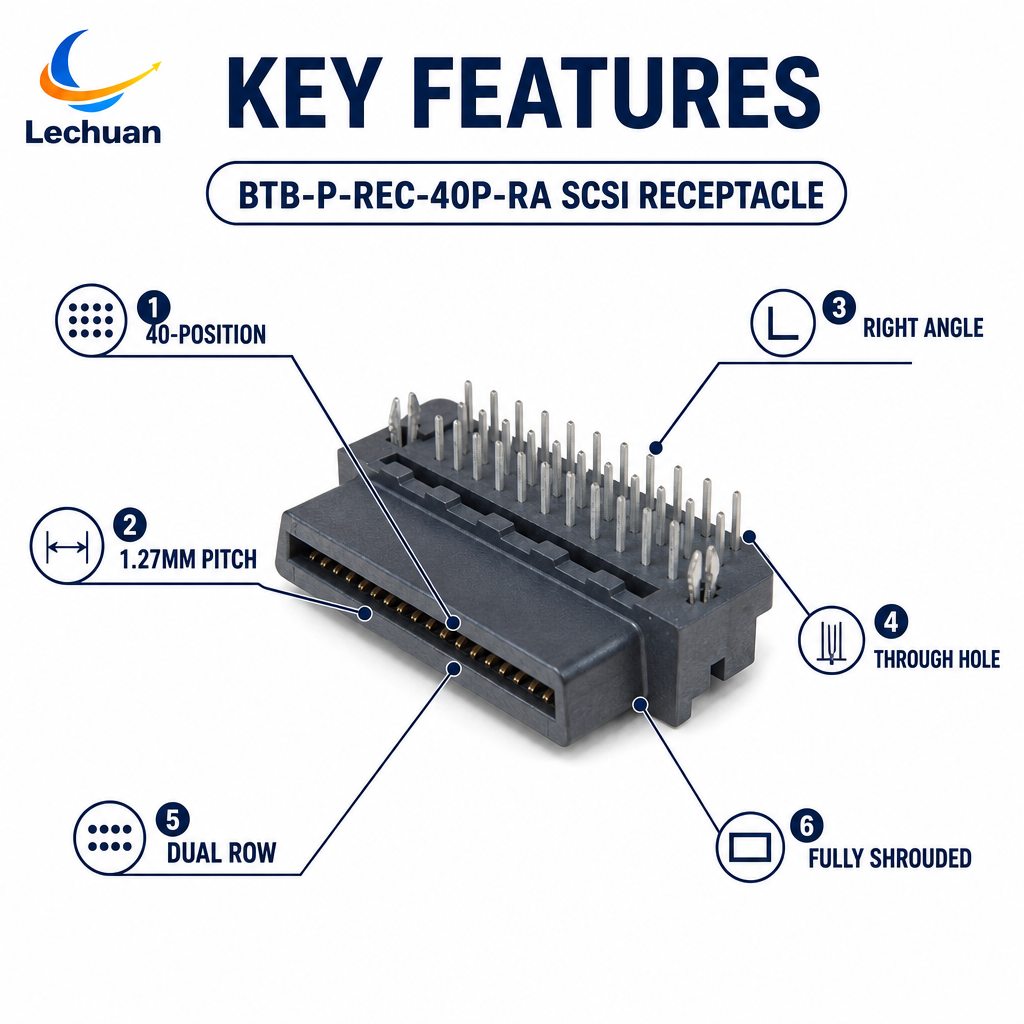

Key Selling Points
1. 1.27 mm High Density - 40 positions on 1.27 mm (0.050 in) centerline for high-density board to board connections.
2. Right Angle Through Hole - Right angle solder tails fit standard PCB layouts for compact board edge mounting.
3. Fully Shrouded - Shrouded housing protects contacts and prevents mis-mating in dense layouts.
4. Gold Plated Contacts - Gold plated contacts ensure stable signal transmission and long mating life.
5. Dual Row Layout - Dual row high-density signal layout suits parallel bus and I/O interconnects.
Server and Storage Docking - Board to board docking between server blades, storage modules and backplanes in rack systems.
Telecom and Networking Equipment - Module to backplane connections in switches, routers and base station equipment.
Test and Measurement Instruments - Internal board interconnects in oscilloscopes, analyzers and bench instruments.
Industrial Control Systems - PLC, drive and control module interconnects in industrial automation cabinets.
Medical Equipment - Board to board connections in patient monitors, analyzers and imaging equipment.
SCSI and I/O Interfaces - High-density parallel I/O and SCSI style interfaces in peripheral and data equipment.
About this supplier
With over 20 years of deep industry experience, Cixi Lechuan is a diversified enterprise of industrial connectivity and electronic component solutions. Integrating manufacturing, sales, and comprehensive technical support. Our core expertise lies in the design, development, and production of high-performance industrial electrical connectors and electronic components.We serve Industries like, Industrial Automation Robotics,Energy Power Systems, Telecommunications ,Military and Security Surveillance Systems ect.At Lechuan, we are more than a manufacturer; we are a strategic partner dedicated to powering progress through superior connectivity.
Company overview
FAQs
Manufacturer or trading company? Where is the company located?
We have own factory in Ningbo Cixi which specializing in domestic supply, starting from, we set up the exporting department.
What parts can the company supply?

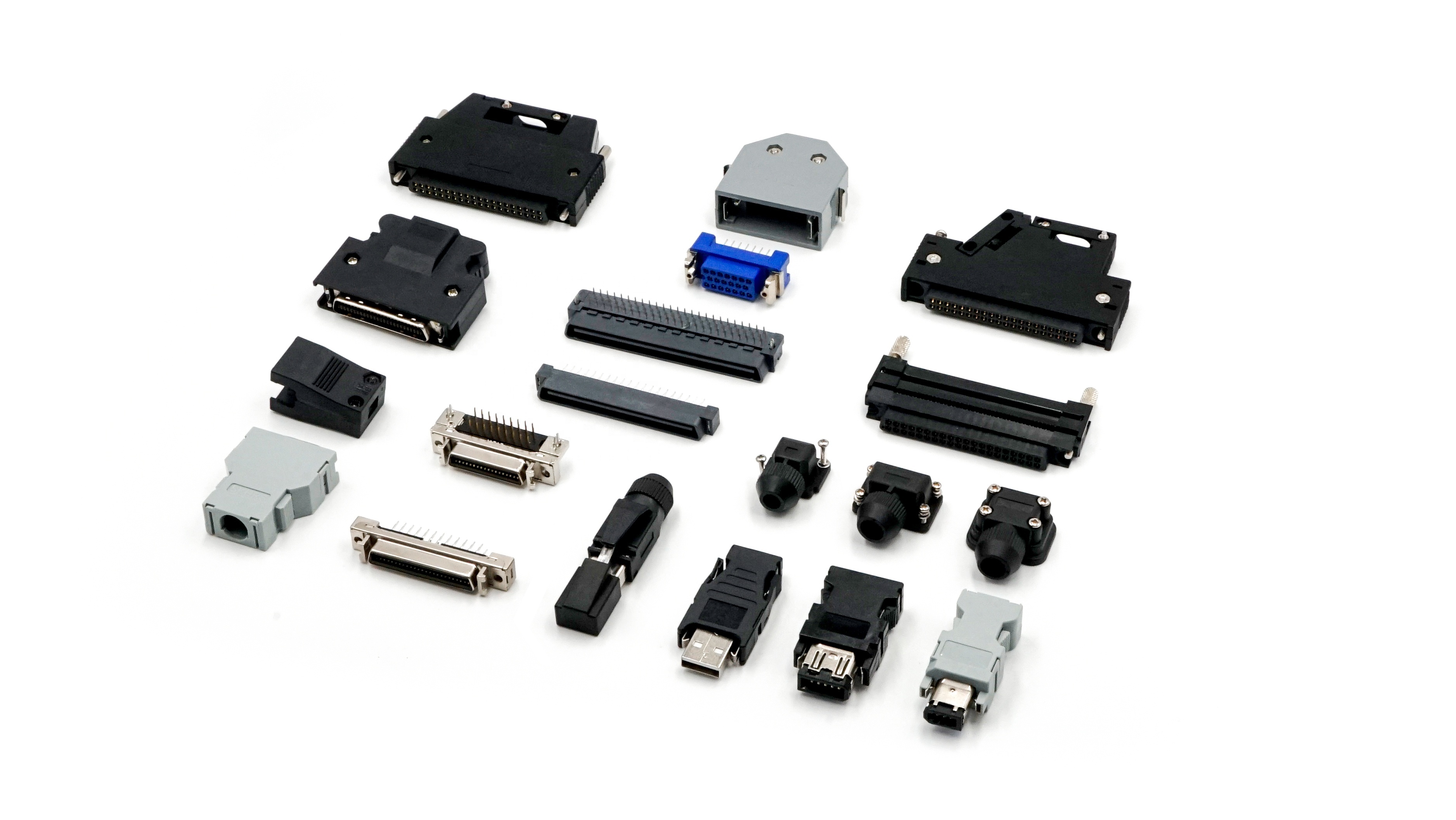

Our main products are: Industrial control connectors, military Circular connector, PCB board connectors and other electric components.
How long have you been involved in this market?
We have been in this market more then 20 years.
Does the product itself support OEM customization?
