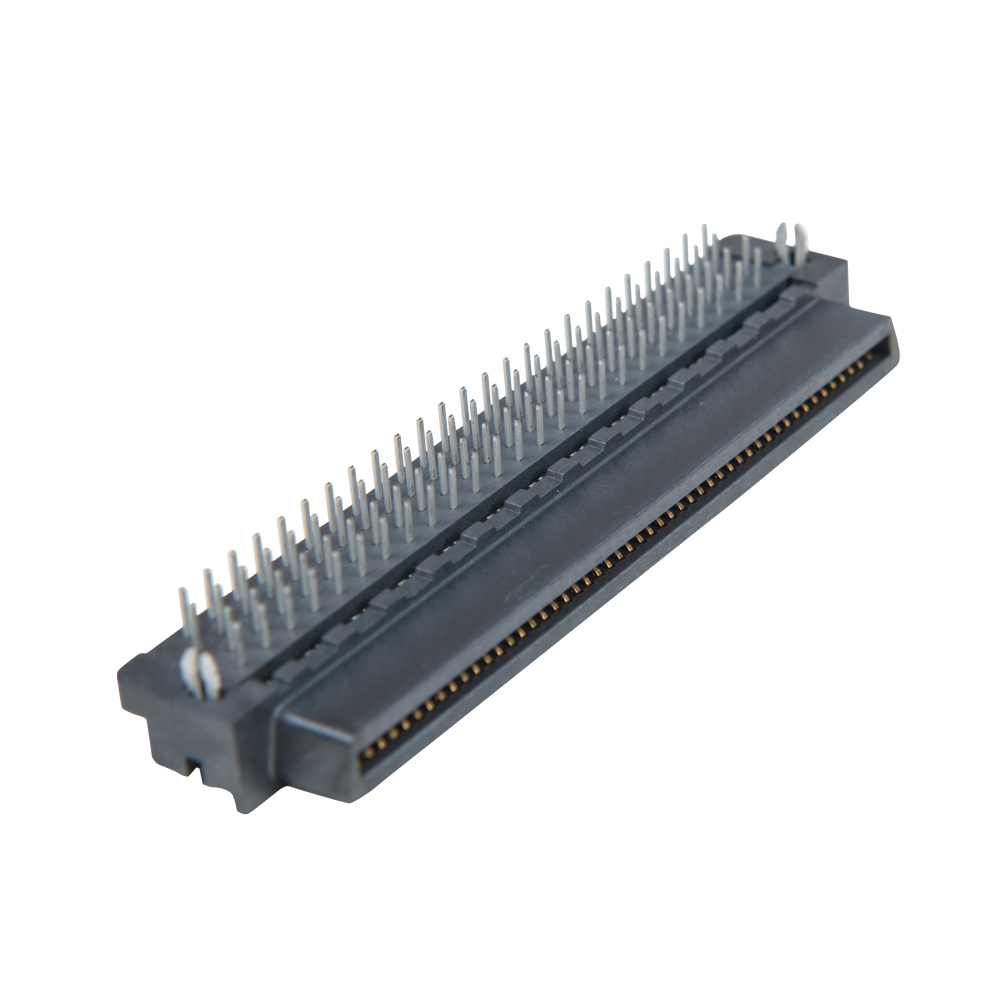

Name: Factory 100 Pin 1.27mm MDR SCSI Female Right Angle Receptacle 1-5175474-0 Board to Board Connector Server Storage Telecom
Brand: lechuantech
SKU: 1601124209188
Price: 1.00 USD
Availability: InStock

Factory 100 Pin 1.27mm MDR SCSI Female Right Angle Receptacle 1-5175474-0 Board to Board Connector Server Storage Telecom

No.1601124209188

Color:

BTB-P-REC-100P-RA

Pins:

100p

Description

Key attributes

Application

Power

Type

Board to Board

Rated Current

1.5A

Rated Voltage

250 V

Contact Material

Copper

Housing Material

Nylon

Gender

Female

Shape

Rectangle

Model Number

BTB-P-REC-100P-RA

Place of Origin

Zhejiang, China

Brand Name

Lechuan

Position

100

Housing

Plastic

Mounting Orientation

Right Angle

Connect style

Receptacle

Packaging and delivery

Selling Units

Single item

Single package size

7X8X10 cm

Single gross weight

1.0 kg

Product descriptions from the supplier

Report abuse

Highlights at a glance

Product Overview

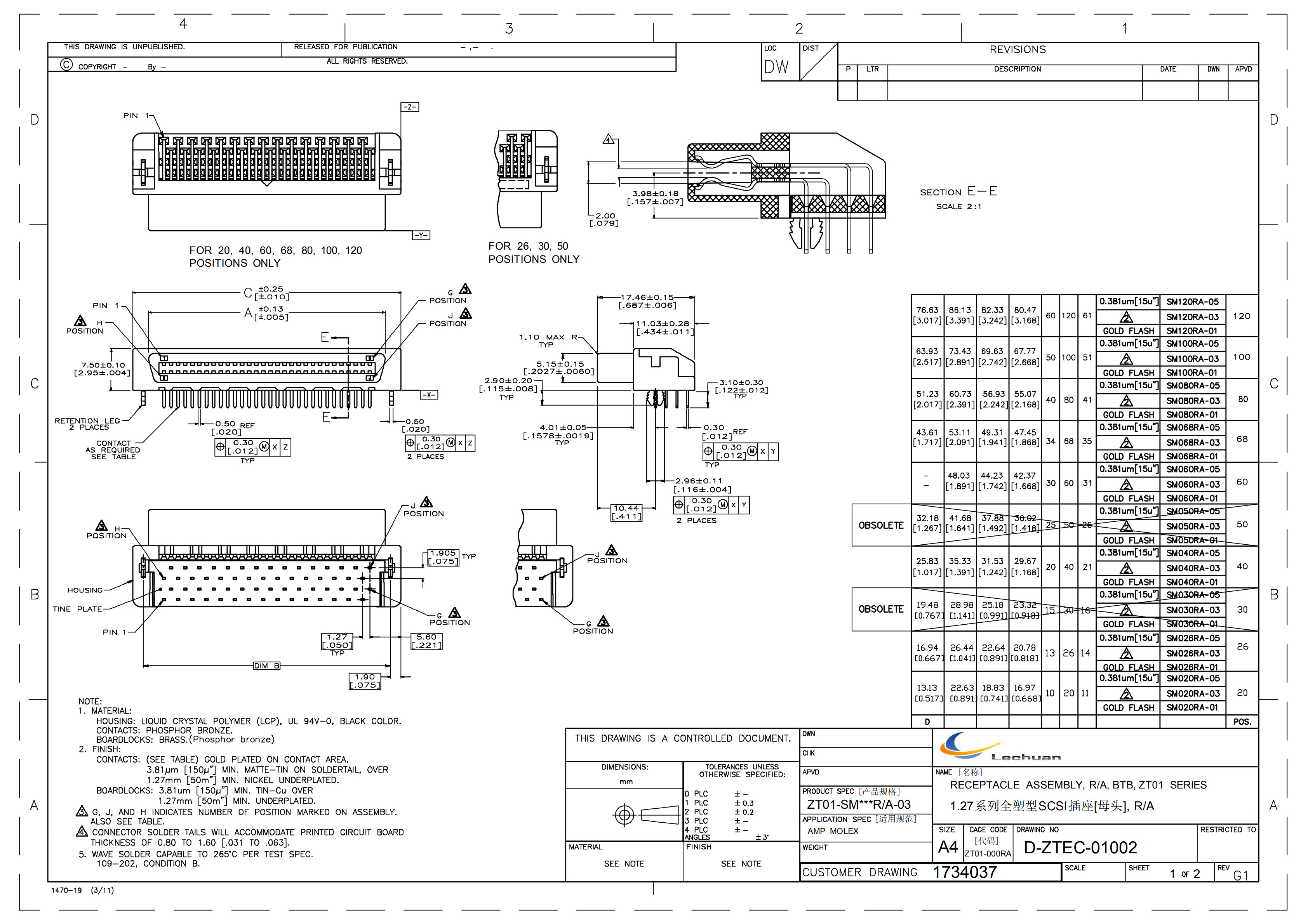

This 100 pin 1.27 mm plastic female right angle receptacle is a board to board connector designed as a drop-in replacement for TE 1-5175474-0 (CHAMP .050 Series I). Through hole solder tails, gold plated dual row contacts, fully shrouded housing - ZT01 series full plastic SCSI receptacle.

Key Selling Points

1. 1.27 mm High Density - 100 positions on 1.27 mm pitch for high-density board to board connections.

2. Right Angle Through Hole - Right angle solder tails fit standard PCB layouts for compact mounting.

3. Fully Shrouded - Shrouded housing protects contacts and prevents mis-mating in dense layouts.

4. Gold Plated Contacts - Gold plated contacts ensure stable signal and long mating life.

5. Dual Row Layout - Dual row high-density signal layout for parallel bus and I/O.

6. Plastic Housing - Glass filled plastic housing for strength and insulation.

7. Drop-in Replacement - Direct replacement for TE 1-5175474-0 (1734037 series), same 100 pin footprint.

8. B2B Customization - Custom plating, packaging and volume supply available; samples welcome.

Brand Compatibility

Replaces or mates with 1.27 mm MDR / SCSI receptacle series from TE (CHAMP .050: 1-5175474-0 / 1734037), Molex (EBBI 50D) and 3M (MDR 101). Same 1.27 mm pitch and shrouded interface.

Certifications RoHS compliant; manufactured in an ISO 9001 certified facility.

Application Scenarios

Server and Storage Docking - Docking between server blades and backplanes.

Telecom and Networking - Module to backplane connections in switches and routers.

Test and Measurement - Internal board interconnects in analyzers and instruments.

Industrial Control Systems - PLC, drive and control module interconnects.

Medical Equipment - Board to board connections in monitors and imaging equipment.

SCSI and I/O Interfaces - High-density parallel I/O and SCSI interfaces in data equipment.
